PGP620
Green Hydraulic
Yes
ISO9001，CE
• Industrial • Energy • Government (Non Aerospace) • HVAC • Mobile • Natural Resources • Transportation (Non Aerospace)
1.Construction Equipment 2.Agriculture 3.Material Handling 4.Marine 5.Industrial Machinery
Key Shaft and Spline shaft
1 set
Product Description

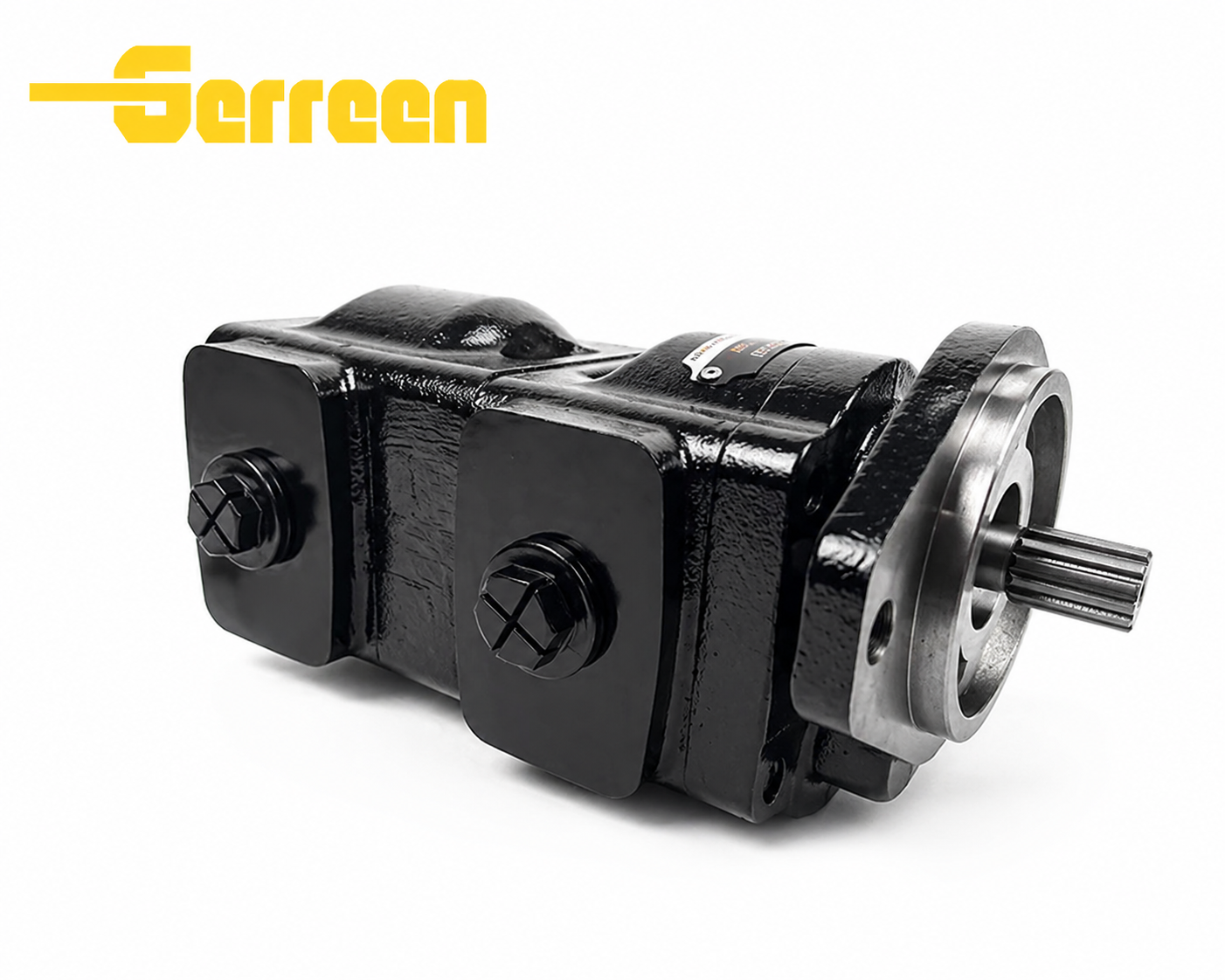

The PGP620 Hydraulic Gear Pump is a heavy-duty, high-flow external gear pump designed for demanding hydraulic systems requiring reliable performance under high pressure and continuous operation. With precision-engineered gears and a reinforced housing structure, it delivers stable flow, high efficiency, and exceptional durability.
High Flow Capacity
Designed for large displacement and high flow applications, ensuring powerful hydraulic output.
High Pressure Resistance
Stable operation under heavy-duty conditions with excellent pressure performance.
Heavy-Duty Construction
Reinforced cast housing provides superior durability and long service life.
Efficient and Stable Performance
Precision gear design ensures smooth flow and reduced energy loss.
Flexible Configuration Options

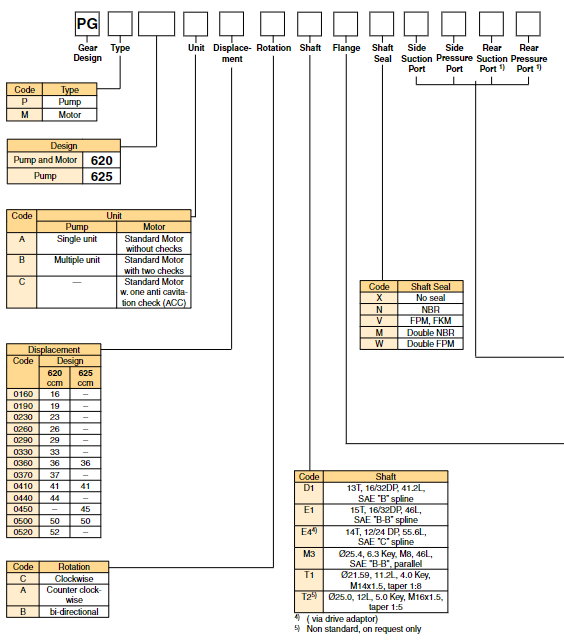

Multiple displacements, shaft types, and port configurations for easy system integration.
| Code | 0160 | 0190 | 0230 | 0260 | 0290 | 0330 | 0360 | 0370 | 0410 | 0440 | 0500 | 0520 |
| Displacement (cm³/rev) | 16 | 19 | 23 | 26 | 29 | 33 | 36 | 37 | 41 | 44 | 50 | 52 |
| Max. Continuous Pressure (bar) | 275 | 275 | 275 | 275 | 275 | 250 | 250 | 250 | 220 | 210 | 210 | 210 |
| Minimum Speed @ Max. Outlet Pressure (rpm) | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
| Maximum Speed @ Rated & Max. Outlet Pressure (rpm) | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3000 | 3000 | 3000 | 3000 |

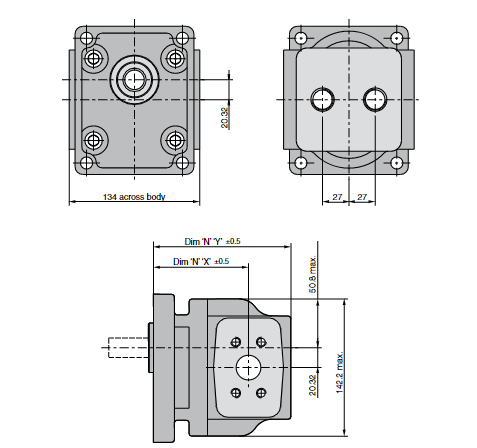

| Dimension “X” (mm) | 79.2 | 82.5 | 86.9 | 90.2 | 93.5 | 97.9 | 101.2 | 102.3 | 106.7 | 110 | 116.6 | 118.8 |
| Dimension “Y” (mm) | 122.7 | 126 | 130.4 | 133.7 | 137 | 141.4 | 144.7 | 145.8 | 150.2 | 153.5 | 160.1 | 162.3 |
| Approximate Weight (kg) | 12 | 12.1 | 12.2 | 12.3 | 12.6 | 12.7 | 12.8 | 12.9 | 13 | 13.1 | 13.3 | 13.4 |
Applications
Heavy Construction Equipment
Excavators, bulldozers, cranes, mining machinery
Agricultural Machinery
Large tractors, harvesters, forestry equipment
Material Handling Equipment
Heavy forklifts, lifting systems, logistics machinery
Industrial Machinery
Hydraulic presses, steel processing equipment, production lines
Mobile Hydraulic Systems
Dump trucks, special vehicles, transport equipment
PGP620 Hydraulic Gear Pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
Its high flow capacity and heavy-duty performance make it ideal for large hydraulic systems.
Typically up to 250 bar, with peak pressure depending on configuration.
Yes, it is commonly used as a replacement for Parker PGP620 series, offering similar performance.
It is widely used in construction, mining, agriculture, and heavy industrial equipment.
We support OEM customization, including displacement, shaft type, mounting, and port configurations.
Use clean oil, maintain filtration (≤25 μm), avoid overload, and ensure proper installation.
Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
The PGP620 pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
