CB-E210
Green Hydraulic
CB-E210
Standard export carton/plywood case
Yes
ISO9001，CE
• Industrial • Energy • Government (Non Aerospace) • HVAC • Mobile • Natural Resources • Transportation (Non Aerospace)
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
Key Shaft and Spline shaft
1 set
Product Description
High-Strength Cast Iron Housing:
The CB-E210 is built with a premium cast iron body, offering exceptional structural rigidity and resistance to "body stretching" compared to aluminum pumps. This robust design ensures tight internal clearances are maintained even under high-pressure cycles, significantly extending the service life in grueling work environments.
Floating Bushing Design for High Efficiency:
Utilizing a high-performance floating axial compensation bushing design, the CB-E210 automatically adjusts clearances to minimize internal leakage. This ensures high volumetric efficiency and consistent power delivery throughout the pump's lifecycle, even as components experience natural wear.
Enhanced Wear Resistance:
Equipped with precision-ground, high-alloy steel gears and specially treated wear plates, the CB-E210 excels in maintaining performance when dealing with mechanical fatigue and thermal stress. This design is inherently more tolerant of the variable conditions often found in outdoor field applications.
Reliable High-Pressure Output:
The CB-E210 is engineered to handle continuous operating pressures of up to 20 MPa (2,900 psi) with peak pressures reaching 25 MPa (3,625 psi). This makes it a dependable power source for driving heavy actuators, hydraulic cylinders, and complex steering systems.
Universal Mounting and Installation:

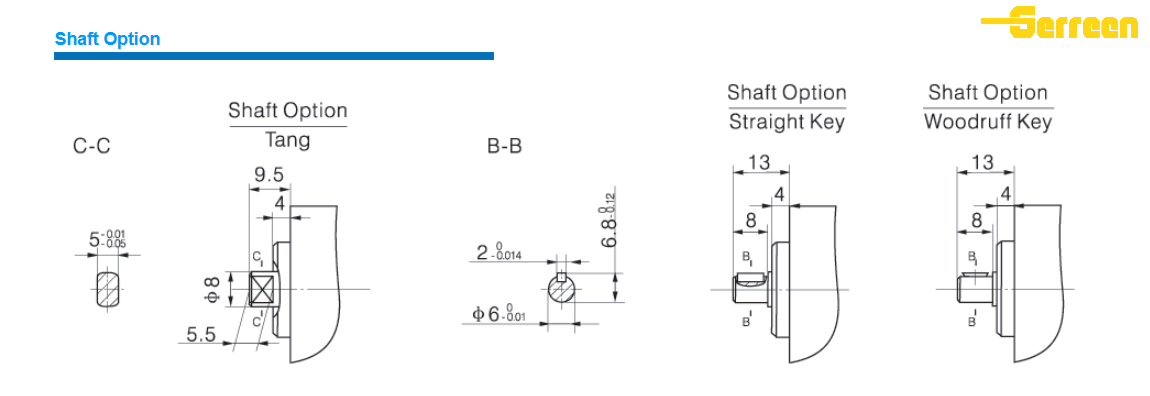

The CB-E210 series supports standard mounting configurations common in the industry, including various shaft options (keyed, splined, or tapered) and porting styles (flange or thread). Its standardized footprint allows for easy integration into a wide range of mobile and stationary hydraulic power units.
| Model | Displacement | pressure (MPa) | Speed (RPM) | Dimension | Efficiency | ||
| mL/r(in3/r) | P1 | P2 | P3 | L(mm) | |||
| CB-E0.26*** | 0.27 (0.0165) | 16 | 18 | 20 | 3000 | 61.2 | 82% |
| CB-E0.32*** | 0.33 (0.0201) | 61.7 | |||||
| CB-E0.38*** | 0.39 (0.0238) | 62.2 | |||||
| CB-E0.5*** | 0.49 (0.0299) | 63 | 85% | ||||
| CB-E0.6*** | 0.61 (0.037) | 64 | |||||
| CB-E0.63*** | 0.64 (0.039) | 64.2 | |||||
| CB-E0.75*** | 0.76 (0.046) | 65.2 | 86% | ||||
| CB-E0.88*** | 0.88 (0.0537) | 66.2 | |||||
| CB-E1.00*** | 1.00 (0.061) | 67.2 | |||||
| CB-E1.25*** | 1.25 (0.0763) | 69.2 | |||||
| CB-E1.5*** | 1.54(0.094) | 71.5 | |||||
| CB-E1.9*** | 1.91(0.1165) | 12 | 14 | 16 | 74.5 | 88% | |
Applications
Agricultural Machinery: A primary choice for tractors, combine harvesters, and grain handling equipment, providing reliable power for lifting and implement control.
Construction & Engineering: Widely used in small excavators, road rollers, and loaders to drive auxiliary hydraulic circuits and steering functions.
Material Handling: Ideal for forklifts, tail lifts, and hydraulic presses, offering a durable and stable power source for heavy lifting operations.
Mining & Environmental Equipment: Frequently employed in garbage compactors and small mining machinery where the cast iron construction resists the abrasive and corrosive nature of the environment.
CB-E210 pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
The CB-E210 is a high-pressure, fixed-displacement bushing-style gear pump. Featuring a rugged cast iron construction, it is specifically engineered for heavy-duty hydraulic systems that require high structural integrity and reliable power output, particularly in agricultural and construction machinery.
Rugged Cast Iron Housing: Unlike aluminum pumps that can suffer from "body stretching" at high pressures, the CB-E210’s cast iron frame ensures tight internal clearances and a longer service life under high-pressure duty cycles.
Bushing-Style Performance: It utilizes advanced, pressure-balanced floating bushings that provide a superior bearing surface for the gears, offering greater resistance to thermal shock and fluid contamination than typical aluminum-body pumps.
High Volumetric Efficiency: The sophisticated axial compensation design maintains high efficiency even after long periods of operation in harsh conditions.
Nominal Pressure: 20 MPa (200 bar / 2,900 PSI).
Max/Peak Pressure: Up to 25 MPa (250 bar / 3,625 PSI).
This robust pressure rating makes the CB-E210 ideal for driving heavy-duty lifting and steering systems on engineering vehicles.
Shimadzu: SGP1 Series.
Kayaba (KYB): KRP4 Series.
Other Chinese Standard: CBW or CB-B series upgrades.
To ensure a successful swap, verify the Mounting Flange, Shaft Type (Keyed or Splined), and Displacement (10 cc/rev for the 210 model) to match your existing system.
Oil Type: Premium mineral-based hydraulic fluids with strong Anti-Wear (AW) additive packages.
Viscosity: Standard ISO VG32 to VG68. The optimal operating range is 20 to 100 cSt for peak performance.
Filtration: Cleanliness is vital for bushing lubrication. A filtration accuracy of 25μm or better is recommended to prevent abrasive particles from damaging the internal components.
Minimum Speed: 600 RPM.
Maximum Speed: Up to 3,000 RPM (standard rating is typically 2,000 - 2,500 RPM).
Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
CB-E210 pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
