XPi Series Pump XPi12/18/25/32/41/50/63/80/108/130 OVERVIEW

Features and Benefits

Specifications XPi Series Pump XPi12/18/25/32/41/50/63/80/108/130

Applications

Packaging & Delivery

XPi Series Pump XPi12/18/25/32/41/50/63/80/108/130 are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

XPi Series Pump XPi12/18/25/32/41/50/63/80/108/130 FAQ:

1. What is the XPi Series Pump XPi12/18/25/32/41/50/63/80/108/130 ?

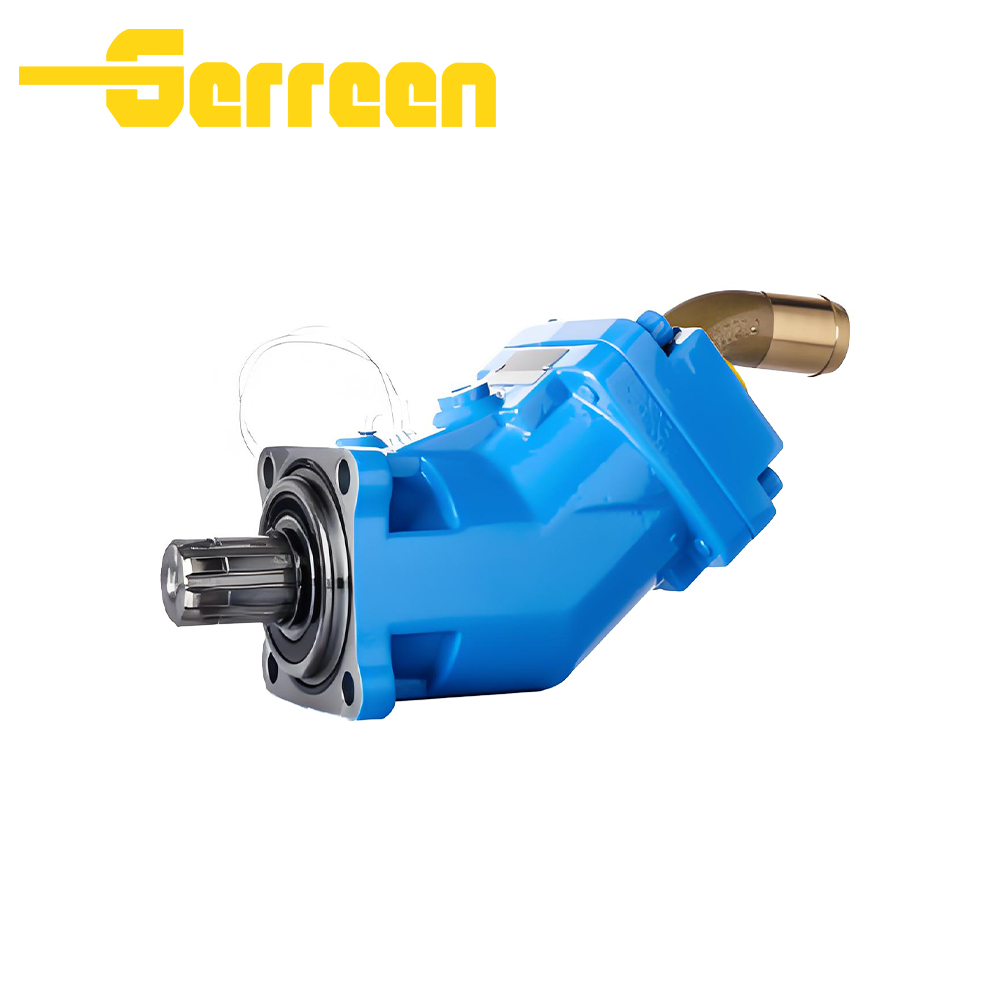

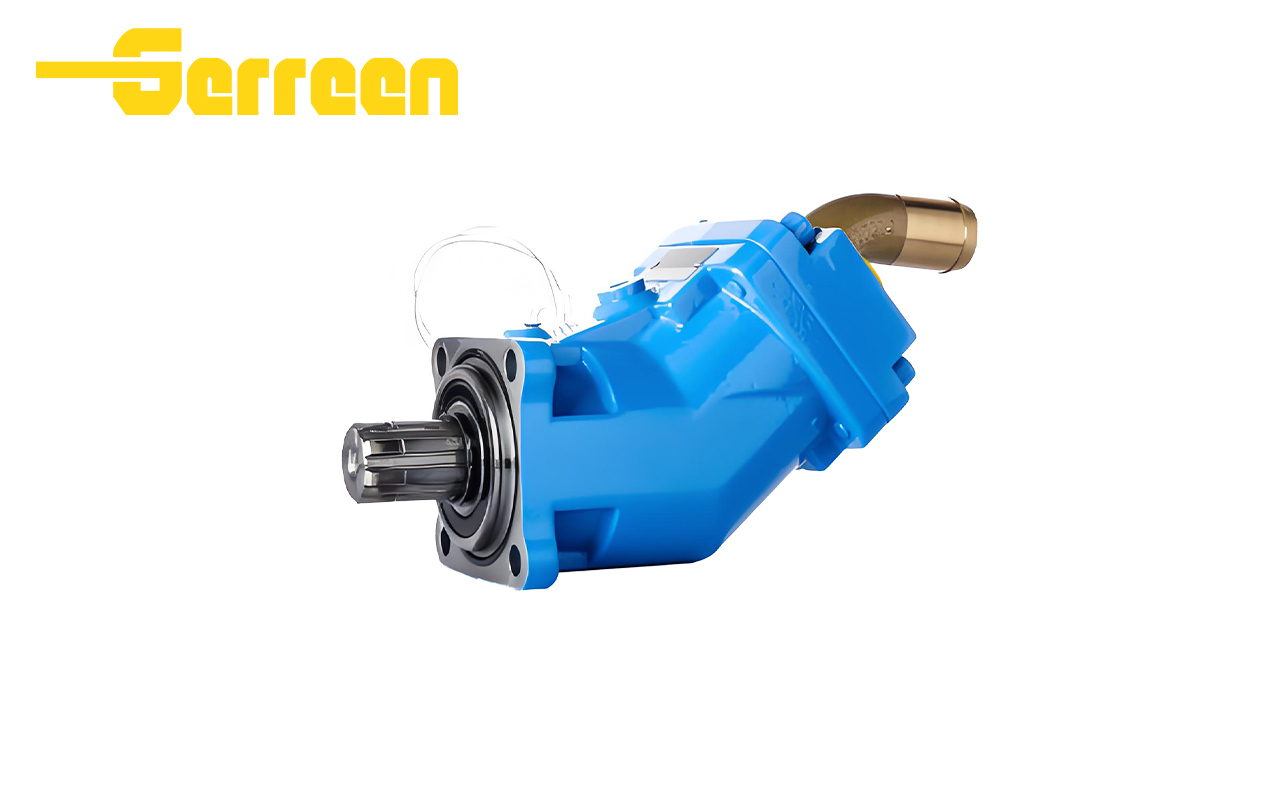

XPi series pumps are bent-axis fixed displacement piston pumps originally developed by French brand HYDRO LEDUC, specially engineered for truck PTO hydraulic lifting systems.

This product line covers ten displacement options: XPi12, XPi18, XPi25, XPi32, XPi41, XPi50, XPi63, XPi80, XPi108, XPi130 cc/rev. It adopts a 7-piston layout for smooth oil output, with a rated continuous pressure of 380 bar and instantaneous peak pressure up to 420 bar. Equipped with a built-in overflow safety valve and independent drain pipeline, it supports bidirectional rotation only by adjusting the oil inlet connector without pump modification. Featuring compact DIN standard installation structure, strong anti-pollution ability and reinforced sealing, it acts as the core hydraulic power source for dump trucks, sanitation vehicles, truck-mounted cranes and other mobile vehicle hydraulic equipment. Domestic replacement pumps can be fully interchanged with original HYDRO LEDUC pumps, and customized services including OEM logos and parameters are available.

2. What makes the XPi Series Pump XPi12/18/25/32/41/50/63/80/108/130 ?

The XPi series is built around a mature bent-axis seven-spherical piston structure, delivering steady flow output with low pulsation even under long-duration high-speed operation.An integrated built-in relief valve plus separate drain line offers direct overload protection for vehicle hydraulic circuits to prevent pipe bursts. Its spherical piston friction pair delivers outstanding contamination resistance, adapting well to the inferior oil conditions of commercial vehicle hydraulic systems for extended service life.It supports bidirectional rotation simply by repositioning the inlet fitting without mechanical modification to the pump body. DIN standard flange and spline shaft enable direct mounting on truck power take-offs with compact layout. Reinforced sealing structure effectively resists oil leakage under frequent impact loads from lifting operations. All internal core wearing parts are fully interchangeable with original Hydro Leduc components for convenient aftermarket maintenance.

3. What is the working pressure range of XPi Series Pump XPi12/18/25/32/41/50/63/80/108/130 ?

Long-term continuous operating pressure: 0 ~ 380 bar (0 ~ 5511 psi), this is the safe working pressure for regular long-time operation.

Maximum instantaneous peak pressure: 420 bar (6092 psi), only permitted for brief momentary pressure surges instead of sustained use.
All models (XPi12 through XPi130) adopt this identical pressure specification.

4. Can XPi Series Pump XPi12/18/25/32/41/50/63/80/108/130 replace other brands?

7. How can I get a quotation quickly

Please provide the following details:

• Model or displacement

• Working pressure

• Speed

• Quantity
  We will reply within 12 hours with a competitive quotation.




Certifications & Quality Assurance

XPi Series Pump XPi12/18/25/32/41/50/63/80/108/130 are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.

FAQ

1.What's our advantages?

Factory established in 2005;

With a great deal of production experience;

80+ employees become the professional team;

Constant updated ERP system ensure efficiency of work;

Sophisticated equipment ehanced the accuracy of products;

Professional salesmen provide the greast service;

With a large number of famous customers all over the world;

Great after-sales service;

With the long term cooperation with famous logistics and express company in China,provide the better goods service.

2.What is your payment terms?

Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.

3.Can you make my own brand on the products?

Of course we can. Just send me your logo  we can make it for you.

4.What is our main export market?

America(40.5%):USA, Canada, Argentina, Brazil

Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.

Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.

Others(5.8%).
