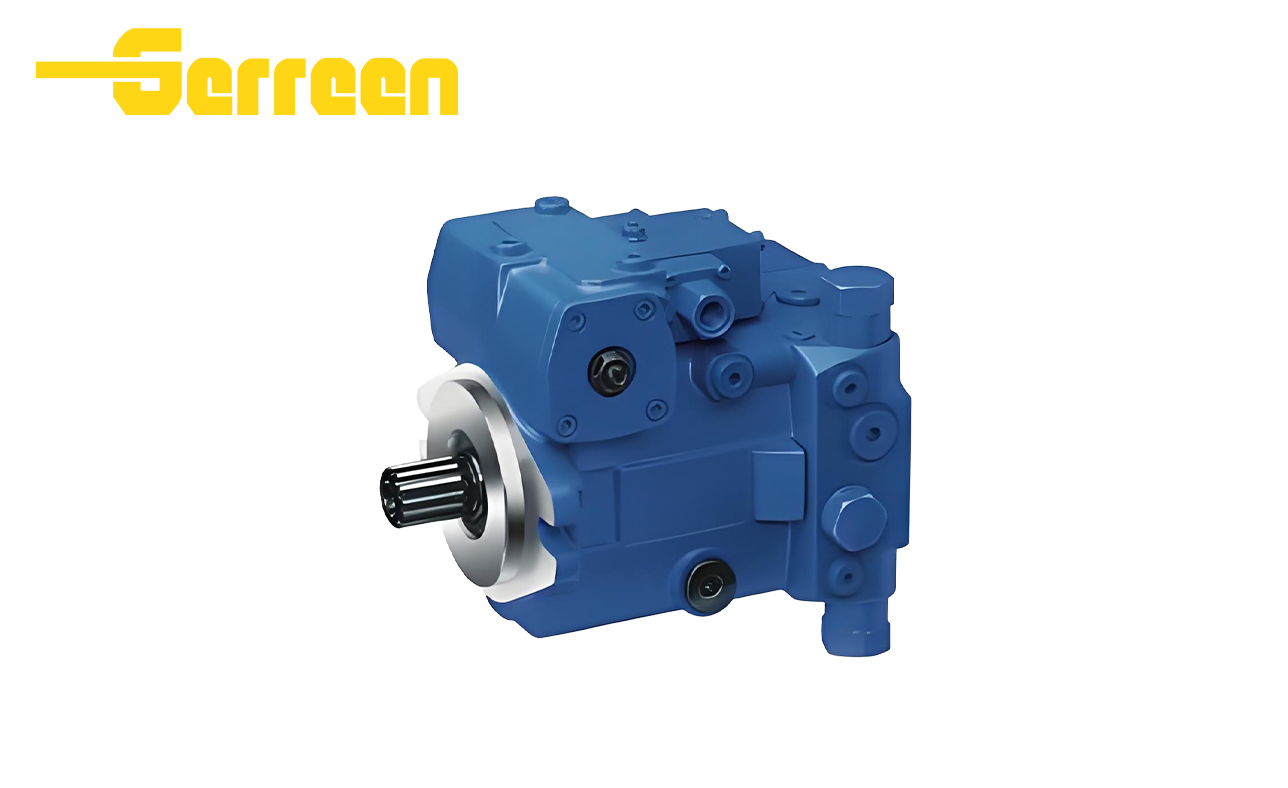

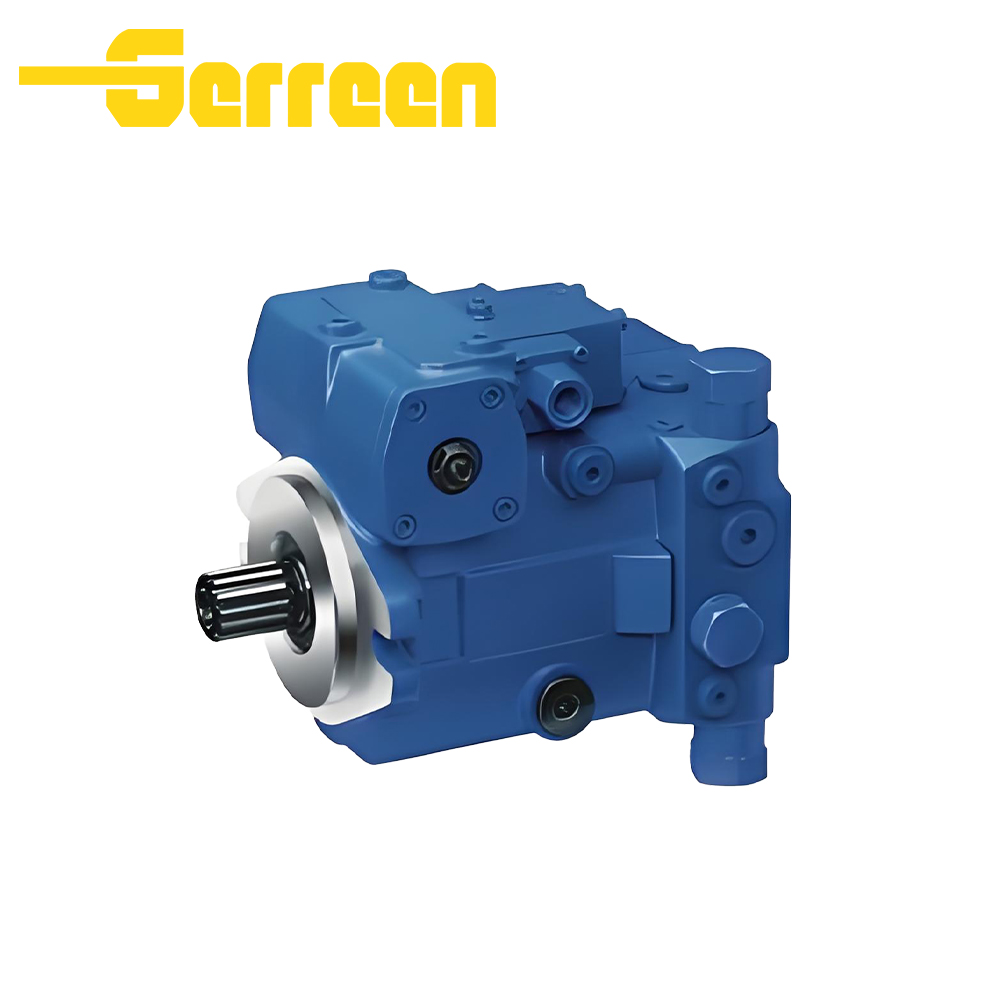

A10VG18/28/45/63
Green Hydraulic
A10VG18/28/45/63
Standard export carton/plywood case
YES
ISO9001 CE
1 set
Product Description
Available displacements: 18cc, 28cc, 45cc, 63cc. Built-in integrated charge pump, charge relief valve and high-pressure overload relief valve inside the pump body. Rated working pressure 250 bar, peak pressure 310 bar. It realizes stepless adjustment of flow and running direction, with compact overall layout, high transmission efficiency and excellent anti-cavitation performance, being the core power component for small and medium vehicle walking systems.
Integrated valve group design: charge pump and safety valves are integrated into the pump housing, simplifying customer pipeline design and reducing assembly costs
Multiple control options: DR constant pressure, LR constant power, DA speed-sensitive control, manual control for different working condition demands
Stable low-speed performance, low vibration and low noise during long-time continuous operation
Good oil contamination resistance, less prone to clamping failure under poor oil cleanliness
Standard SAE mounting interface and spline shaft, direct replacement for original pumps without modifying equipment structure
Lightweight cast aluminum housing, small installation size, suitable for compact mechanical arrangement space
Specifications
Applications
Factory&FAQ
A10VG18/28/45/63 Pump are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
1. What is the A10VG18/28/45/63 Pump ?
A10VG 18/28/45/63 are swash-plate variable axial piston pumps specially developed for hydrostatic closed-circuit walking drive systems.
This series covers four displacement specifications with a rated working pressure of 250 bar and peak pressure up to 310 bar. It integrates a charge pump and built-in overload protection valves, supporting multiple control modes including DR, LR and DA control. It realizes stepless adjustment of flow rate and oil flow direction, featuring compact size, high efficiency and strong anti-cavitation capability. It serves as the core hydraulic power component for small and medium construction machinery walking systems, and can be fully interchanged with original Rexroth pumps.
2. What makes the A10VG18/28/45/63 Pump ?
3. What is the working pressure range of A10VG18/28/45/63 Pump ?
The continuous rated working pressure of the A10VG series pump is 250 bar
The maximum allowable instantaneous peak pressure is 310 bar
All four models (18, 28, 45, 63) adopt this unified pressure parameter standard.
4. Can A10VG18/28/45/63 Pump replace other brands?
The overall outline size, SAE mounting flange, spline shaft size, oil port layout and control valve installation dimensions are completely consistent with the original standard, supporting plug-and-play installation without modifying equipment structures or hydraulic pipelines.
Unified pressure parameters (300 bar rated pressure, 350 bar peak pressure), internal hydraulic principle and control logic match the original hydraulic system operating requirements fully.
Matching the same displacement, control type and rotation direction is the basic requirement for seamless replacement. Meanwhile we support OEM logo engraving and custom part number marking to satisfy your brand replacement demands.
6. Do you provide OEM or customized services?
7. How can I get a quotation quickly
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
A10VG18/28/45/63 Pump are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
1.What's our advantages?
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
