SGP2
Green Hydraulic
SGP2
Standard export carton/plywood case
Yes
ISO9001，CE
• Industrial • Energy • Government (Non Aerospace) • HVAC • Mobile • Natural Resources • Transportation (Non Aerospace)
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
Key Shaft and Spline shaft
1 set
Product Description

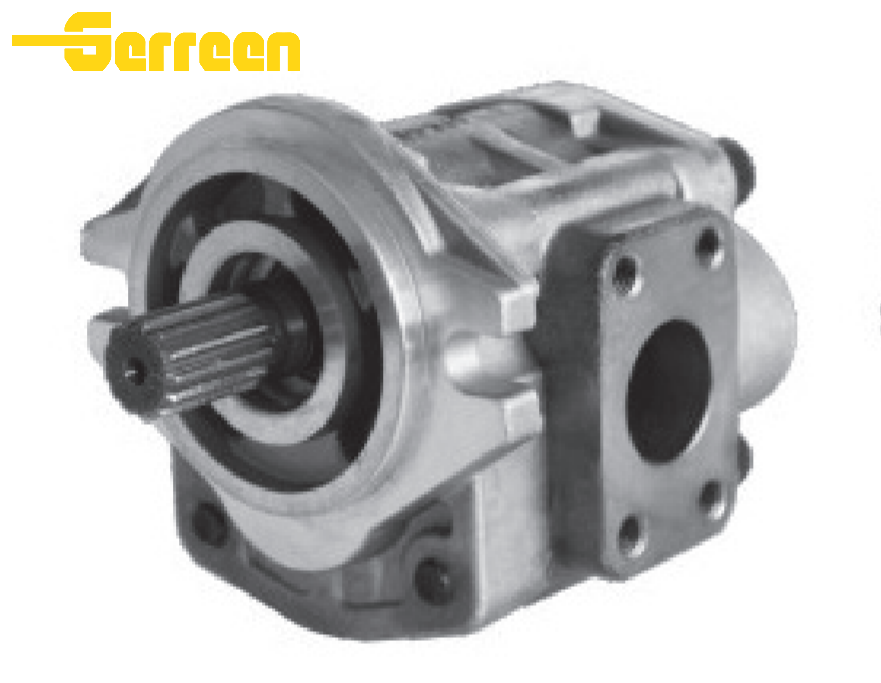

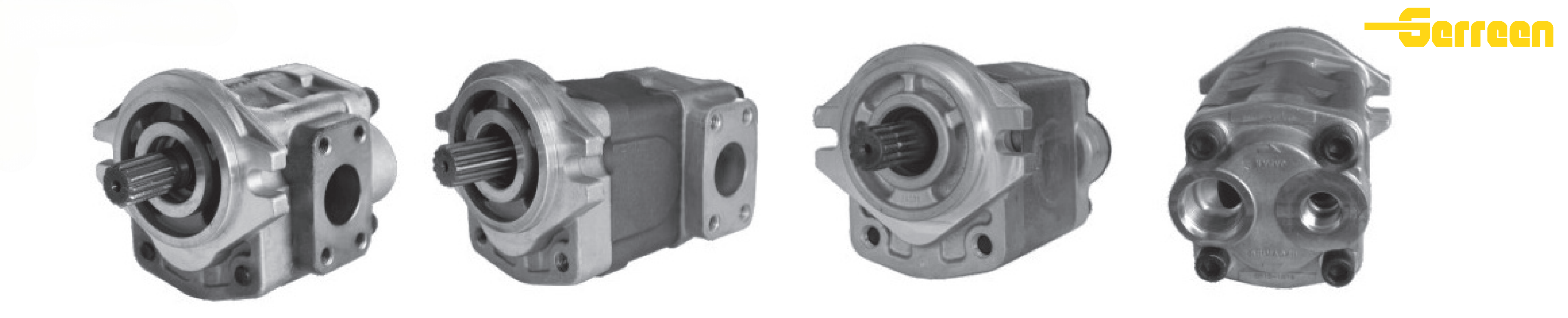

The Shimadzu SGP2 is a high-performance, fixed-displacement external gear pump engineered for demanding hydraulic systems that require high efficiency, low noise, and reliable high-pressure performance. Featuring a robust three-piece cast iron construction with advanced axial compensation, the SGP2 delivers superior durability and consistent power output, making it ideal for direct mounting in mobile equipment, forklifts, and industrial machinery where compact size and dependable operation are critical.
Specifications
| Parameter | Specification |
| Pump Type | External gear pump, fixed displacement |
| Displacement Range | 20.3 to 52.8 cm³/rev (20/23/25/27/32/36/40/44/48/52 sizes) |
| Rated Pressure | 24.5 MPa (245 bar / 3,550 psi) |
| Intermittent Max Pressure | 29.4 MPa (294 bar / 4,265 psi) |
| Operating Speed Range | 400 – 3,000 rpm |
| Construction | 3-piece cast iron body, pressure-balanced bushings, axial compensation wear plates |

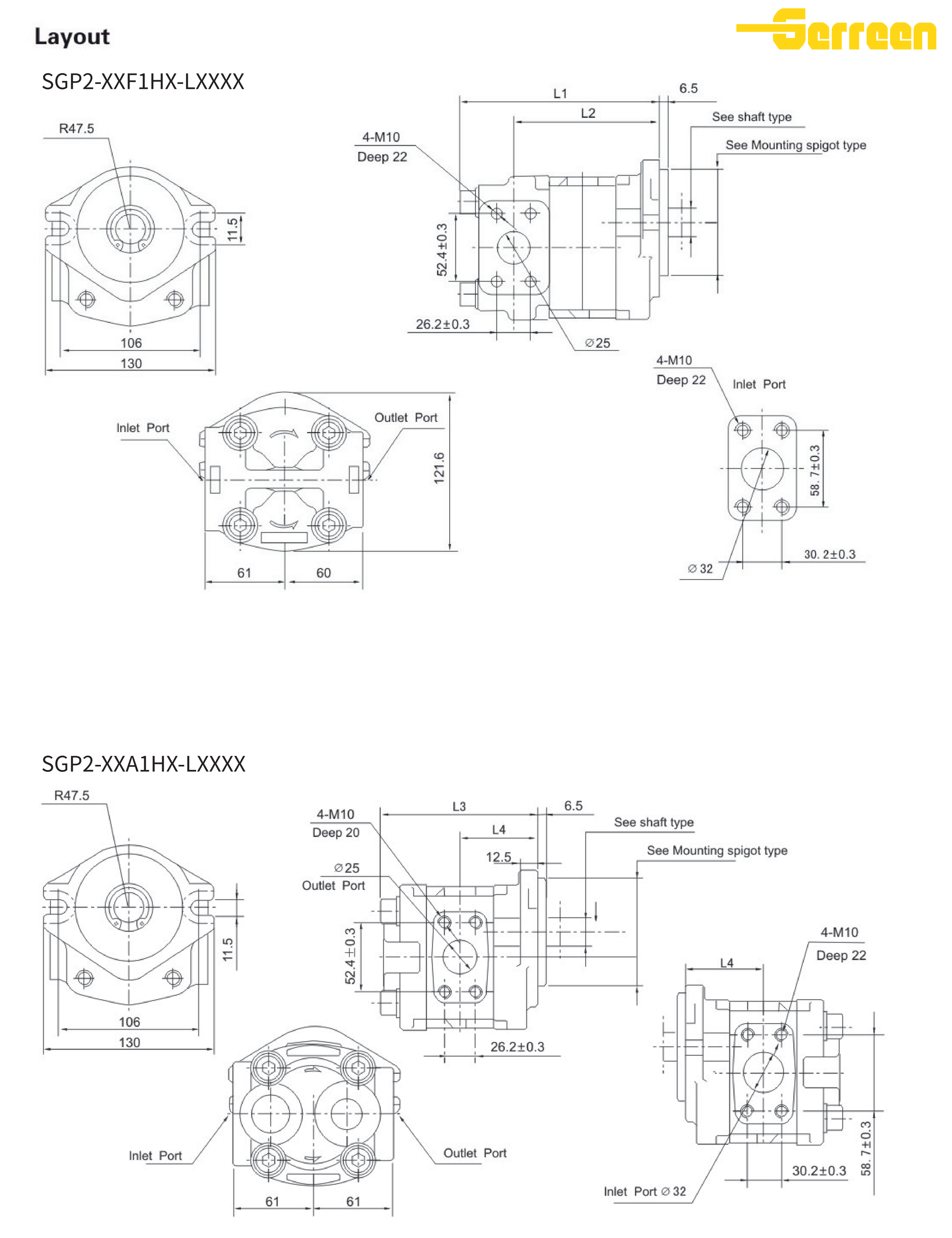

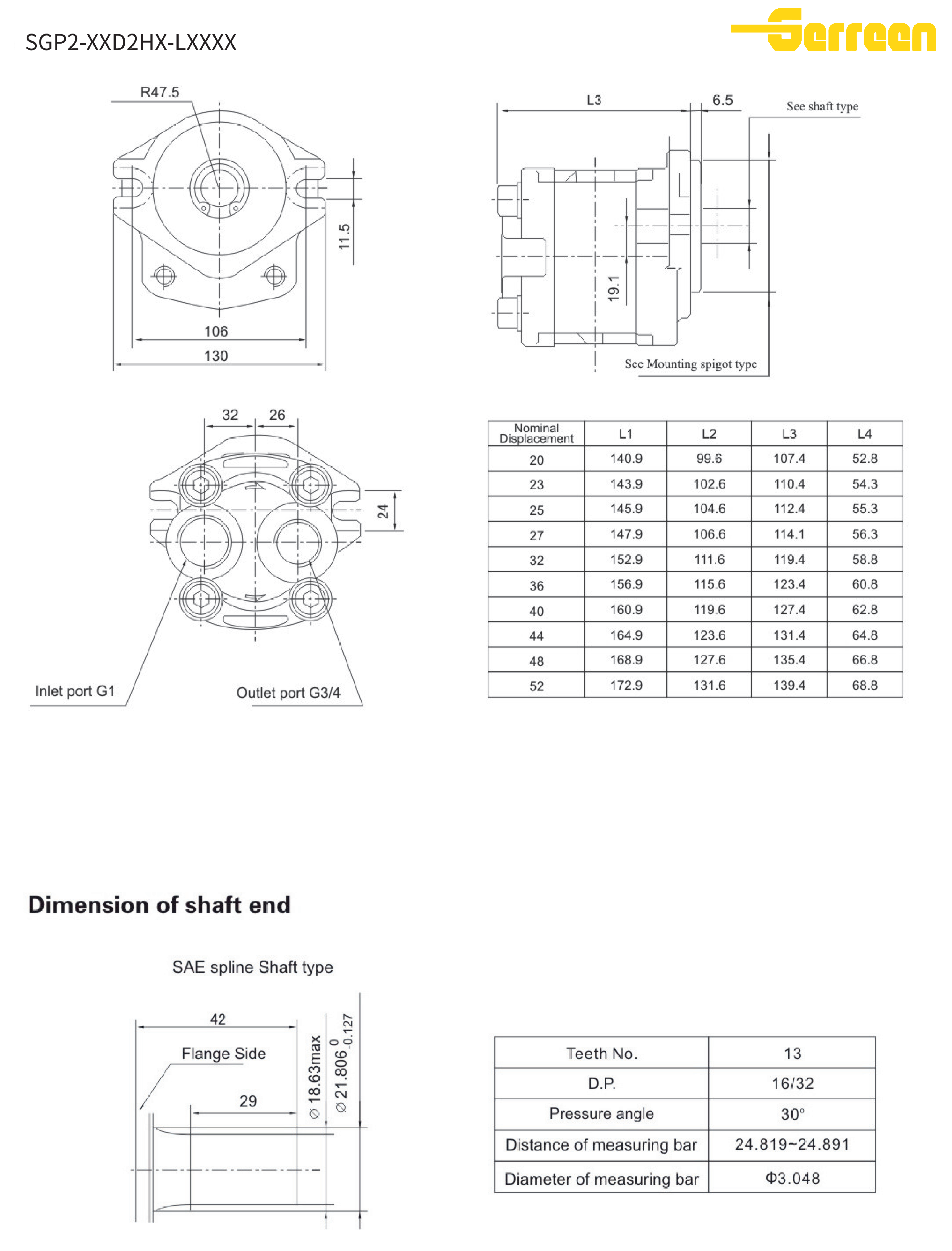

| Mounting Flange | Standard SAE “A” and “B” compatible |
| Port Options | Dual-port design (side and rear ports available) |
| Fluid Viscosity Range | 10 – 500 cSt (recommended 20 – 100 cSt for optimal efficiency) |
| Fluid Temperature Range | -20°C to +80°C (standard hydraulic oil) |
| Seal Material | Nitrile (NBR) standard; optional Viton for high-temperature applications |
| Key Features | Radial hydraulic balance, low noise, high volumetric efficiency, contamination-resistant design |
| Typical Applications | Forklifts, construction machinery, industrial vehicles, material handling equipment |
Applications
Applications
Factory&FAQ
SGP2 pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
Rugged Cast Iron Housing: Unlike aluminum pumps that can deflect under high pressure, the SGP2’s cast iron body maintains tight internal clearances, reducing wear and extending service life in heavy-duty cycles.
Pressure-Balanced Bushing Design: It uses advanced pressure-balanced bushings that distribute loads evenly, offering superior resistance to fluid contamination and thermal shock compared to standard roller-bearing pumps.
High-Pressure Efficiency: With axial compensation technology, the SGP2 automatically adjusts clearances to minimize internal leakage, maintaining high volumetric efficiency even at maximum operating pressures.
The SGP2 is a high-pressure compact gear pump. Depending on the specific model, the series typically handles:
Continuous Pressure: Up to 24.5 MPa (245 bar / 3,550 PSI).
Intermittent/Peak Pressure: Up to 29.4 MPa (294 bar / 4,265 PSI).
This robust pressure rating makes the SGP2 ideal for powering high-force actuators and complex hydraulic circuits in construction and material handling equipment.
Yes, the SGP2 is a high-quality alternative to other premium gear pumps. It is often used as a replacement or upgrade for:
Shimadzu SGP1 Series (as a higher-performance successor).
Nachi IPH Series external gear pumps.
Parker PGP Series gear pumps.

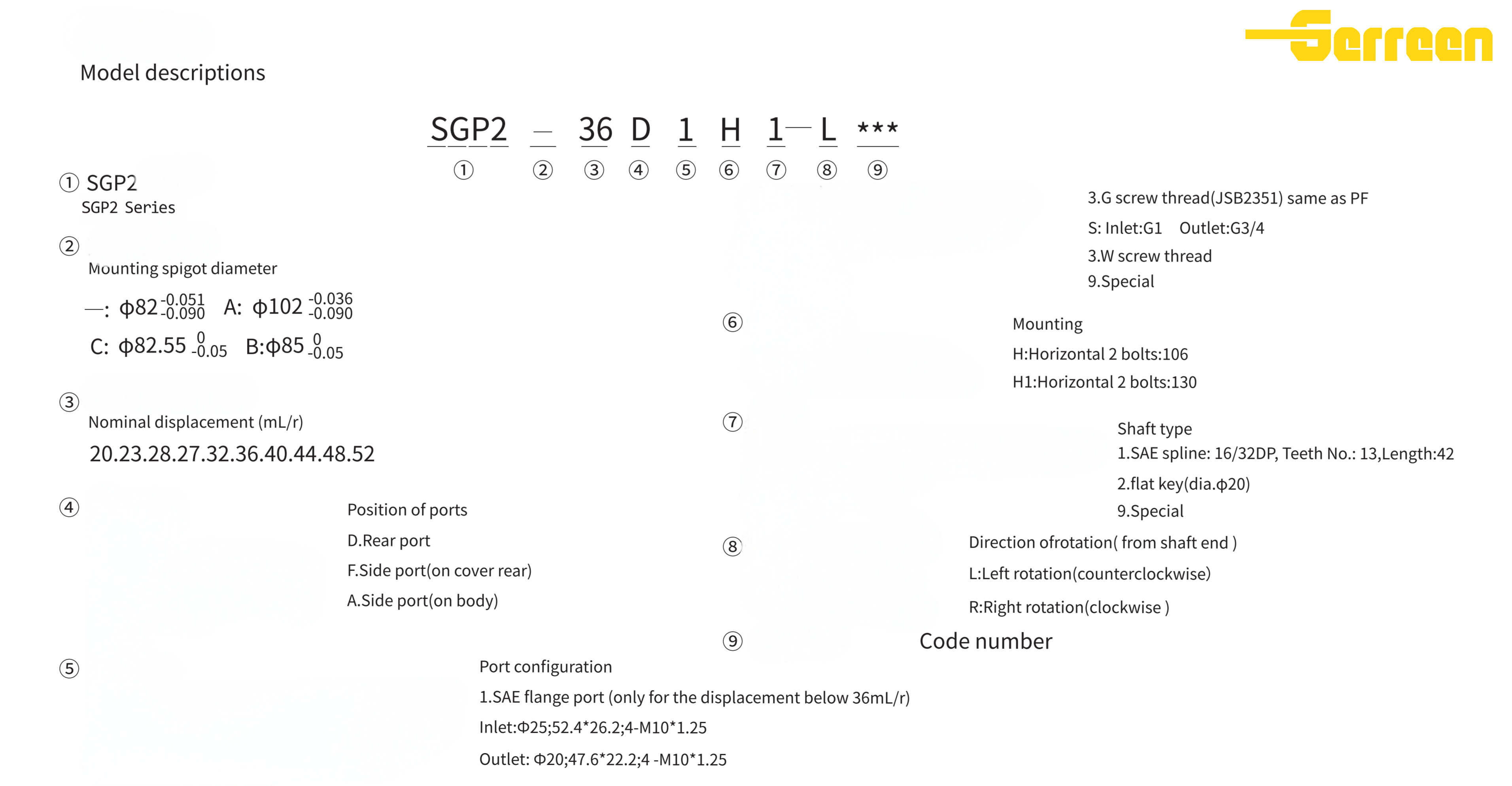

To ensure a successful swap, verify the Mounting Flange (SAE A or B), Shaft Type, Displacement (cc/rev), and Port Configuration to match your existing system.
To protect the precision bushings and hardened steel gears, the following is recommended:
Oil Type: Premium mineral-based hydraulic fluids with strong Anti-Wear (AW) and anti-oxidation additive packages.
Viscosity: Standard ISO VG32 to VG68. The optimal operating range is 20 to 100 cSt, though it can handle cold starts down to 10 cSt.
Filtration: Cleanliness is critical for long bushing life. A minimum filtration level of ISO 4406 18/16/13 is recommended to prevent abrasive particles from damaging the internal components.
The SGP2 series operates within a wide speed range to suit various applications:
Minimum Speed: 400 rpm (for stable flow at low pressure).
Maximum Continuous Speed: 3,000 rpm (depending on displacement and fluid viscosity).
Operating within this range ensures optimal lubrication, prevents cavitation, and maintains high efficiency.
Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
SGP2 pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
