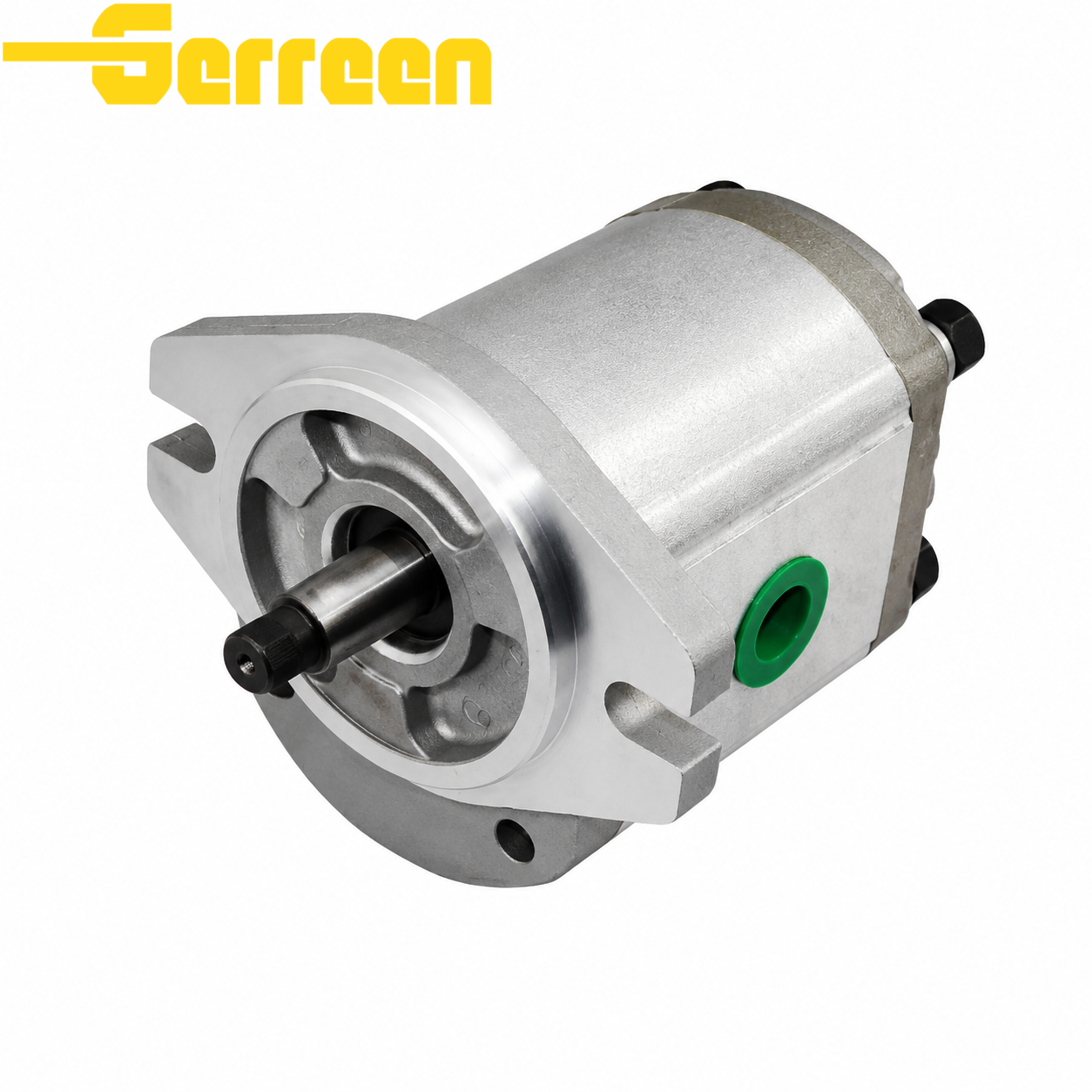

ALP2 Series Gear Pump Overview

The ALP2 Series Gear Pump is a high-performance external hydraulic gear pump designed for stable hydraulic oil transmission and efficient flow output. Featuring a high-strength aluminum alloy housing, precision-machined gears, high volumetric efficiency, and low noise operation, the ALP2 Series delivers reliable performance and long service life in demanding hydraulic systems.

Widely used in construction machinery, agricultural equipment, forklifts, dump trucks, hydraulic power units, and industrial hydraulic systems, the ALP2 Series offers compact structure, smooth operation, easy installation, and stable pressure performance under heavy-duty working conditions.

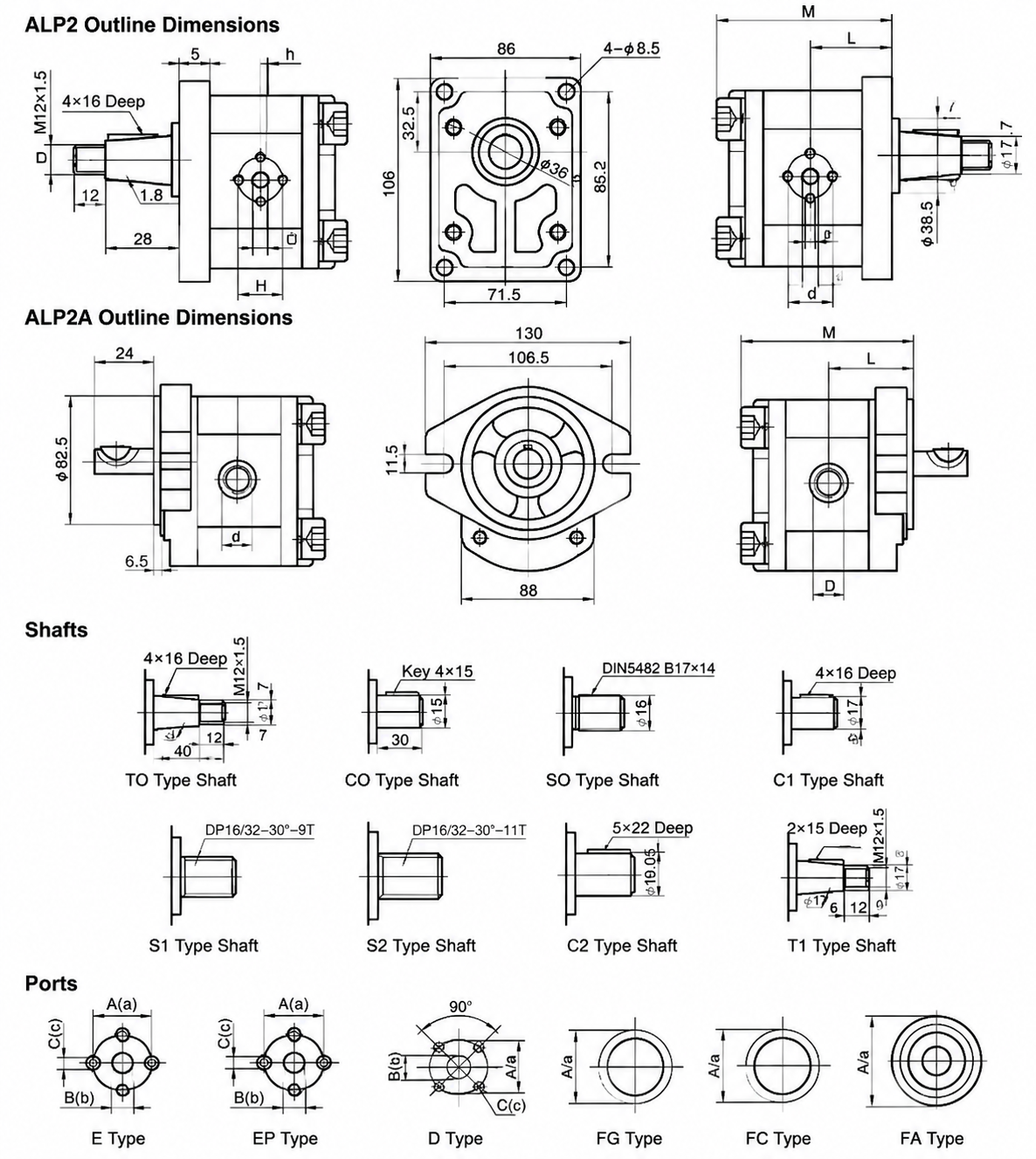

ALP2 Series Gear Pump Specification

ALP2 Series Gear Pump FAQ

1. What is the ALP2 Series Gear Pump?

The ALP2 Series is a compact external hydraulic gear pump designed for hydraulic oil transmission in industrial and mobile hydraulic systems.

2. What are the main features of the ALP2 Series?

Main features include:

• High volumetric efficiency

• Stable pressure performance

• Compact and lightweight structure

• Low noise operation

• Durable aluminum alloy housing

• Long service life

3. What applications is the ALP2 Series suitable for?

Typical applications include:

• Construction machinery

• Agricultural machinery

• Forklifts

• Dump trucks

• Hydraulic power units

• Industrial hydraulic systems

4. What displacement range is available?

The ALP2 Series typically provides displacement options from 4 mL/r to 30 mL/r depending on the model.

5. What pressure range does the pump support?

Depending on the model:

• Rated pressure: 15–25 MPa

• Maximum pressure: 18–30 MPa

6. What speed range is supported?

Typical operating speed:

• Minimum speed: 600 r/min

• Maximum speed: up to 4000 r/min

7. What shaft types are available?

Available shaft types include:

• Key shaft

• Spline shaft

• Taper shaft

• Customized shaft configurations

8. What flange types are available?

Available flange types include:

• European flange

• SAE flange

• Square flange

• Customized flange configurations

9. What oil port standards are available?

Available oil port standards include:

• BSPP

• BSPT

• NPT

• UNF

10. How can the service life of the pump be extended?

Recommended maintenance includes:

• Keeping hydraulic oil clean

• Avoiding dry running

• Using proper filtration systems

• Inspecting seals and fittings regularly

• Performing routine maintenance regularly

Applications

Winches, oil field and drilling

equipment, earthmoving and

construction equipment, die

casting, molding machines, press

machines, trash compactors, balers

and primary metals

Packaging & Delivery

Gear Pumps are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the high-precision pump body and shaft from moisture and environmental damage.

Custom Cartons or Crates: Individual reinforced packaging with shock-absorbent inserts for single pumps, and sturdy wooden crates for bulk or tandem pump orders to ensure safe handling.

Documentation: Includes technical data sheets, installation guides, and quality inspection certificates.

Delivery time depends on the specific model, port configurations, and destination but typically ranges from 1 to 4 weeks from the order date.

Certifications & Quality Assurance

Charge pumps are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.

FAQ

1.How does the variable displacement work?

The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.

2.What's our advantages?

Factory established in 2005;

With a great deal of production experience;

80+ employees become the professional team;

Constant updated ERP system ensure efficiency of work;

Sophisticated equipment ehanced the accuracy of products;

Professional salesmen provide the greast service;

With a large number of famous customers all over the world;

Great after-sales service;

With the long term cooperation with famous logistics and express company in China,provide the better goods service.

3.What is your payment terms?

Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.

4.Can you make my own brand on the products?

Of course we can. Just send me your logo  we can make it for you.

5.What is our main export market?

America(40.5%): USA, Canada, Argentina, Brazil

Europe(30.8%): Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.

Asia(23.5%): Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.

Others(5.8%).

The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components.

These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications,

from heavy equipment and machinery to automotive and industrial systems.

The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.

Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards,

often adhering to international certifications, to meet the expectations of customers in industries such as construction,

agriculture, automotive, and manufacturing.

All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.

To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.

Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
