PGP610
Green Hydraulic
PGP610
Standard export carton/plywood case
Yes
ISO9001，CE
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
Key Shaft and Spline shaft
1 set
Product Description

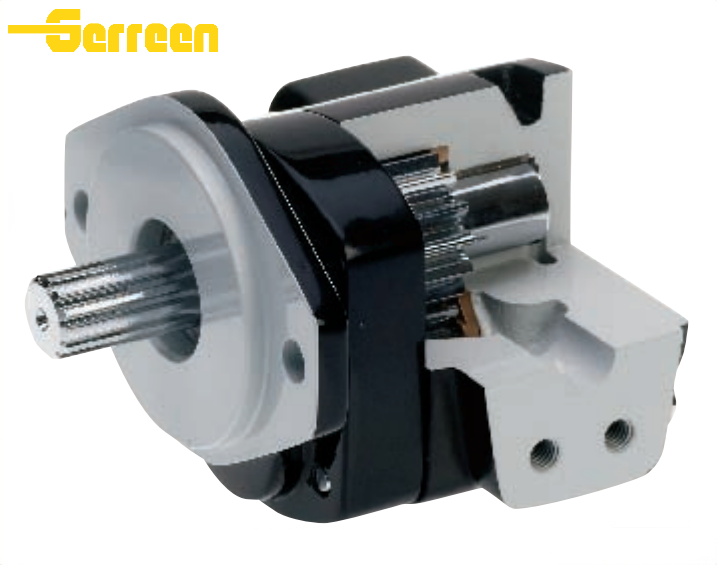

Interlocking Two-Piece Cast Iron Design:
The PGP610's cast iron body provides superior durability and strength compared to aluminum alternatives, allowing it to handle higher continuous pressures and offering excellent resistance to fatigue.
High Volumetric Efficiency:
Featuring pressure-balanced thrust plates and precision-ground gears, the PGP610 minimizes internal leakage and ensures consistent flow delivery even under peak loads.
Reduced Noise Levels:
Advanced gear tooth geometry and rigid construction contribute to quieter operation and reduced system vibration, improving the working environment and extending component life.
Exceptional Pressure Capability:
The series is rated for continuous operating pressures of up to 275 bar (4,000 psi), providing the high-force output required for modern hydraulic circuits.
Flexible Configuration:
The PGP610 is available as single or multiple (tandem) units with extensive valve options, including pressure relief, anti-cavitation, and solenoid unloading valves.

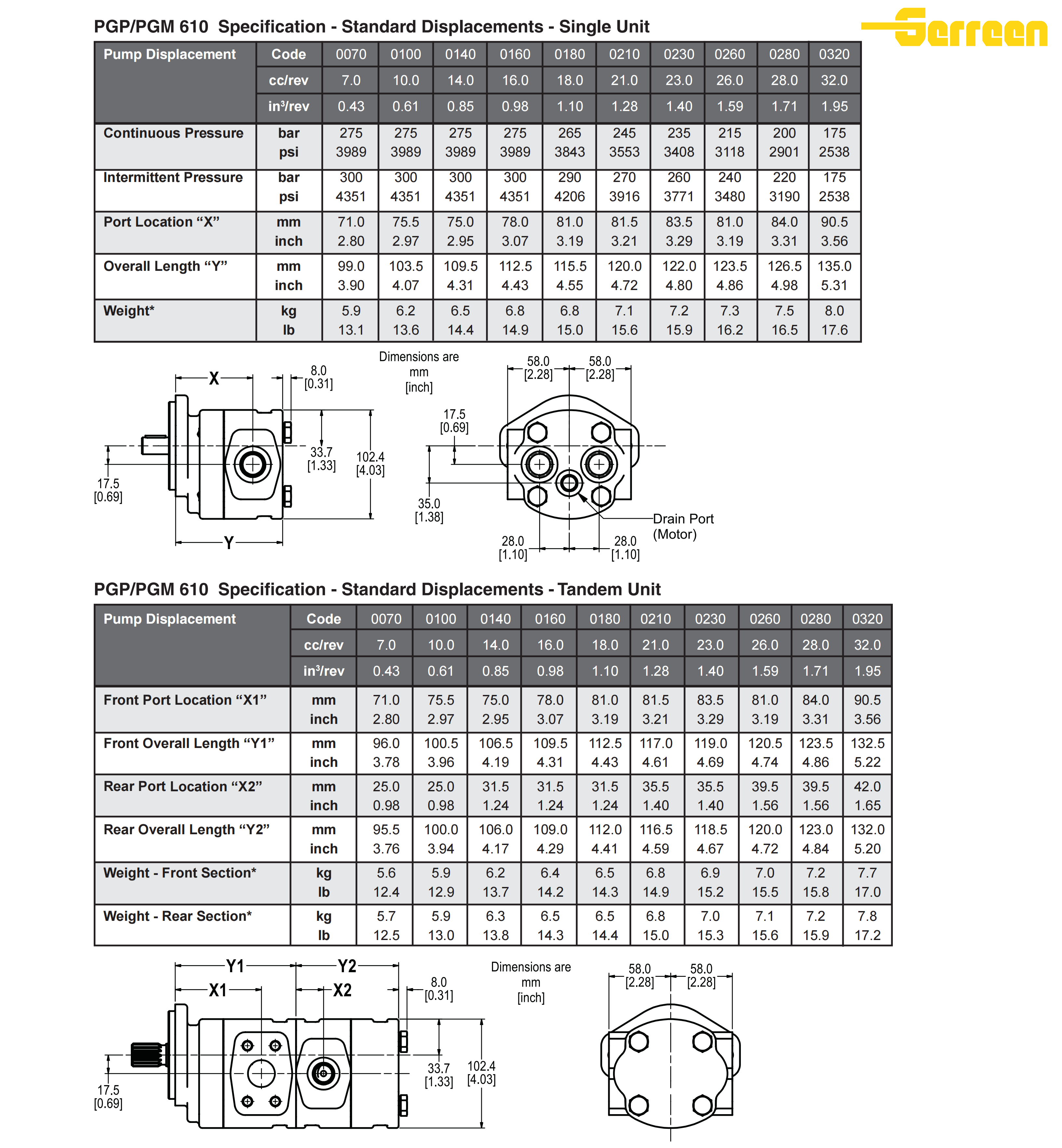

| Model Code | Displacement(cm3/r) | Displacement(in3/r) | Max. Continuous Pressure (bar/psi) | Max. Speed at (RPM) | Min. Speed at (RPM) |
| 70 | 7 | 0.43 | 275 / 4000 | 3500 | 500 |
| 100 | 10 | 0.61 | 275 / 4000 | 3500 | 500 |
| 140 | 14 | 0.85 | 275 / 4000 | 3500 | 500 |
| 160 | 16 | 0.98 | 275 / 4000 | 3500 | 500 |
| 180 | 18 | 1.1 | 275 / 4000 | 3250 | 500 |
| 210 | 21 | 1.28 | 275 / 4000 | 3000 | 500 |
| 230 | 23 | 1.4 | 275 / 4000 | 2750 | 500 |
| 250 | 25 | 1.53 | 250 / 3625 | 2750 | 500 |
| 280 | 28 | 1.71 | 220 / 3200 | 2500 | 500 |
| 320 | 32 | 1.95 | 180 / 2610 | 2250 | 500 |
Applications
Construction Machinery: Widely used in skid steer loaders, mini-excavators, and backhoes for reliable lifting and digging power.
Material Handling: Ideal for forklifts, telehandlers, and aerial work platforms that require precise control and durability under heavy loads.
Agriculture & Forestry: Powers harvesters, combines, grapples, and tractors, offering the resilience needed for outdoor field operations.
Waste Management: Used in refuse trucks and compactors where high-cycle durability and peak pressure resistance are critical.
Mining & Industrial: Supports auxiliary hydraulic functions in mining equipment and specialized industrial power units.
PGP610 pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
Heavy-Duty Cast Iron Housing: Unlike aluminum pumps that may experience "body enlargement" under extreme stress, the PGP610’s cast iron frame provides exceptional structural rigidity, ensuring tighter internal clearances and extended life during high-pressure duty cycles.
High-Pressure Performance: It utilizes advanced, pressure-balanced thrust plates that optimize volumetric efficiency and offer greater resistance to fluid contamination and thermal shock compared to standard aluminum-body designs.
Compact & Modular Versatility: The two-piece interlocking design allows for a high power-to-weight ratio and offers various porting and mounting options, providing significant installation flexibility in modern equipment chassis.
Continuous Pressure: Up to 4,000 PSI (275 bar).
Intermittent/Peak Pressure: Up to 4,350 PSI (300 bar).
This high-pressure rating makes the PGP610 ideal for driving demanding lifting, steering, and auxiliary systems on heavy-duty mobile machinery.
Casappa: Polaris series.
Marzocchi: GHP series.
Rexroth: AZPF series (where cast iron is required).
To ensure a successful swap, please verify the Mounting Flange (SAE A or B), Shaft Type (Splined, Keyed, or Tapered), and Displacement (cc/rev) to match your existing system.
Oil Type: Premium mineral-based hydraulic fluids with Anti-Wear (AW) additive packages.
Viscosity: Standard ISO VG32 to VG68. The optimal operating range is 15 to 75 cSt, though it can handle intermittent cold starts at higher viscosities.
Filtration: Cleanliness is vital for pump longevity. A minimum filtration of ISO 4406 17/15/12 is recommended to prevent abrasive particles from damaging the precision-machined surfaces.
The PGP610 series is designed for versatile operation, typically ranging from 500 RPM to 3,300 RPM, depending on the specific displacement and system requirements.
Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.
PGP610 pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
1.What's our advantages?
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
