705-52-40150
Green Hydraulic
Yes
ISO9001，CE
• Industrial • Energy • Government (Non Aerospace) • HVAC • Mobile • Natural Resources • Transportation (Non Aerospace)
1.Construction Equipment 2.Agriculture 3.Material Handling 4.Marine 5.Industrial Machinery
Key Shaft and Spline shaft
1 set
Product Description

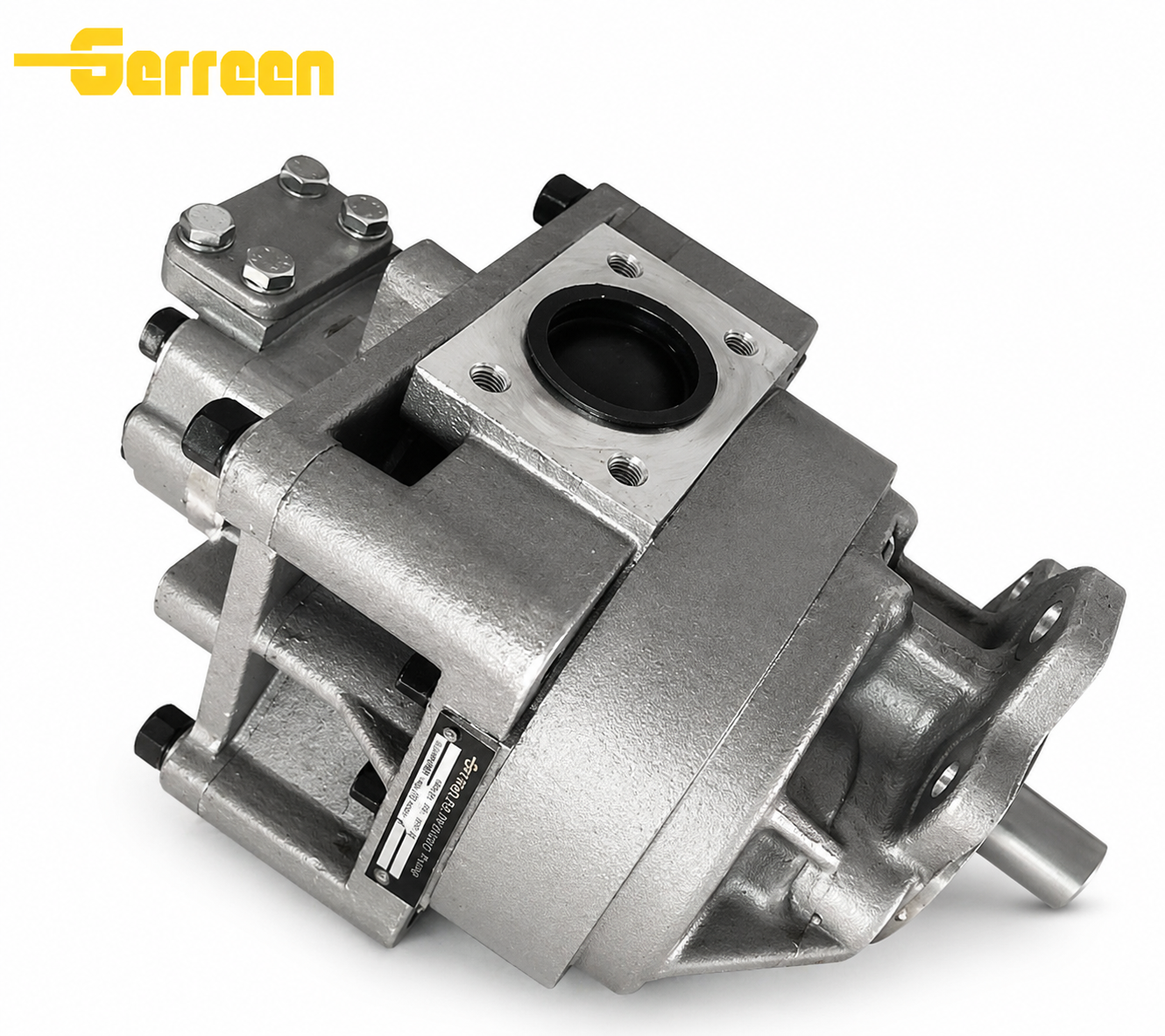

The 705-52-40150 Hydraulic Gear Pump is a compact and economical external gear pump designed for low to medium pressure hydraulic systems. It is widely used in simple hydraulic circuits where stable flow, reliability, and cost-effectiveness are required.
OEM-Level Compatibility
Designed to match original Komatsu specifications for direct replacement.
Stable and Reliable Output
Ensures consistent hydraulic flow and system stability.
High Durability Construction
Heavy-duty cast iron housing for long service life.
High Efficiency Performance
Precision gear design minimizes internal leakage and energy loss.
Easy Installation and Maintenance
Standard mounting and port design for quick replacement.
| Parameter | Specification |
| Part Number | 705-52-40150 |
| Pump Type | External Gear Pump |
| Rotation | Clockwise (viewed from shaft end) |
| Displacement | Approx. 40–45 mL/r |
| Rated Pressure | 20–25 MPa |
| Peak Pressure | 25–28 MPa |
| Speed Range | 800 – 3000 rpm |
| Nominal Flow | 60–120 L/min |
| Mounting Type | SAE Flange (2-Bolt) |
| Shaft Type | Spline Shaft |
| Port Type | Threaded / SAE Ports |
| Weight | Approx. 8 – 11 kg |
Applications
Construction Machinery
Komatsu excavators, loaders, bulldozers
Earthmoving Equipment
Hydraulic drive and control systems
Mining Equipment
Continuous heavy-duty operation
Material Handling Equipment
Industrial lifting and transport systems
Hydraulic Power Systems
OEM replacement applications
705-52-40150 Hydraulic Gear Pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
It is commonly used in Komatsu construction machinery, including excavators and loaders.
It is an OEM-equivalent replacement, designed to meet original performance standards.
Typically suitable for medium to high-pressure hydraulic systems (around 20–25 MPa).
Yes, it is designed for direct replacement without modification.
Better durability, stability, and compatibility with original systems.
Use clean hydraulic oil, maintain filtration (≤25 μm), and avoid dry running or overload.
Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
The 705-50-40150 pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.
