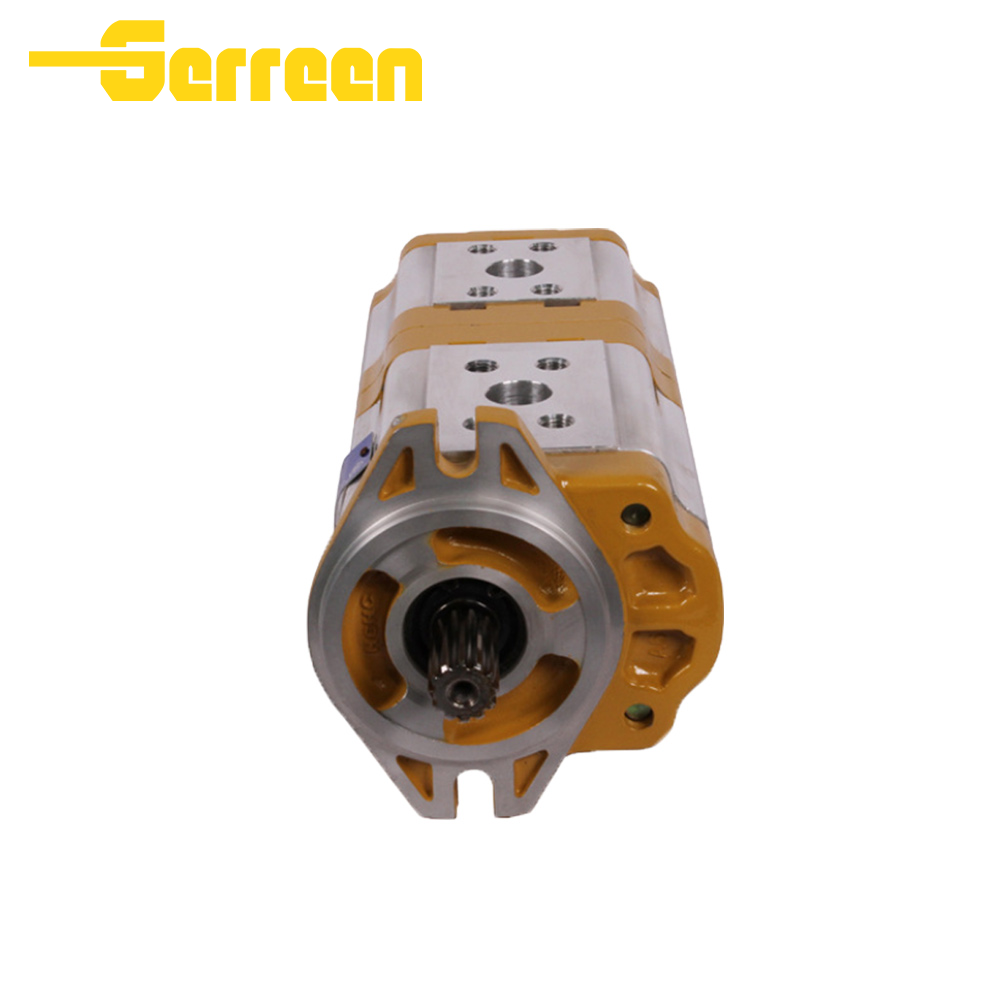

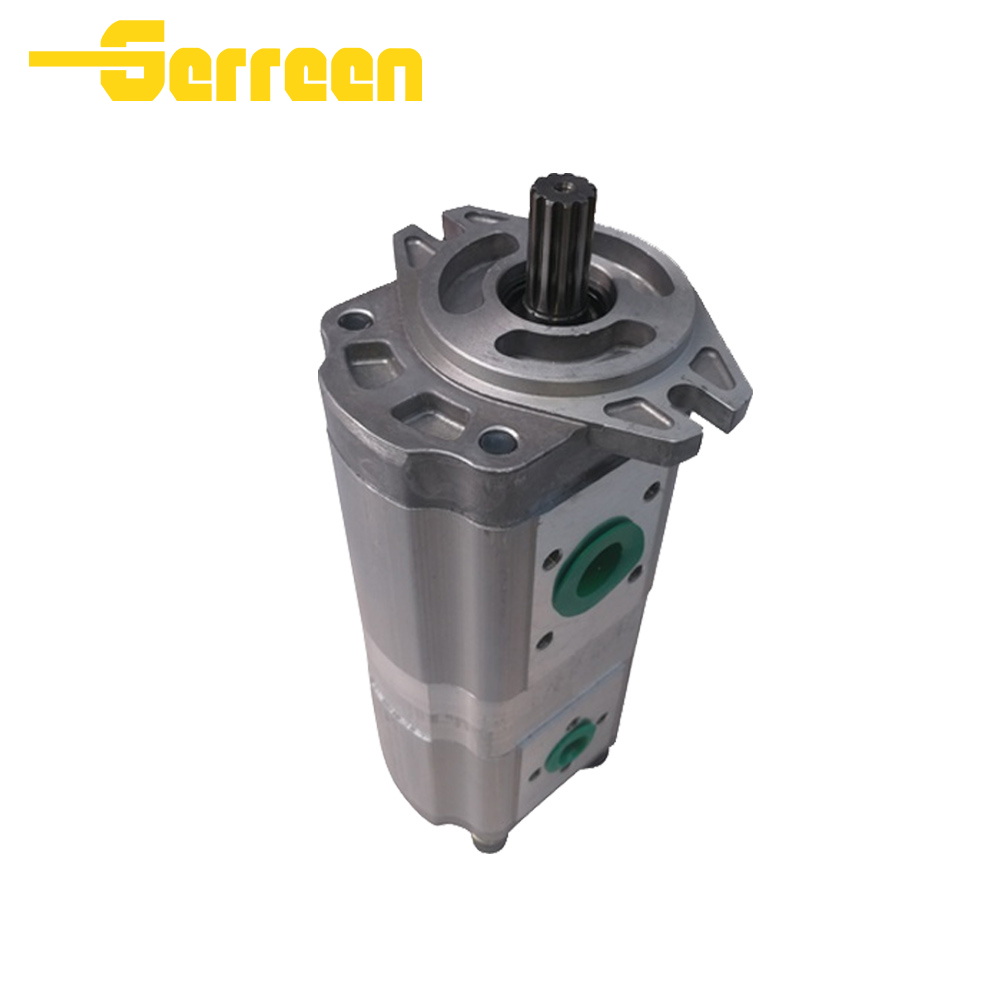

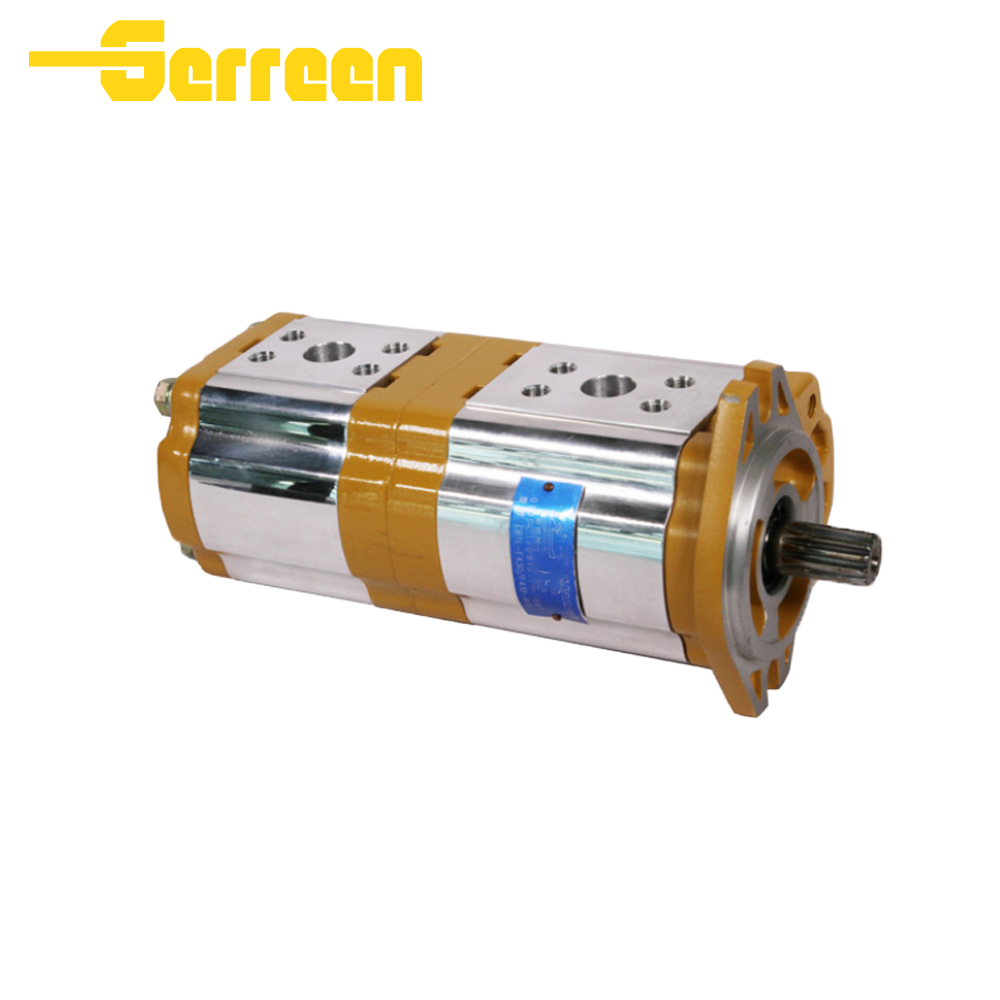

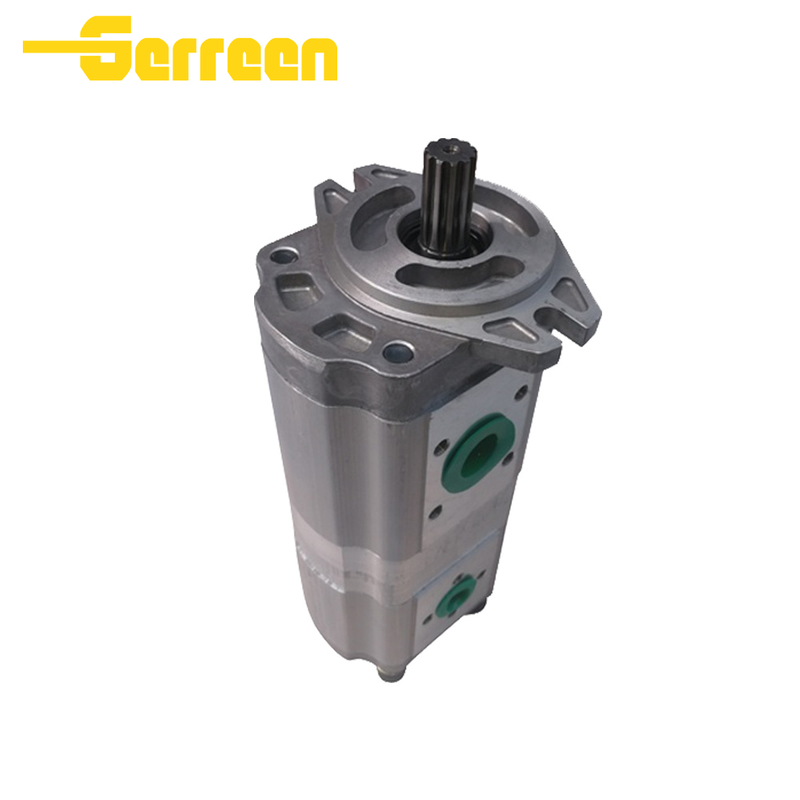

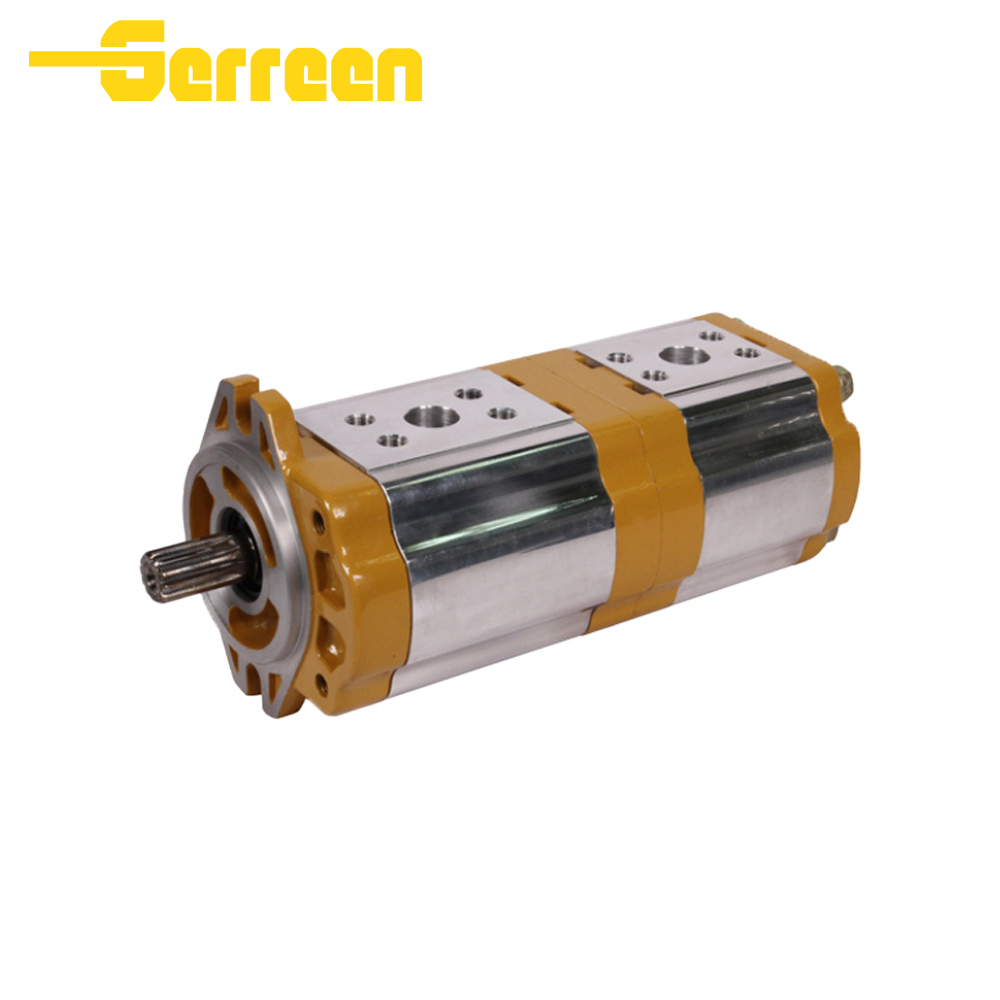

CBTL-4 Tandem Hydraulic Gear Pump

CBTL-4 Gear Pumps Overview

The CBTL-4 is a double (tandem) external gear pump, designed to provide two independent flow outputs from a single drive shaft. It is widely used in mobile and industrial hydraulic systems where multiple circuits need to operate simultaneously. Compared with single pumps (CBT/CBN), CBTL offers higher flexibility and efficiency for complex systems.

Features and Benefits

• Double-section gear structure (tandem design)

• Aluminum alloy housing, lightweight

• Axial clearance automatic compensation

• Multiple shaft and port configurations

• Drives two hydraulic circuits simultaneously

• Reduces installation space and cost

• Improves system efficiency and integration

• Easy replacement for OEM tandem pumps

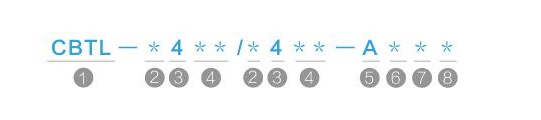

Model Codes

Technical Data

Model	Displacement (ml/r) (Front/Rear)	Rated Pressure (MPa)	Max Pressure (MPa)	Min Speed (r/min)	Rated Speed (r/min)	Max Speed (r/min)	Vol. Efficiency (%)	L1 (mm)	L2 (mm)	L (mm)	Front Pump Port (D/a/b mm)	Rear Pump Port (D/c/d mm)	Weight (kg)
CBTL-F410/F410-A***	10 / 10	20	25	800	2500	3000	92	57	166	226.5	23 / 47.6 / 22.2	23 / 47.6 / 22.2	5.5
CBTL-F416/F410-A***	16 / 10	20	25	800	2500	3000	92	60.3	172.5	233	23 / 47.6 / 22.2	23 / 47.6 / 22.2	5.8
CBTL-F416/F416-A***	16 / 16	20	25	800	2500	3000	92	—	175.8	239.5	23 / 47.6 / 22.2	23 / 47.6 / 22.2	6.1
CBTL-F420/F410-A***	20 / 10	20	25	800	2500	3000	92	—	177	237.5	23 / 47.6 / 22.2	23 / 47.6 / 22.2	6.0
CBTL-F420/F416-A***	20 / 16	20	25	800	2500	3000	92	62.5	180.3	244	26 / 52.4 / 26.2	26 / 52.4 / 26.2	6.3
CBTL-F420/F420-A***	20 / 20	16	20	600	2500	3000	92	—	182.5	248.5	26 / 52.4 / 26.2	26 / 52.4 / 26.2	6.5
CBTL-F425/F410-A***	25 / 10	20	25	800	2500	3000	92	—	175.3	244	26 / 52.4 / 26.2	23 / 47.6 / 22.2	6.3
CBTL-F425/F416-A***	25 / 16	20	25	800	2500	3000	92	65.5	183.6	250.5	26 / 52.4 / 26.2	26 / 52.4 / 26.2	6.5
CBTL-F425/F420-A***	25 / 20	16	20	600	2500	3000	92	—	188.6	255	26 / 52.4 / 26.2	26 / 52.4 / 26.2	6.7
CBTL-F430/F410-A***	30 / 10	20	25	800	2500	3000	92	67.8	187.6	248	26 / 52.4 / 26.2	23 / 47.6 / 22.2	6.5
CBTL-F430/F416-A***	30 / 16	20	25	800	2500	3000	92	67.8	193	254.5	26 / 52.4 / 26.2	23 / 47.6 / 22.2	6.7

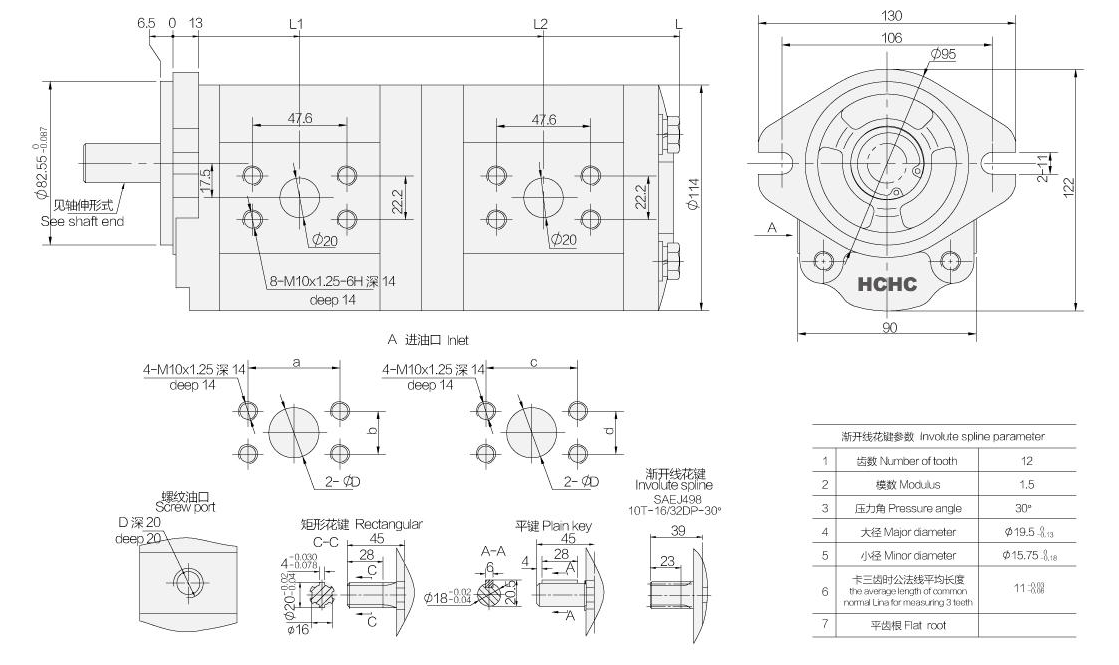

CBTL-4 Hydraulic Gear Pump Installation Dimensions

Applications

• Dump trucks (lifting + steering system)

• Construction machinery (loaders, cranes)

• Agricultural equipment (tractors, harvesters)

• Hydraulic power units (dual circuits)

• Material handling equipment

Packaging & Delivery

CBTL-4 pumps are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

CBTL-4 Hydraulic Gear Pump FAQ

1. What is the difference between CBT and CBTL?
CBT is a single pump, while CBTL is a double (tandem) pump with two outputs.

2. Can both sections work independently?
Yes, each section supplies a separate hydraulic circuit.

3. What is the main advantage of CBTL-4?
It reduces system complexity by combining two pumps into one unit.

4. Is it suitable for dump trucks?
Yes, very common for tipping + steering combined systems.

5. Can displacement be customized?
Yes, front and rear pump displacements can be matched as needed.

6. What materials are used?
Typically aluminum alloy housing with precision gear components

Certifications & Quality Assurance

CBTL-4 pumps are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
