K5V200DTP
Green Hydraulic
Yes
ISO9001，CE
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
spline shaft
1 set
Product Description

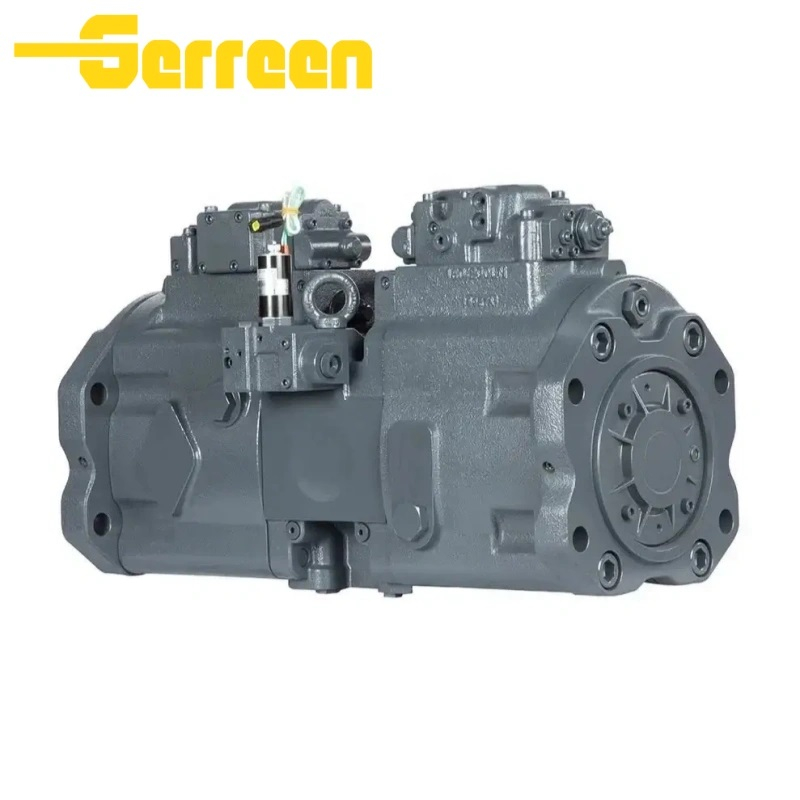

The K5V200DTP is a more affordable alternative to the original,a swash-plate type axial variable displacement piston pump for open circuits developed by Kawasaki Heavy Industries, specifically engineered for heavy-duty construction machinery. It features exceptional power density, outstanding volumetric efficiency, and stable load control, serving as the core main pump for 40–50 ton class large hydraulic excavators, and is widely adopted in demanding continuous operation scenarios such as mining and infrastructure construction.The PV2R Series Cartridge is a high-performance, fixed-displacement hydraulic pump designed for various industrial and mobile applications. With its compact, cartridge-style design, it offers easy installation, replacement, and maintenance.
Exceptional Power Density & High Efficiency:Featuring a swash plate and spherical valve plate design, it delivers a rated
pressure of 34.3 MPa with a large displacement of 200 cm³/rev, maintaining high volumetric efficiency even at low speeds and
pressures, leading in power-per-unit-volume among peer products.
Heavy-Duty Durability & Extended Lifespan: Reinforced main bearings and slipper wear compensation mechanisms
withstand peak pressures up to 39.2 MPa and continuous heavy-load shocks, significantly extending service life in harsh
conditions like mining and infrastructure construction.
Precise Control & Energy-Saving Smoothness: Supports constant power anti-overload, pressure cut-off, and electro-
hydraulic proportional control, accurately matching complex operation demands to reduce energy consumption while
improving operational smoothness and precision.
Compact Adaptability & Installation Friendliness: The DTP port layout (side inlet, bottom outlet, 90° angle) is perfectly
optimized for pipelinerouting in 40–50 ton class excavators, ensuring high installation space efficiency and flexible integration
with external pilot pumps or PTO interfaces.
High Reliability & Operational Adaptability:Optimized housing and valve plate structure minimize pulsation and noise.
Excellent self-priming capability handles complex conditions such as high altitude and low temperatures, effectively reducing
cavitation risks and ensuring stable continuous operation.
| displacement（cm3） | pressure（Mpa）Rated | pressure（Mpa）Peak | Max Self Priming Speed（min-1） | Structure（Tandem） | Structure（Parallel） |
| 200 | 34.3 | 39.2 | 2200 | ○ | - |
1. Industrial Hydraulic Systems
2. Mobile Equipment
3. Construction and Engineering Machinery
4. Metallurgy and Steel Industry
5. Marine and Offshore Equipment
Axial variable displacement piston pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
All axial variable displacement piston pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
We are a manufacture for vane pumps。.We are located in Changzhou City, Jiangsu Province, China.Welcome to visit us.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
