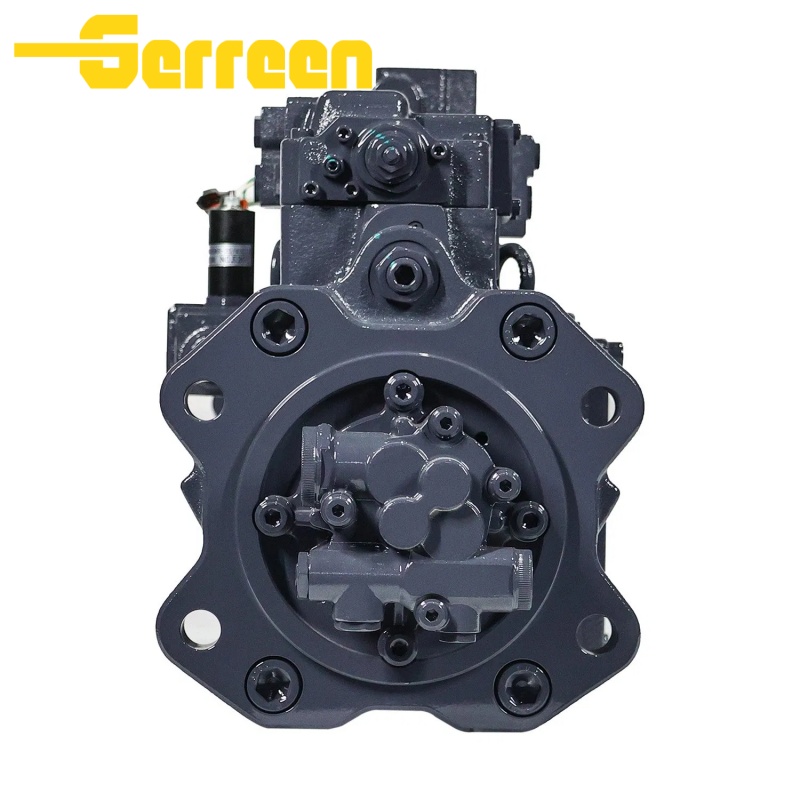

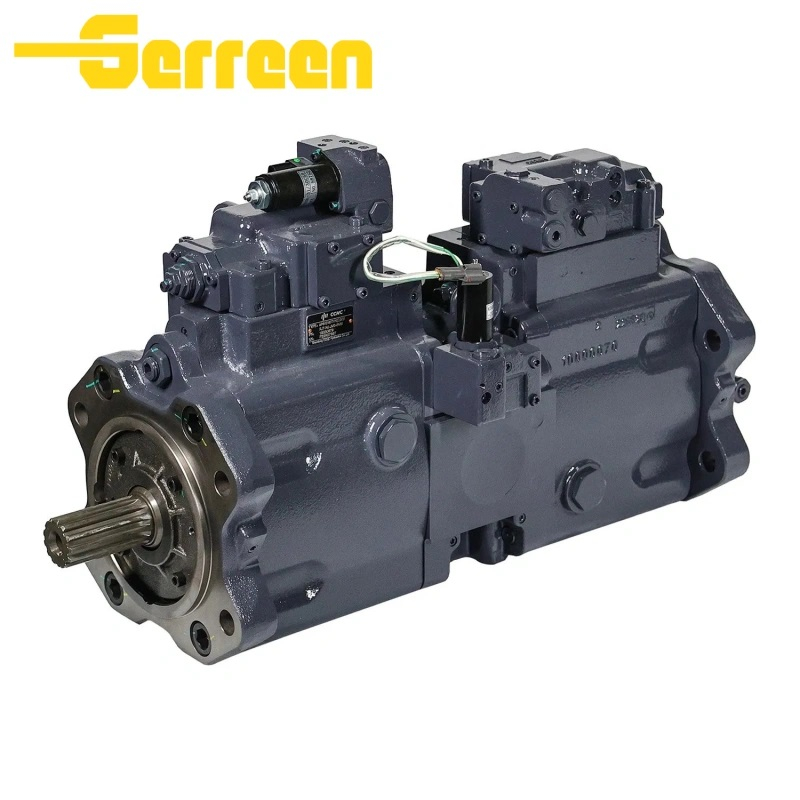

K5V160DTP
Green Hydraulic
Yes
ISO9001，CE
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
spline shaft
1 set
Product Description
High Power Density & Efficiency:Adopting advanced swash plate and spherical valve plate design, it maintains high
volumetric efficiency even at low speed and low pressure. Compared with the old K3V series, it has larger displacement
and higher output torque under the same installation size, realizing efficient power output.
Heavy-Duty Durability: Equipped with reinforced main bearings and slipper wear compensation return mechanism,
it can withstand long-term heavy-load impact and peak pressure of 39.2 MPa, effectively extending the service life in
harsh working conditions such as mining and construction sites.
Precise Control & Energy-Saving Smoothness:
Standard constant power control and pressure cut-off function, optional load-sensing and electro-hydraulic proportional
control, which can accurately match the needs of complex actions, reduce energy consumption and improve operational
smoothness and precision.

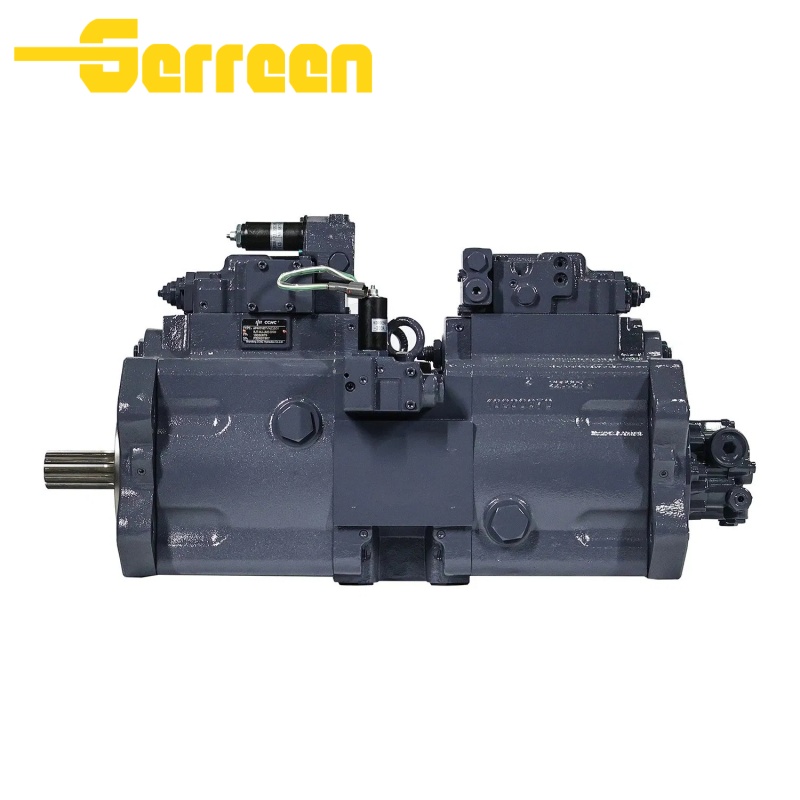

Compact Structure & Easy Installation:Tandem (double pump in series) structure, two pump cores share one main shaft, with
compactlayout. DTP side inlet and bottom outlet port design is optimized for the pipeline layout of 30–38 ton excavators, with
high installationspace utilization. The integrated PTO interface can drive auxiliary systems such as fans and pilot pumps.
High Reliability & Operational Adaptability:Optimized housing and valve plate structure minimize pulsation and noise. Excellent
self-priming capability handles complex conditions such as high altitude and low temperatures, effectively reducing cavitation risks
and ensuring stable continuous operation.
Specifications
| displacement（cm3） | pressure（Mpa）Rated | pressure（Mpa）Peak | Max Self Priming Speed（min-1） | Structure（Single） | Structure（Tandem） | Structure（Parallel） |
| 160 | 34.3 | 39.2 | 2000[2350*1] | ○ | ○ | ○ |
1. Excavators
2. Cranes（Crawler/Rough Terra）
3. Wheel Loaders
4. Crushers
5. Crawler Drills/Pile Drivers
6.Concrete Pumps
Piston pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
All piston pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
We are a manufacture for vane pumps。.We are located in Changzhou City, Jiangsu Province, China.Welcome to visit us.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
