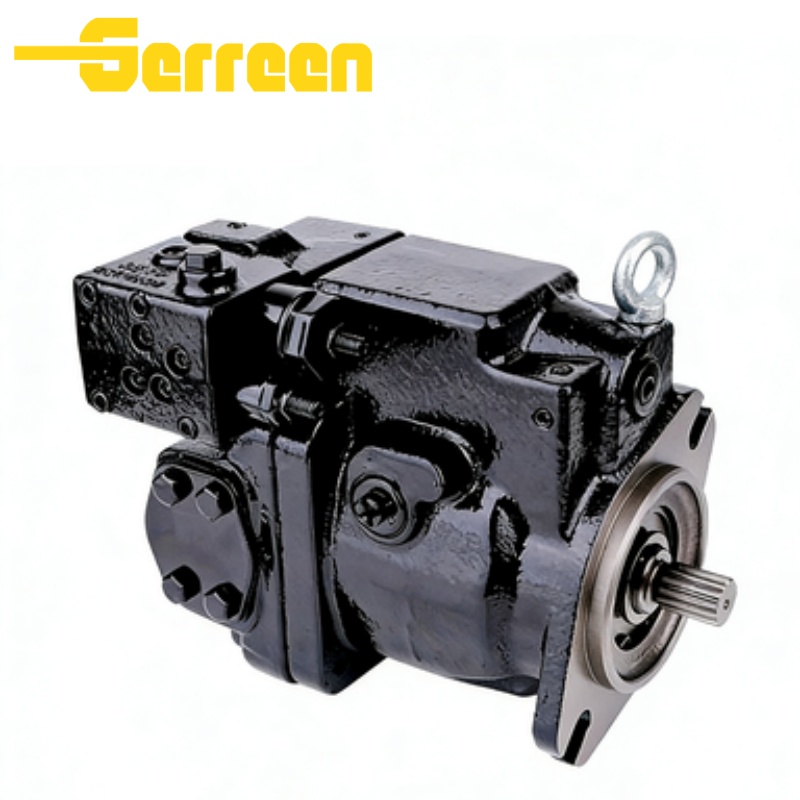

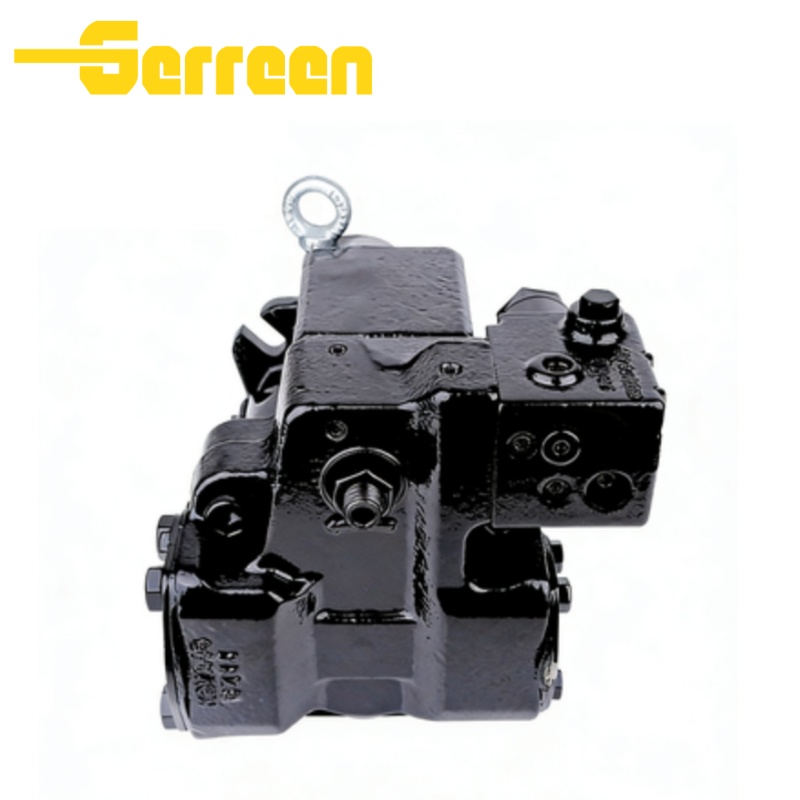

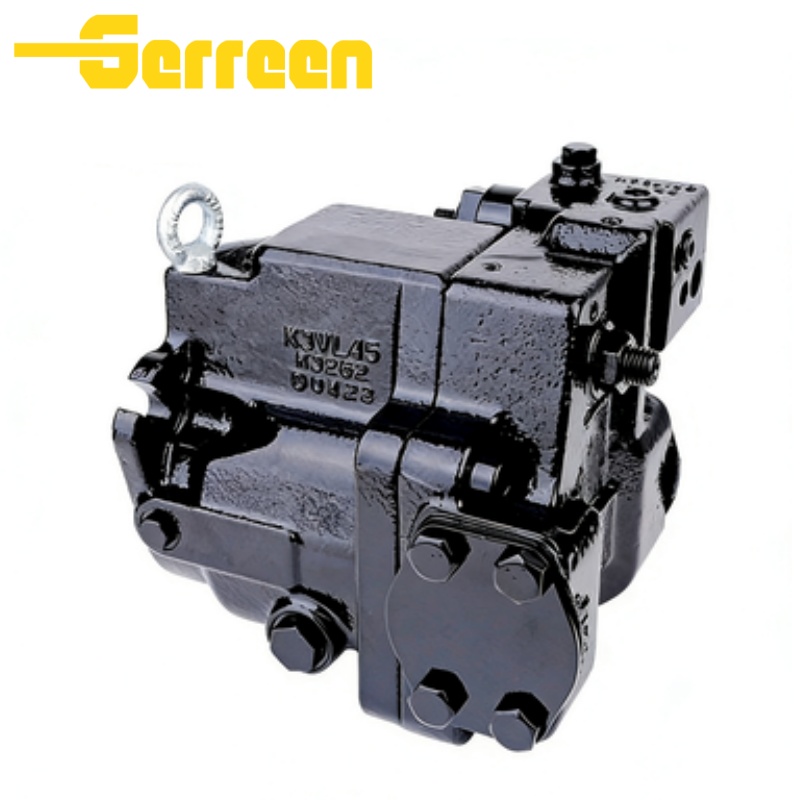

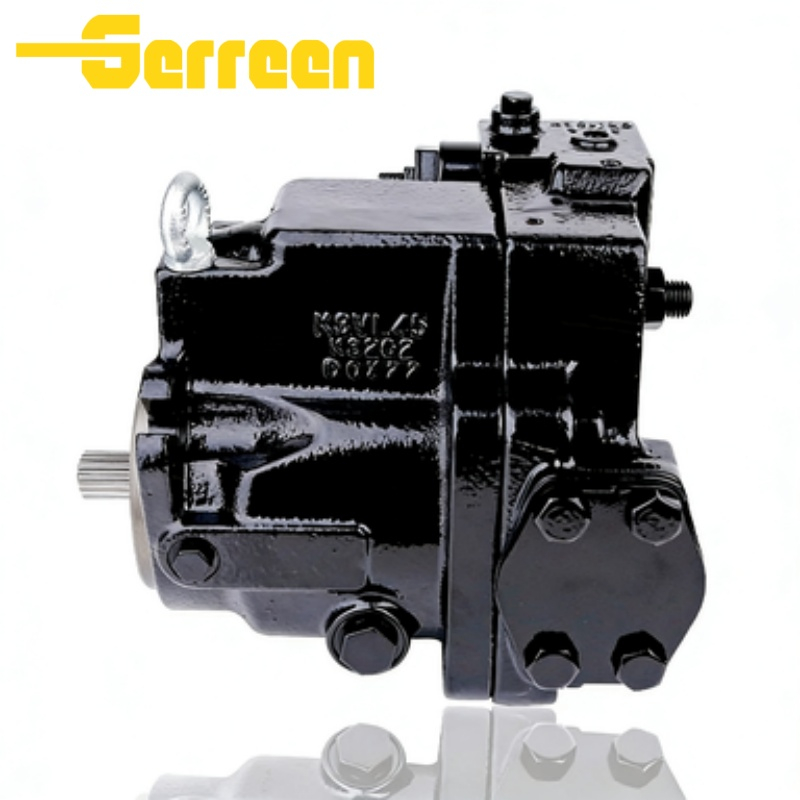

K3VL28 K3VL45 K3VL80 K3VL112 K3VL140 K3VL200 K3VL200H Servo Piston Hydraulic Pump

 K3VL Series Servo Piston Hydraulic Pump Overview

Special Features

The K3VL Series Servo Piston Hydraulic Pump offers reliable performance with a focus on precision, efficiency, and durability. Its key features can be summarized as follows:

• Servo Control

• Fast and precise adjustment of flow and pressure.

• Variable Displacement

• Supplies only the required oil, improving energy efficiency.

• High Pressure Performance

• Suitable for demanding and heavy-duty applications.

• Low Noise Operation

• Smooth running with reduced vibration and noise.

• Compact Design

• Space-saving and easy to install.

• Long Service Life

• Durable components with strong wear resistance.

• Flexible Control Options

• Supports pressure, flow, and load-sensing control.

K3VL Axial Piston Pump Types

Model		K3VL28	K3VL45	K3VL80	K3VL112	K3VL140	K3VL200	K3VL200H
displacement，max.(cm³)		28	45	80	112	140	200	200
Rated Pressure	bar	320
Peak Pressure	bar	350
Maximum Self Priming Speed	rpm	3000	2700	2400	2200	2200	1900	2200
Maximum Boosted Speed	rpm	3600	3250	3000	2700	2500	2200*5	2200
Maximum 0perating speed	rpm	600
Weright	kg	20	27	35	65	65	95	130
Temperature range	°C	-20 to 80
Viscosity range	CST	10 to 1,000 - viscosities greater than 200 will require a no load warm up
Maximum contamination level		ISO 4406 18/15

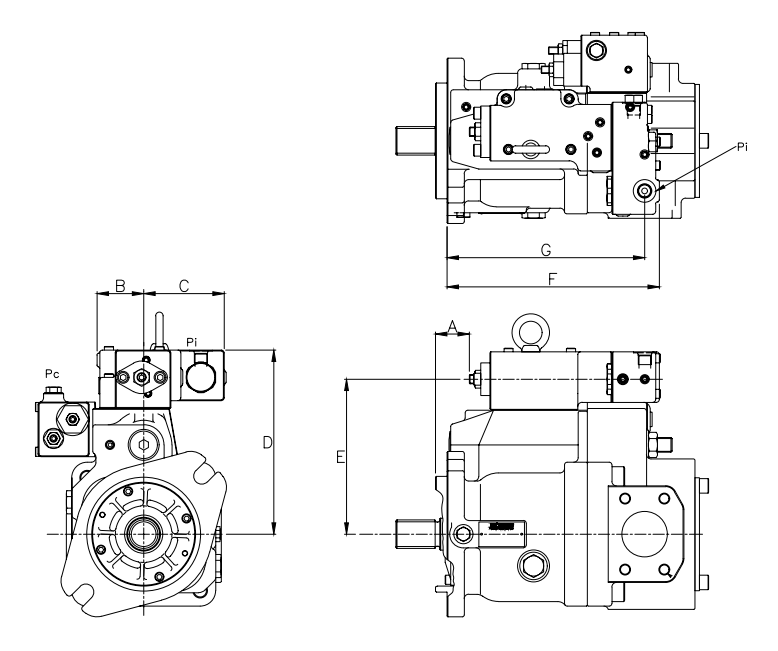

K3VL Series Servo Piston Hydraulic Pump Design

Applications



• Construction Machinery：Excavators Loaders Cranes

• Mining Equipment：Mining machinery Crushing equipment Conveying systems

• Oil & Drilling Equipment：Drilling rigs Oilfield machinery

• Industrial Hydraulic Systems：Hydraulic presses Die casting machines Automated production lines

• Mobile Hydraulic Equipment：Engineering vehicles Specialized mobile systems

Packaging & Delivery

Charge pumps are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

Certifications & Quality Assurance

Charge pumps are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.

Axial Piston Pump vs Radial Piston Pump FAQ

1. What is the main difference between axial and radial piston pumps?

The primary difference lies in the arrangement of pistons:

• Axial piston pump: Pistons are arranged parallel to the drive shaft.

• Radial piston pump: Pistons are arranged perpendicular (radially) around the shaft.

FAQ

1.How does the variable displacement work?

The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.

2.Are you a manufacture for the vane pump or a wholesale ?

We are a manufacture for vane pumps。.We are located in Changzhou City, Jiangsu Province, China.Welcome to visit us.

3.What's our advantages?

Factory established in 2005;

With a great deal of production experience;

80+ employees become the professional team;

Constant updated ERP system ensure efficiency of work;

Sophisticated equipment ehanced the accuracy of products;

Professional salesmen provide the greast service;

With a large number of famous customers all over the world;

Great after-sales service;

With the long term cooperation with famous logistics and express company in China,provide the better goods service.

4.What is your payment terms?

Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.

5.Can you make my own brand on the products?

Of course we can. Just send me your logo  we can make it for you.

6.What is our main export market?

America(40.5%):USA, Canada, Argentina, Brazil

Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.

Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.

Others(5.8%).
