Hydraulic Piston Pump Failure Analysis: Common Issues And Solutions

Hydraulic piston pumps are vital components in many industrial and mobile hydraulic systems. However, like all mechanical parts, they are susceptible to failure. Understanding the hydraulic piston pump failure analysis process is essential to maintaining your equipment and preventing costly downtime. In this blog, we will explore the common failures in hydraulic piston pumps, how they operate, and maintenance and repair tips to ensure optimal performance.

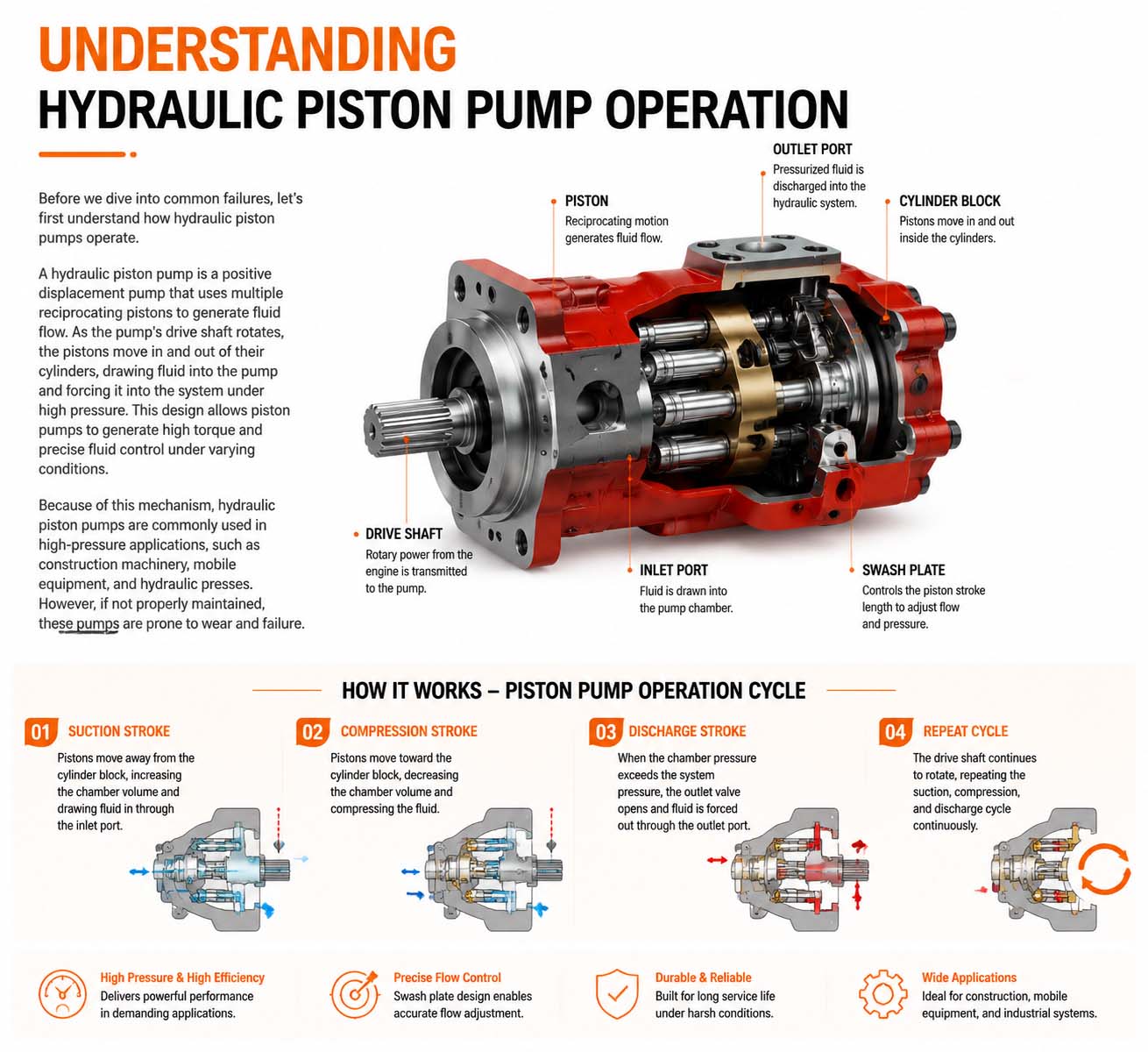

Understanding Hydraulic Piston Pump Operation

Before we dive into common failures, let’s first understand how hydraulic piston pumps operate.

A hydraulic piston pump is a positive displacement pump that uses multiple reciprocating pistons to generate fluid flow. As the pump's drive shaft rotates, the pistons move in and out of their cylinders, drawing fluid into the pump and forcing it into the system under high pressure. This design allows piston pumps to generate high torque and precise fluid control under varying conditions.

Because of this mechanism, hydraulic piston pumps are commonly used in high-pressure applications, such as construction machinery, mobile equipment, and hydraulic presses. However, if not properly maintained, these pumps are prone to wear and failure.

Common Causes of Hydraulic Piston Pump Failure

1. Contaminated Hydraulic Fluid

Hydraulic fluid contamination is one of the leading causes of failure. Dirt, water, metal particles, or other impurities can cause significant wear on the pump components, leading to poor performance or failure.

How to Prevent It

Use high-quality hydraulic fluid

Install and maintain proper filtration systems

Regularly inspect and change the fluid as needed

2. Cavitation

Cavitation occurs when air bubbles form inside the hydraulic fluid due to low pressure, and when these bubbles collapse, they create shockwaves that damage internal pump components.

How to Prevent It

Ensure proper fluid levels

Fix air leaks in the suction lines

Check suction line conditions and avoid excessive suction height

3. Overheating

Hydraulic piston pumps can overheat if the fluid temperature exceeds the recommended range, causing the oil to lose its lubrication properties and resulting in internal damage.

How to Prevent It

Monitor and control fluid temperature

Use a cooling system if needed

Regularly check oil viscosity to ensure proper lubrication

4. Insufficient Lubrication

If the pump is not properly lubricated, excessive friction can damage internal components. This can result from low fluid levels, improper oil viscosity, or a lack of regular maintenance.

How to Prevent It

Ensure the fluid is at the correct viscosity

Replace fluid regularly as per the manufacturer’s guidelines

Always check and maintain oil levels for proper lubrication

Hydraulic Piston Pump Repair: How to Fix Common Problems

If you experience any of the issues above, timely repair is crucial to avoid further damage. Here’s how to address some of the common problems:

1. Cleaning and Replacing Components

If contamination or internal wear is detected, disassemble the pump and clean or replace damaged components, such as pistons, seals, and valves. Regular maintenance can significantly extend the life of the pump.

2. Correcting Cavitation

Ensure that the suction line is free of air leaks, and install a pressure relief valve if necessary. Reducing the suction lift can also help prevent cavitation.

3. Replacing Worn Seals

Worn seals and O‑rings can lead to leakage and reduced efficiency. Always replace seals and check the pump housing for signs of wear.
