ALP1
Green Hydraulic
ALP1
Standard export carton/plywood case
Yes
ISO9001，CE
• Industrial • Energy • Government (Non Aerospace) • HVAC • Mobile • Natural Resources • Transportation (Non Aerospace)
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
Key Shaft and Spline shaft
1 set
Product Description

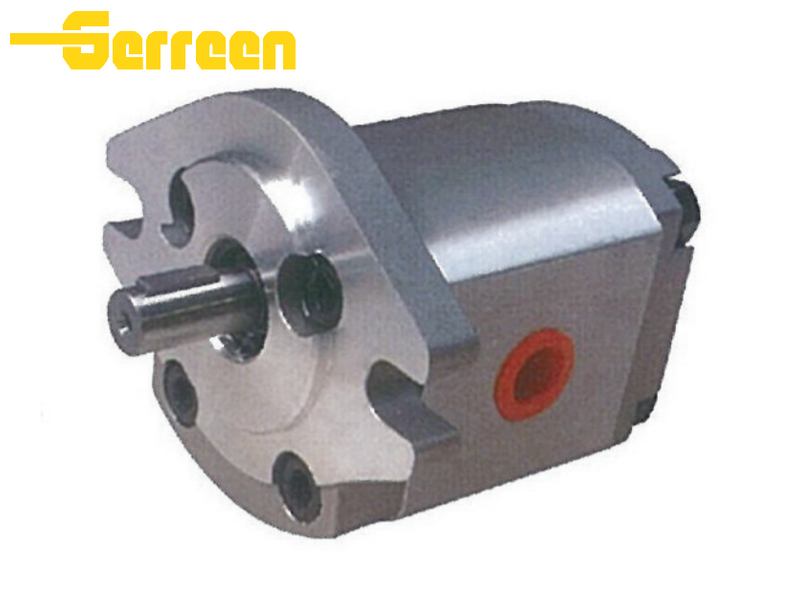

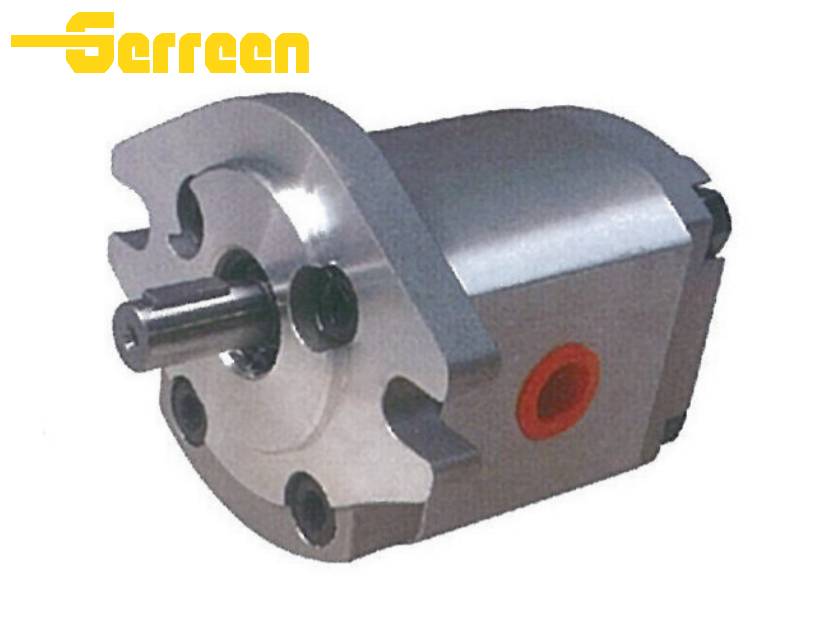

The Marzocchi ALP1 is a compact, high‑pressure fixed‑displacement external gear pump designed for modern hydraulic systems requiring lightweight construction, high efficiency and reliable continuous performance. Built with a full‑aluminum body and hardened steel gear components, it delivers an excellent power‑to‑weight ratio, making it ideal for mobile equipment and industrial applications where space and efficiency are critical.
Specifications
| Parameter | Specification |
| Type | External gear pump, fixed displacement |
| Construction | 3-piece aluminum housing, hardened steel gears |
| Displacement range | 1.4 – 13.8 cc/rev |
| Continuous pressure (P1) | Up to 250 bar |
| Intermittent pressure (P2) | Up to 270 bar |
| Peak pressure (P3) | Up to 290 bar |
| Max. operating speed | 6,000 rpm (max) |
| Typical flow @ 1500 rpm | 2.0 – 19.7 L/min (model-dependent) |
| Fluid viscosity range | 6 – 500 cSt (recommended: 15–100 cSt) |
| Operating temperature range | -40 °C to +80 °C |
| Shaft options | Keyed, splined, or custom profiles |

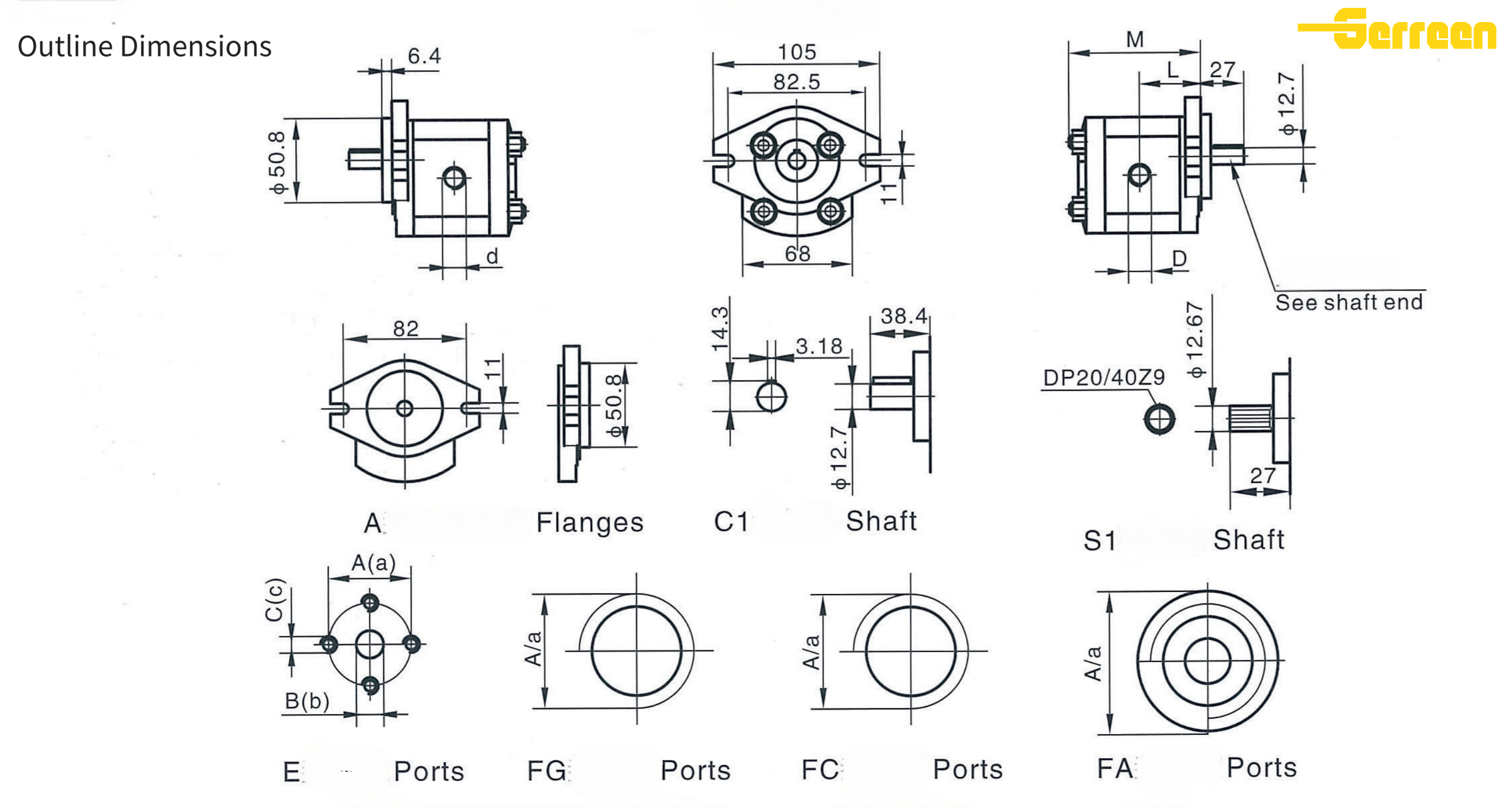

| Mounting standards | SAE “A”, “B”, European / German standard flanges |
| Port configurations | Side or rear ports, reversible rotation versions available |
| Seal materials | NBR (standard), FKM (high-temp option) |
| Application | Mobile hydraulics, industrial machinery, compact power packs |
Applications
Applications
Factory&FAQ
ALP1 pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
Lightweight Aluminum Housing: Unlike cast‑iron pumps, the ALP1’s aluminum body drastically reduces overall system weight, improving vehicle payload and fuel efficiency without sacrificing structural rigidity.
High‑Efficiency Gear Profile: Precision‑ground, hardened steel gears with optimized tooth geometry reduce noise and flow pulsation, delivering higher volumetric efficiency than many standard cast‑iron alternatives.
Modular Mounting Versatility: Standard with multiple flange (SAE “A”, “B”, European), shaft, and port configurations, the ALP1 offers unmatched installation flexibility in space‑constrained environments.
The ALP1 is a compact high‑pressure specialist. Depending on the specific displacement, the series typically handles:
Continuous Pressure: Up to 250 bar (3,625 PSI).
Intermittent/Peak Pressure: Up to 290 bar (4,205 PSI).
This robust pressure rating makes the ALP1 ideal for powering lifting, actuation, and compact power unit systems on light‑to‑medium duty equipment.
Yes, the ALP1 is a high‑quality, versatile alternative to other premium compact gear pumps. It is often used as a replacement or upgrade for:
Other Marzocchi “01” series pumps
Casappa PLP series
Parker PGP/PGM series
Bosch Rexroth AZPF series
To protect the hardened steel gears and high‑performance seals, the following is recommended:
Oil Type: Premium mineral‑based hydraulic fluids with strong Anti‑Wear (AW) additive packages.
Viscosity: Standard ISO VG32 to VG68. The optimal operating range is 15–100 cSt, though it can handle cold starts up to 400 cSt.
Filtration: Cleanliness is vital for long seal and gear life. A minimum filtration of ISO 4406 18/16/13 is recommended to prevent abrasive particles from damaging the internal components.
The ALP1 is designed for high‑speed operation. Its typical operating range is:
Minimum Speed: 300 rpm (for stable flow at low pressures)
Maximum Continuous Speed: Up to 3,000–4,000 rpm (model‑dependent)
Peak Speed: Up to 6,000 rpm (for intermittent use)
This high‑speed capability allows the pump to be directly driven by engine PTOs or electric motors without the need for complex reduction gearboxes.
Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
ALP1 pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
