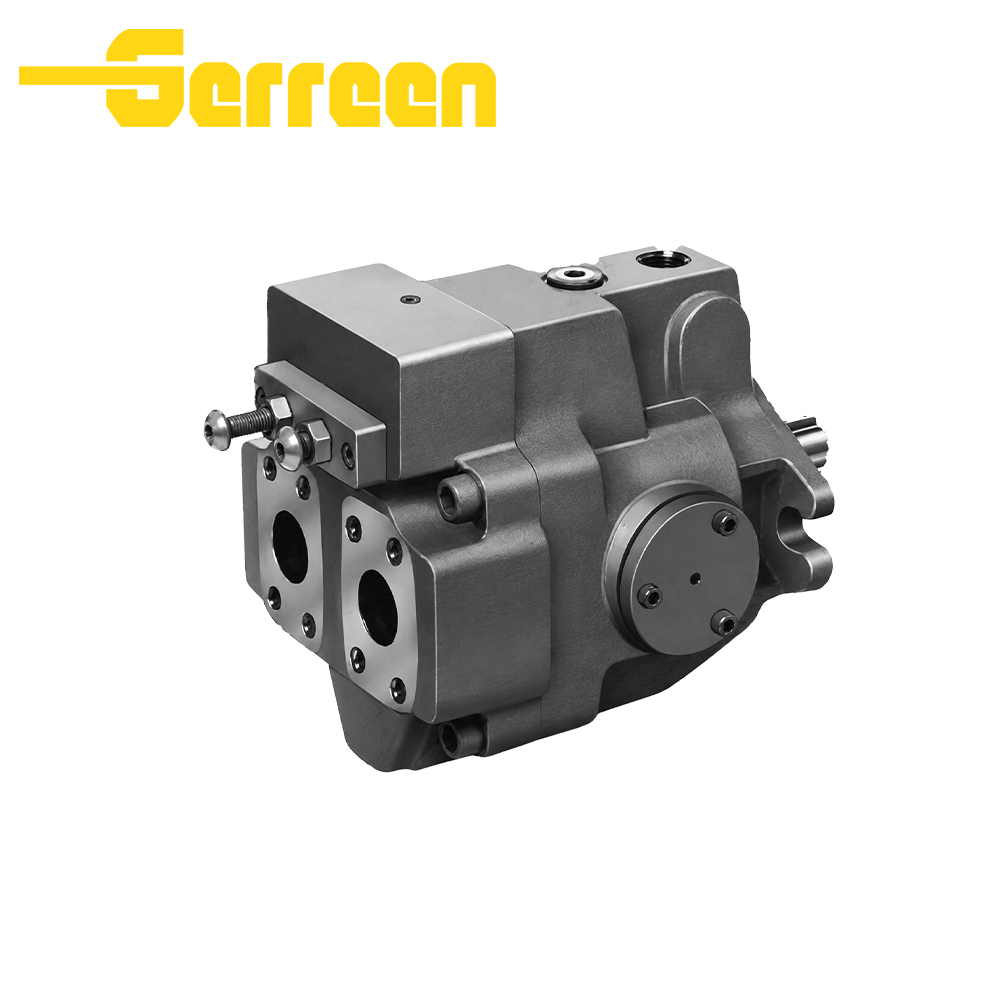

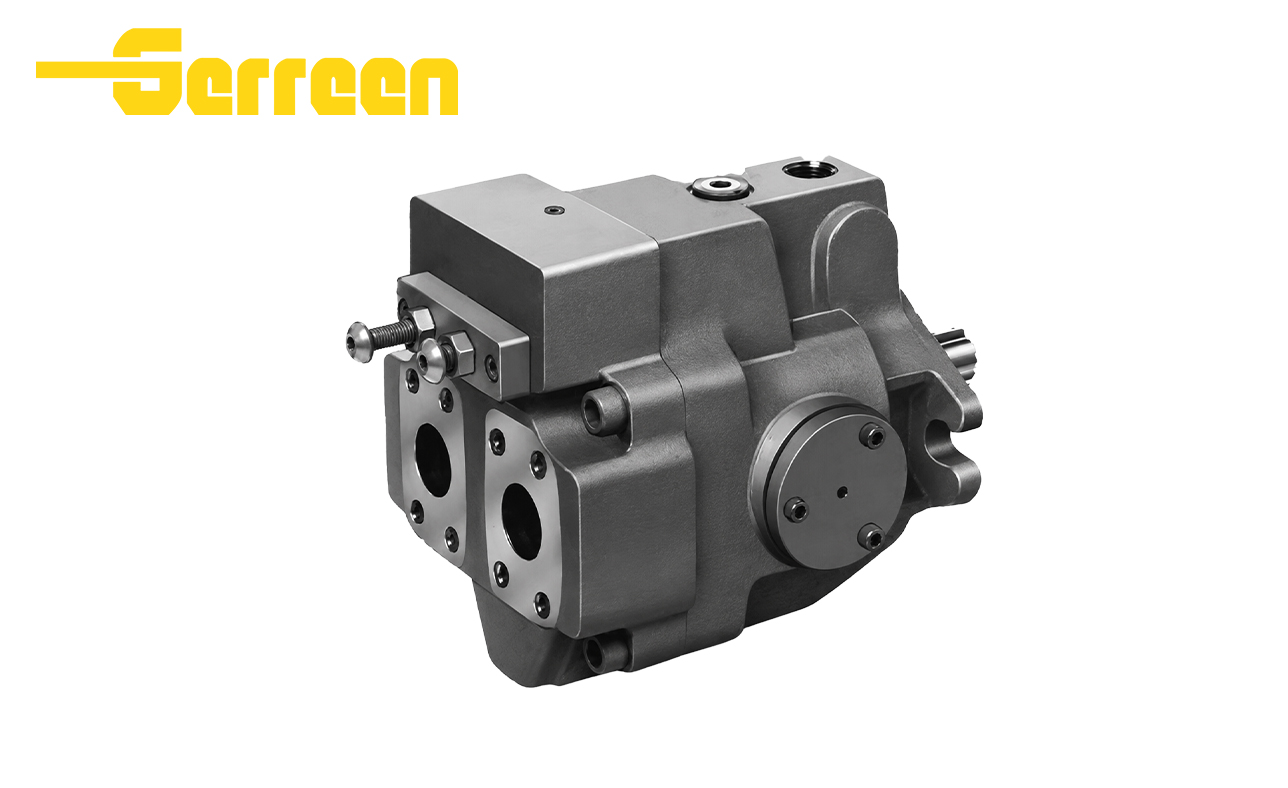

A10/A16/A22/A37/A45/A56/A70/A90/A100/A145
Green Hydraulic
A10/A16/A22/A37/A45/A56/A70/A90/A100/A145
Standard export carton/plywood case
YES
ISO9001 CE
1 set
Product Description
Specifications
Displacement range: 10, 16, 22, 37, 45, 56, 70, 90, 100, 145 cc/rev
Rated working pressure: 280 bar; Peak pressure: 350 bar
Rotation direction: Clockwise / Counterclockwise (viewed from drive end)
Allowable rotational speed: 500 ~ 3000 rpm
Control modes: Pressure control, flow control, constant power control
Hydraulic fluid: Anti-wear hydraulic oil (ISO VG32 / VG46)
Operating oil temperature: -20 ℃ ~ +80 ℃
Viscosity working range: 16 ~ 100 mm²/s
Mounting standard: SAE flange installation interface
Shaft form: Keyed shaft, spline shaft optional
Overall structure: Swash plate variable axial piston design
Sealing material: Nitrile rubber / FKM fluororubber for high temperature options
Applications
This series axial piston pumps act as core power parts for mobile hydraulic systems and stationary hydraulic stations.
Suitable for construction machinery: loaders, mini excavators, road rollers, pavers, concrete pumps and bulldozers.
Matched with agricultural machines: tractors, combine harvesters, balers and farm hydraulic lifting systems.
Applied to material handling equipment: forklifts and aerial work platforms.
Used in industrial hydraulic equipment: hydraulic presses, test benches and customized hydraulic power units.
Available for sanitation trucks, municipal machinery and marine auxiliary hydraulic systems.
Factory&FAQ
A Series Piston Pump A10/16/22/37/45/56/70/90/100/145 are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
1. What is the A Series Piston Pump A10/16/22/37/45/56/70/90/100/145 ?
It is a swash plate type variable axial piston pump with displacements covering 10cc to 145cc. Equipped with multiple control modes and high-pressure resistant structure, this pump can directly replace original brand pumps. It serves as the core hydraulic power source widely used in construction machinery, agricultural equipment, industrial hydraulic stations and municipal vehicles with high efficiency and stable running performance.
2. What makes the A Series Piston Pump A10/16/22/37/45/56/70/90/100/145 ?
Precision machined piston assemblies and wear-resistant valve plates ensure high efficiency and low internal leakage. Multiple optional control structures satisfy different load demands. Standard installation dimensions enable direct replacement of original pumps. Rigorous finished-product pressure testing guarantees stable performance under continuous high-load working conditions, together with optimized casing and sealing parts to extend service life greatly.
3. What is the working pressure range of A Series Piston Pump A10/16/22/37/45/56/70/90/100/145 ?
Its rated continuous working pressure reaches 280 bar, while the instantaneous peak pressure can hit 350 bar. The pump can steadily maintain normal operation under long-term high-pressure working conditions for engineering and agricultural machinery.
4. Can A Series Piston Pump A10/16/22/37/45/56/70/90/100/145 replace other brands?
Yes, this A series piston pump is designed with unified overall dimensions, mounting flange, shaft size and control interface consistent with mainstream original pumps.
It can be directly interchanged and installed to replace corresponding pumps of mainstream famous brands without modifying equipment structures.
All internal hydraulic parameters match the original standards, which ensures consistent system performance after replacement.
5. What is the typical speed range of A Series Piston Pump A10/16/22/37/45/56/70/90/100/145 ?
Low speed avoids oil suction cavitation, while the upper speed limit guarantees stable operation under rated pressure for construction and agricultural machinery.
6. Do you provide OEM or customized services?
Yes, we support both OEM and customized services for this A series piston pump.
We can print your brand logo on the pump housing and nameplate as required.
7. How can I get a quotation quickly
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
A Series Piston Pump A10/16/22/37/45/56/70/90/100/145 are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
1.What's our advantages?
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
