P6,P7,P8,P11,P14,P24,P30,M6,M7,M11,M14,M24,M30
Green Hydraulic
P6,P7,P8,P11,P14,P24,P30,M6,M7,M11,M14,M24,M30
Standard export carton/plywood case
YES
ISO9001 CE
1 set
Product Description
Heavy-duty reinforced structural design, maximum working pressure up to 350bar
Electronic proportional control achieves accurate digital adjustment compatible with PLC control system
Low pulsation & low noise operation, excellent thermal stability for long-hour continuous running
Complete pump and motor specifications with strong interchangeability of spare parts
Built-in multi-protection functions to effectively prevent overload and system damage
Specifications
Rated Working Pressure: 280 bar
Peak Intermittent Pressure: 350 bar
Continuous Back Pressure: Max 30 bar
Maximum Rated Speed: 2200 rpm
Minimum Stable Speed: 300 rpm
Suggested optimum speed: 1000–1800 rpm
Hydraulic control: Load sensing, constant power, pressure cut-off
Electronic proportional control: Electrical displacement/pressure control, CAN bus compatible
Recommended oil: ISO VG32 / VG46 anti-wear hydraulic oil
Normal operating oil temperature: 20 ℃ ~ 80 ℃
Viscosity working range: 16 ~ 100 mm²/s
Rotation direction: Clockwise (standard, shaft side view), counter-clockwise optional
Mounting form: Square flange standard installation
Low flow pulsation, low noise design
Built-in anti-overload & pressure protection structure
Applications
Construction machinery: asphalt pavers, concrete mixers, road rollers, large excavators
Metallurgical & mining equipment: hydraulic stations, heavy-duty hydraulic drive systems
Heavy industry: large injection molding machines, forging machinery
Agricultural machinery, marine hydraulic systems and special high-pressure hydraulic units
Factory&FAQ
Gold Cup Series Pump&Motor are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

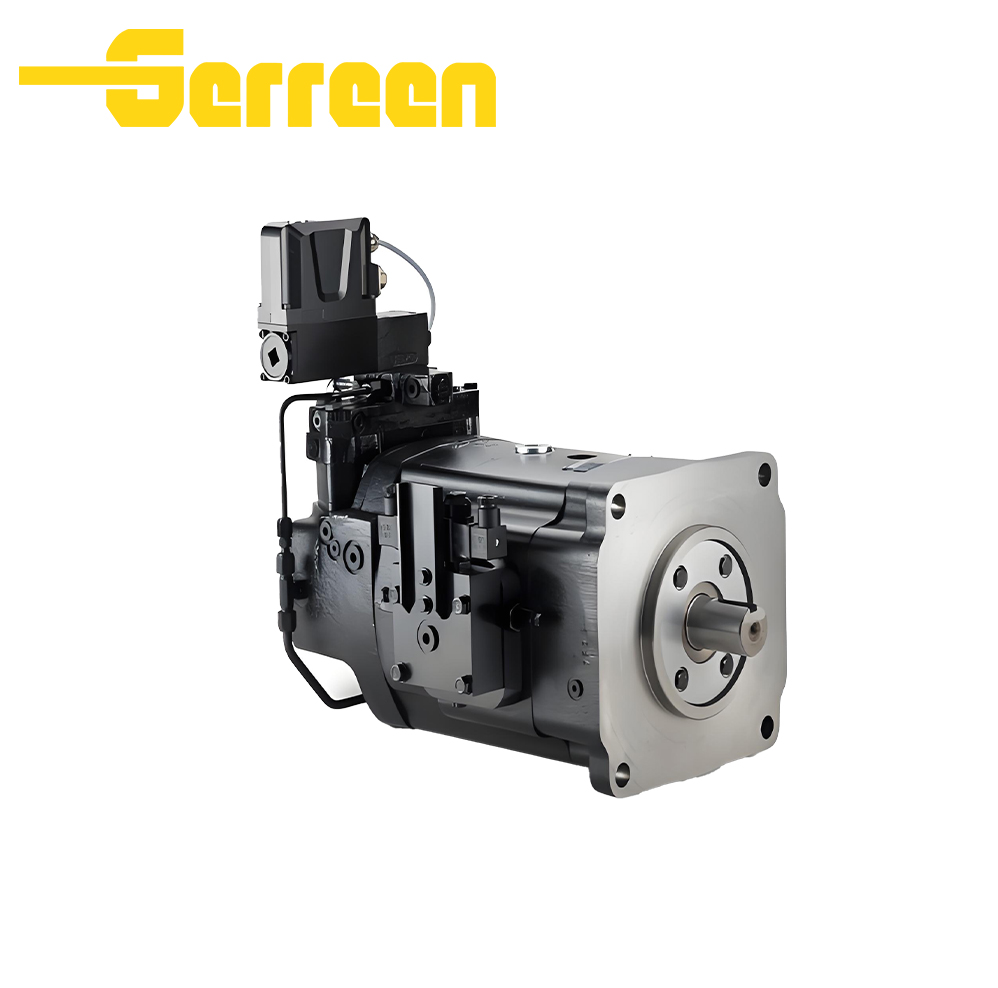

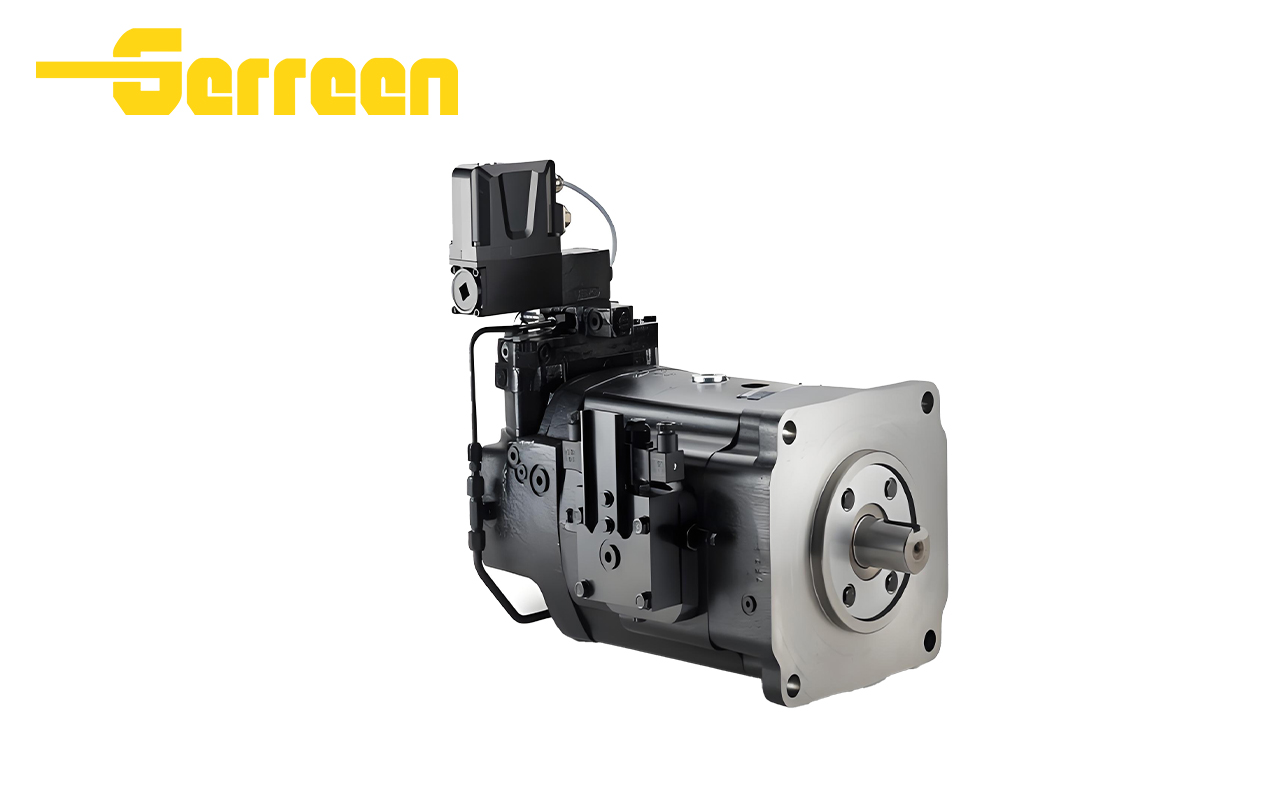

1. What is the Gold Cup Series Pump&Motor ?
Gold Cup series are heavy-duty axial piston pumps and motors manufactured by Parker Denison.
Built with the proprietary gold cup piston assembly, they support both hydraulic control and electronic proportional control modes.
With high pressure resistance, stable output and strong shock resistance, they are widely applied in construction machinery, mining, metallurgy and large industrial hydraulic systems for long-term harsh working conditions.
2. What makes the Gold Cup Series Pump&Motor ?
Adopts exclusive gold-cup piston structure, greatly improving lubrication performance and wear resistance under high pressure and heavy loads.
Supports both hydraulic control and electronic proportional control, compatible with PLC and CAN bus for precise digital regulation of pressure and displacement.
Withstand rated pressure up to 280 bar and peak pressure of 350 bar, featuring strong anti-impact capacity for severe working environments.
Low flow pulsation and low noise design, stable continuous operation with complete built-in overload and pressure protection mechanisms.
Full range of pump and motor specifications with good part interchangeability, lowering maintenance costs for construction, mining and metallurgical equipment.
3. What is the working pressure range of Gold Cup Series Pump&Motor ?
Rated continuous working pressure: 280 bar
Maximum intermittent peak pressure: 350 bar
Allowable maximum continuous back pressure: 30 bar
4. Can Gold Cup Series Pump&Motor replace other brands?
5. What is the typical speed range of Gold Cup Series Pump&Motor ?
Optimal operating speed range: 1000 rpm ~ 1800 rpm
6. Do you provide OEM or customized services?
7. How can I get a quotation quickly
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
Gold Cup Series Pump&Motor are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
1.What's our advantages?
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
