26 Series
Green Hydraulic
26 Series
Standard export carton/plywood case
Yes
ISO9001，CE
• Industrial • Energy • Government (Non Aerospace) • HVAC • Mobile • Natural Resources • Transportation (Non Aerospace)
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
Key Shaft and Spline shaft
1 set
Product Description

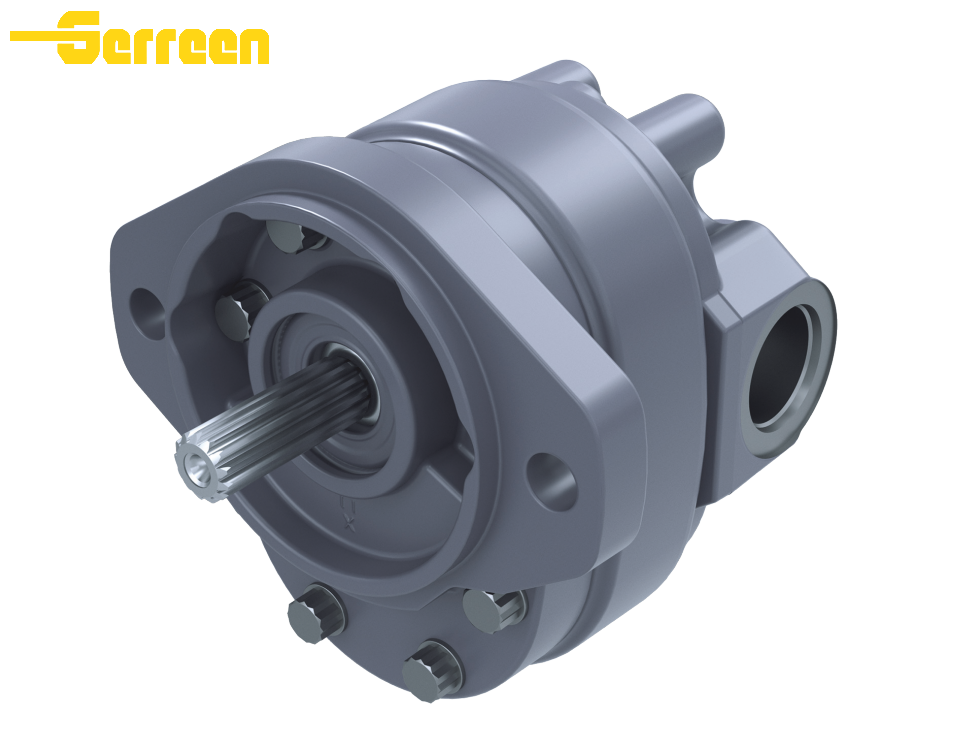

The Danfoss Vickers 26 Series is a high-performance, fixed-displacement aluminum-body gear pump engineered for compact mobile and industrial hydraulic systems that demand reliable high-pressure output, low noise, and exceptional efficiency. Featuring a rugged lightweight construction, the 26 Series delivers a high power-to-weight ratio, making it an ideal choice for direct mounting to truck Power Take-Offs (PTOs) and space-constrained equipment where performance is non-negotiable.
| Displacement Range | Continuous Pressure | Intermittent Pressure | Max Speed | Housing Material | Mounting | Rotation | Ports | Max Temp | Min Temp | Min Viscosity |
| 6.6–55.2 cm³/rev | 210 bar (3,000 psi) | 241 bar (3,500 psi) | 3,600 rpm | Die-cast aluminum | SAE "A"/"B" 2-bolt flange | Field-reversible | Side / rear | 105°C (220°F) | -29°C (-20°F) | 5.7 cSt (45 SUS) |
Applications
Utility & Service Vehicles: Ideal for truck-mounted cranes, aerial lifts, and bucket trucks, where the compact footprint and SAE standard mounting easily integrate with PTO units to deliver stable lifting and positioning power.
Snow & Ice Control: Optimized for salt spreaders, plow systems, and de-icing equipment, with durable construction and contamination tolerance ensuring long life in harsh winter environments.
Commercial Refuse & Recycling: Suited for small-frame garbage collectors and waste bin lifters, offering high-cycle, high-pressure stability to support rapid compaction and unloading operations.
Small Material Handling: Perfect for truck tail-lifts, hydraulic ramp systems, and pallet jacks, providing a space-efficient power source that maintains efficiency under heavy load conditions.
Agricultural Equipment: Commonly used in seeders, fertilizer spreaders, and implement steering systems, handling variable load shocks and fluid contamination common in outdoor field environments.
Construction & Compact Machinery: Reliable for mini excavators, skid-steer attachments, and light-duty construction equipment, delivering consistent power with low noise for operator comfort.
26 series pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
Low-Noise 13-Tooth Gear Design: Reduces flow ripple and operational noise compared to traditional 10-tooth gear pumps, improving operator comfort.
Pressure-Balanced Bushing Technology: Offers superior bearing surface area, greater resistance to fluid contamination and thermal shock than standard roller-bearing pumps.
Lightweight Yet Durable Build: High-strength aluminum housing minimizes weight while maintaining structural rigidity, outperforming older cast-iron designs in weight-sensitive mobile applications.
Flexible Installation: Field-reversible rotation and multiple port configurations provide greater mounting versatility in cramped chassis environments.
The 26 Series is engineered for high-pressure mobile applications. Depending on displacement:
Continuous Pressure: Up to 3,000 PSI (210 bar).
Intermittent/Peak Pressure: Up to 3,500 PSI (241 bar).
This robust pressure rating makes it ideal for powering lifting, compaction, and auxiliary systems on utility and commercial vehicles.
Yes, the 26 Series is a high-quality drop-in replacement or upgrade for many popular compact gear pumps, including:
Parker PGP Series
Eaton/Char-Lynn equivalent pumps
Other SAE A/B mount aluminum-body gear pumps
To ensure a successful swap, verify the Mounting Flange (SAE A or B), Shaft Type (spline count), Rotation Direction, and Displacement to match your existing system.
To protect the precision bushings and hardened steel gears, the following is recommended:
Oil Type: Premium mineral-based hydraulic fluids with Anti-Wear (AW) additives.
Viscosity: ISO VG32 to VG68. Optimal operating range is 20–30 cSt (100–150 SUS); cold start capability up to 430 cSt (2,000 SUS).
Filtration: Minimum ISO 4406 18/16/13 cleanliness level to prevent abrasive damage to bushings and gears.
Maximum Continuous Speed: 3,600 RPM.
Recommended Operating Speed: 1,000–3,000 RPM (depending on displacement and pressure) for optimal efficiency and service life.
Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
26 series pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
