GSP2
Green Hydraulic
GSP2
Standard export carton/plywood case
Yes
ISO9001，CE
• Industrial • Energy • Government (Non Aerospace) • HVAC • Mobile • Natural Resources • Transportation (Non Aerospace)
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
Key Shaft and Spline shaft
1 set
Product Description

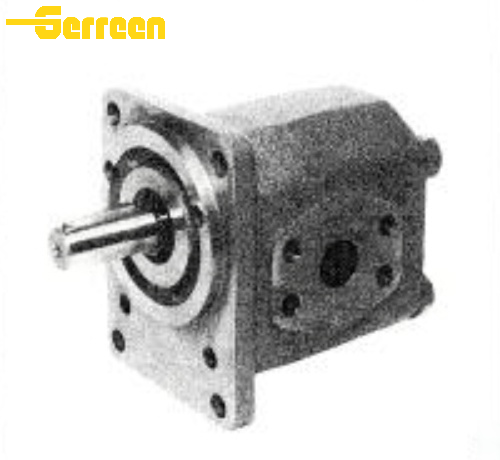

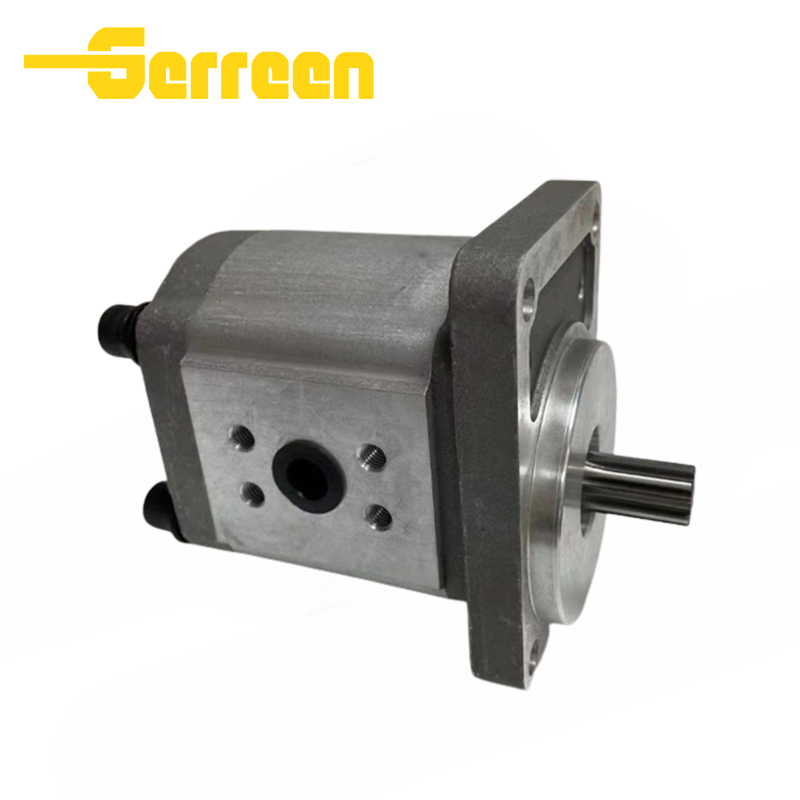

The GSP2 is a high-performance, fixed-displacement bushing-style gear pump engineered for compact hydraulic systems that demand maximum durability and reliable high-pressure output. Featuring a rugged three-piece cast iron construction, the GSP2 is specifically designed to provide a high power-to-weight ratio, making it an ideal choice for direct mounting to truck Power Take-Offs (PTOs) and other mobile equipment where space is at a premium and performance is non-negotiable.
| Model | 950 rpm | 1450 rpm |
| 4.5 cm³/rev | 53–59 | 55–60 |
| 6.5 cm³/rev | 52–56 | 57–61 |
| 8.6 cm³/rev | 55–58 | 57–62 |
| 12.1 cm³/rev | 58–61 | 58–63 |
| 16.2 cm³/rev | 61–63 | 62–66 |
| 22.4 cm³/rev | 63–65 | 67–70 |
Applications
Utility & Service Vehicles: A primary choice for truck-mounted cranes, bucket trucks, and aerial lifts, where the compact GSP2 frame integrates easily with Power Take-Off (PTO) units to provide reliable lifting and positioning power.
Snow & Ice Control: Optimized for salt spreaders and small plow systems, where the cast iron construction and bushing design ensure long-term durability against corrosive environments and high-frequency cycles of winter maintenance.
Commercial Refuse & Recycling: Widely used in small-frame garbage collectors and organic waste bin lifters that require high-cycle, high-pressure stability to manage rapid compaction and unloading operations.
Small Material Handling: Ideal for truck tail-lifts, hydraulic ramp systems, and electric pallet jacks, offering a durable and space-efficient power source that maintains high efficiency under heavy load conditions.
Specialized Agricultural Equipment: Frequently employed in seeders, fertilizer spreaders, and implement steering systems, where the GSP2 handles variable load shocks and fluid contamination common in outdoor field environments.
GSP2 pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
Rugged Cast Iron Housing: Unlike aluminum pumps that can suffer from "body stretching" at high pressures, the GSP2’s cast iron frame ensures tight internal clearances and a longer service life under high-pressure duty cycles.
Bushing-Style Performance: It utilizes advanced, pressure-balanced bushings that provide a superior bearing surface for the gears, offering greater resistance to thermal shock and fluid contamination than typical aluminum-body pumps.
Dual Porting Versatility: Standard with both side and rear ports, the GSP2 offers significantly more installation flexibility in cramped chassis environments than standard fixed-port aluminum designs.
The GSP2 is a compact high-pressure specialist. Depending on the specific displacement, the series typically handles:
Continuous Pressure: Up to 3,625 PSI (250 bar).
Intermittent/Peak Pressure: Up to 3,915 PSI (270 bar).
This robust pressure rating makes the GSP2 ideal for driving high-force lifting and compaction systems on professional-grade utility vehicles.
Yes, the GSP2 is a high-quality alternative to other premium compact cast iron pumps. It is often used as a replacement or upgrade for:
Parker/Commercial Intertec: P315 Series.
Metaris: MH315 Series.
Permco: P1900 Series.
To ensure a successful swap, verify the Mounting Flange (SAE A or B), Shaft Type (9, 11, or 13-tooth spline), and Displacement (Gear Width) to match your existing system.
To protect the high-precision bushings and hardened steel gears, the following is recommended:
Oil Type: Premium mineral-based hydraulic fluids with strong Anti-Wear (AW) additive packages.
Viscosity: Standard ISO VG32 to VG68. The optimal operating range is 100 to 150 SUS (20 to 30 cSt), though it can handle cold starts up to 2,000 SUS (430 cSt).
Filtration: Cleanliness is vital for bushing lubrication. A minimum filtration of ISO 4406 18/16/13 is recommended to prevent abrasive particles from damaging the bushing faces.
Standard GSP2 pumps typically operate within a range of 600 to 3,000 RPM, with an optimal efficiency range between 1,000 and 2,500 RPM, depending on displacement and pressure.
Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
GSP2 pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
