RGP-F400 Series
Green Hydraulic
RGP-F400 Series
Standard export carton/plywood case
Yes
ISO9001，CE
1. Industrial Hydraulic Systems 2. Mobile Equipment 3. Agricultural Machinery 4. Material Handling Vehicles
1. Industrial Hydraulic Systems 2. Mobile Equipment 3. Agricultural Machinery 4. Material Handling Vehicles
Key Shaft and Spline shaft
1 set
Product Description

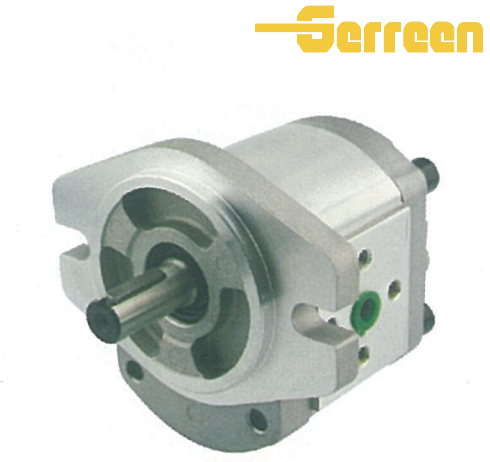

RGP-F400 Series Hydraulic Gear Pump is designed for stable hydraulic performance and efficient oil transmission. It features compact structure, low noise, reliable operation, and long service life, widely used in industrial machinery and hydraulic systems.
High-Performance Hydraulic Gear Pump Structure
Designed with precision gear transmission technology to deliver stable flow output, high volumetric efficiency, and reliable hydraulic performance.
Low Noise & Smooth Hydraulic Operation
Optimized gear profile effectively reduces operating noise and pressure pulsation, ensuring quiet and stable system performance.
Compact Design & Flexible Installation
Compact and durable construction allows convenient installation, simplified maintenance, and flexible integration into various hydraulic systems.
Wide Hydraulic Application Range
Suitable for construction machinery, agricultural equipment, industrial hydraulic systems, hydraulic power units, and mobile machinery applications.
Durable Construction & Long Working Life
Precision manufacturing and high-strength materials provide excellent wear resistance, stable operation, and extended service life under demanding working conditions.
Specifications
| Models | Nominal Displacement (mL/r) | Rated Pressure | Max Pressure | Max Rotation Speed (r/min) | Min Rotation Speed (r/min) | Volumetric Efficiency (≥%) | Input Power (kW) |
|---|---|---|---|---|---|---|---|
| RGP-F410 | 10 | 20 MPa (2800 psi) | 25 MPa (3500 psi) | 3500 | 500 | 8.2 | 3.3 |
| RGP-F416 | 16 | 20 MPa (2800 psi) | 25 MPa (3500 psi) | 3500 | 500 | 13.1 | 3.5 |
| RGP-F425 | 25 | 20 MPa (2800 psi) | 25 MPa (3500 psi) | 3500 | 500 | 20.4 | 3.8 |
| RGP-F427 | 27 | 20 MPa (2800 psi) | 25 MPa (3500 psi) | 3500 | 500 | 21.3 | 3.9 |
| RGP-F430 | 30 | 20 MPa (2800 psi) | 25 MPa (3500 psi) | 3500 | 500 | 24.1 | 4.0 |
| RGP-F432 | 32 | 20 MPa (2800 psi) | 25 MPa (3500 psi) | 3500 | 500 | 26.1 | 4.1 |
| RGP-F440 | 40 | 20 MPa (2800 psi) | 25 MPa (3500 psi) | 3500 | 500 | 32.7 | 4.3 |
Applications
Applications
Factory&FAQ
RGP-F400 Series Hydraulic Gear Pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
RGP-F400 Series Hydraulic Gear Pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
1.What's our advantages?
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
