GBF-F400 Series China Hydraulic Gear Pumps

Product Description

GBF-F400 Series Hydraulic Gear Pump Overview

GBF-F400 Series Hydraulic Gear Pumps are designed for stable hydraulic performance and efficient oil transmission. They feature compact structure, low noise, reliable operation, and long service life, widely used in industrial machinery and hydraulic systems.

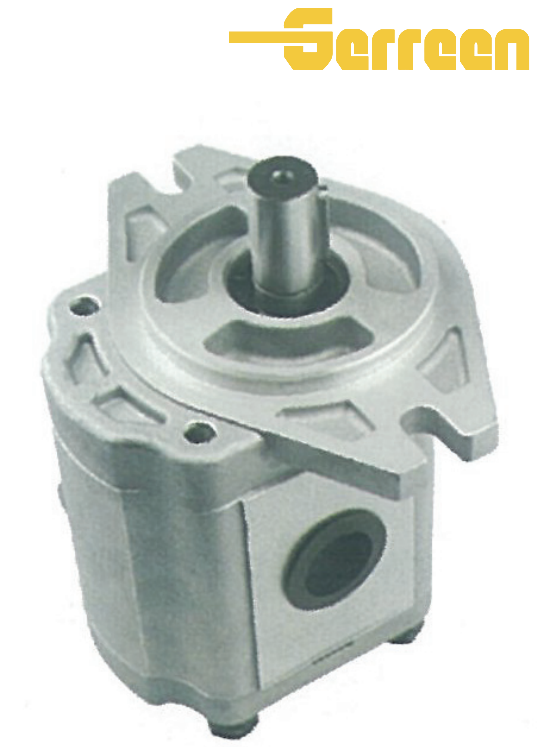

GBF-F400 Series Gear Pump pic

Features and Benefits

High-Performance Hydraulic Gear Design
Designed with precision gear transmission structure to provide stable flow output, high volumetric efficiency, and reliable hydraulic performance.
Low Noise & Stable Hydraulic Operation
Optimized gear engagement effectively reduces operating noise and pressure pulsation, ensuring smooth and quiet system operation.
Compact Structure & Flexible Installation
Compact and durable construction allows easy installation, convenient maintenance, and flexible integration into various hydraulic systems.
Wide Industrial Application Range
Suitable for construction machinery, agricultural equipment, hydraulic power units, industrial machinery, and mobile hydraulic applications.
Durable Construction & Long Service Life
Precision manufacturing and high-strength materials provide excellent wear resistance, stable performance, and reliable long-term operation.

Specifications

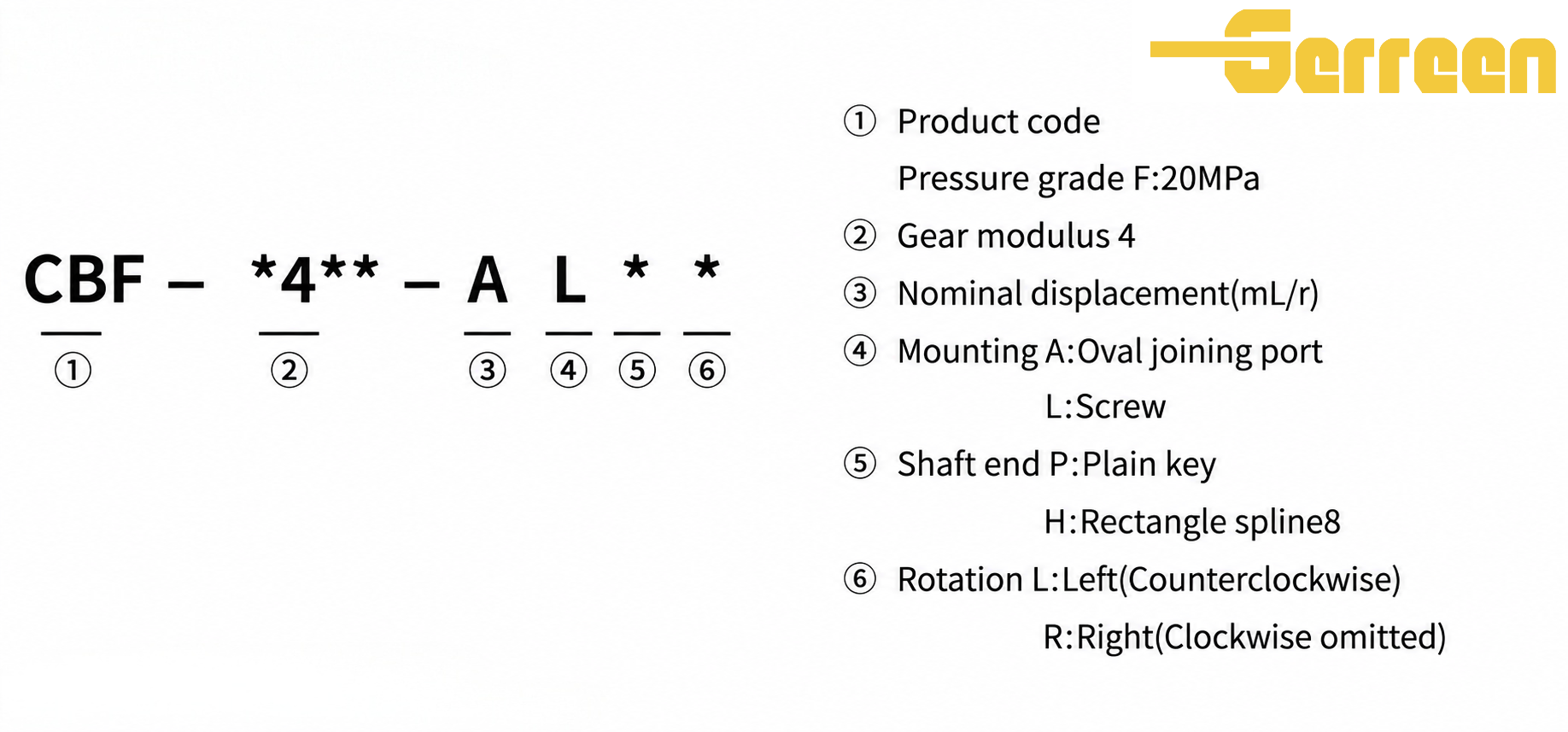

Model Codes

GBF-F400 Series Gear Pump model

Technical Data

Models	Displacement (cc/rev)	Rated Pressure (MPa)	Max Pressure (MPa)	Min Speed (r/min)	Rated Speed (r/min)	Max Speed (r/min)	Volumetric Efficiency (≥%)	L1	L	Inlet D	Inlet A	Outlet D	Outlet A	Weight (kg)
CBF-F410-AL**	10	20	25	800	2500	3000	92	55	114	M22×1.5	50	M18×1.5	45	2.25
CBF-F412.5-AL**	12.5	20	25	800	2500	3000	92	56.3	116.5	M22×1.5	50	M18×1.5	45	2.40
CBF-F414-AL**	14	20	25	800	2500	3000	92	57.3	118.5	M22×1.5	50	M18×1.5	45	2.55
CBF-F416-AL**	16	20	25	800	2500	3000	92	58.3	120	M27×2	50	M22×1.5	45	2.70
CBF-F418-AL**	18	20	25	600	2500	3000	92	59.5	123	M27×2	50	M22×1.5	45	2.85
CBF-F420-AL**	20	20	25	600	2500	3000	92	60.5	125	M27×2	50	M22×1.5	45	3.05
CBF-F425-AL**	25	20	25	600	2500	3000	93	63.8	131.5	M33×2	50	M27×2	45	3.20
CBF-F432-AL**	32	20	25	600	2500	3000	93	67.5	139	M33×2	50	M27×2	45	3.5
CBF-F440-AL**	40	16	20	600	2500	3000	93	72	148	M33×2	50	M27×2	45	3.5
CBF-F450-AL**	50	16	20	600	2500	3000	93	72	148	M33×2	50	M27×2	45	3.9

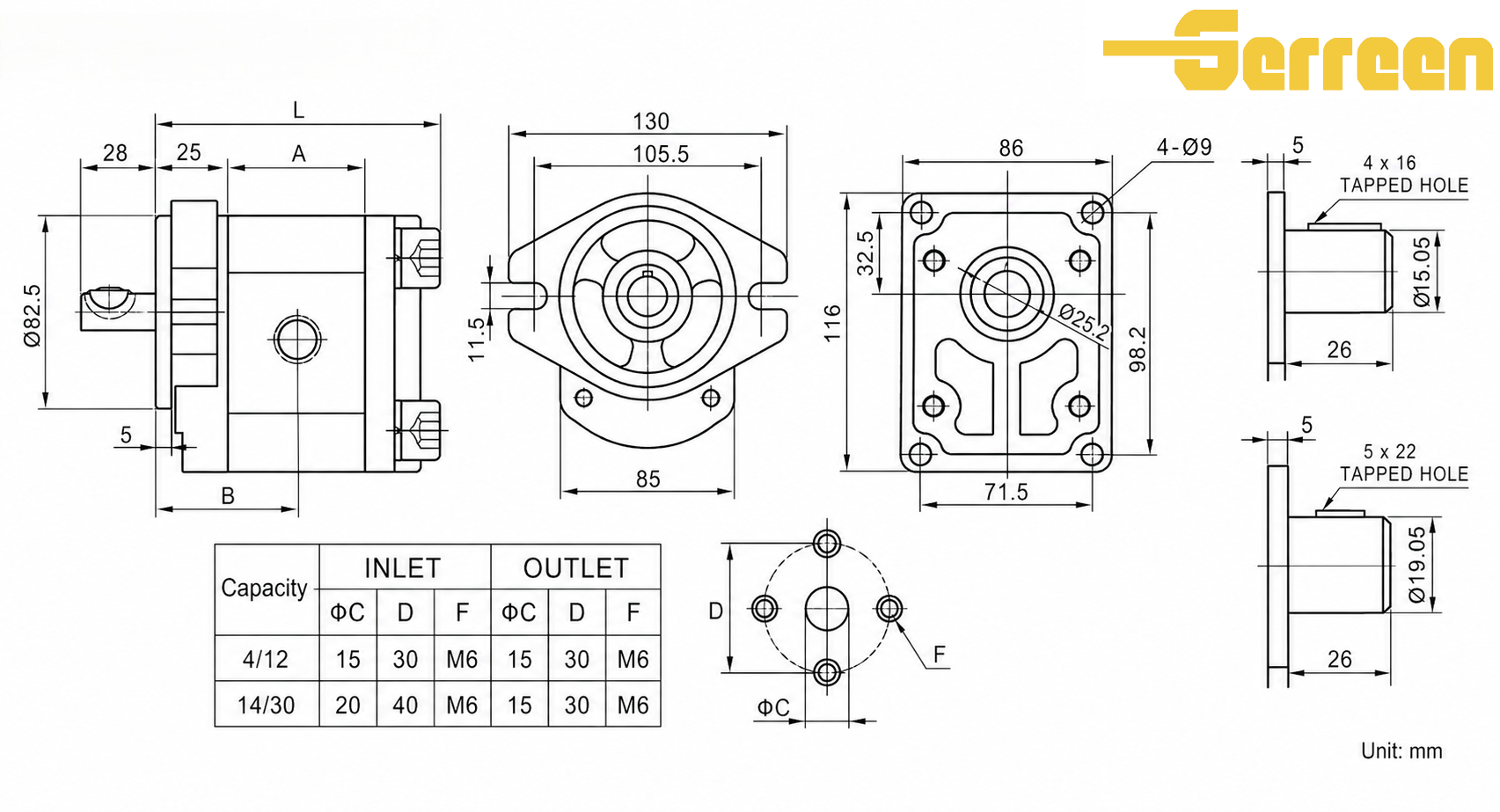

GBF-F400 Series Hydraulic Gear Pump Installation Dimensions

PDF

gear pump.pdf

Applications

Applications

The GBF-F400 Series Hydraulic Gear Pumps provide efficient and reliable hydraulic power for industrial and mobile hydraulic systems requiring stable oil flow, durable construction, and compact installation:

Construction Machinery: Suitable for loaders, excavators, cranes, and road machinery, delivering dependable hydraulic power for working systems.
Agricultural Equipment: Widely used in tractors, harvesters, and agricultural machinery for steering, lifting, and auxiliary hydraulic applications.
Industrial Hydraulic Systems: Applied in hydraulic presses, machine tools, and automation equipment requiring continuous and stable hydraulic flow.
Material Handling Equipment: Ideal for forklifts, lifting platforms, and warehouse machinery operating under varying load conditions.
Mobile Hydraulic Vehicles: Installed in dump trucks, sanitation vehicles, and utility service trucks to support tipping and hydraulic control systems.
Hydraulic Power Units: Suitable for compact hydraulic stations and hydraulic power packs where low noise, durability, and efficient performance are required.

Factory&FAQ

Packaging & Delivery

GBF-F400 Series Gear Pump-transportation

GBF-F400 Series Hydraulic Gear Pumps are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

GBF-F400 Series Hydraulic Gear Pump FAQ:

1. What is the GBF-F400 Series Hydraulic Gear Pump?

The GBF-F400 Series is a high-efficiency hydraulic gear pump designed for stable oil flow and reliable performance in industrial and mobile hydraulic systems.

2. What makes the GBF-F400 Series different from standard gear pumps?

Stable Hydraulic Output: Precision gear structure ensures smooth and efficient oil delivery.
Compact & Durable Design: High-strength housing provides reliable long-term operation.
Low Noise Performance: Optimized internal components help reduce vibration and operating noise.

3. What is the working pressure range of GBF-F400 Series pumps?

The GBF-F400 Series is suitable for medium and high-pressure hydraulic systems:

Continuous Pressure: Up to 20 MPa (≈ 2900 PSI).
Maximum Pressure: Up to 25 MPa (≈ 3600 PSI).
It is widely used in construction machinery, agricultural equipment, and industrial hydraulic systems.

4. Can GBF-F400 Series pumps replace other brands?

Yes, the GBF-F400 Series can replace many standard hydraulic gear pumps, including:

Parker Gear Pumps
Rexroth Gear Pumps
Shimadzu Hydraulic Pumps
Please verify mounting dimensions, shaft type, and displacement before replacement.

5. What hydraulic oil is recommended for GBF-F400 Series pumps?

For stable performance and long service life:

Oil Type: Anti-wear hydraulic oil (AW type).
Viscosity: ISO VG32–VG68 recommended.
Filtration: Clean hydraulic oil helps reduce wear and maintain pump efficiency.

6. What is the typical speed range of GBF-F400 Series pumps?

The GBF-F400 Series supports flexible operating conditions:

Minimum Speed: 600 RPM
Recommended Speed: 800–2500 RPM
Maximum Speed: Up to 3000 RPM depending on operating conditions and displacement.

7. Do you provide OEM or customized services?

Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.

8. How can I get a quotation quickly

Please provide the following details:

Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.

Certifications & Quality Assurance

GBF-F400 Series Hydraulic Gear Pumps are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
