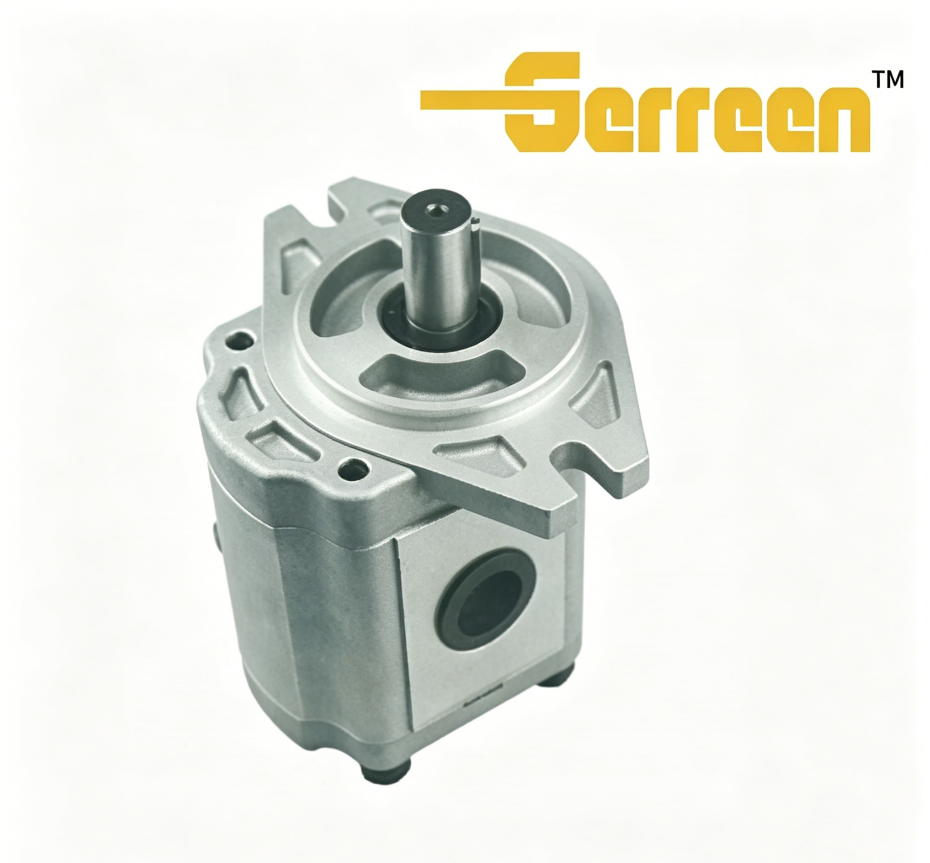

GBF-F400 Series Gear Pump
Green Hydraulic
GBF-F400 Series Gear Pump
Standard export carton/plywood case
Yes
ISO9001, CE
• Industrial • Energy • Government (Non Aerospace) • HVAC • Mobile • Natural Resources • Transportation (Non Aerospace)
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
Key Shaft and Spline shaft
1 set
Product Description
Specifications
| Models | 排量 cc/rev (Displacement) | 额定压力 MPa - Rated | 额定压力 MPa - Max | 转速 Speed (r/min) - Min | 转速 Speed (r/min) - Rated | 转速 Speed (r/min) - Max | Volumetric Efficiency (≥%) | L1 | L | 进油口 Outlet - D | 进油口 Outlet - A | 出油口 Outlet - D | 出油口 Outlet - A | 重量 kg Weight |
| CBF-F410-AL** | 10 | 20 | 25 | 800 | 2500 | 3000 | 92 | 55 | 114 | M22×1.5 | 50 | M18×1.5 | 45 | 2.25 |
| CBF-F412.5-AL** | 12.5 | 20 | 25 | 800 | 2500 | 3000 | 92 | 56.3 | 116.5 | M22×1.5 | 50 | M18×1.5 | 45 | 2.4 |
| CBF-F414-AL** | 14 | 20 | 25 | 800 | 2500 | 3000 | 92 | 57.3 | 118.5 | M22×1.5 | 50 | M18×1.5 | 45 | 2.55 |
| CBF-F416-AL** | 16 | 20 | 25 | 800 | 2500 | 3000 | 92 | 58.3 | 120 | M27×2 | 50 | M22×1.5 | 45 | 2.7 |
| CBF-F418-AL** | 18 | 20 | 25 | 600 | 2500 | 3000 | 92 | 59.5 | 123 | M27×2 | 50 | M22×1.5 | 45 | 2.85 |
| CBF-F420-AL** | 20 | 20 | 25 | 600 | 2500 | 3000 | 93 | 60.5 | 125 | M27×2 | 50 | M22×1.5 | 45 | 3.05 |
| CBF-F425-AL** | 25 | 20 | 25 | 600 | 2500 | 3000 | 93 | 63.8 | 131.5 | M33×2 | 50 | M27×2 | 45 | 3.2 |
| CBF-F432-AL** | 32 | 20 | 25 | 600 | 2500 | 3000 | 93 | 67.5 | 139 | M33×2 | 50 | M27×2 | 45 | 3.5 |
| CBF-F440-AL** | 40 | 16 | 20 | 600 | 2500 | 3000 | 93 | 72 | 148 | M33×2 | 50 | M27×2 | 45 | 3.5 |
| CBF-F450-AL** | 50 | 16 | 20 | 600 | 2500 | 3000 | 93 | 72 | 148 | M33×2 | 50 | M27×2 | 45 | 3.9 |
Application
Mainly applied in large excavators, dump trucks, road construction machinery, mining equipment, agricultural large harvesters, hydraulic station systems, heavy machinery and other high-flow heavy-duty hydraulic equipment.
Factory&FAQ
Q1: What is the main advantage of GBF-F400 gear pump compared with ordinary gear pumps?
A1: This series adopts floating side plate compensation structure, with higher volumetric efficiency, lower noise and smaller pressure loss. It can work stably under high pressure for a long time, with lower failure rate and longer service life than ordinary gear pumps.
Q2: Can you provide customized services?
A2: Yes. We support custom rotation direction, shaft size, mounting flange, oil port thread and special specification parameters. OEM logo and packaging customization are also available.
Q3: What is the product warranty period?
A3: We provide 12 months factory warranty for all GBF-F400 series pumps. During the warranty period, non-human damaged products can enjoy free repair and replacement services.
Q4: How about your delivery time?
A4: Conventional standard models are in stock and can be delivered within 3-5 working days. For bulk orders or customized products, the delivery cycle is 7-15 working days according to the order quantity.
Q5: What kind of hydraulic oil is suitable for this pump?
A5: It is recommended to use anti-wear hydraulic oil with viscosity of 10~200 mm²/s. Clean hydraulic oil can effectively extend the service life of the pump. It is forbidden to use inferior and impurity-containing hydraulic oil.
Q6: Do you provide after-sales technical support?
A6: Yes. We have a professional technical team to provide 24-hour online technical guidance, including equipment installation, debugging, fault diagnosis and daily maintenance guidance.
