GBHZ-F Series Hydraulic Gear Pumps

Product Description

GBHZ-F Series Hydraulic Gear Pump Overview

GBHZ-F Series Hydraulic Gear Pumps are designed for stable hydraulic performance and efficient oil transmission. They feature compact structure, low noise, reliable operation, and long service life, widely used in industrial machinery and hydraulic systems.

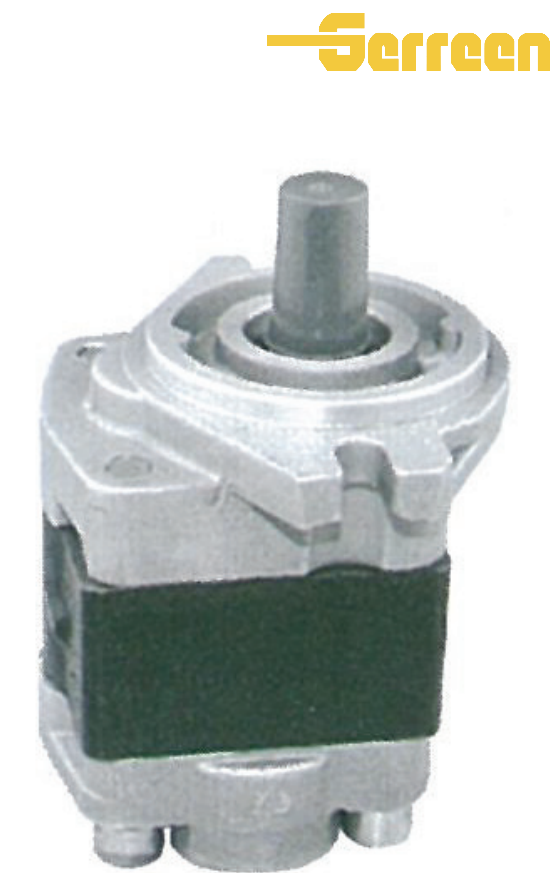

GBHZ-F Series Hydraulic Gear Pump pic

Features and Benefits

High-Performance Hydraulic Gear Structure
Designed with precision gear transmission technology to deliver stable flow output, high volumetric efficiency, and reliable hydraulic performance.
Low Noise & Smooth Hydraulic Operation
Optimized internal gear design effectively reduces operating noise and pressure pulsation, ensuring quiet and stable system performance.
Compact Design & Easy Integration
Compact and lightweight construction allows convenient installation, flexible system integration, and simplified maintenance.
Wide Application Range
Suitable for construction machinery, agricultural equipment, industrial hydraulic systems, hydraulic power units, and mobile machinery applications.
Durable Construction & Long Service Life
Precision manufacturing and high-strength materials provide excellent wear resistance, reliable operation, and extended service life under demanding working conditions.

Specifications

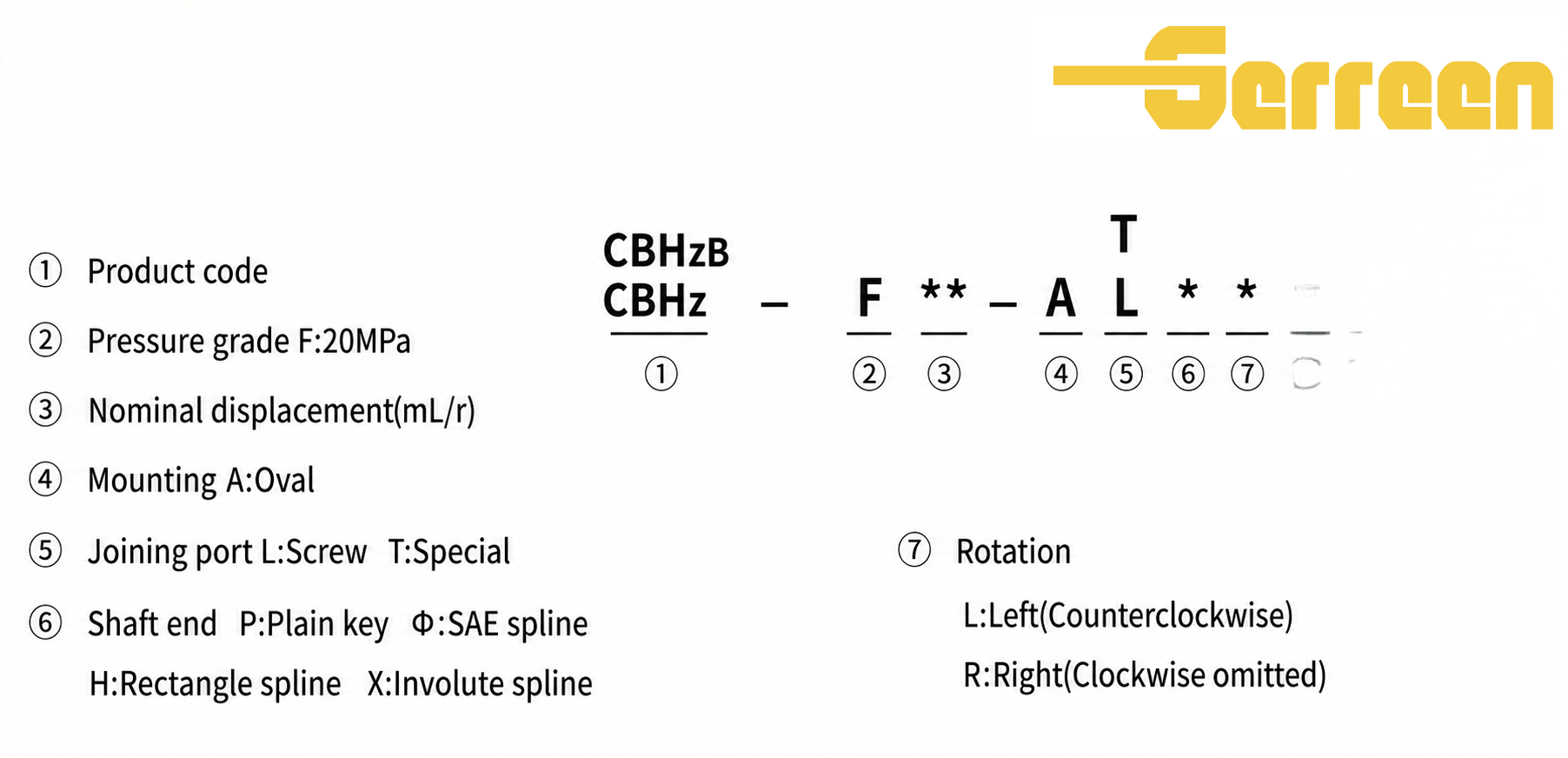

Model Codes

GBHZ-F Series Hydraulic Gear Pump model

Technical Data

Models	Displacement cc/rev	Rated Pressure MPa	Max Pressure MPa	Min Speed (r/min)	Rated Speed (r/min)	Max Speed (r/min)	Volumetric Efficiency ≥(%)	L1	L	Weight kg
CBHz-F23-AL**	23	20	25	600	2500	3000	92	60	115.5	4.1
CBHz-F25-AL**	25	20	25	600	2500	3000	92	61.5	118.5	4.3
CBHz-F28.2-AL**	28.2	20	25	600	2500	3000	92	63.5	122.5	4.6
CBHz-F30-AL**	30	20	25	600	2500	3000	92	64.5	124.5	4.8
CBHz-F32-AL**	32	20	25	600	2500	3000	92	65.5	126.5	5.0
CBHz-F36-AL**	36	20	25	600	2500	3000	92	68	131.5	5.4

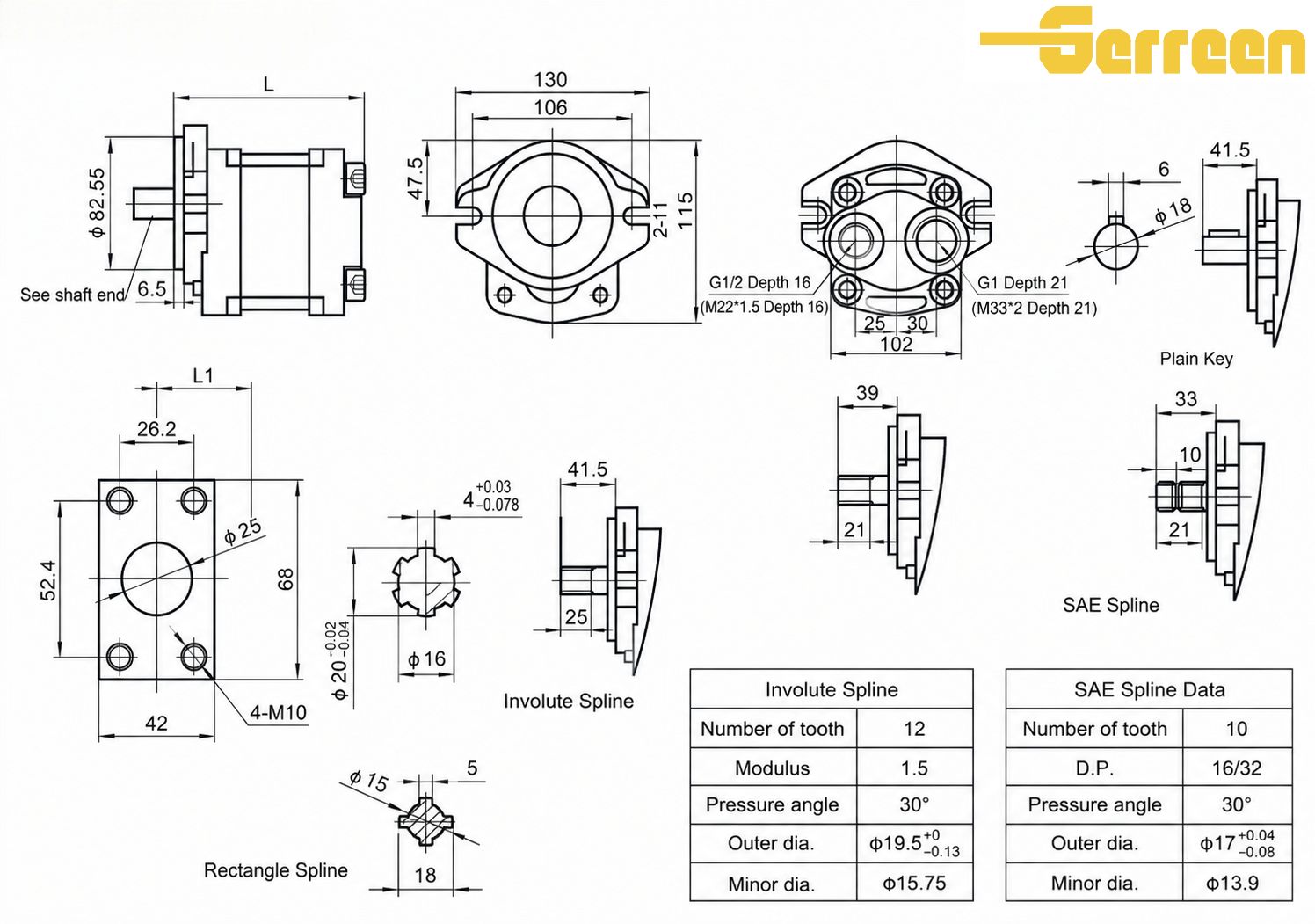

GBHZ-F Series Hydraulic Gear Pump Installation Dimensions

PDF

gear pump.pdf

Applications

Applications

The GBHZ-F Series Hydraulic Gear Pump delivers efficient and stable hydraulic performance for industrial and mobile hydraulic systems requiring reliable oil flow, compact installation, and durable operation:

Construction Machinery: Suitable for excavators, loaders, and road machinery, providing stable hydraulic power for working and steering systems.
Agricultural Equipment: Widely used in tractors, harvesters, and farming machinery for lifting, steering, and auxiliary hydraulic applications.
Industrial Hydraulic Systems: Applied in hydraulic presses, machine tools, and automated production equipment requiring continuous hydraulic flow.
Material Handling Equipment: Ideal for forklifts, lifting platforms, and warehouse systems operating under different load conditions.
Mobile Hydraulic Vehicles: Installed in dump trucks, sanitation vehicles, and utility service trucks to support tipping and hydraulic control systems.
Hydraulic Power Units: Suitable for compact hydraulic stations and power packs where efficiency, low noise, and long-lasting performance are required.

Factory&FAQ

Packaging & Delivery

GBHZ-F Series Hydraulic Gear Pump -transportation

GBHZ-F Series Hydraulic Gear Pumps are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

GBHZ-F Series Hydraulic Gear Pump FAQ:

1. What is the GBHZ-F Series Hydraulic Gear Pump?

The GBHZ-F Series is a high-efficiency hydraulic gear pump designed for stable oil flow and reliable performance in industrial and mobile hydraulic systems.

2. What makes the GBHZ-F Series different from standard gear pumps?

Efficient Hydraulic Output: Precision gear structure ensures smooth and stable oil delivery.
Compact & Durable Design: High-strength housing provides reliable long-term operation.
Low Noise Performance: Optimized internal components help reduce vibration and operating noise.

3. What is the working pressure range of GBHZ-F Series pumps?

The GBHZ-F Series is suitable for medium and high-pressure hydraulic systems:

Continuous Pressure: Up to 20 MPa (≈ 2900 PSI).
Maximum Pressure: Up to 25 MPa (≈ 3600 PSI).
It is widely used in construction machinery, agricultural equipment, and industrial hydraulic systems.

4. Can GBHZ-F Series pumps replace other brands?

Yes, the GBHZ-F Series can replace many standard hydraulic gear pumps, including:

Parker Gear Pumps
Rexroth Gear Pumps
Commercial Hydraulic Gear Pumps
Please verify mounting dimensions, shaft type, and displacement before replacement.

5. What hydraulic oil is recommended for GBHZ-F Series pumps?

For stable performance and long service life:

Oil Type: Anti-wear hydraulic oil (AW type).
Viscosity: ISO VG32–VG68 recommended.
Filtration: Clean hydraulic oil helps reduce internal wear and maintain pump efficiency.

6. What is the typical speed range of GBHZ-F Series pumps?

The GBHZ-F Series supports flexible operating conditions:

Minimum Speed: 600 RPM
Recommended Speed: 800–2500 RPM
Maximum Speed: Up to 3000 RPM depending on operating conditions and displacement.

7. Do you provide OEM or customized services?

Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.

8. How can I get a quotation quickly

Please provide the following details:

Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.

Certifications & Quality Assurance

GBHZ-F Series Hydraulic Gear Pumps are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
