GBHZA-F Series Hydraulic Gear Pump

GBHZA-F Series Hydraulic Gear Pump Overview

GBHZA-F Series Hydraulic Gear Pump is designed for efficient hydraulic transmission and stable performance. It features compact structure, low noise, reliable operation, and long service life, suitable for industrial machinery and hydraulic systems.

Features and Benefits

• High-Efficiency Hydraulic Gear Pump Design
  Adopts precision gear transmission structure to provide stable flow output, high volumetric efficiency, and reliable hydraulic performance.

• Low Noise & Stable Operation
  Optimized internal gear profile effectively reduces operating noise and pressure pulsation, ensuring smooth and quiet hydraulic system operation.

• Compact Structure & Flexible Installation
  Compact and lightweight construction allows convenient installation, easy maintenance, and flexible integration into various hydraulic systems.

• Wide Hydraulic Application Range
  Suitable for construction machinery, agricultural equipment, hydraulic power units, industrial machinery, and mobile hydraulic applications.

• Reliable Performance & Long Working Life
  Manufactured with durable materials and precision machining technology, providing excellent wear resistance and dependable long-term operation.

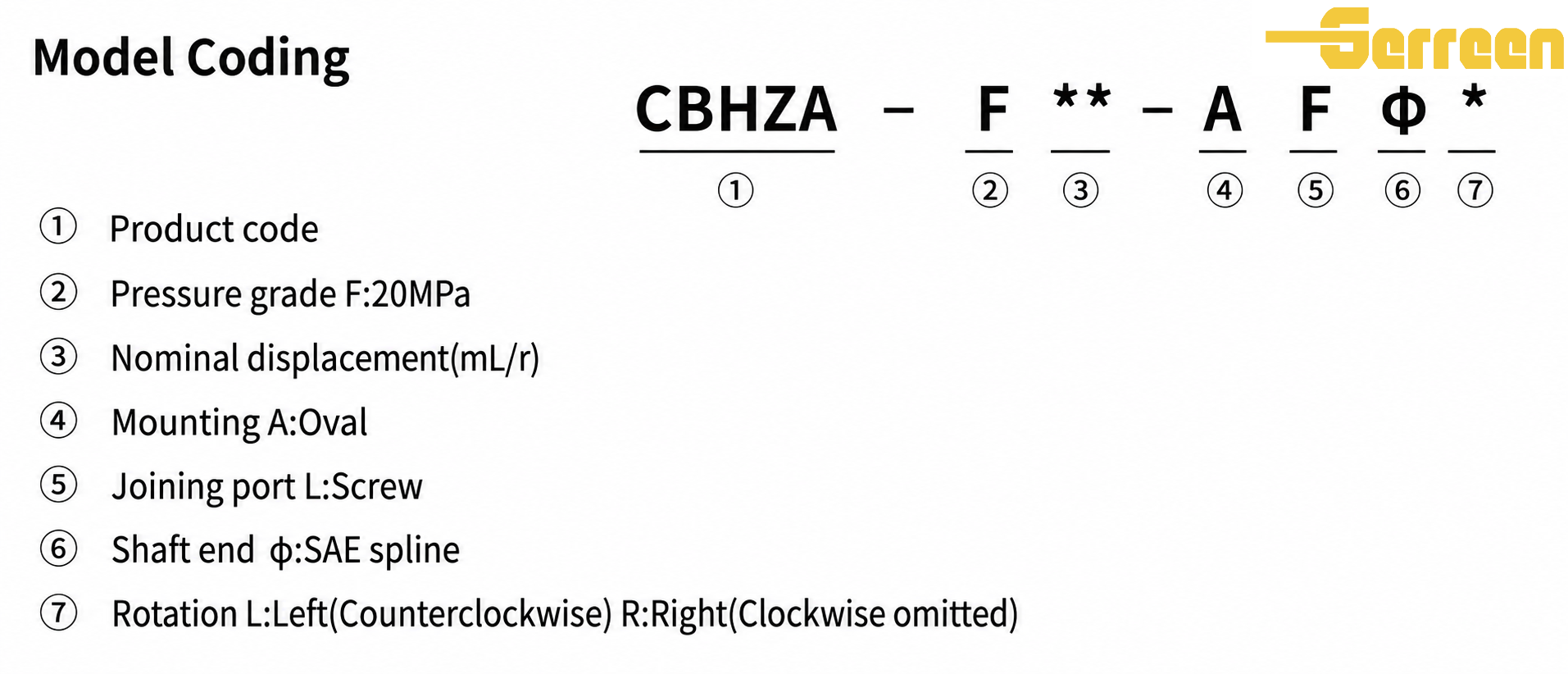

Model Codes

gear pump.pdf

Applications

The GBHZA-F Series Hydraulic Gear Pump provides reliable and efficient hydraulic power for industrial and mobile hydraulic systems requiring stable pressure, compact structure, and continuous operation:

• Construction Machinery: Suitable for loaders, excavators, and road construction equipment, supplying dependable hydraulic power for working systems and steering functions.

• Agricultural Equipment: Widely used in tractors, harvesters, and agricultural machinery for lifting, steering, and auxiliary hydraulic applications.

• Industrial Hydraulic Systems: Applied in hydraulic presses, machine tools, and automated production equipment requiring smooth and continuous hydraulic flow.

• Material Handling Equipment: Ideal for forklifts, stackers, and lifting platforms operating under varying load conditions.

• Mobile Hydraulic Vehicles: Installed in dump trucks, sanitation vehicles, and utility service trucks to support tipping and auxiliary hydraulic systems.

• Hydraulic Power Units: Suitable for compact hydraulic stations and power packs where durability, low noise, and reliable hydraulic performance are essential.




Packaging & Delivery

GBHZA-F Series Hydraulic Gear Pumps are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

GBHZA-F Series Hydraulic Gear Pump FAQ:

1. What is the GBHZA-F Series Hydraulic Gear Pump?

The GBHZA-F Series is a compact and efficient hydraulic gear pump designed for stable oil flow and reliable operation in industrial and mobile hydraulic systems.

2. What makes the GBHZA-F Series different from standard gear pumps?

• Stable Hydraulic Output: Precision gear structure ensures smooth and efficient oil delivery.

• Compact & Durable Construction: High-strength housing provides long service life under continuous operation.

• Low Noise Operation: Optimized internal components help reduce vibration and operating noise.




3. What is the working pressure range of GBHZA-F Series pumps?

The GBHZA-F Series is suitable for medium and high-pressure hydraulic systems:

• Continuous Pressure: Up to 20 MPa (≈ 2900 PSI).

• Maximum Pressure: Up to 25 MPa (≈ 3600 PSI).
  It is widely used in construction machinery, agricultural equipment, and industrial hydraulic applications.




4. Can GBHZA-F Series pumps replace other brands?

Yes, the GBHZA-F Series can replace many standard hydraulic gear pumps, including:

• Parker Gear Pumps

• Rexroth Gear Pumps

• Commercial Hydraulic Gear Pumps
  Please verify mounting dimensions, shaft type, and displacement before replacement.




5. What hydraulic oil is recommended for GBHZA-F Series pumps?

For reliable performance and extended service life:

• Oil Type: Anti-wear hydraulic oil (AW type).

• Viscosity: ISO VG32–VG68 recommended.

• Filtration: Clean hydraulic oil helps reduce internal wear and improve durability.




6. What is the typical speed range of GBHZA-F Series pumps?

The GBHZA-F Series supports flexible operating conditions:

• Minimum Speed: 600 RPM

• Recommended Speed: 800–2500 RPM

• Maximum Speed: Up to 3000 RPM depending on displacement and operating conditions.




7. Do you provide OEM or customized services?

Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.

8. How can I get a quotation quickly

Please provide the following details:

• Model or displacement

• Working pressure

• Speed

• Quantity
  We will reply within 12 hours with a competitive quotation.

Certifications & Quality Assurance

GBHZA-F Series Hydraulic Gear Pumps are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
