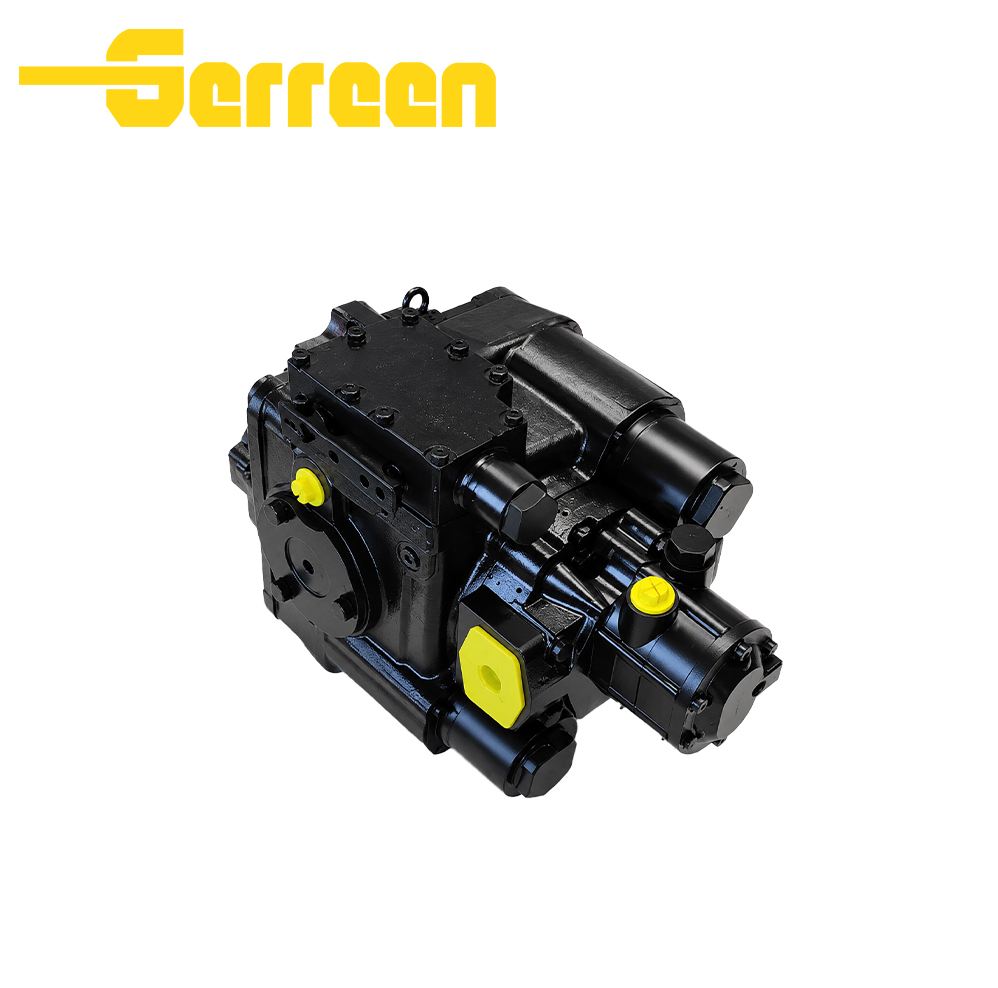

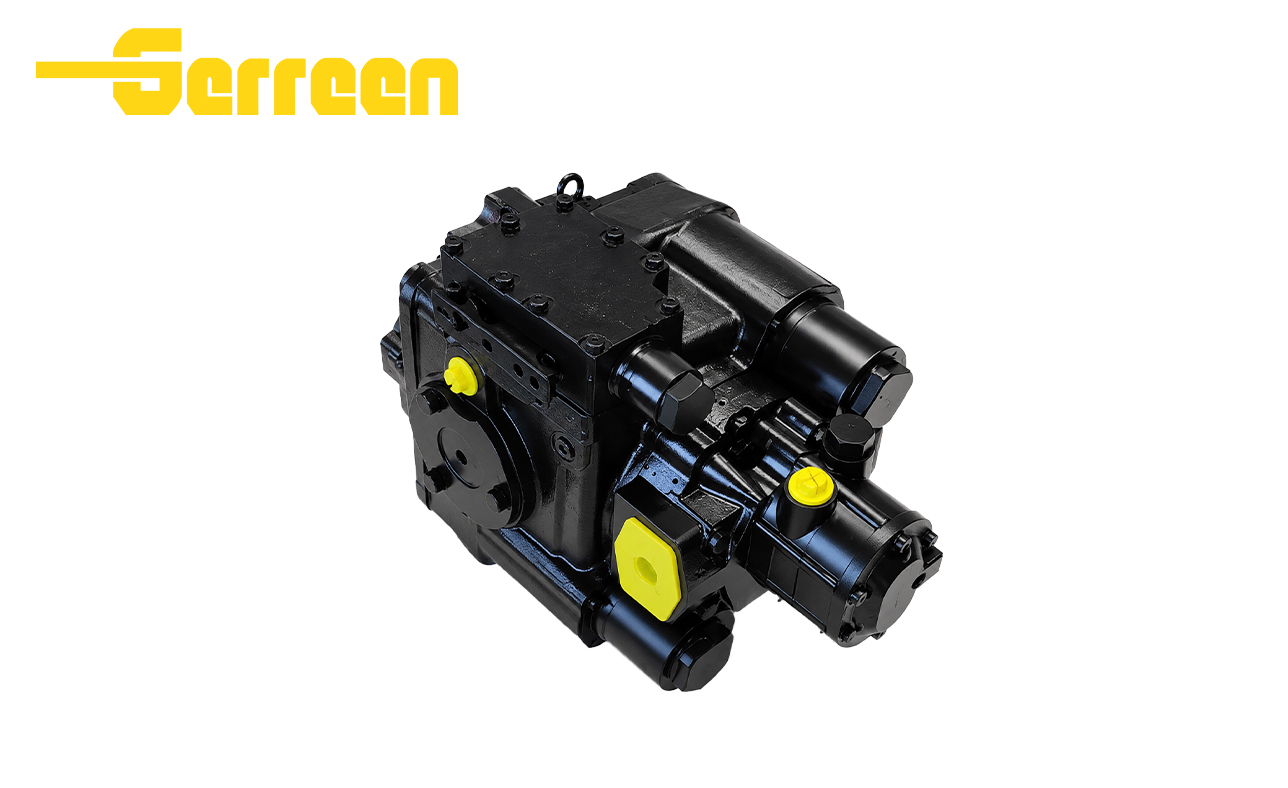

PV Series Pump& MF Series Motor 20/21/22/23/24/25/26/27
Green Hydraulic
PV Series Pump& MF Series Motor 20/21/22/23/24/25/26/27
Standard export carton/plywood case
YES
ISO9001 CE
1 set
Product Description
Integrated charge pump simplifies closed-circuit system layout
Heavy-duty tapered roller bearings, strong resistance to external radial load
Smooth variable flow, stepless speed regulation and reversible rotation
Compact structure, easy installation and maintenance
Reliable performance under continuous heavy load for mobile equipment
Complete interchangeable with original Sauer Danfoss Series 20 units
Specifications
Model Match: PV20/PV21/PV22/PV23/PV24/PV25/PV26/PV27 Pump & MF20/MF21/MF22/MF23/MF24/MF25/MF26/MF27 Motor
Displacement:
PV20/MF20:33.3 cc/rev
PV21/MF21:51.6 cc/rev
PV22/MF22:69.8 cc/rev
PV23/MF23:89.0 cc/rev
PV24/MF24:118.7 cc/rev
PV25/MF25:165.8 cc/rev
PV26/MF26:227.3 cc/rev
PV27/MF27:333.7 cc/rev
Rated continuous pressure: 210 bar (3045 PSI)
Intermittent peak pressure: 350 bar (5075 PSI)
Built-in integrated charge pump for closed circuit oil replenishment
Rotation: Bi-directional reversible operation
Control: Mechanical servo displacement control for PV pump
Max operating speed: Up to 3000 rpm (depends on model)
Mounting: Standard SAE flange
Compatible fluid: ISO VG32 / VG46 anti-wear hydraulic oil
Operating temperature: -20°C ~ +85°C
Applications
Concrete mixer truck drum drive system
Asphalt pavers and road rollers
Underground mining loaders & hauling vehicles
Combine harvesters and self-propelled agricultural machines
Forestry machinery, wood chippers and log splitters
Mobile construction equipment hydrostatic transmission
Self-propelled material sprayers and handling machinery
Road maintenance and pavement renovation equipment
Factory&FAQ
PV Series Pump& MF Series Motor 20/21/22/23/24/25/26/27 are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
1. What is the PV Series Pump& MF Series Motor 20/21/22/23/24/25/26/27 ?
They belong to Sauer Danfoss Series 20 closed-circuit swashplate axial piston assemblies. PV is variable displacement pump while MF is fixed displacement motor. The codes 20 to 27 stand for different displacement specifications. Equipped with built-in charge pump, these units are engineered for hydrostatic transmission of mobile machinery and commonly applied on concrete mixer trucks and other off-road equipment.
2. What makes the PV Series Pump& MF Series Motor 20/21/22/23/24/25/26/27 ?
Integrated charge pump simplifies closed-loop hydraulic system layout.
Heavy-duty bearings provide strong resistance to harsh working conditions.
It supports stepless speed regulation and reversible rotation smoothly.
Compact structure facilitates installation and daily maintenance.
High interchangeability for original Sauer Danfoss Series 20 components.
3. What is the working pressure range of PV Series Pump& MF Series Motor 20/21/22/23/24/25/26/27 ?
Normal long-term recommended operating pressure: 50 ~ 180 bar
Continuous rated working pressure: 210 bar (3045 PSI)
Intermittent peak pressure: 350 bar (5075 PSI)
Peak pressure is only permitted for short-term impact loads
Long-duration operation under peak pressure is forbidden
4. Can PV Series Pump& MF Series Motor 20/21/22/23/24/25/26/27 replace other brands?
Direct interchangeable with original Sauer Danfoss Series 20 hydraulic units.
It can be used as performance alternative for similar closed-circuit piston sets of other brands.
Confirm displacement, shaft type, mounting flange and control mode before replacement.
Minor pipeline modification may be required for non-original equipment.
Send full model code for accurate compatibility verification.
5. What is the typical speed range of PV Series Pump& MF Series Motor 20/21/22/23/24/25/26/27 ?
Rated standard operating speed: 1500 rpm
Minimum stable operating speed: 500 rpm
Maximum allowable speed varies according to different displacement sizes
Larger displacement models have lower maximum continuous speed
Excessive rotating speed will accelerate wear and shorten service life
6. Do you provide OEM or customized services?
OEM service is available for PV pumps and MF motors.
Custom nameplates, logos and marking can be supported.
We accept customized configuration based on your technical demands.
Please send your detailed requirements for formal quotation.
7. How can I get a quotation quickly
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
PV Series Pump& MF Series Motor 20/21/22/23/24/25/26/27 are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
