M3B Series Interchangeable with Parker Denison Vane Motor

M3B Series Interchangeable with Parker Denison Vane Motor Overview

The M3B Series Hydraulic Vane Motor is a high-performance, medium-duty motor designed as a cost-effective and fully interchangeable replacement for Parker Denison vane motors. It maintains the same installation dimensions, shaft configuration, and performance characteristics, ensuring seamless integration into existing hydraulic systems without modification.

Engineered for high efficiency, smooth operation, and reliable durability, the M3B series is widely used in industrial and mobile applications requiring stable torque output and low noise performance.

Core Features & Advantages

1.Reliable performance

The M3 and M4 motors have been designed especially for severe duty applications which require long lasting medium pressure, high speed and reversing capabilities even with low fluid lubricity. Their performances remain stable over time.

2.Long lifetime

The fully pressure balanced concept increase the motor lifetime over its full speed range. Double lip vanes reduce the sensitivity to fluid pollution.

3.Low noise

The bearing capabilities are totally dedicated to the external loads on the shaft ends, whatever the operating pressures are.

Simply silent! The Denison Vane Technology allows a very low noise level, whatever the speed.

4.Low torque ripple

Thanks to their 10 vanes, advanced cam ring profile, two torque cycles per revolution and low internal dead volumes, the M3 and M4 motors exhibit a very low torque ripple, even at low speeds.

5.Versatility and compactness

With several displacements for the same installation size, the M3 and M4 motors are very powerful and compact.

Denison Hydraulic Vane Motor M4C M4D M4E Technical Data

M3B Denison Hydraulic Vane Motors Description

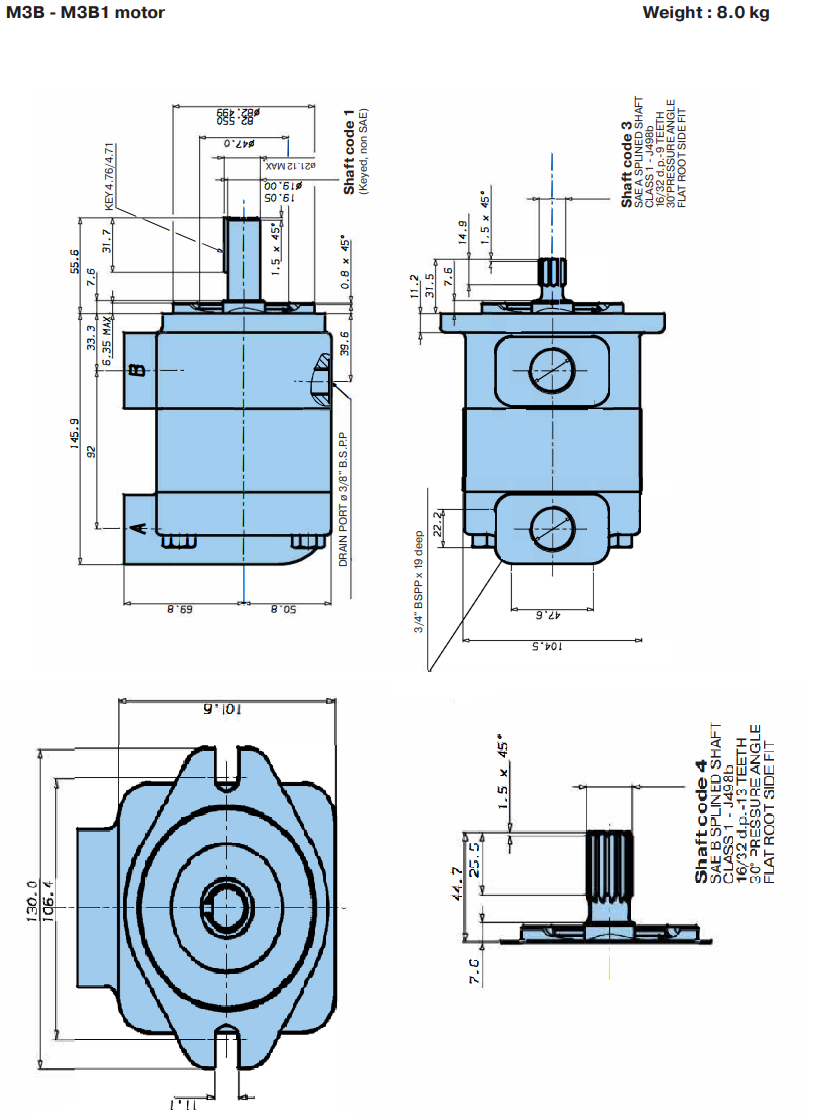

M3B Hydraulic Vane Motors Dimensions

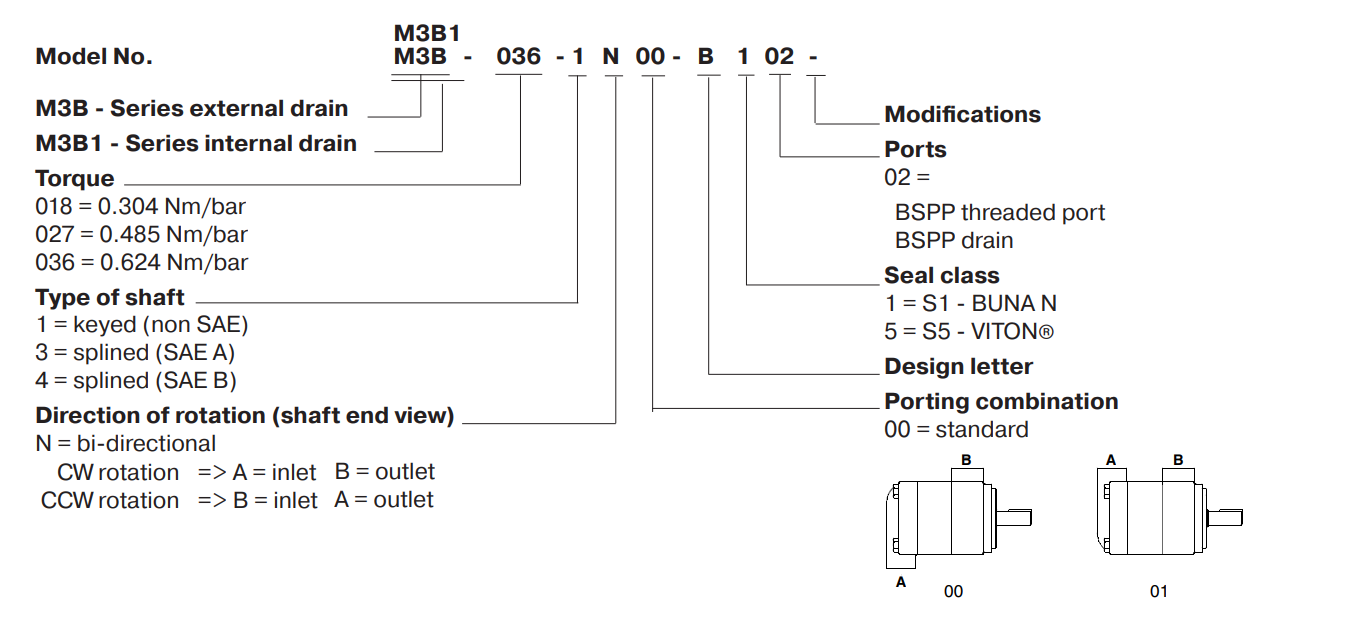

Model Codes

M3B Series Hydraulic Vane Motor Applications

1. Lifting & Winch Systems

• Hoist winches

• Crane lifting mechanisms

• Material handling equipment

2. Swing Drive Systems

• Excavator upper structure rotation

• Crane slewing systems

• Drilling rig rotation

3. Propulsion & Travel Drives

• Track or wheel drive systems

• Mobile equipment propulsion

• Mining and construction machinery

4. Marine Applications

• Ship deck machinery

• Winches and anchor handling systems

• Marine propulsion auxiliaries

5. Industrial Machinery

• Conveyor drives

• Mixers and agitators

• Rolling mills and processing equipment

6. Traction & Multi-Speed Drive Systems

• Vehicles requiring 2-speed or 3-speed drive

• Replacement for mechanical gearboxes (M4DC variants)

Packaging & Delivery

Charge pumps are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

M3B Series Hydraulic Vane Motor FAQ

1. Is the M3B series fully interchangeable with Parker Denison vane motors?

Yes, the M3B series is designed to be fully interchangeable with Parker Denison M3B motors, including mounting dimensions, shaft configuration, and port connections, allowing direct replacement without system modification.

2. What is the typical operating pressure of the M3B vane motor?

The M3B series typically operates within a pressure range of 160–210 bar, with peak pressure up to approximately 250–280 bar, depending on working conditions and configuration.

3. What are the main advantages of the M3B vane motor?

Key advantages include:

• High starting torque

• Smooth low-speed operation

• Low noise level

• High efficiency

• Compact structure and easy maintenance

4. Can the M3B motor run in both directions?

Yes, the M3B vane motor supports bi-directional rotation, making it suitable for applications that require frequent forward and reverse operation.

5. What type of hydraulic oil is recommended?

It is recommended to use anti-wear hydraulic oil (ISO VG32, VG46, or VG68). Proper oil cleanliness and viscosity are critical to ensure optimal performance and long service life.

6. What are common causes of reduced performance in M3B motors?

Performance issues may be caused by:

• Contaminated hydraulic oil

• Excessive internal leakage due to wear

• Incorrect oil viscosity

• High case drain pressure

• Air ingress or cavitation

7. What is the minimum speed for stable operation?

The M3B series can operate at low speeds (typically 10–50 rpm) while maintaining stable torque output with minimal vibration.

8. How to extend the service life of the M3B vane motor?

To maximize service life:

• Maintain proper oil cleanliness (≤25 μm filtration)

• Avoid overload and pressure spikes

• Ensure correct installation and alignment

• Keep case drain pressure within limits

• Perform regular inspection and maintenance

Certifications & Quality Assurance

Charge pumps are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
