HGP33A
Green Hydraulic
HGP33A
Standard export carton/plywood case
Yes
ISO9001，CE
• Industrial • Energy • Government (Non Aerospace) • HVAC • Mobile • Natural Resources • Transportation (Non Aerospace)
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
Key Shaft and Spline shaft
1 set
Product Description

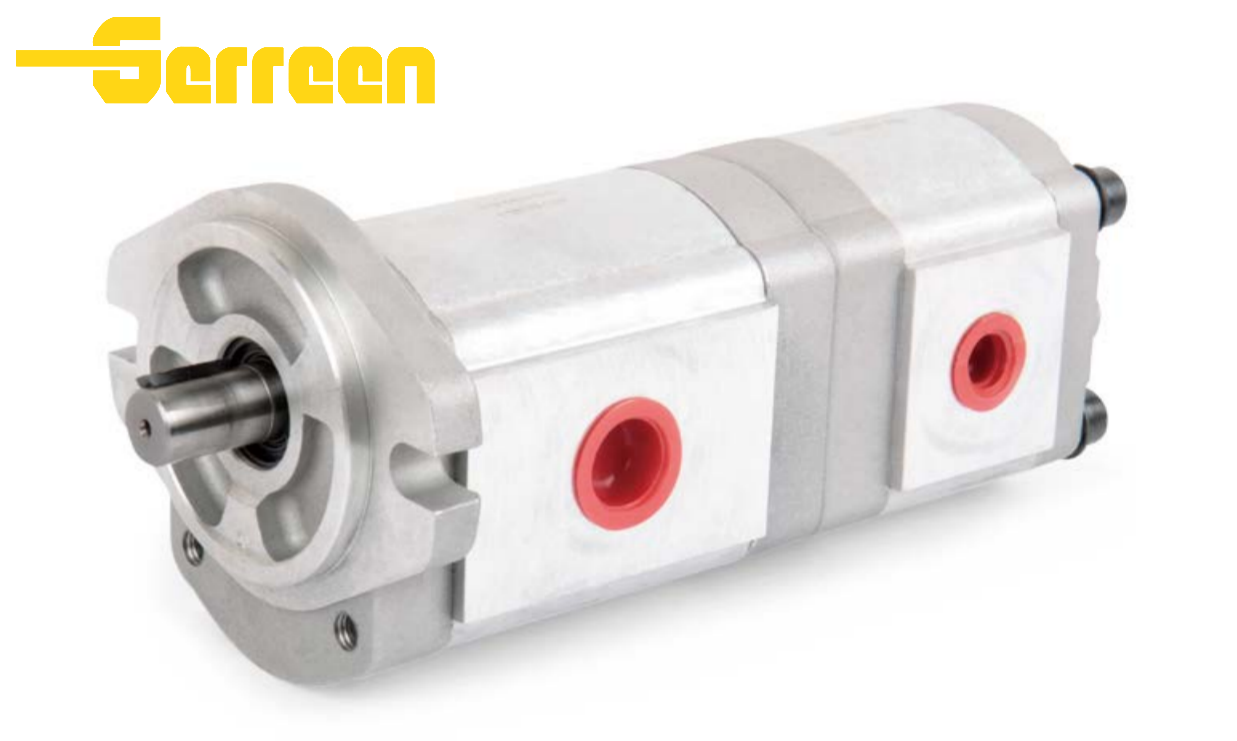

The HGP33A is a high-performance, fixed-displacement tandem-style gear pump engineered for medium-to-heavy duty hydraulic systems that demand reliable high-pressure output, higher flow capacity, and proven durability. Featuring a robust extruded aluminum alloy construction, the HGP33A is specifically designed to deliver a high power-to-weight ratio, making it an ideal choice for construction, agricultural, and industrial machinery where both performance and installation flexibility are critical.
Specifications
| Parameter | Value |

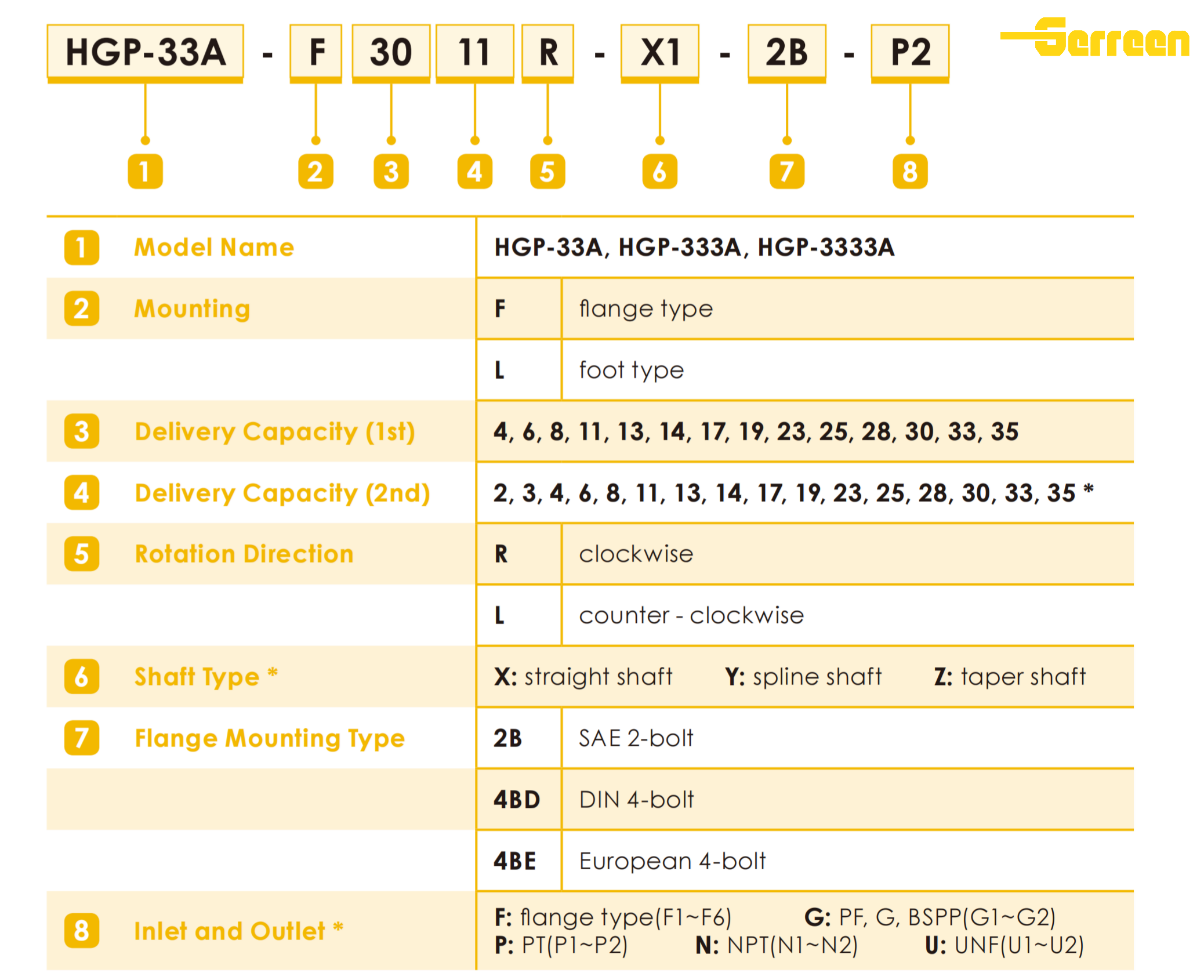

| Type | Fixed-displacement external gear pump (single / duplex / triplex / 2-stage hi-lo) |
| Body Material | High-strength extruded aluminum alloy |
| Gear Material | High-grade hardened alloy steel |
| Seal Material | NBR (standard); Viton (high-temperature option) |

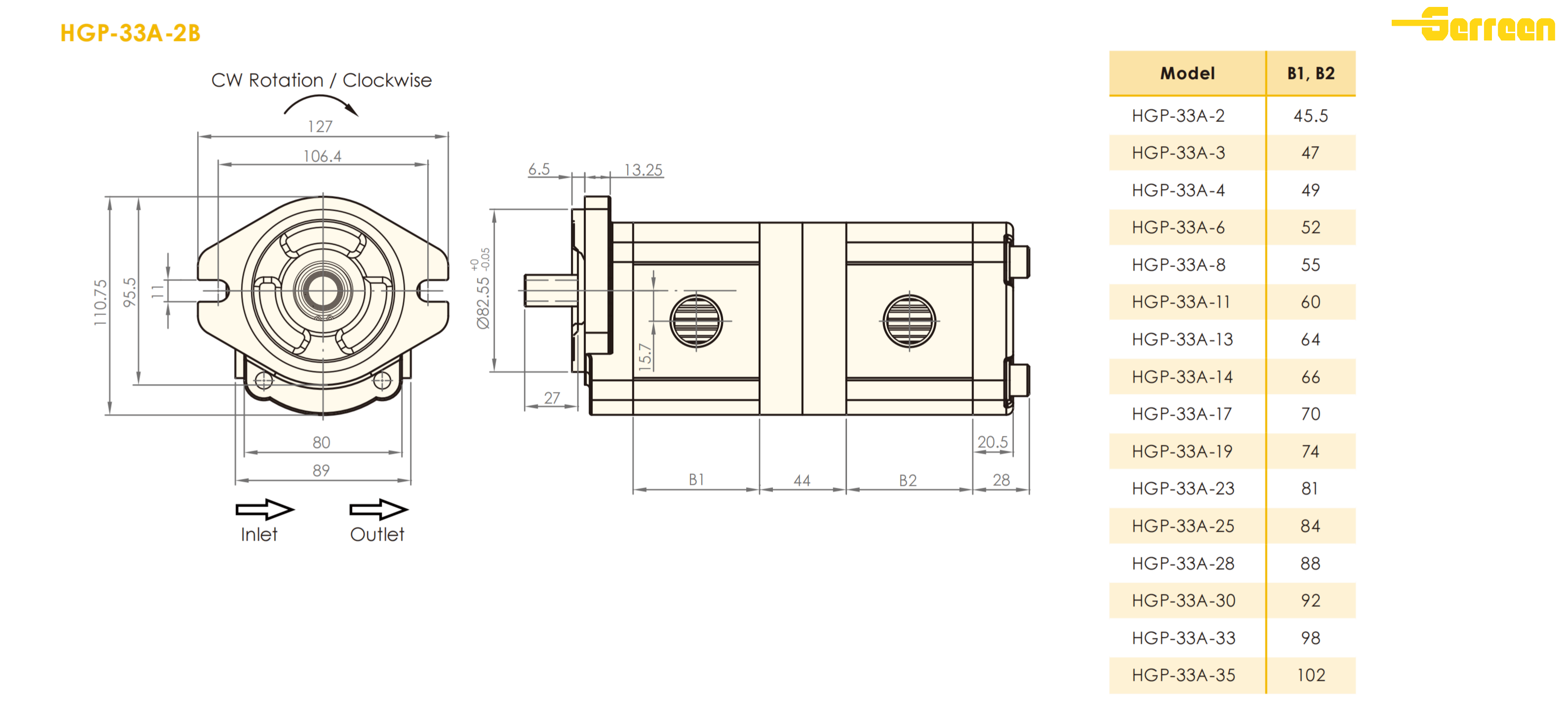

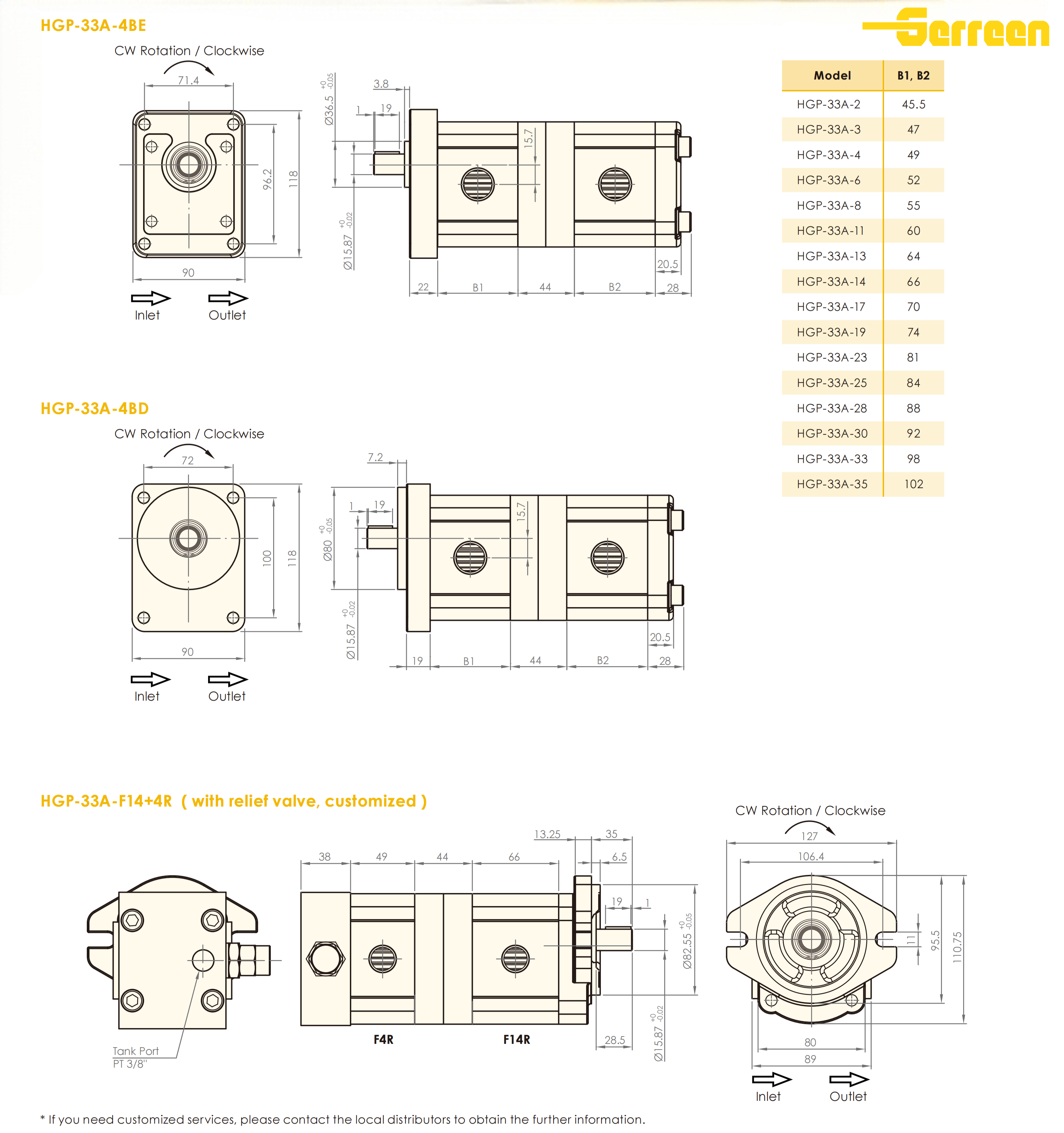

| Mounting Flange | Standard JIS 4-bolt square flange (100×100 mm); optional SAE/DIN flanges |
| Port Orientation | Side / rear (optional) |
| Rotation Direction | Clockwise (R) / Counterclockwise (L) (viewed from shaft end) |
| Weight | ~3.5–5.0 kg (standard duplex model) |
Applications
Applications
The HGP33A series provides a compact, high-efficiency hydraulic power solution tailored for medium-to-heavy duty industrial and mobile equipment, where reliable high pressure, higher flow capacity, and versatile configuration options are required:
Construction & Utility Machinery: A primary choice for small excavators, skid-steer loaders, and compact power units, where the modular tandem design integrates easily with auxiliary hydraulic circuits to provide reliable power for lifting, steering, and tool actuation.
Agricultural & Farm Equipment: Optimized for tractor hydraulics, large spreaders, harvesters, and bale presses, where the robust construction and contamination-resistant design ensure long-term durability against outdoor conditions and high-frequency load cycles.
Commercial Compaction & Recycling: Widely used in waste balers, compactors, and brick presses that require high-cycle, high-pressure stability to manage rapid compression and ejection operations.
Material Handling & Lifting Systems: Ideal for heavy truck tail-lifts, large scissor lifts, dock levelers, and pallet stackers, offering a durable and space-efficient power source that maintains consistent efficiency under full-load conditions.
Forestry & Woodworking Equipment: Frequently employed in heavy-duty wood splitters, log processors, and sawmill systems, where the 2-stage (hi-lo) configuration delivers fast low-pressure advance and high-pressure splitting force for demanding applications.
General Industrial Hydraulics: A cost-effective option for machine tools, clamping systems, and custom hydraulic power packs, where the wide range of displacements and flexible mounting options adapt seamlessly to a variety of system layouts.
Factory&FAQ
HGP33A pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
Larger Displacement & Flow: The HGP33A supports displacements up to 35 cc/rev, delivering significantly higher flow rates than the HGP22A, making it suitable for larger hydraulic circuits.
Heavier-Duty Construction: Its reinforced housing and larger gear sets are engineered to handle higher continuous loads and longer duty cycles, common in construction and agricultural applications.
Enhanced Modularity: The series offers a wider range of tandem, triplex, and hi-lo (two-stage) configurations, providing greater flexibility for complex multi-function systems.
Continuous Rated Pressure: Up to 3,000 PSI (210 bar).
This robust pressure rating makes the HGP33A ideal for powering high-force actuators and compaction systems on medium-duty mobile and industrial equipment.
Marzocchi 3HL series pumps.
Shimadzu CBN3 series pumps.
To ensure a successful swap, verify the Mounting Flange, Port Orientation, Shaft Type, and Displacement to match your existing system.
Oil Type: Premium mineral-based hydraulic fluids with strong Anti-Wear (AW) additive packages.
Viscosity: Standard ISO VG32 to VG68. The optimal operating range is 100 to 150 SUS (20 to 30 cSt).
Filtration: Cleanliness is vital for pump life. A minimum filtration of ISO 4406 18/16/13 is recommended to prevent abrasive particles from damaging the gear faces and wear plates.
Max Continuous Speed: Up to 3,000 RPM.
Max Intermittent Speed: Up to 3,500 RPM.
Operating within these ranges ensures optimal flow output and minimizes wear on internal components.
Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
HGP33A pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
