DE1R
Green Hydraulic
DE1R
Standard export carton/plywood case
Yes
ISO9001，CE
• Industrial • Energy • Government (Non Aerospace) • HVAC • Mobile • Natural Resources • Transportation (Non Aerospace)
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
Key Shaft and Spline shaft
Product Description

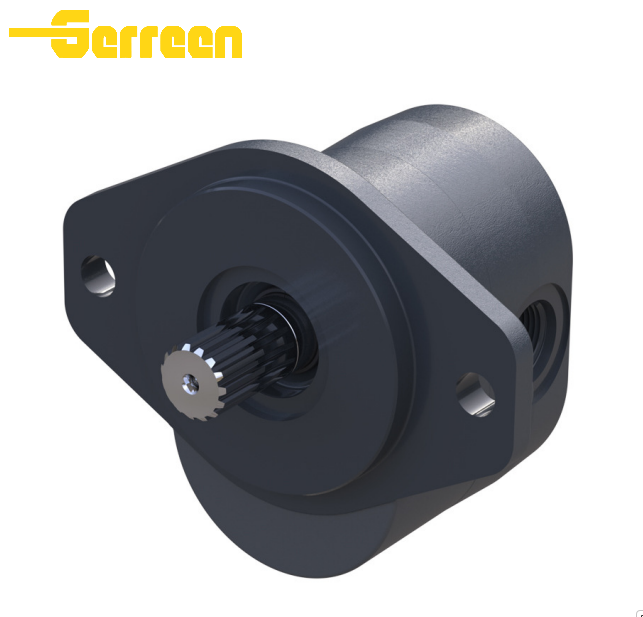

The Danfoss DE1R is a high-performance, fixed-displacement gear pump engineered for compact, high-pressure hydraulic systems that demand maximum durability and reliable power output. Featuring a rugged three-piece cast iron construction, the DE1R is specifically designed to deliver an exceptional power-to-weight ratio, making it an ideal choice for direct mounting to truck Power Take-Offs (PTOs) and mobile equipment where space is limited and performance is non-negotiable.
Specifications
| Parameter | Specification |
| Pump Type | Fixed-displacement, external gear pump |
| Series | Rugid Cast Iron D Series (DE1R = single pump) |
| Construction | 3-piece cast iron housing |

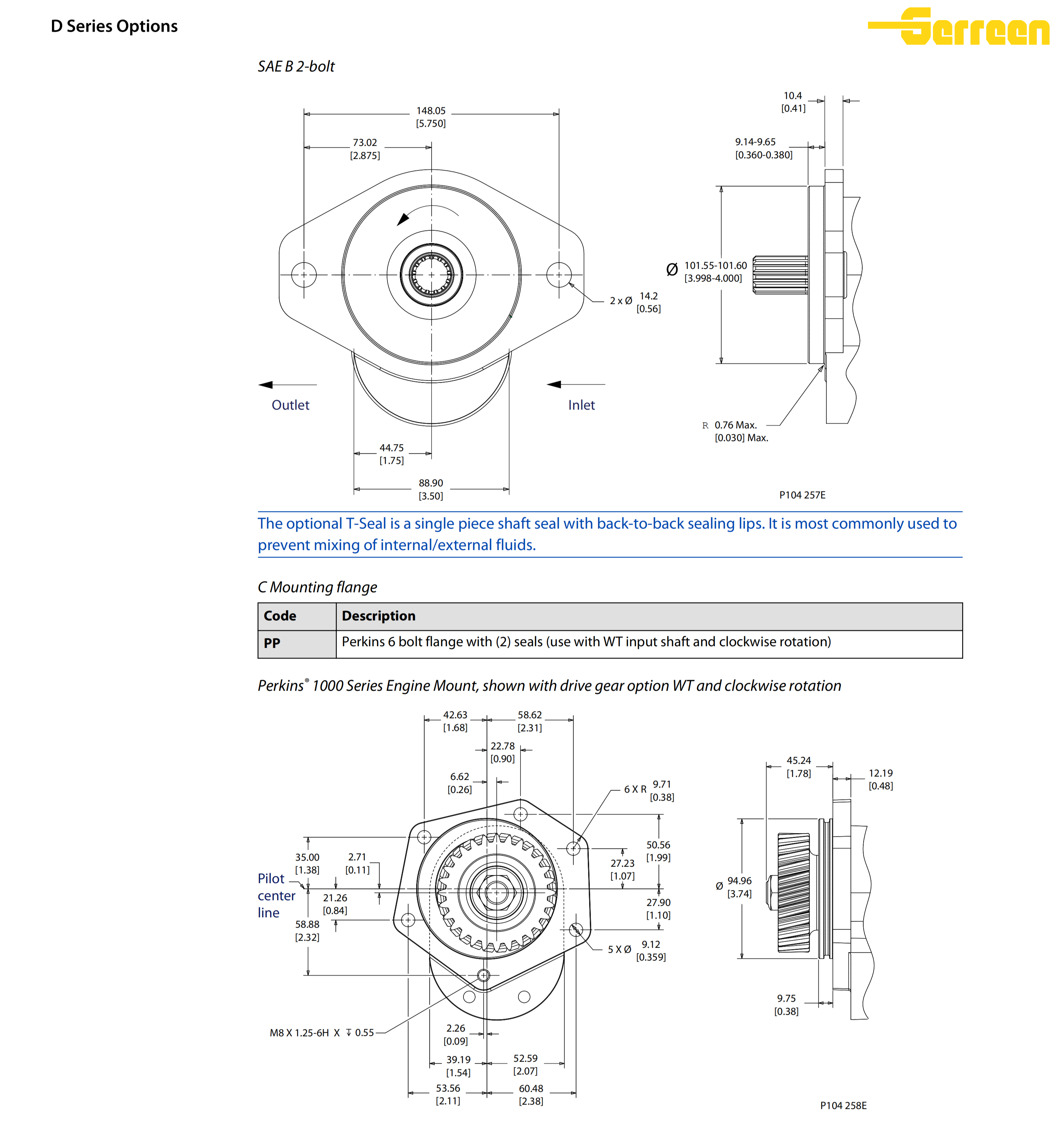

| Mounting | SAE “A” or “B” flange (2-bolt) |
| Shaft Drive | 9T spline (SAE A), 13T spline (SAE B), or keyed shaft |
| Porting | Side or rear ports (SAE ORB thread) |
Applications
Applications
Factory&FAQ
DE1R pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
Rugged Cast Iron Housing: Unlike aluminum pumps that can suffer from deflection or "body stretching" at high pressures, the DE1R’s cast iron frame maintains tight internal clearances and extends service life under high-pressure duty cycles.
Pressure-Balanced Bushing & Wear Plate Design: It uses advanced pressure-balanced components that provide superior bearing surfaces and axial compensation, offering greater resistance to thermal shock, fluid contamination, and wear than typical aluminum-body pumps.
High Power-to-Weight Ratio: Despite its robust construction, the DE1R delivers exceptional power density in a compact footprint, making it ideal for space-constrained installations.
The DE1R is a compact high-pressure specialist. Depending on the specific displacement, the series typically handles:
Continuous Pressure: Up to 4,000 PSI (276 bar) for displacements ≤ 32 cc/rev; up to 3,500 PSI (241 bar) for larger displacements.
Intermittent/Peak Pressure: Up to 4,400 PSI (303 bar) for displacements ≤ 32 cc/rev; up to 3,840 PSI (265 bar) for larger displacements.
This robust pressure rating makes the DE1R ideal for driving high-force lifting, compaction, and auxiliary systems on professional-grade utility and construction vehicles.
Yes, the DE1R is a high-quality alternative to other premium compact cast iron pumps. It is often used as a replacement or upgrade for:
Parker/Commercial Intertech: P30, P31, and P50 Series
Eaton/Vickers: 20, 25, and 35 Series
Metaris: MH315 and MH325 Series
Permco: P1900, P2100, and P2500 Series
To ensure a successful swap, verify the Mounting Flange (SAE A or B), Shaft Type (9 or 13-tooth spline, or keyed), and Displacement (cc/rev) to match your existing system.
To protect the precision bushings, wear plates, and hardened steel gears, the following is recommended:
Oil Type: Premium mineral-based hydraulic fluids with strong Anti-Wear (AW) additive packages.
Viscosity: Standard ISO VG32 to VG68. The optimal operating range is 100 to 150 SUS (20 to 30 cSt), though it can handle cold starts up to 2,000 SUS (430 cSt).
Filtration: Cleanliness is vital for bushing and wear plate lubrication. A minimum filtration of ISO 4406 18/16/13 is recommended to prevent abrasive particles from damaging internal components.
The DE1R series is designed for a wide operating speed range:
Continuous Speed Range: 600 to 3,400 RPM (max 3,400 RPM for displacements ≤ 25 cc/rev; 3,000 RPM for larger displacements).
Minimum Recommended Speed: 600 RPM, to ensure adequate lubrication and prevent cavitation.
Note: Operating above the recommended maximum speed may shorten service life and reduce efficiency, while operating below the minimum can cause insufficient lubrication and noise.
Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
DE1R pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
