CBD2-F2
Green Hydraulic
CBD2-F2
Standard export carton/plywood case
Yes
ISO9001，CE
• Industrial • Energy • Government (Non Aerospace) • HVAC • Mobile • Natural Resources • Transportation (Non Aerospace)
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
Key Shaft and Spline shaft
1 set
Product Description

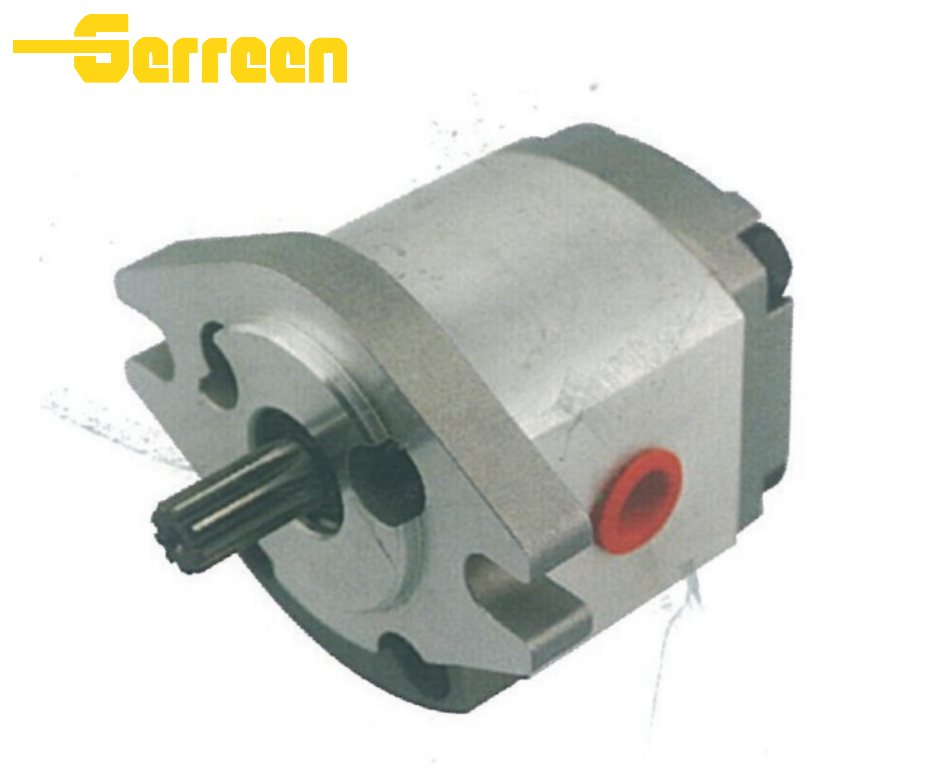

The CBD2-F2 is a high-efficiency, fixed-displacement aluminum hydraulic gear pump engineered for compact, light-duty hydraulic systems requiring reliable high-pressure performance and a lightweight footprint. Built with high-strength die-cast aluminum housing, it delivers an excellent power-to-weight ratio, making it ideal for direct mounting on truck tail lifts, forklifts, and small construction machinery where space and weight savings are critical.
Lightweight High-Strength Aluminum Construction
Specifications
| Parameter | Specification |
| Type | Fixed-displacement external gear pump |
| Construction Material | High-strength die-cast aluminum housing, high-precision steel gears, DU bearings |
| Displacement Range | 1.3 – 6.1 mL/rev |
| Rated Pressure | 20 MPa (2900 psi) |
| Maximum Pressure | 22 MPa (3190 psi) |
| Rated Speed | 2000 rpm |
| Maximum Speed | 3000 rpm |
| Mounting Standard | SAE "A" / "B" compatible flange options |
| Port Configuration | Side or rear porting available |
| Operating Temperature Range | -20°C to +80°C (-4°F to +176°F) |
| Fluid Viscosity Range | 10 – 100 cSt (ISO VG32 to VG68 recommended) |
| Filtration Requirement | ISO 4406 19/16 or better |
| Rotation Direction | Clockwise (standard; counter-clockwise optional) |
| Shaft Seal Type | Buna-N or Viton lip seal |
| Key Design Features | Pressure-balanced wear plates, floating bushings, low-noise gear profile |
| Typical Applications | Truck tail lifts, forklifts, mini excavators, compact hydraulic power units |
Applications
Applications
Truck Tail-Lifts & Loading Systems: A primary choice for hydraulic tail-lifts, ramp systems, and dock levelers, where the pump’s compact aluminum design integrates seamlessly into tight spaces while delivering consistent lifting power.
Material Handling Equipment: Ideal for electric pallet jacks, small forklifts, and stackers, offering an efficient, low-noise power source that maintains high volumetric efficiency under continuous load cycles.
Lightweight Utility Vehicles: Widely used in utility carts, aerial work platforms, and compact service trucks, where the high power-to-weight ratio helps reduce overall vehicle weight without sacrificing performance.
Small Agricultural Implements: Frequently employed in seeders, fertilizer spreaders, and light-duty steering systems, where the pump handles variable load shocks and common fluid contamination in outdoor field environments.
Compact Hydraulic Power Units: Perfect for small portable power packs used in workshop tools, trailer-mounted cranes, and light construction equipment, providing reliable pressure for tools and actuators.
Specialized Mobile Equipment: Suitable for mini excavators, snow plow attachments, and small waste handling systems, offering durable performance in demanding, high-cycle applications.
Factory&FAQ
CBD2-F2 pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
Lightweight Aluminum Housing: Unlike heavy cast iron pumps, the CBD2-F2’s aluminum construction delivers a superior power-to-weight ratio, reducing overall vehicle load while maintaining structural rigidity for rated pressures.
Compact & Low-Noise Design: It features precision-machined gears and optimized clearances for quieter operation, making it ideal for indoor and noise-sensitive applications.
Corrosion-Resistant Build: The aluminum housing offers better resistance to moisture and light corrosion than cast iron, extending service life in humid or outdoor environments.
The CBD2-F2 is a compact high-pressure aluminum pump. Depending on the specific displacement, the series typically handles:
Continuous Pressure: Up to 20 MPa (2,900 PSI).
Intermittent/Peak Pressure: Up to 22 MPa (3,190 PSI).
This robust pressure rating makes the CBD2-F2 ideal for powering lifting and material-handling systems on light commercial vehicles.
Yes, the CBD2-F2 is a cost-effective, high-quality alternative to other compact aluminum gear pumps. It is often used as a replacement or upgrade for:
HGP Series (HGP-2A) pumps

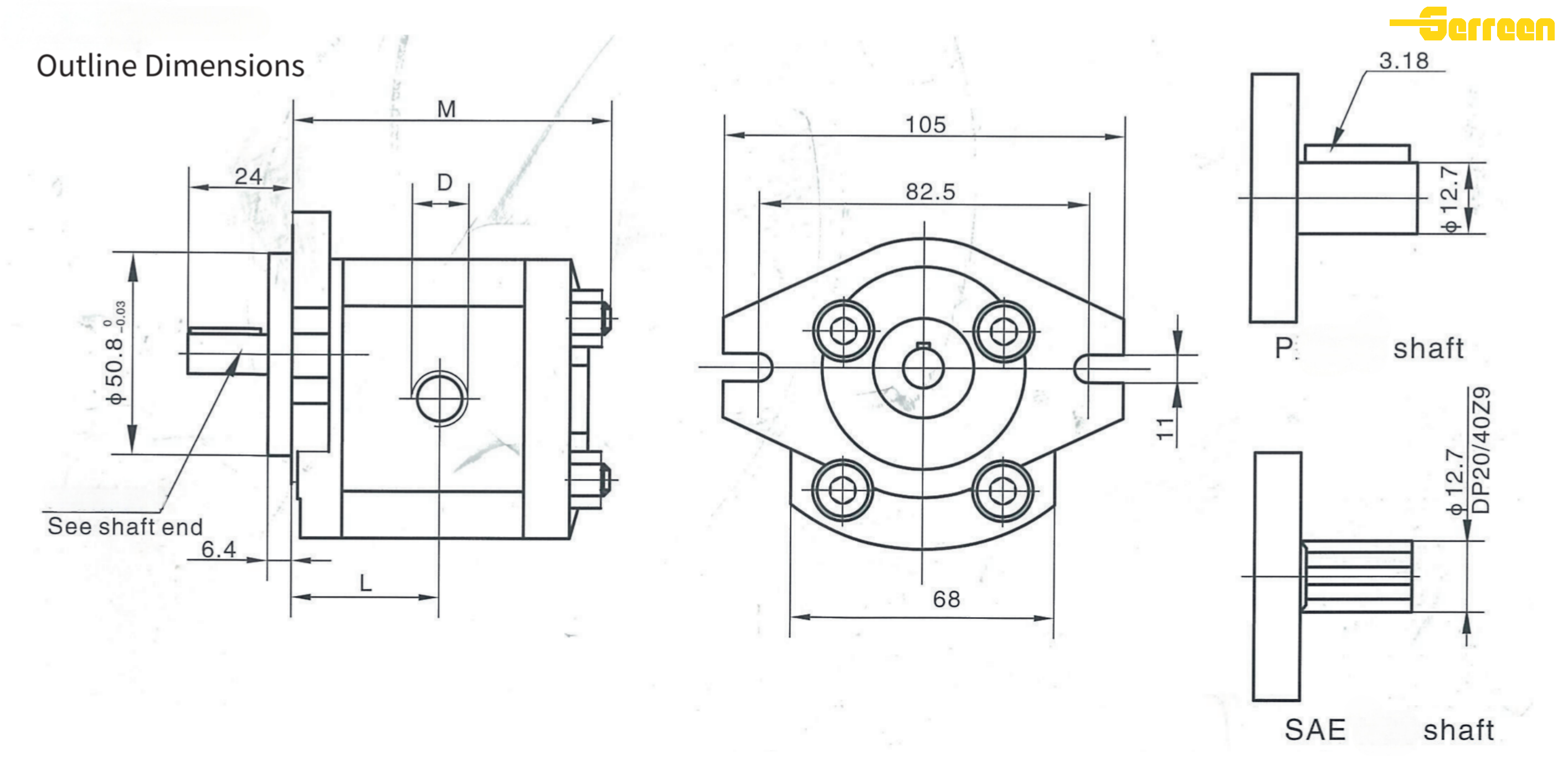

To ensure a successful swap, verify the Mounting Flange (SAE “A” style), Shaft Type (straight or spline), and Displacement (1.3–6.1 cc/rev) to match your existing system.
To protect the gears, floating bushings, and seals, the following is recommended:
Oil Type: Premium mineral-based hydraulic fluids with strong Anti-Wear (AW) additive packages.
Viscosity: Standard ISO VG32 to VG68. The optimal operating range is 20–40 cSt (100–180 SUS).
Filtration: Cleanliness is vital for gear and bushing protection. A minimum filtration of ISO 4406 19/16/13 is recommended to prevent abrasive particles from damaging internal components.
The CBD2-F2 is optimized for mid-range speeds common in mobile equipment:
Rated Speed: 2,000 RPM (continuous operation).
Maximum Speed: 3,000 RPM (intermittent use).
Operating outside this range may reduce efficiency or shorten service life, so matching the pump to your system’s engine or motor speed is key.
Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
CBD2-F2 pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
