CBQ-F5
Green Hydraulic
CBQ-F5
Standard export carton/plywood case
Yes
ISO9001，CE
• Industrial • Energy • Government (Non Aerospace) • HVAC • Mobile • Natural Resources • Transportation (Non Aerospace)
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
Key Shaft and Spline shaft
1 set
Product Description

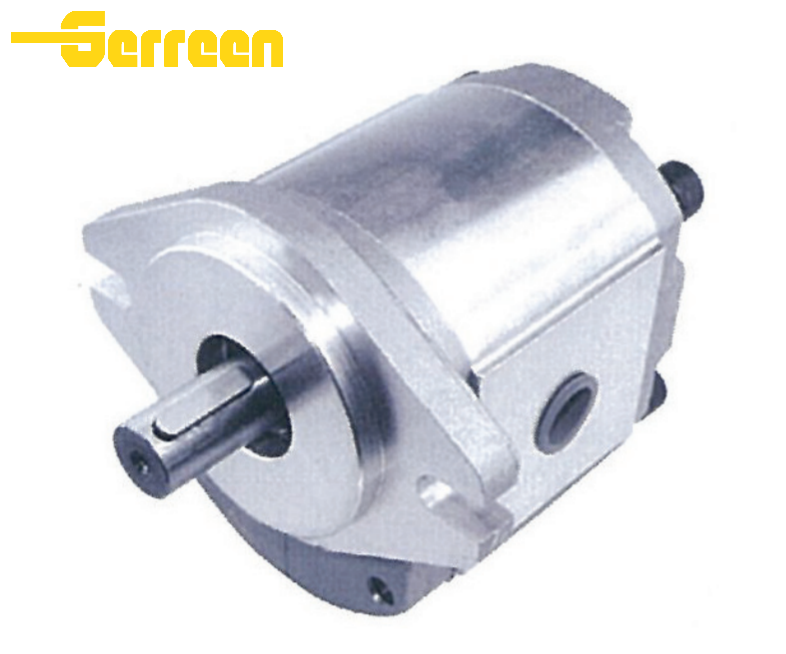

The CBQ-F5 is a high-efficiency, fixed-displacement external gear pump engineered for compact, lightweight hydraulic systems requiring reliable performance and high power-to-weight ratio. Featuring a robust high-strength aluminum alloy construction, the CBQ-F5 is specifically designed to deliver consistent pressure output while minimizing overall weight, making it an ideal choice for forklifts, agricultural machinery, and mobile equipment where space, weight, and cost efficiency are critical.
Lightweight High-Strength Aluminum Construction
Specifications
| Parameter | Specification |
| Pump Type | External fixed-displacement gear pump |
| Housing Material | High-strength aluminum alloy |
| Rated Pressure | 200 bar (2900 psi) |
| Maximum Pressure (Peak) | 250 bar (3625 psi) |
| Operating Speed Range | 600–3000 rpm |
| Rated Speed | 2000–2500 rpm |
| Volumetric Efficiency | ≥ 93% (at rated conditions) |
| Fluid Viscosity Range | 10–1000 cSt (recommended: 15–100 cSt) |
| Operating Temperature Range | -20°C to +80°C (-4°F to +176°F) |
| Mounting Interface | Standard SAE “A” / “B” flange options |
| Port Configuration | Side or rear ports (customizable) |
Applications
Applications
Material Handling Equipment: A top choice for forklifts, pallet trucks, and stackers, where the compact, low-weight aluminum design integrates seamlessly with vehicle frames to deliver consistent lifting and tilting power.
Agricultural Machinery: Optimized for tractors, harvesters, and sprayer systems, handling the vibration, temperature fluctuations, and fluid contamination common in outdoor field environments while supporting variable load demands.
Construction & Compact Equipment: Widely used in mini excavators, skid-steer loaders, and road maintenance machinery, offering a cost-effective, high-power-to-weight ratio for auxiliary hydraulic functions.
Utility & Service Vehicles: Ideal for light-duty truck-mounted cranes, aerial work platforms, and tail-lift systems, where its modular port options simplify installation in cramped chassis layouts.
General Industrial Hydraulics: Applied in small hydraulic power units (HPUs), machine tools, and automated production equipment, providing stable pressure and flow for clamping, pressing, and conveyor drive systems.
Factory&FAQ
CBQ-F5 pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
Lightweight Aluminum Housing: The high-strength aluminum alloy body significantly reduces overall pump weight compared to cast iron alternatives, improving fuel efficiency and simplifying installation in weight-sensitive equipment.
Compact and Versatile Design: The CBQ-F5 offers a high power-to-weight ratio, making it ideal for space-constrained environments. Its modular design supports multiple mounting and port configurations for flexible integration.
Cost-Effective Performance: It delivers reliable performance at a more accessible price point than premium cast iron pumps, making it a popular choice for a wide range of standard-duty mobile applications.
The CBQ-F5 is a reliable medium-to-high pressure specialist. Depending on the specific model, the series typically handles:
Continuous Pressure: Up to 200 bar (2,900 PSI).
Intermittent/Peak Pressure: Up to 250 bar (3,625 PSI).
This robust pressure rating makes the CBQ-F5 ideal for powering lifting, steering, and auxiliary functions on forklifts, agricultural machinery, and other mobile equipment.
Yes, the CBQ-F5 is a high-quality, cost-effective alternative to many standard aluminum gear pumps. It is often used as a replacement for pumps in the following series:
Rexroth / Bosch: AZPF / AZPN Series
Casappa: PLP / PLM Series
Parker: PGP / PGM Series
To ensure a successful swap, verify the Mounting Flange (SAE A or B), Shaft Type (splined or keyed), and Displacement to match your existing system.
To protect the gears, bearings, and wear plates, the following is recommended:
Oil Type: Premium mineral-based hydraulic fluids with strong Anti-Wear (AW) additive packages.
Viscosity: Standard ISO VG32 to VG68. The optimal operating range is 20 to 100 cSt, though it can handle cold starts up to 430 cSt.
Filtration: Cleanliness is vital for pump life. A minimum filtration of ISO 4406 19/16 is recommended to prevent abrasive particles from damaging internal components.
The CBQ-F5 series is designed for versatile operation across a wide speed range:
Recommended Continuous Speed: 600 to 2,500 RPM.
Maximum Allowable Speed: Up to 3,000 RPM (depending on the specific model and pressure).
This range ensures stable performance and long life in both low-speed, high-torque and higher-speed applications.
Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
CBQ-F5 pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
