C7-01
Green Hydraulic
C7-01
Standard export carton/plywood case
Yes
ISO9001，CE
• Industrial • Energy • Government (Non Aerospace) • HVAC • Mobile • Natural Resources • Transportation (Non Aerospace)
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
Key Shaft and Spline shaft
1 set
Product Description

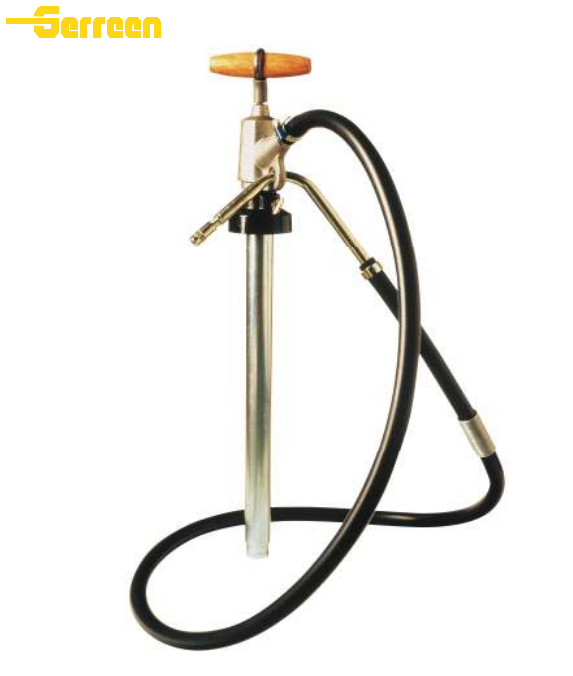

The C7-01 hand operated oil pump is suitable for use with a wide range of mineral oils. It is ideal for pumping gear oils and transmission fluids up to SAE 140. The C7-01 is supplied with three bung adapters to suit various containers from 15-25L. The C7-01 also features a built in nozzle holder, 1.8m delivery hose, delivery spout and a manual non-drip nozzle complete with manual shut off.
Supplied with 1.8m delivery hose - For easy gearbox and diff filling
Suitable for oils up to SAE140 viscosity
Delivers up to 100ml on the down stroke - For easier dispensing
Delivery spout, built-in nozzle holder and manual non-drip nozzle - No spillage
Comfortable wood handle
Durable construction - Built to last
Supplied with 3 bung adaptors - Fits a wide range of different types of containers from 15-25L
Fully serviceable - Longer service life
Optional CF strainer available for ATF & hydraulic oils
| Model | Pump Type | Output per Stroke | Max Viscosity | Container Range | Hose Length | Wetted Materials | Warranty |
| C7-01 | Lever Gear | 100 ml (3.3 oz) | SAE 140 | 15L - 25L (5-6 gal) | 1.8 m (6 ft) | Al, Steel, NBR, Viton | 10 Years |
Applications
C7-01 pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
The C7-01 is a premium, lever-operated manual pump designed for the efficient transfer of high-viscosity lubricants. Manufactured by Macnaught, it is specifically engineered for 15L to 25L (5-gallon) drums. It is a staple in automotive workshops and industrial maintenance for filling gearboxes, differentials, and small reservoirs where precision and cleanliness are required.
High Viscosity Handling: Unlike basic siphon pumps, its robust gear-driven mechanism can easily handle thick oils up to SAE 140.
Non-Drip Design: It features a specialized "non-drip" nozzle with a manual shut-off valve and an integrated hose dock to keep the workspace clean.
10-Year Warranty: Reflecting its industrial-grade reliability, it is backed by a 10-year mechanical warranty, which is rare for manual fluid handling equipment.
Output per Stroke: Delivers approximately 100ml (3.3 oz) per downward stroke.
Ease of Use: The lever geometry is optimized to reduce operator fatigue, even when pumping heavy gear oils in colder temperatures.
Suitable Fluids: Gear oils, transmission fluids (ATF), engine oils, and kerosene.
Material Compatibility: It uses Nitrile/Viton seals and a steel/aluminum body, making it compatible with most non-corrosive petroleum products.
Limitations: It should not be used with water-based fluids, solvents, or highly flammable liquids like gasoline.
Filtration: It is recommended to use the optional CF-type internal strainer to prevent debris from the drum entering the pump mechanism.
Seal Replacement: If the pump loses prime or leaks at the handle, genuine Macnaught service kits (e.g., C7-1K) are available to replace all wear components without replacing the entire pump.
Cleaning: Periodically wipe the suction tube to ensure no contaminants are introduced when switching between different oil drums.
Drum Sizes: Fits most 15L to 25L (5-6 gallon) containers.
Adaptability: It comes standard with a variety of bung adapters to fit different drum openings.
Reach: Includes a 1.8m (6 ft) oil-resistant reinforced hose, providing ample reach for vehicle-on-hoist applications.
Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
C7-01 pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
