CBF-F410 High Pressure Gear Pump
Green Hydraulic
CBF-F410
1-3 days
CBF-F410
Yes
ISO9001，CE
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
Key Shaft and Spline shaft
1 set
Product Description

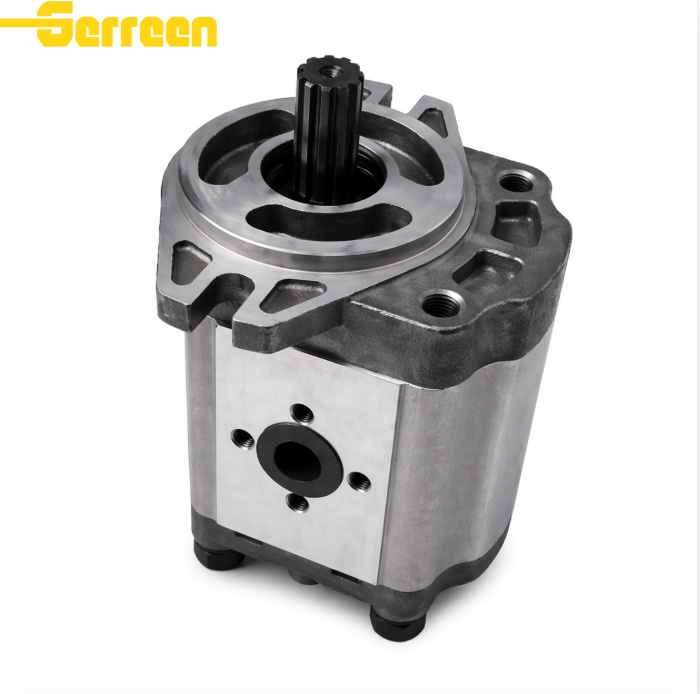

CBF-F410 Series Gear Pumps are engineered for high-pressure performance, exceptional reliability, and long service life. Designed with a high-strength aluminum alloy body and precision-engineered gears, these pumps provide consistent hydraulic power for material handling, construction, and agricultural machinery, making them the preferred choice for OEM replacements in brands like Toyota, Komatsu, and Mitsubishi.
Extended Pump Life: Exceptional durability achieved through high-grade wear-resistant materials, specialized surface-treated gears, and the use of high-load DU bushings for superior lubrication.
Quiet and Smooth Operation: Advanced gear tooth profiles and a precision-machined housing reduce fluid pulsation and mechanical vibration, maintaining low noise levels during high-pressure operation.
High Efficiency & Energy Saving: Features a pressure-loading design that maintains high volumetric and mechanical efficiency, minimizing internal leakage and heat generation.
Compact & Modular Design: Standardized ISO and SAE mounting flanges and shaft options allow for easy installation in tight spaces and seamless integration into existing systems.
Versatile Combinations: Supports tandem (double) or triple pump configurations, providing a cost-effective and flexible solution for multi-circuit hydraulic packages.
Applications
Based on its technical specifications, this pump is frequently found in the following sectors:
Construction Machinery: It is a standard component for concrete pump trucks, road rollers, paving machines, and cranes.
Agricultural Equipment: Used in tractor hydraulic systems and various types of harvesting machinery.
Material Handling: Frequently installed in forklifts and excavators for lifting and steering functions.
Industrial Mining: Applied in mining machinery and heavy-duty presses that require consistent high-pressure oil delivery.
Waste Management: Often used in the hydraulic systems of dump trucks and concrete mixers.
CBF-F410 series gear pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the high-precision pump body and shaft from moisture and environmental damage.
Custom Cartons or Crates: Individual reinforced packaging with shock-absorbent inserts for single pumps, and sturdy wooden crates for bulk or tandem pump orders to ensure safe handling.
Documentation: Includes technical data sheets, installation guides, and quality inspection certificates.
Delivery time depends on the specific model, port configurations, and destination but typically ranges from 1 to 4 weeks from the order date.
The CBF‑F410 Series Gear Pump is a high‑quality hydraulic gear pump designed for efficient fluid transfer in industrial and mobile hydraulic systems. It delivers reliable performance with smooth flow and stable operation.
This series is widely used in:
Construction and engineering machinery
Agricultural equipment
Industrial hydraulic systems
Mobile hydraulic systems
General machinery requiring medium‑flow hydraulic pumping
The GBF‑F400 Gear Pump is compatible with:
Mineral hydraulic oils
Anti‑wear hydraulic fluids
Certain synthetic oils
Note: Always verify fluid compatibility with operating temperature and viscosity requirements.
The CBF‑F410 Series is designed to operate reliably under typical industrial hydraulic pressures. For specific pressure ratings, refer to the technical datasheet for the exact model.
Durable construction: Long service life in demanding environments.
High efficiency: Smooth, consistent fluid delivery.
Stable operation: Minimal noise and vibration.
Easy maintenance: Simple installation and accessible servicing components.
Select a model based on your:
Required flow rate
System pressure
Shaft type and mounting configuration
Fluid type and viscosity
Matching these ensures optimal performance and longevity.
Routine maintenance includes:
Checking and replacing hydraulic fluid at regular intervals
Inspecting for leaks, wear, and contamination
Monitoring system pressure and performance
Keeping filters clean
Common issues include:
Using the wrong fluid or contaminated oil
Exceeding pressure or speed limits
Poor filtration or dirty hydraulics
Improper installation
Proper setup and maintenance help avoid these problems.
Check for:
Low fluid levels or incorrect fluid type
Blocked suction or filters
Air ingress in the system
Worn seals or gears
If issues continue, consult your supplier or technical support.
With proper maintenance and correct operating conditions, the CBF‑F410 Series Gear Pump can provide many years of reliable service.
Gear pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
1.What's our advantages?
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
