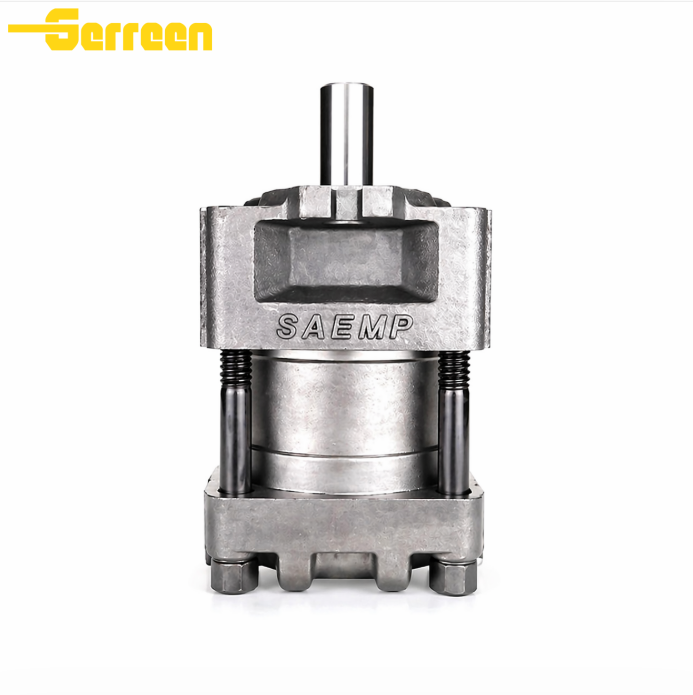

QT Series Low Pressure Gear Pump

QT Series Low Pressure Gear Pump

Overview

The QT Series Low Pressure Gear Pump is engineered for high-pressure performance, exceptional reliability, and long service life. Designed with a high-strength aluminum alloy body and precision-engineered gears, these pumps provide consistent hydraulic power for material handling, construction, and agricultural machinery, making them the preferred choice for OEM replacements in brands like Toyota, Komatsu, and Mitsubishi.

Features and Benefits

• Extended Pump Life: Exceptional durability achieved through high-grade wear-resistant materials, specialized surface-treated gears, and the use of high-load DU bushings for superior lubrication.

• Quiet and Smooth Operation: Advanced gear tooth profiles and a precision-machined housing reduce fluid pulsation and mechanical vibration, maintaining low noise levels during high-pressure operation.

• High Efficiency & Energy Saving: Features a pressure-loading design that maintains high volumetric and mechanical efficiency, minimizing internal leakage and heat generation.

• Compact & Modular Design: Standardized ISO and SAE mounting flanges and shaft options allow for easy installation in tight spaces and seamless integration into existing systems.

• Versatile Combinations: Supports tandem (double) or triple pump configurations, providing a cost-effective and flexible solution for multi-circuit hydraulic packages.

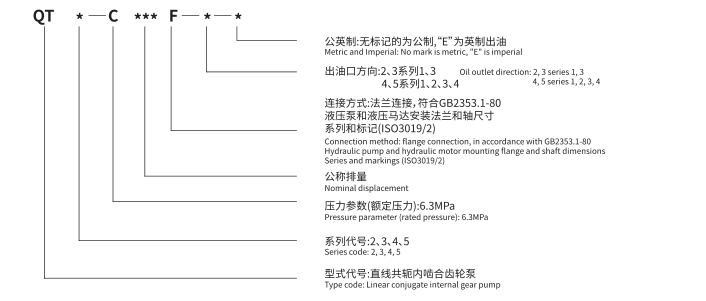

Model Codes

Applications

Winches, oil field and drilling

equipment, earthmoving and

construction equipment, die

casting, molding machines, press

machines, trash compactors, balers

and primary metals

Packaging & Delivery

QT Series Low Pressure Gear Pump is typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the high-precision pump body and shaft from moisture and environmental damage.

Custom Cartons or Crates: Individual reinforced packaging with shock-absorbent inserts for single pumps, and sturdy wooden crates for bulk or tandem pump orders to ensure safe handling.

Documentation: Includes technical data sheets, installation guides, and quality inspection certificates.

Delivery time depends on the specific model, port configurations, and destination but typically ranges from 1 to 4 weeks from the order date.

QT Series Low Pressure Gear Pump FAQ

1. What is a QT Series Low Pressure Gear Pump?

• The QT Series Low Pressure Gear Pump is a hydraulic pump used in various industrial applications. It uses two meshing gears to pump hydraulic fluid through a system. This pump is designed for low-pressure operations and is typically used for applications that do not require high pressure, such as lubrication systems, fuel pumps, or low-pressure hydraulic circuits.

2. What applications are suitable for QT Series Gear Pumps?

• QT Series pumps are commonly used in low-pressure hydraulic systems, including:

• Lubrication systems

• Fuel and oil pumps

• Low-pressure hydraulic circuits in industrial machinery

• Agricultural equipment

• Construction machinery (e.g., excavators, cranes)

3. What is the pressure range for QT Series Gear Pumps?

• The QT Series Low Pressure Gear Pump typically operates at pressures ranging from 50 to 150 bar (725 to 2175 PSI), making it ideal for applications requiring lower pressure compared to high-pressure pumps.

4. What materials are used in the construction of the QT Series Pump?

• The QT Series Gear Pumps are constructed from high-strength materials, such as:

• Cast iron or aluminum housing for durability and resistance to corrosion.

• Hardened steel gears to minimize wear and enhance longevity.

• Nitrile or fluorocarbon seals to ensure leak-free operation.

5. What are the advantages of using a QT Series Gear Pump?

• Compact Design: QT Series pumps are smaller in size, making them suitable for space-limited applications.

• Efficiency: They provide efficient fluid flow with minimal leakage.

• Durability: With high-quality materials and robust design, these pumps are reliable and long-lasting.

• Cost-Effective: Being low pressure, they are generally more affordable and less costly to maintain compared to high-pressure pumps.

• Low Noise Operation: These pumps operate quietly due to their gear design, making them ideal for noise-sensitive environments.

6. What types of fluids can be used with the QT Series Gear Pump?

• QT Series pumps can be used with a variety of fluids, including:

• Mineral oils

• Water-based fluids

• Synthetic oils

• Bio-oils

• It is essential to check the pump's compatibility with the specific fluid type before use.

7. How do I choose the right QT Series Gear Pump for my application?

• When choosing the appropriate QT Series Gear Pump, consider:

• Flow rate: Ensure the pump's flow rate matches your system's requirements.

• Operating pressure: The QT Series is designed for low-pressure systems, so ensure the pump's maximum pressure rating meets the demands of your system.

• Fluid type: Verify compatibility with the fluids in your application.

• Mounting type: Ensure the pump has the correct mounting configuration for your machinery.

8. What are the common maintenance practices for QT Series Gear Pumps?

• Regular maintenance is crucial for optimal performance:

• Inspect the pump regularly for leaks or unusual vibrations.

• Change the fluid at recommended intervals to prevent contamination and wear.

• Check the filters to ensure that they are not clogged.

• Monitor the pressure and flow rates regularly to ensure the pump is operating within its design specifications.

9. How long does the QT Series Gear Pump last?

• The lifespan of a QT Series Gear Pump can vary based on usage, operating conditions, and maintenance. Typically, with proper care and use, these pumps can last anywhere from 5 to 10 years.

10. What should I do if my QT Series Gear Pump is not working properly?

• If the pump is not working properly:

• Check for clogs or debris in the pump or filter system.

• Inspect the seals for any signs of damage or leaks.

• Verify fluid levels and ensure the correct fluid is used.

• Check the drive shaft and motor connections to ensure they are intact.

• If issues persist, it is advisable to consult the manufacturer or a professional technician for servicing or repairs.

•





Certifications & Quality Assurance

Charge pumps are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.

FAQ

1.How does the variable displacement work?

The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.

2.What's our advantages?

Factory established in 2005;

With a great deal of production experience;

80+ employees become the professional team;

Constant updated ERP system ensure efficiency of work;

Sophisticated equipment ehanced the accuracy of products;

Professional salesmen provide the greast service;

With a large number of famous customers all over the world;

Great after-sales service;

With the long term cooperation with famous logistics and express company in China,provide the better goods service.

3.What is your payment terms?

Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.

4.Can you make my own brand on the products?

Of course we can. Just send me your logo  we can make it for you.

5.What is our main export market?

America(40.5%):USA, Canada, Argentina, Brazil

Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.

Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.

Others(5.8%).

The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.

The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.

Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.

All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.

To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.

Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
