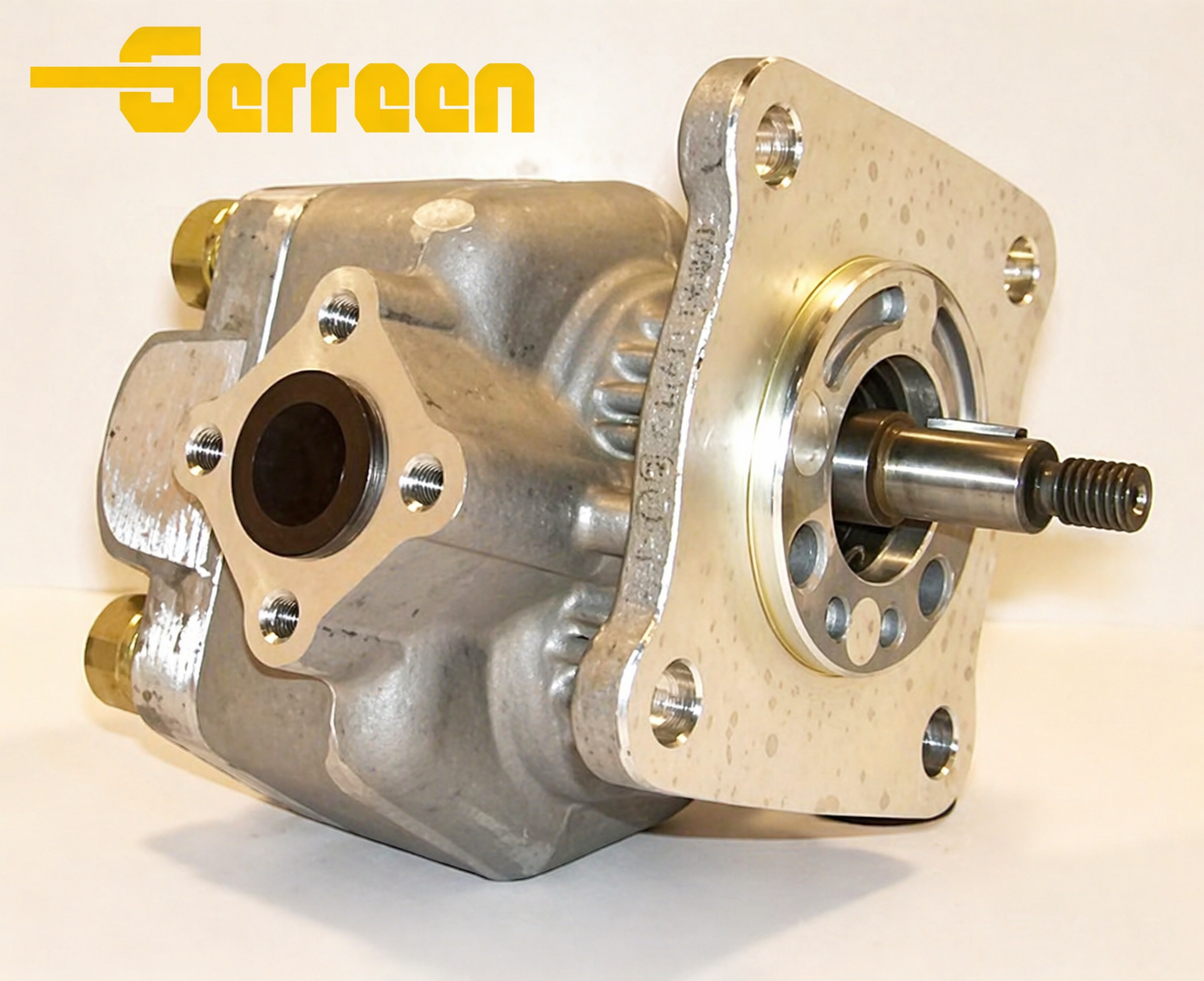

Kanzaki 5K1/49053YAN
Green Hydraulic
Yes
ISO9001，CE
Key Shaft and Spline shaft
1 set
Product Description
• Long pump life resulting from manufacturing material characteristics, hydrodynamic lubrication of bearings, and hydrostatic balancing of distribution plates.
• Quiet pump operation from 55 to 73 dB(A).
• Simplifies hydraulic circuit by eliminating maximum pressure relief valves and heat exchangers. Pumps can be supplied with various pressure regulators to control the maximum system pressure.
• Standard ISO and SAE mountings.
• Combinations of standard pumps provide flexibility and cost effective pump packages.
Nominal Size | Size 0 | Size 1 | Size 2 | Size 3 |
Displacement (ISO 3662) cm3/r (in3/r) | 6.3 (0.384) | 16 (0.976) | 31.5 (1.922) | 63 (3.844) |
10 (0.610) | 20 (1.220) | 40 (2.441) | 80 (4.882) | |
12.5 (0.763) | 25 (1.526) | 50 (3.051) | 100 (6.102) | |
Actual displacement cm3/r (in3/r) | 6.9 (0.421) | 17.9 (1.092) | 34.5 (2.105) | 69 (4.211) |
11 (0.671) | 22.1 (1.349) | 42.8 (2.612) | 86.2 (5.260) | |
13.1 (0.799) | 26.9 (1.642) | 53.1 (3.240) | 105.5 (6.438) | |
Mounting flange type | ISO 3019/2 | ISO 3019/2 | ISO 3019/2 | ISO 3019/2 |
4-bolt | 4-bolt | SAE C 2-bolt | SAE C 2-bolt | |
Base plate | Base plate | Base plate | Base plate | |
Maximum working pressure (bar / psi) | 150 (2200) | 100 (1500) | 100 (1500) | 80 (1200) |
Allowed max drain pressure (bar / psi) | 1 (14.5) | |||
Inlet pressure (absolute) (bar / psi) | 0.8–1.5 (11.6–21.8) | |||
Speed range (r/min) | 800 – 1800 | |||
Rotation direction | Right-hand (clockwise) | |||
Shaft load | No radial or axial loads allowed | |||
Maximum torque on primary shaft - Nm (lbf-in) | 110 (974) | 197 (1744) | 400 (3540) | 740 (6550) |
Hydraulic fluid | Mineral oil - HM according to ISO 6743/4 - HLP according | |||
Viscosity range at working temperature - mm2 | 23 to 68 | |||
Recommended viscosity - mm2 | 32 | |||
Viscosity index | 100 minimum | |||
Temperature range- °C (°F) | -10/+50 [14/122] | |||
Maximum fluid contamination level | Class 9 per NAS 1638, or class 18/16/13 per ISO 4406 | |||
Weight kg (lb) | 6.5 (14.3) | 12 (26.5) | 32 (70.5) | 44 (97) |
Applications
Winches, oil field and drilling
equipment, earthmoving and
construction equipment, die
casting, molding machines, press
machines, trash compactors, balers
and primary metals
Charge pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
The VVS series pumps are variable displacement vane pumps with a built-in pressure compensator. They automatically adjust flow output based on system pressure, ensuring energy-efficient and stable operation.
The main difference lies in displacement range, flow capacity, and power level.
VVS0: Small displacement, light-duty applications
VVS1: Medium-small systems
VVS2: Medium industrial use
VVS3: Large flow and heavy-duty systems
The maximum working pressure varies by size:
VVS0: up to 150 bar
VVS1 / VVS2: up to 100 bar
VVS3: up to 80 bar
VVS pumps are compatible with:
Mineral oil (ISO HM, DIN HLP)
Synthetic fluids such as HFD-V
Proper fluid selection ensures longer service life and stable performance.
The typical speed range is 800 to 1800 r/min, depending on the model and working conditions.
Yes. Thanks to the variable displacement mechanism, the pump only delivers the required flow, reducing energy loss, heat generation, and overall operating costs.
Standard mounting: ISO 3019/2 or SAE flange
Rotation direction: right-hand (clockwise)
No radial or axial load should be applied to the shaft
Proper installation is critical for performance and durability.
They are widely used in:
CNC machine tools
Injection molding machines
Hydraulic power units
Industrial automation systems
Press machinery
Charge pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
