A2FO Hydraulic Gear Pump Thrust Plate

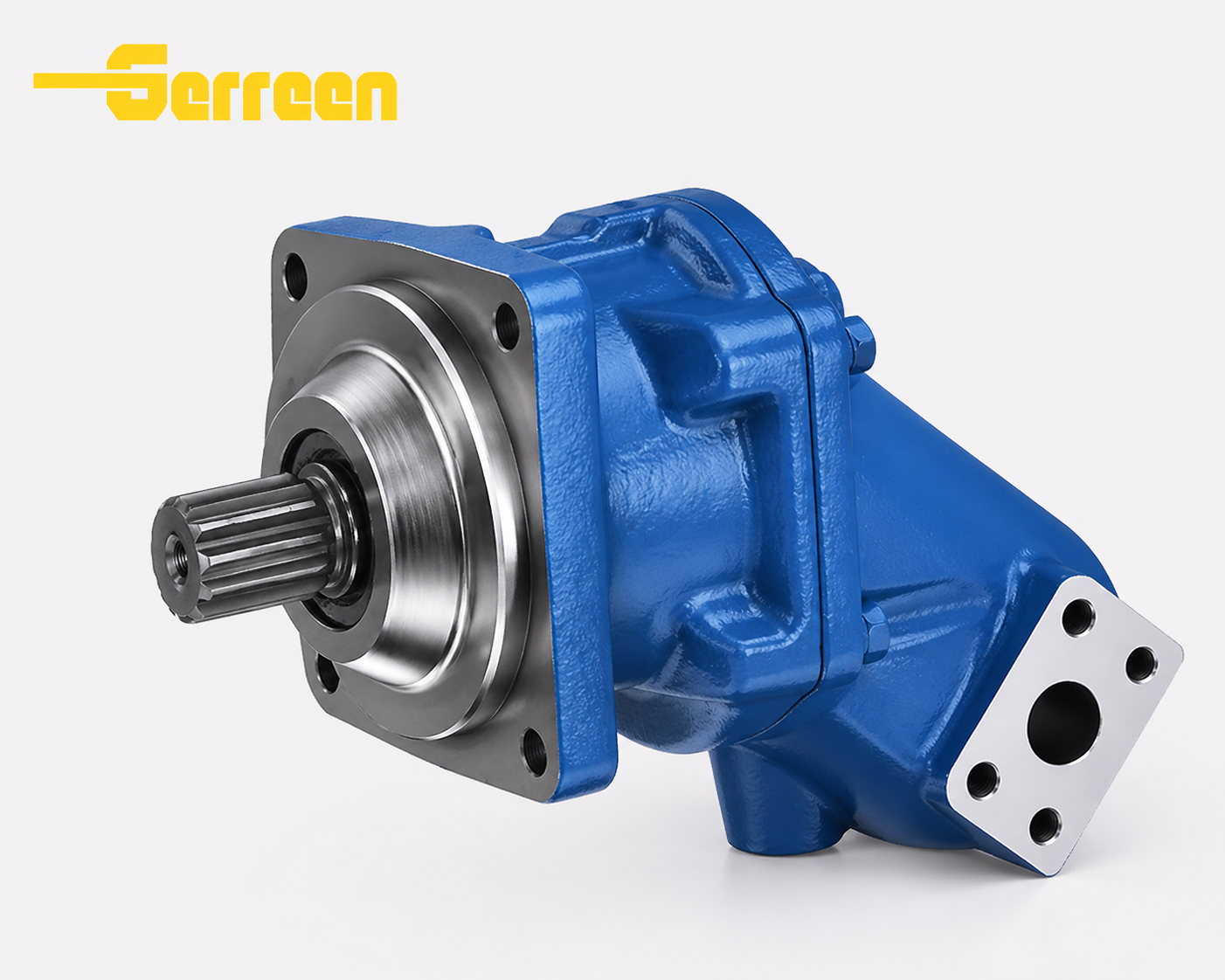

A2FO Hydraulic Pear Pump Overview

A2FO Hydraulic Pear Pumps are engineered for high efficiency, stable pressure control, and long service life. Designed with a pressure-compensated variable displacement mechanism, these pumps automatically adjust output flow according to system demand, making them an ideal solution for modern energy-saving hydraulic systems.

Features and Benefits

• Axial Piston Design: The A2FO features an axial piston design, which is known for its high efficiency, variable displacement, and high power density. It uses a swash plate mechanism to change the piston stroke, providing precise control of the pump’s output flow and pressure.

• Variable Displacement: The pump has variable displacement, meaning it can adjust its output flow rate in response to changing system demands. This feature is critical for systems that need to operate under varying loads and conditions, such as construction machinery or mobile equipment.

• Efficiency: With its variable displacement design, the A2FO pump adjusts flow to suit the specific needs of the system, ensuring optimal energy usage.

• High Performance: Capable of delivering high power at high efficiency, even under heavy loads and high-pressure conditions.

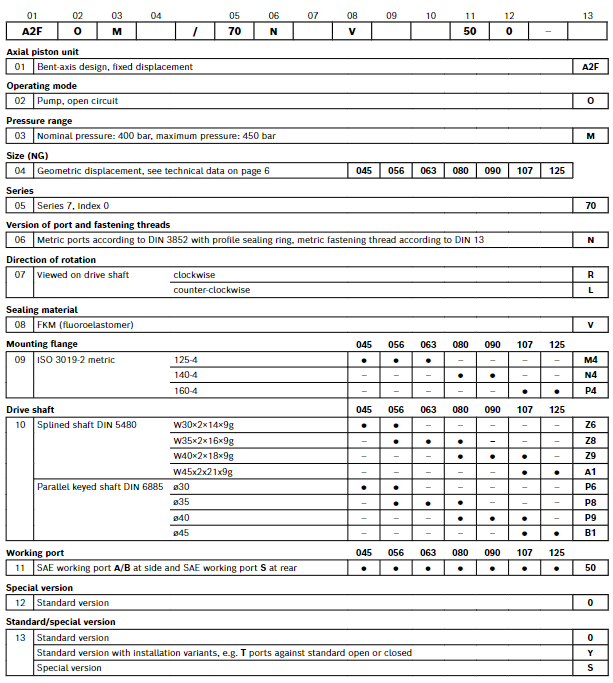

Model Codes

Technical Data

Size	NG 45	NG 56	NG 63	NG 80	NG 90	NG 107	NG 125
Displacement, geometric, per revolution (cm³)	44.9	56.6	63.0	79.8	90.5	106.7	125.0
Rotational speed maximum (rpm)	2,240	2,000	1,800	1,800	1,600	1,600	1,600
Rotational speed maximum (rpm)	4,250	3,750	3,750	3,750	3,500	3,350	3,000
Flow at nnom (L/min)	101	113	126	144	163	190	226
Torque at Δp = 400 bar (Nm)	286	360	400	450	560	679	796
Rotary stiffness (kNm/rad)	4.52	6.83	8.09	8.96	9.29	12.49	13.65
Moment of inertia for rotary group (kgm²)	0.0032	0.0032	0.0032	0.0058	0.0084	0.0081	0.0091
Case volume (L)	0.66	0.66	0.65	0.65	1.1	1.1	1.1
Weight approx. (kg)	17	17	19	23	23	32.8	32.8

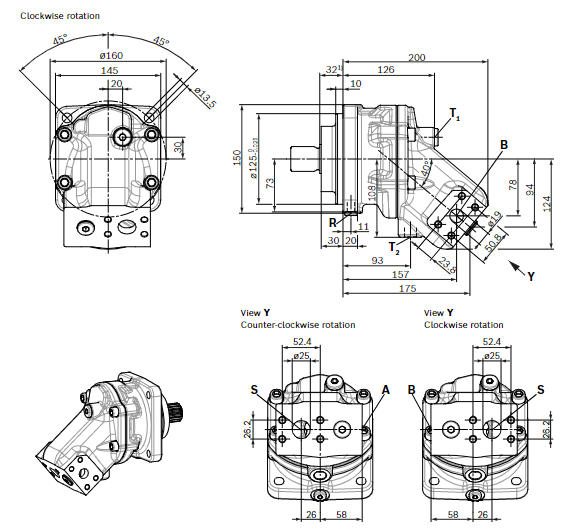

A2FO Hydraulic Pear Pump Installation Dimensions

Applications

•


  Construction Machinery: Used in hydraulic excavators, backhoes, and wheel loaders for lifting, digging, and loading operations.

•


  Agricultural Equipment: Powers hydraulic systems in tractors, harvesters, and sprayers for various farming tasks.

Packaging & Delivery

A2FO Hydraulic Pear pumps are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

A2FO Hydraulic Pear pumps FAQ

1. What is the A2FO Hydraulic Gear Pump used for?

The A2FO Hydraulic Gear Pump is a variable displacement axial piston pump designed for use in high-performance hydraulic systems. It is commonly used in mobile equipment, industrial machinery, and construction equipment. The pu

mp provides precise control over fluid flow and pressure, making it ideal for demanding applications such as excavators, cranes, and forklifts.

2. What is the maximum pressure the A2FO pump can handle?

The A2FO Hydraulic Gear Pump is built to withstand high-pressure environments. The maximum continuous pressure it can handle is typically 250 bar (3625 psi), with intermittent pressures going up to 280 bar (4060 psi), depending on the specific model and configuration.

• 3. What is the working pressure range of VVP pumps




VVP pumps are designed for medium pressure hydraulic systems, typically up to 70–140 bar depending on the model. For exact specifications, please share your working conditions with us.

4. Can VVP pumps replace other brands

Yes, VVP pumps can replace many well-known brands such as Yuken and Daikin Industries vane pumps. Provide your original model number, and we will confirm compatibility.

5. What hydraulic oil is suitable for VVP vane pumps

VVP pumps are compatible with:

• Mineral hydraulic oil (ISO HM / DIN HLP)

• Equivalent industrial hydraulic fluids
  Using clean and proper oil will extend pump life. Contact us if you need oil recommendations.

6. What is the typical speed range of VVP pumps

The recommended operating speed is 800–1800 rpm. For special applications, we can help you confirm the correct speed range.

7. Do you provide OEM or customized services

Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.

8. How can I get a quotation quickly

Please provide the following details:

• Model or displacement

• Working pressure

• Speed

• Quantity
  We will reply within 12 hours with a competitive quotation.




Certifications & Quality Assurance

A2FO Hydraulic Pear pumps are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.

FAQ

1.How does the variable displacement work?

The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.

2.What's our advantages?

Factory established in 2005;

With a great deal of production experience;

80+ employees become the professional team;

Constant updated ERP system ensure efficiency of work;

Sophisticated equipment ehanced the accuracy of products;

Professional salesmen provide the greast service;

With a large number of famous customers all over the world;

Great after-sales service;

With the long term cooperation with famous logistics and express company in China,provide the better goods service.

3.What is your payment terms?

Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.

4.Can you make my own brand on the products?

Of course we can. Just send me your logo  we can make it for you.

5.What is our main export market?

America(40.5%):USA, Canada, Argentina, Brazil

Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.

Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.

Others(5.8%).

The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.

The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.

Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.

All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.

To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.

Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
