26002
Green Hydraulic
26002
Standard export carton/plywood case
Yes
ISO9001，CE
• Industrial • Energy • Government (Non Aerospace) • HVAC • Mobile • Natural Resources • Transportation (Non Aerospace)
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
Key Shaft and Spline shaft
1 set
Product Description

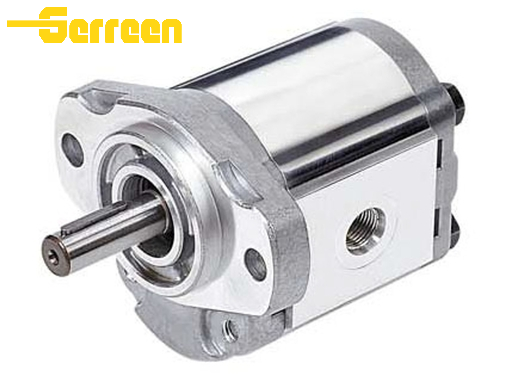

The Eaton 26002 is a heavy-duty, fixed-displacement gear pump engineered for industrial and mobile hydraulic systems requiring reliable high-pressure output and long service life. Built on the proven 26 Series platform, it features robust construction and consistent performance, making it ideal for applications where durability and efficiency are critical.
Specifications
| Parameter | Specification |

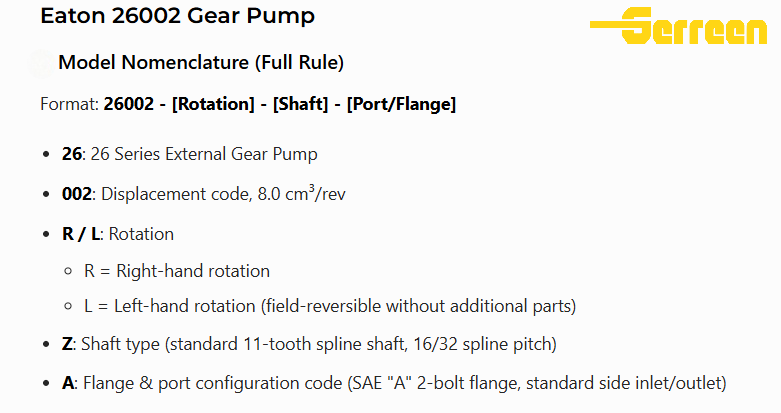

| Model | Eaton 26002 (26 Series) |
| Type | External Fixed-Displacement Gear Pump |
| Displacement | 8.0 cm³/rev (0.49 in⊃3;/rev) |
| Continuous Pressure | 3,000 psi (210 bar) |
| Intermittent Peak Pressure | 3,500 psi (240 bar) |
| Rated Speed | 3,000 rpm |
| Maximum Speed | 3,600 rpm |
| Theoretical Flow @ 3600 rpm | 28.8 L/min (7.6 gpm) |
| Rotation | Field-reversible (R/L) |

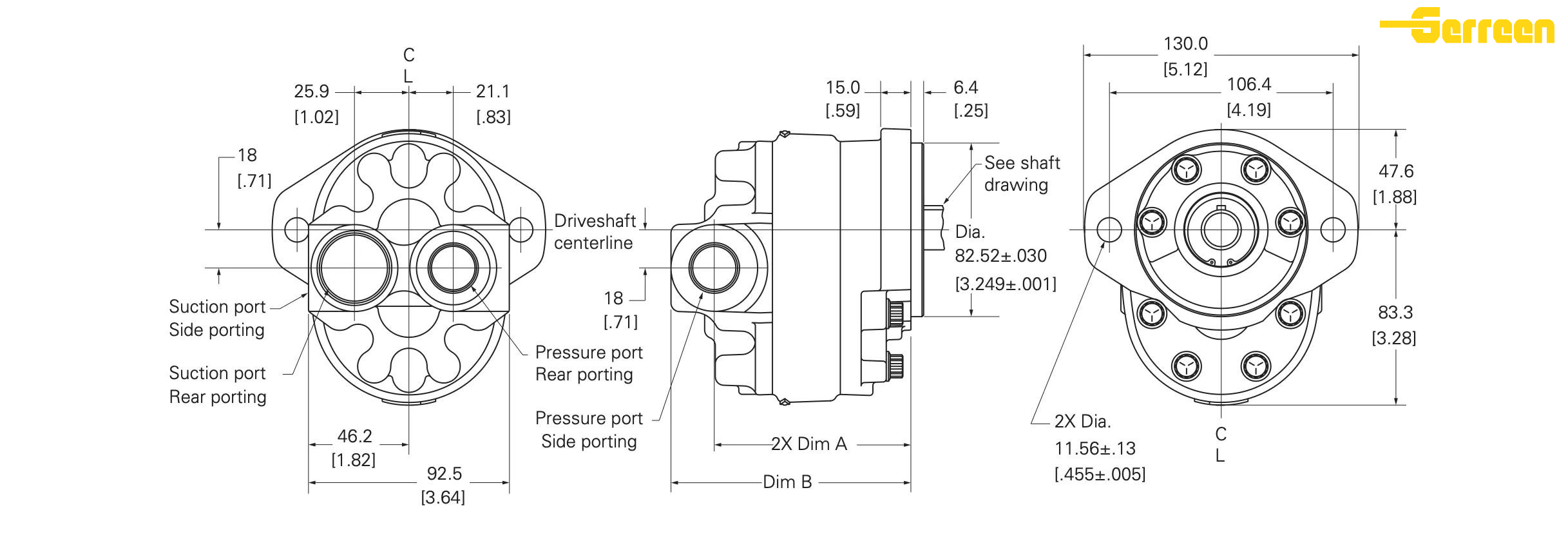

| Mounting Flange | SAE "A" 2-bolt |
| Drive Shaft | 3/4" 11-tooth spline (16/32 pitch) |
| Port Configuration | Standard side inlet / side outlet |
| Inlet Port Size | SAE #12 (1-1/16"-12 UN-2B) |
| Outlet Port Size | SAE #10 (7/8"-14 UNF-2B) |
| Housing Material | Cast Iron |
| Weight | ~7.5 kg (16.5 lbs) |
| Volumetric Efficiency | ≥ 92% at rated pressure |
| Operating Temperature | -20°C to +80°C (-4°F to +176°F) |
Applications
Applications
Industrial Hydraulic Systems:
Ideal for machine tools, presses, and stationary power units, where its robust construction maintains stable pressure under continuous, high-cycle loads.
Construction & Utility Vehicles:
Commonly used in aerial lifts, skid-steer loaders, and truck-mounted cranes, providing dependable hydraulic power for lifting, tilting, and positioning operations.
Agricultural Equipment:
Suited for tractors, harvesters, and fertilizer spreaders, handling the shock loads and fluid contamination common in outdoor field environments.
Material Handling:
A reliable choice for forklifts, tail-lifts, and pallet jacks, offering efficient power delivery in space-constrained mobile systems.
Refuse & Recycling Equipment:
Performs consistently in compactors and waste bin lifters, where high-cycle, high-pressure stability is required for compaction and unloading functions.
Factory&FAQ
26002 pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
Rugged Cast Iron Housing: Unlike aluminum pumps that can suffer from "body stretching" at high pressures, the 26002’s cast iron frame ensures tight internal clearances and a longer service life under high-pressure duty cycles.
Pressure-Balanced Wear Plates: It utilizes advanced axial compensation that reduces internal leakage and friction, offering greater efficiency and resistance to fluid contamination than typical aluminum-body pumps.
Field-Reversible Rotation: The pump can be easily converted between clockwise and counterclockwise rotation without additional parts, providing greater installation flexibility.
Continuous Pressure: Up to 3,000 psi (210 bar).
Intermittent/Peak Pressure: Up to 3,500 psi (240 bar).
This robust pressure rating makes it ideal for driving high-force actuators and circuits on industrial and utility vehicles.
Parker/Commercial Intertech: P30 Series
Metaris: MH26 Series
Older Eaton/Vickers B1/B2 Series pumps
To ensure a successful swap, verify the Mounting Flange (SAE A), Shaft Type (11-tooth spline), and Displacement (8.0 cc/rev) to match your existing system.
Oil Type: Premium mineral-based hydraulic fluids with strong Anti-Wear (AW) additive packages.
Viscosity: Standard ISO VG32 to VG68. The optimal operating range is 100 to 150 SUS (20 to 30 cSt).
Filtration: A minimum filtration of ISO 4406 18/16/13 is recommended to prevent abrasive particles from damaging the wear plates and gears.
Continuous Operating Speed: Up to 3,000 rpm.
Maximum Intermittent Speed: Up to 3,600 rpm.
Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
26002 pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
1.What's our advantages?
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
