26001
Green Hydraulic
26001
Standard export carton/plywood case
Yes
ISO9001，CE
• Industrial • Energy • Government (Non Aerospace) • HVAC • Mobile • Natural Resources • Transportation (Non Aerospace)
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
Key Shaft and Spline shaft
1 set
Product Description
The Eaton 26001 is a heavy-duty, fixed-displacement gear pump engineered for industrial and mobile hydraulic systems that demand consistent performance and long service life. Built on the proven 26 Series platform, it features robust construction and reliable operation, making it ideal for applications where compact size and durability are essential.
Specifications
| Parameter | Value |
| Model | 26001 (Eaton 26 Series) |
| Type | External Fixed-Displacement Gear Pump |
| Displacement | 6.6 cm3/rev (0.40 in3/rev) |
| Rated Continuous Pressure | 210 bar (3,000 psi) |
| Max Intermittent Pressure | 240 bar (3,500 psi) |
| Rated Speed | 3,000 rpm |
| Max Speed | 3,600 rpm |
| Theoretical Flow @ 3600 rpm | 23.8 L/min (6.3 gpm) |
| Rotation | Field-reversible (R/L standard) |

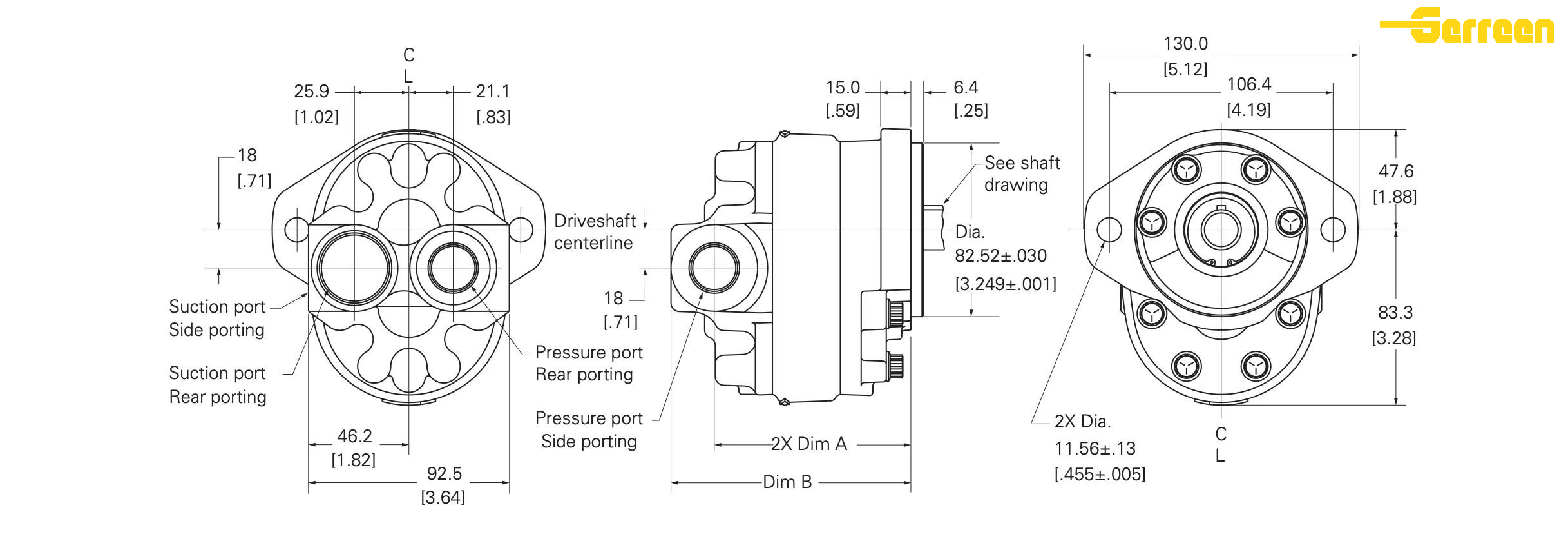

| Mounting Flange | SAE "A" 2-bolt |
| Drive Shaft | 3/4" 11-tooth spline (16/32 spline) |
| Port Configuration | Side inlet / Side outlet |
| Inlet Port Size | SAE #12 (1-1/16"-12 UN-2B) |
| Outlet Port Size | SAE #10 (7/8"-14 UNF-2B) |
| Housing Material | Cast Iron |
| Weight | ~7.5 kg (16.5 lbs) |
Applications
Applications
Factory&FAQ
26001 pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
Rugged Cast Iron Housing: Unlike aluminum pumps that can suffer from body deflection at high pressures, the 26001’s cast iron frame maintains tight internal clearances, ensuring consistent performance and a longer service life under continuous high-pressure duty cycles.
Pressure-Balanced Wear Plate Design: It uses pressure-compensated wear plates that automatically adjust internal clearances, reducing internal bypass and friction. This improves efficiency and reduces wear, even in applications with moderate fluid contamination.
Field-Reversible Rotation: The 26001 can be easily converted between clockwise and counterclockwise rotation without changing parts, offering greater installation flexibility compared to many fixed-rotation aluminum pumps.
Continuous Pressure: Up to 3,000 PSI (210 bar).
Intermittent/Peak Pressure: Up to 3,500 PSI (240 bar).
This robust pressure rating makes the 26001 ideal for powering high-force actuators and circuits in industrial machinery and mobile equipment.
Parker/Commercial Intertech: P20, P30 Series.
Metaris: MH26, MH30 Series.
Other Vickers models: Older B1/B2 Series pumps.
To ensure a successful swap, verify the Mounting Flange (SAE A), Shaft Type (11-tooth spline), and Displacement (6.6 cm³/rev) to match your existing system.
Oil Type: Premium mineral-based hydraulic fluids with strong Anti-Wear (AW) and Anti-Foam additive packages.
Viscosity: Standard ISO VG32 to VG68. The optimal operating range is 100 to 150 SUS (20 to 30 cSt).
Filtration: Cleanliness is vital. A minimum filtration of ISO 4406 18/16/13 is recommended to prevent abrasive particles from damaging the gear faces and wear plates.
Continuous Operating Speed: Up to 3,000 RPM.
Maximum Intermittent Speed: Up to 3,600 RPM.
This flexibility allows it to be used with a variety of prime movers, from diesel engine PTOs to electric motors.
Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
26001 pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
1.What's our advantages?
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
