VG22
Green Hydraulic
VG22
Standard export carton/plywood case
Yes
ISO9001，CE
• Industrial • Energy • Government (Non Aerospace) • HVAC • Mobile • Natural Resources • Transportation (Non Aerospace)
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry

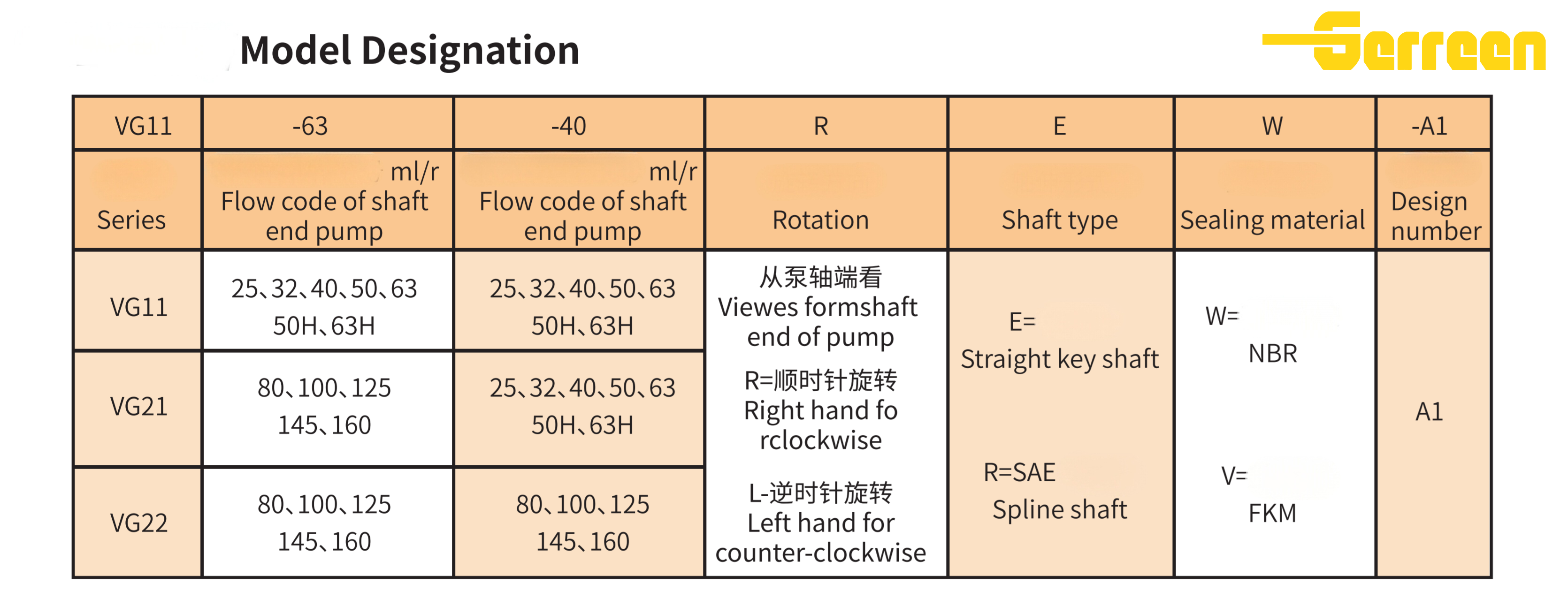

Key Shaft and Spline shaft
Product Description

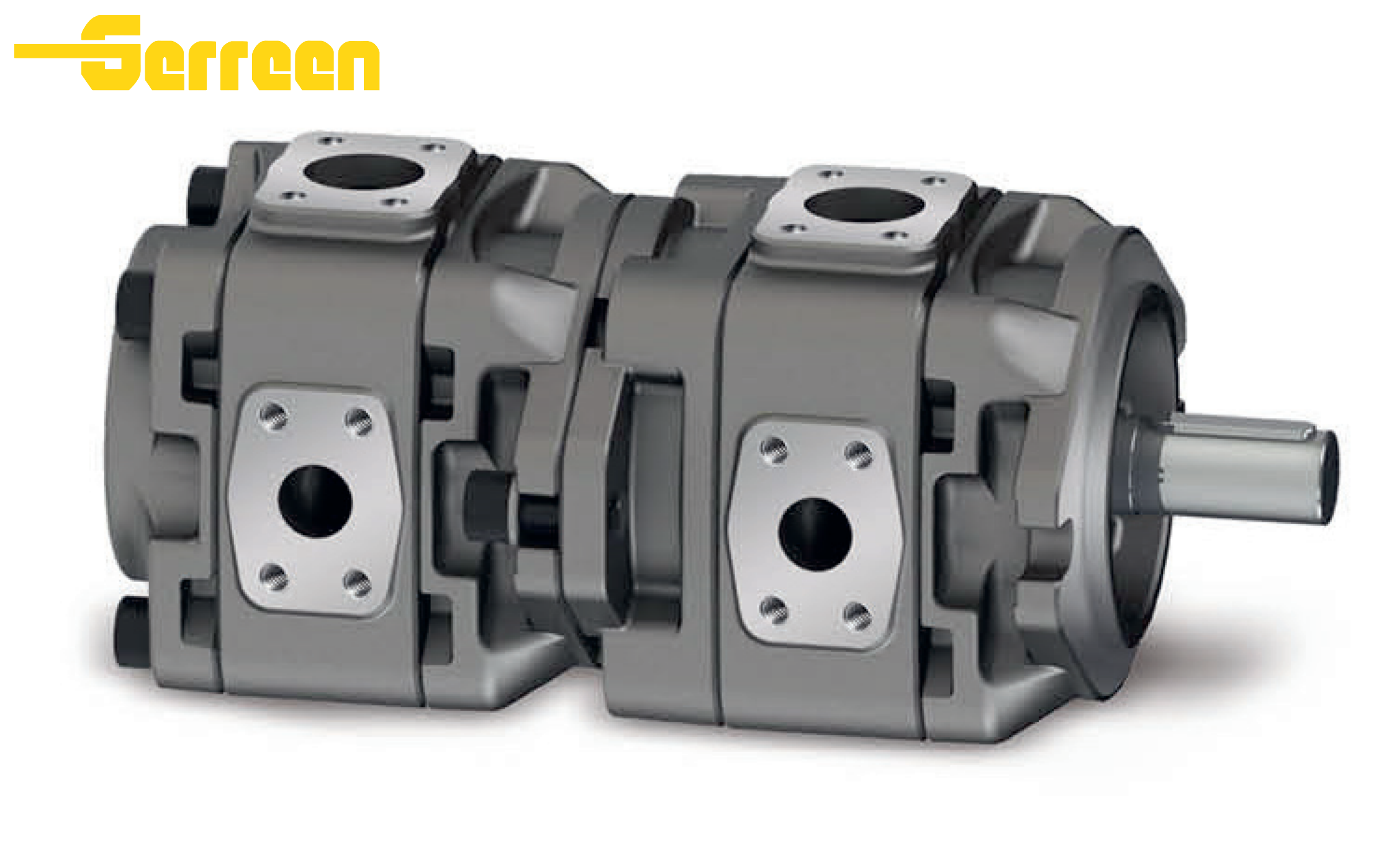

The VG22 is a robust, fixed-displacement gear pump engineered for reliable, high-efficiency performance in compact hydraulic systems. Designed for mobile and industrial applications requiring consistent flow and pressure, the VG22 features a durable cast iron construction and precision-machined components, making it ideal for direct mounting to truck Power Take-Offs (PTOs) where space is limited and dependability is critical.
Specifications
| Parameter | Specification |
| Type | Tandem/Combined Internal Gear Pump (VG2+VG2 configuration) |
| Construction | High-strength cast iron body and covers |
| Max Continuous Pressure | Up to 35 MPa (5,075 psi) |
| Rated Speed Range | 600–3,000 rpm |
| Displacement Options | Primary pump: 80–160 cc/rev; Secondary pump: 80–160 cc/rev (custom combinations available) |
| Volumetric Efficiency | ≥ 94% at rated pressure and speed |
| Pressure Compensation | Axial + radial pressure balanced wear plates |
| Fluid Compatibility | ISO VG 32–68 hydraulic oils; NBR/FKM seals optional |
| Mounting | Standard SAE “A” / “B” flange configurations |
| Port Options | Side or rear inlet/outlet ports (dual-port design) |
| Noise Level | ≤ 65 dB(A) at 1,500 rpm (low pulsation design) |
| Operating Temperature | -20°C to +80°C (-4°F to +176°F) |
| Application Range | Die-casting machines, plastic injection molding, industrial presses, mobile hydraulic systems |
Applications
Applications
Factory&FAQ
VG22 pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
Tandem Flow Versatility: It delivers two separate flow outputs from one unit, eliminating the need for multiple pumps and reducing installation space and cost.
Robust Cast Iron Body: Unlike aluminum-bodied pumps, its cast iron construction maintains tight internal clearances under high pressure, preventing deflection and extending service life.
Pressure-Balanced Design: Advanced wear plates automatically compensate for axial clearances, ensuring consistent efficiency even at varying pressures and temperatures.
The VG22 is a high-pressure workhorse. Depending on the specific displacement variant, the series typically handles:
Continuous Pressure: Up to 3,000 PSI (207 bar).
Intermittent/Peak Pressure: Up to 3,500 PSI (241 bar).
This robust rating makes it suitable for powering high-force actuators, compact presses, and heavy-duty mobile circuits.
Yes, the VG22 is a reliable, high-quality alternative to other premium tandem gear pumps. It is often used as a direct replacement or upgrade for:
Parker/Commercial Intertech equivalent tandem models.
Nachi IPH series pumps.
Rexroth GPP/GPX series pumps.
To ensure a successful swap, verify the Mounting Flange (SAE A/B), Shaft Type (spline key), and Displacement (both pump sections) to match your existing system.
To protect the precision gears and bearings, the following is recommended:
Oil Type: Premium mineral-based hydraulic fluids with Anti-Wear (AW) additives.
Viscosity: Standard ISO VG32 to VG68. The optimal operating range is 20 to 30 cSt, though it can handle cold starts down to 430 cSt.
Filtration: A minimum filtration level of ISO 4406 18/16/13 is required to prevent contamination damage to internal components.
The VG22 is engineered for a broad operating speed range:
Minimum Speed: 600 RPM (to maintain adequate internal lubrication).
Rated Speed: 1,500 to 2,500 RPM.
Maximum Speed: 3,000 RPM (intermittent, check model-specific ratings).
Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
VG22 pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
1.What's our advantages?
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
