RGP-F1
Green Hydraulic
RGP-F1
Standard export carton/plywood case
Yes
ISO9001，CE
• Industrial • Energy • Government (Non Aerospace) • HVAC • Mobile • Natural Resources • Transportation (Non Aerospace)
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
Key Shaft and Spline shaft
Product Description

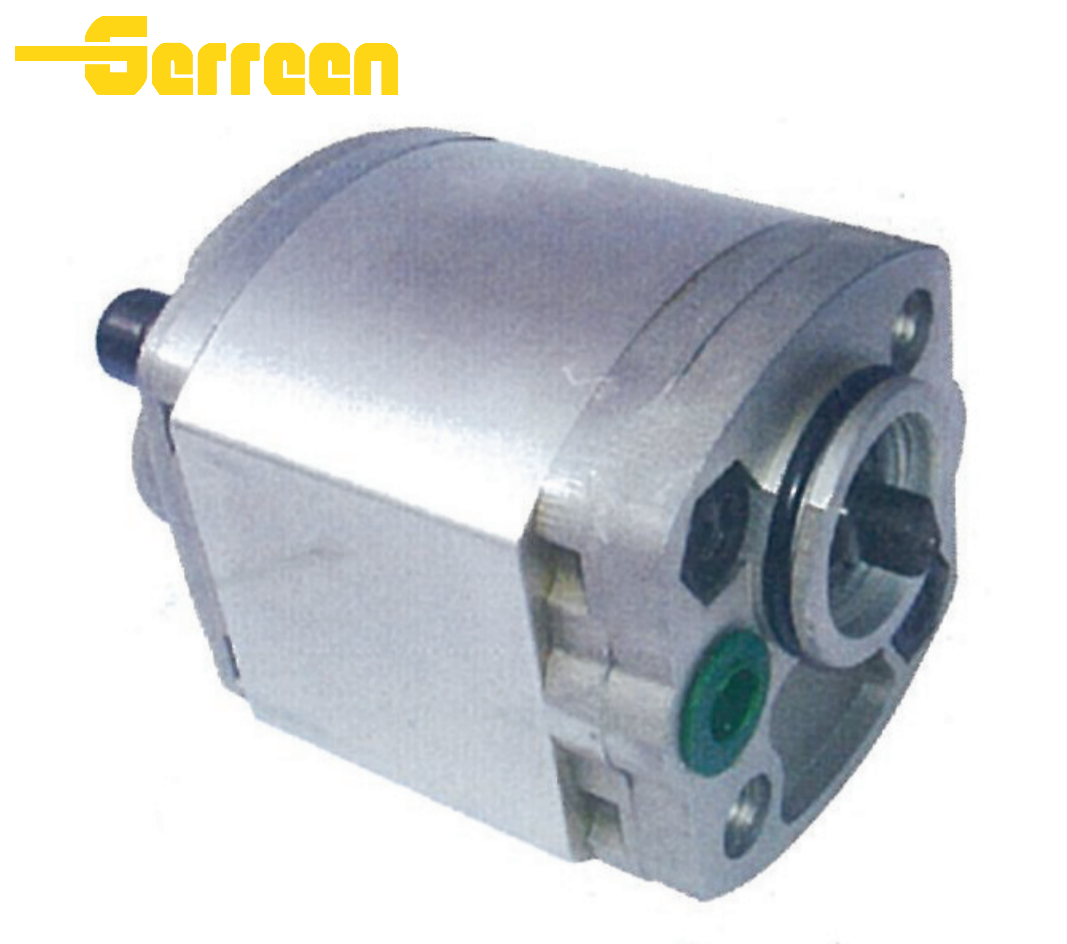

The RGP-F1 is a compact, high-performance fixed-displacement external gear pump engineered for small-to-medium hydraulic systems requiring reliable pressure output, lightweight design, and easy integration. Built with high-strength aluminum alloy housing, the RGP-F1 delivers an excellent power-to-weight ratio, making it ideal for direct mounting to power take-offs (PTOs) and compact hydraulic power units in mobile and industrial equipment where space is limited and performance is critical.
Lightweight High-Strength Aluminum Alloy Construction:
Specifications
| Parameter | Specification |
| Pump Type | Fixed displacement external gear pump |
| Construction | High-strength aluminum alloy housing, precision alloy steel gears, pressure-balanced DU bushings |
| Mounting Standard | SAE "A" / "B" flange compatible |
| Port Configuration | Dual porting options (side/rear) for flexible installation |
| Fluid Compatibility | Mineral-based hydraulic oils (ISO VG 32–68) |
| Operating Temperature Range | -20°C to +80°C (-4°F to +176°F) |
| Filtration Requirement | ≤ 25 μm |
Applications
Applications
Utility & Service Vehicles: An ideal choice for truck-mounted cranes, bucket trucks, and aerial work platforms, where the compact RGP-F1 frame integrates seamlessly with Power Take-Off (PTO) units to deliver dependable lifting and positioning power with minimal added weight.
Agricultural Machinery: Widely used in seeders, fertilizer spreaders, sprayer booms, and implement steering systems, where the pump’s contamination-resistant bushing design handles variable load shocks and common fluid impurities in outdoor field environments.
Small Material Handling: Perfect for truck tail-lifts, hydraulic ramp systems, electric pallet jacks, and scissor lifts, offering a space-efficient power source that maintains high efficiency under heavy, frequent-load conditions.
Light Construction Equipment: Suited for small excavators, mini loaders, concrete mixers, and road maintenance tools, providing consistent pressure for actuators and control circuits while fitting into cramped chassis layouts.
Mobile & Compact Hydraulic Power Units: Commonly integrated into portable power packs, workbench presses, and small industrial hydraulic systems, where its aluminum housing and versatile mounting options enable flexible installation in limited-space environments.
Factory&FAQ
RGP-F1 pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
Lightweight Aluminum Construction: Compared to cast iron pumps, the RGP-F1 reduces overall system weight without sacrificing structural rigidity, making it ideal for mobile equipment where weight savings are critical.
Pressure-Balanced Bushing Design: Equipped with advanced DU bushings instead of simple bearings, it offers superior resistance to fluid contamination and thermal shock, maintaining high volumetric efficiency over long service life.
Compact Modular Design: Its small footprint and multiple mounting/port configurations (side/rear) provide greater installation flexibility in cramped chassis environments than many standard gear pump designs.
The RGP-F1 is optimized for reliable mid-to-high pressure performance. Depending on displacement, the series typically handles:
Continuous Pressure: Up to 20 MPa (2,900 PSI).
Intermittent/Peak Pressure: Up to 25 MPa (3,600 PSI).
This pressure rating makes the RGP-F1 ideal for powering lifting, steering, and material handling systems on light-to-medium duty mobile and industrial equipment.
Yes, the RGP-F1 is a high-quality, cost-effective alternative to many compact aluminum gear pumps. It is often used as a replacement or upgrade for:
Parker PGP/PGM series pumps.
Nachi IPH/IP pumps.
Vickers V10/V20 and G2/G5 series pumps.
To ensure a successful swap, verify the Mounting Flange (SAE A/B), Shaft Type (straight key or splined), and Displacement (cc/rev) to match your existing system.
To protect the precision gears and bushings, the following is recommended:
Oil Type: Premium mineral-based hydraulic fluids with strong Anti-Wear (AW) additive packages.
Viscosity: Standard ISO VG32 to VG68. The optimal operating range is 15–100 cSt, though it can handle cold starts up to 430 cSt.
Filtration: Cleanliness is vital for long life. A minimum filtration of ISO 4406 18/16/13 is recommended to prevent abrasive particles from damaging gear faces and bushings.
The RGP-F1 series supports a wide operating speed range:
Rated Continuous Speed: 600–4,000 RPM.
Maximum Intermittent Speed: Up to 6,000 RPM (for short durations).
Always refer to the specific model’s datasheet, as maximum speed may vary slightly by displacement.
Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
RGP-F1 series pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
