RGP-F300 Series Gear Pump
Green Hydraulic
RGP-F300 Series Gear Pump
Yes
ISO9001, CE
• Industrial • Energy • Government (Non Aerospace) • HVAC • Mobile • Natural Resources • Transportation (Non Aerospace)
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
Key Shaft and Spline shaft
1 set
Product Description

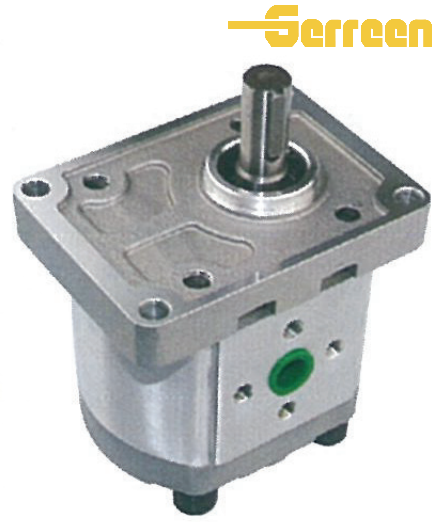

RGP-F300 Series Gear Pumps are engineered for high-pressure performance, exceptional reliability, and long service life. Designed with a high-strength aluminum alloy body and precision-engineered gears, thesepumps provide consistent hydraulic power for material handling, construction, and agricultural machinery, making them the preferred choice for OEM replacements in brands like Toyota, Komatsu, and Mitsubishi.
Specifications
| Models | Nominal displacement (mL/r) | Pressure Rated (MPa) | Pressure Max (MPa) | Rotation speed Max (r/min) | Rotation speed Min (r/min) | Input Power (kw) | 进油口 Inlet | 出油口 Outlet |
| RGP-F304 | 4 | 20(2800 psi) | 25(3500 psi) | 3500 | 600 | 3.2 | PT1/2 | PT1/2 |
| RGP-F306 | 6 | 20(2800 psi) | 25(3500 psi) | 3500 | 600 | 4.7 | PT1/2 | PT1/2 |
| RGP-F308 | 8 | 20(2800 psi) | 25(3500 psi) | 3500 | 600 | 6.3 | PT1/2 | PT1/2 |
| RGP-F310 | 10 | 20(2800 psi) | 25(3500 psi) | 3500 | 600 | 7.8 | PT1/2 | PT1/2 |
| RGP-F312 | 12 | 20(2800 psi) | 25(3500 psi) | 3500 | 600 | 9.4 | PT1/2 | PT1/2 |
| RGP-F314 | 14 | 20(2800 psi) | 25(3500 psi) | 3500 | 600 | 11 | PT1/2 | PT1/2 |
| RGP-F316 | 16 | 20(2800 psi) | 25(3500 psi) | 3500 | 600 | 12.5 | PT1/2 | PT1/2 |
| RGP-F318 | 18 | 20(2800 psi) | 25(3500 psi) | 3500 | 600 | 14.1 | PT1/2 | PT1/2 |
| RGP-F320 | 20 | 20(2800 psi) | 25(3500 psi) | 3500 | 600 | 15.7 | PT3/4 | PT1/2 |
| RGP-F323 | 23 | 20(2800 psi) | 25(3500 psi) | 3500 | 600 | 18 | PT3/4 | PT1/2 |
| RGP-F325 | 25 | 16(2200 psi) | 20(2800 psi) | 3500 | 600 | 19.6 | PT3/4 | PT1/2 |
| RGP-F328 | 28 | 16(2200 psi) | 20(2800 psi) | 3500 | 600 | 22 | PT3/4 | PT1/2 |
| RGP-F330 | 30 | 16(2200 psi) | 20(2800 psi) | 3500 | 600 | 23.5 | PT3/4 | PT1/2 |
Applications
Applications
Winches, oil field and drilling
equipment, earthmoving and
construction equipment, die
casting, molding machines, press
machines, trash compactors, balers
and primary metals
Factory&FAQ
RGP-F300 Series gear pumps are designed for heavy-duty hydraulic systems, widely used in construction machinery, agricultural equipment, industrial systems, and mobile hydraulics.
It features high-pressure capability, stable flow output, compact structure, high efficiency, low noise, and long service life.
The RGP-F300 Series is available in multiple displacement ranges to meet different flow and system requirements.
Yes, it is designed for continuous high-pressure operation with allowable peak pressure depending on specific model configurations.
Anti-wear hydraulic oil or mineral-based hydraulic fluids with appropriate viscosity are recommended to ensure optimal performance and durability.
Typical issues include noise, low pressure, flow fluctuation, overheating, and internal leakage, often caused by air ingress, contamination, or component wear .
Regular inspection, proper lubrication, maintaining oil cleanliness, and timely replacement of seals and worn parts are essential for long service life .
Yes, many models support customization in shaft type, mounting flange, port configuration, and rotation direction, and can be used as OEM replacements in many applications.
Charge pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
