CBF-E Series Gear Pumps

Product Description

CBF-E Series Hydraulic Gear Pump Overview

CBF-E Series Hydraulic Gear Pump is designed for stable hydraulic performance and efficient oil transmission. It features compact structure, low noise, reliable operation, and long service life, widely used in industrial machinery and hydraulic systems.

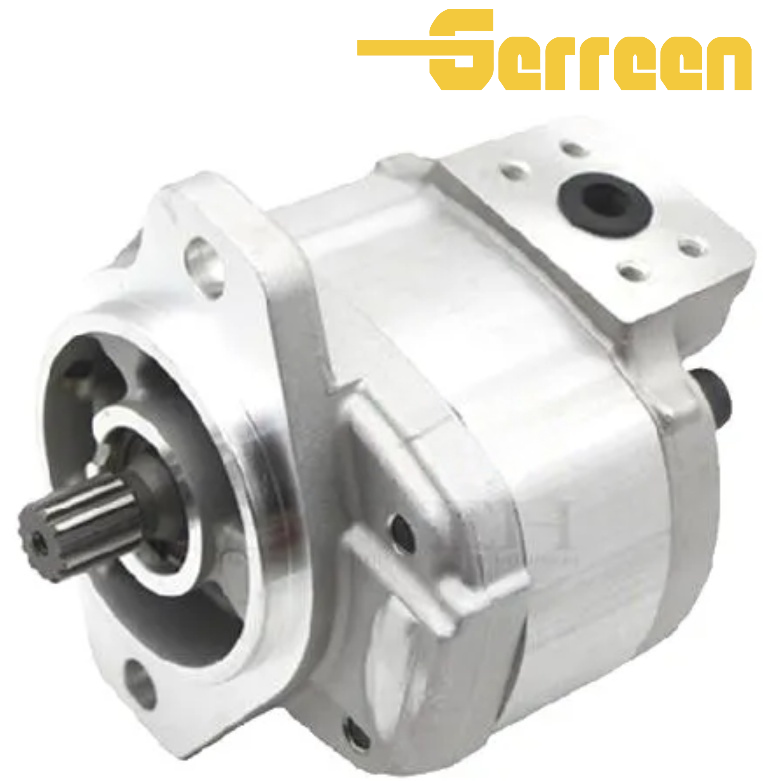

CBF-E Series Hydraulic Gear Pump pic

Features and Benefits

High-Performance Hydraulic Gear Pump Structure
Designed with precision gear transmission technology to provide stable flow output, high volumetric efficiency, and reliable hydraulic performance.
Low Noise & Smooth Operation
Optimized gear engagement effectively reduces operating noise and pressure pulsation, ensuring quiet and stable hydraulic system operation.
Compact Design & Flexible Installation
Compact and lightweight construction allows convenient installation, easy maintenance, and flexible integration into various hydraulic systems.
Wide Hydraulic Application Range
Suitable for construction machinery, agricultural equipment, hydraulic power units, industrial machinery, and mobile hydraulic applications.
Durable Construction & Long Service Life
Precision manufacturing and high-strength materials ensure excellent wear resistance, stable performance, and reliable long-term operation.

Specifications

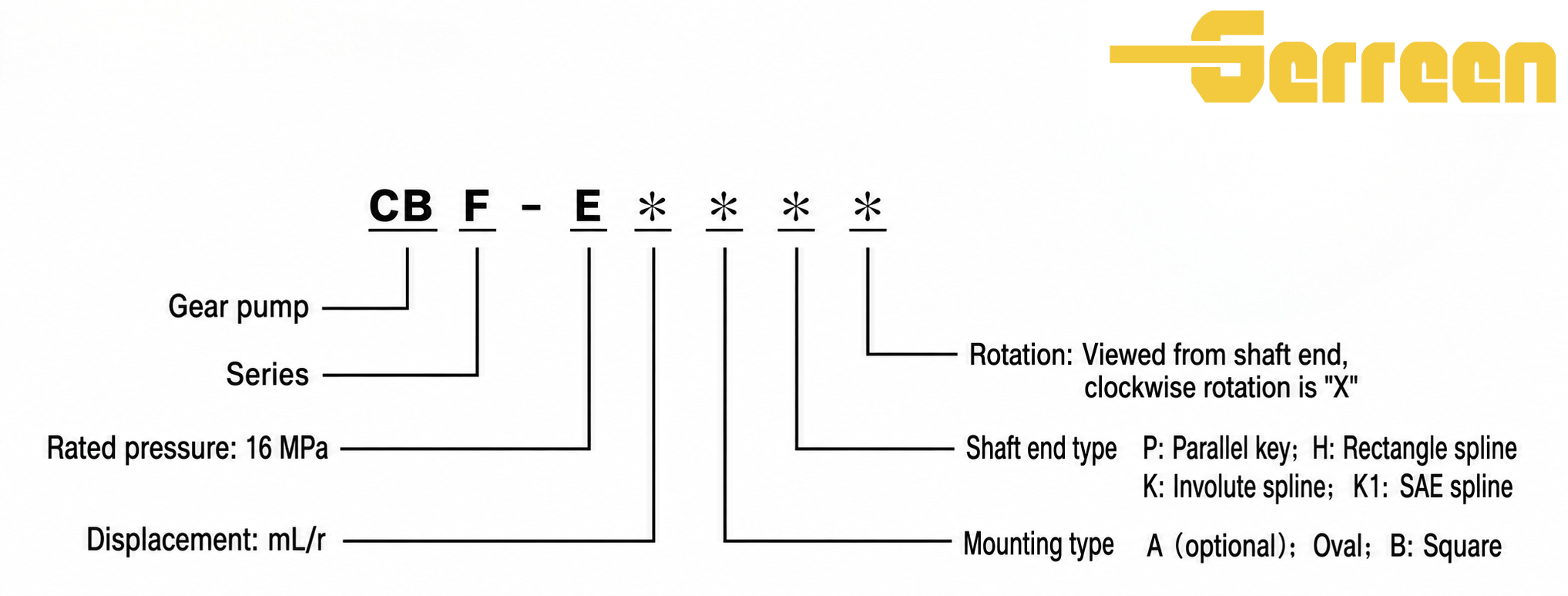

Model Codes

CBF-E Series Hydraulic Gear Pump models

Technical Data

Models	Nominal Displacement (mL/r)	Rated Pressure (MPa)	Max Pressure (MPa)	Rated Speed (r/min)	Max Speed (r/min)	Volumetric Efficiency (%)	Total Efficiency (%)	Rated Drive Power (kW)	Weight (kg)
CBF-E10	10	16	20	2500	3000	≥91	≥82	8.5	3.6
CBF-E16	16	16	20	2500	3000	≥91	≥82	13.0	3.8
CBF-E18	18	16	20	2500	3000	≥91	≥82	14.5	3.8
CBF-E25	25	16	20	2500	3000	≥92	≥84	19.5	4.0
CBF-E31.5	31.5	16	20	2500	3000	≥93	≥85	25.0	4.3
CBF-E40	40	16	20	2000	2500	≥93	≥85	25.0	4.7
CBF-E50	50	16	20	2000	2500	≥91	≥82	32.0	8.5
CBF-E63	63	16	20	2000	2500	≥91	≥82	40.0	8.8
CBF-E71	71	16	20	2000	2500	≥91	≥82	44.5	9.0
CBF-E80	80	16	20	2000	2500	≥92	≥84	50.0	9.3
CBF-E90	90	16	20	2000	2500	≥92	≥84	56.0	9.6
CBF-E100	100	16	20	2000	2500	≥92	≥84	61.0	9.8
CBF-E112	112	16	20	2000	2500	≥93	≥85	68.0	10.1
CBF-E125	125	16	20	2000	2500	≥93	≥85	76.0	10.5
CBF-E140	140	16	20	2000	2500	≥93	≥85	85.5	11.0

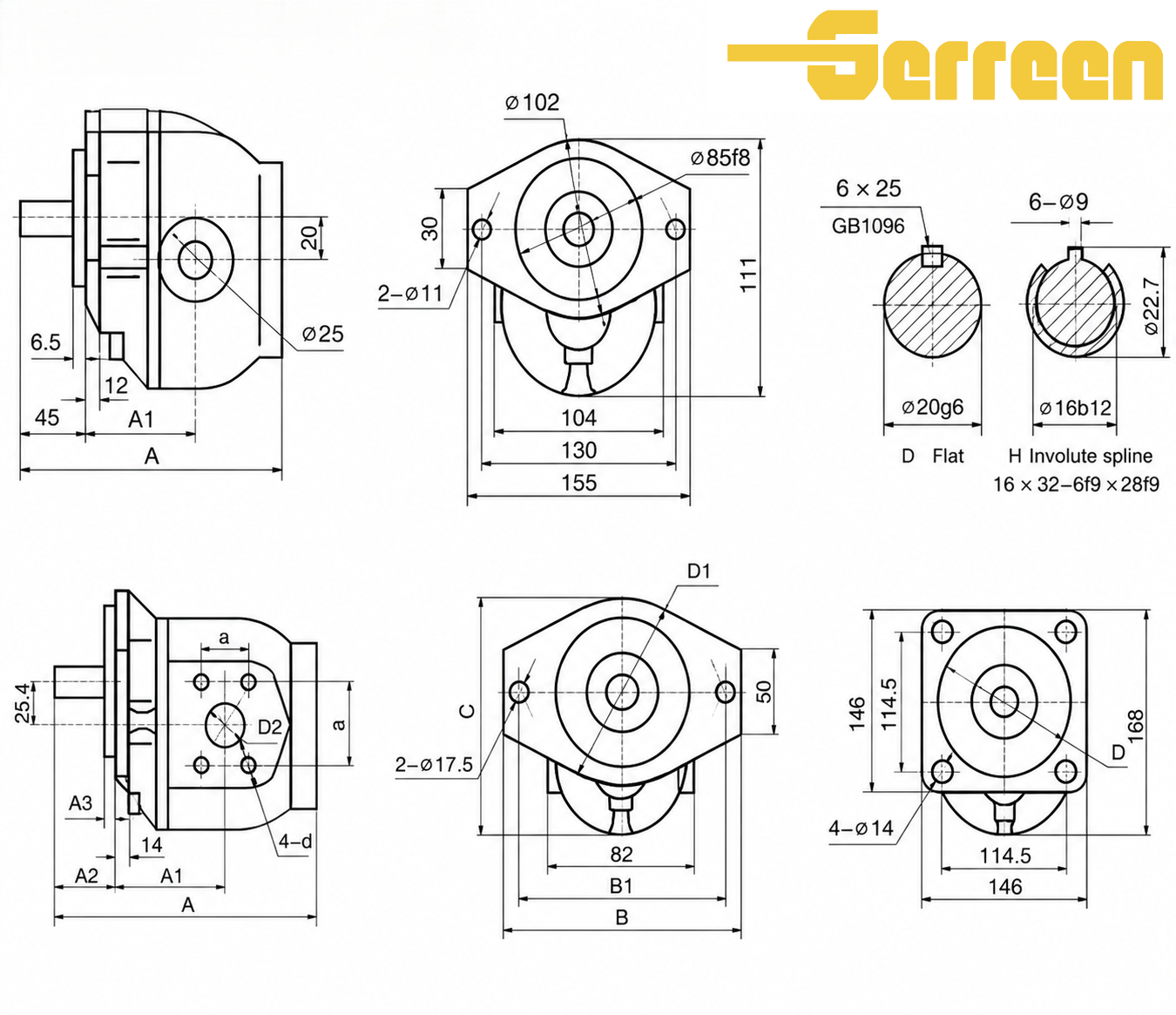

CBF-E Series Hydraulic Gear Pump Installation Dimensions

PDF

gear pump.pdf

Applications

Applications

The CBF-E Series Hydraulic Gear Pump delivers efficient and reliable hydraulic performance for industrial and mobile hydraulic systems requiring stable oil flow, durable construction, and compact installation:

Construction Machinery: Suitable for loaders, excavators, cranes, and road construction equipment, supplying dependable hydraulic power for working systems and steering control.
Agricultural Equipment: Widely used in tractors, harvesters, and farming machinery for lifting, steering, and auxiliary hydraulic functions.
Industrial Hydraulic Systems: Applied in hydraulic presses, machine tools, and automated production equipment requiring continuous and smooth hydraulic flow.
Material Handling Equipment: Ideal for forklifts, stackers, and lifting platforms operating under varying load conditions.
Mobile Hydraulic Vehicles: Installed in dump trucks, sanitation vehicles, and utility service trucks to support tipping and auxiliary hydraulic systems.
Hydraulic Power Units: Suitable for compact hydraulic stations and hydraulic power packs where low noise, reliability, and long-lasting hydraulic performance are important.

Factory&FAQ

Packaging & Delivery

CBF-E Series Hydraulic Gear Pump-transportation

CBF-E Series Hydraulic Gear Pumps are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

CBF-E Series Hydraulic Gear Pump FAQ:

1. What is the CBF-E Series Hydraulic Gear Pump?

The CBF-E Series is a compact and efficient hydraulic gear pump designed for stable oil flow and reliable performance in industrial and mobile hydraulic systems.

2. What makes the CBF-E Series different from standard gear pumps?

Efficient Hydraulic Output: Precision gear structure ensures smooth and stable oil delivery.
Compact & Durable Design: High-strength housing provides reliable long-term operation.
Low Noise Performance: Optimized internal components help reduce vibration and operating noise.

3. What is the working pressure range of CBF-E Series pumps?

The CBF-E Series is suitable for medium and high-pressure hydraulic systems:

Continuous Pressure: Up to 20 MPa (≈ 2900 PSI).
Maximum Pressure: Up to 25 MPa (≈ 3600 PSI).
It is widely used in construction machinery, agricultural equipment, and industrial hydraulic systems.

4. Can CBF-E Series pumps replace other brands?

Yes, the CBF-E Series can replace many standard hydraulic gear pumps, including:

Parker Gear Pumps
Rexroth Gear Pumps
Commercial Hydraulic Gear Pumps
Please verify mounting dimensions, shaft type, and displacement before replacement.

5. What hydraulic oil is recommended for CBF-E Series pumps?

For stable performance and long service life:

Oil Type: Anti-wear hydraulic oil (AW type).
Viscosity: ISO VG32–VG68 recommended.
Filtration: Clean hydraulic oil helps reduce wear and improve pump durability.

6. What is the typical speed range of CBF-E Series pumps?

The CBF-E Series supports flexible operating conditions:

Minimum Speed: 600 RPM
Recommended Speed: 800–2500 RPM
Maximum Speed: Up to 3000 RPM depending on operating conditions and displacement.

7. Do you provide OEM or customized services?

Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.

8. How can I get a quotation quickly

Please provide the following details:

Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.

Certifications & Quality Assurance

CBF-E Series Hydraulic Gear Pumps are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
