CB2A-F23
Green Hydraulic
CB2A-F23
Standard export carton/plywood case
Yes
ISO9001，CE
• Industrial • Energy • Government (Non Aerospace) • HVAC • Mobile • Natural Resources • Transportation (Non Aerospace)
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
Key Shaft and Spline shaft
1 set
Product Description

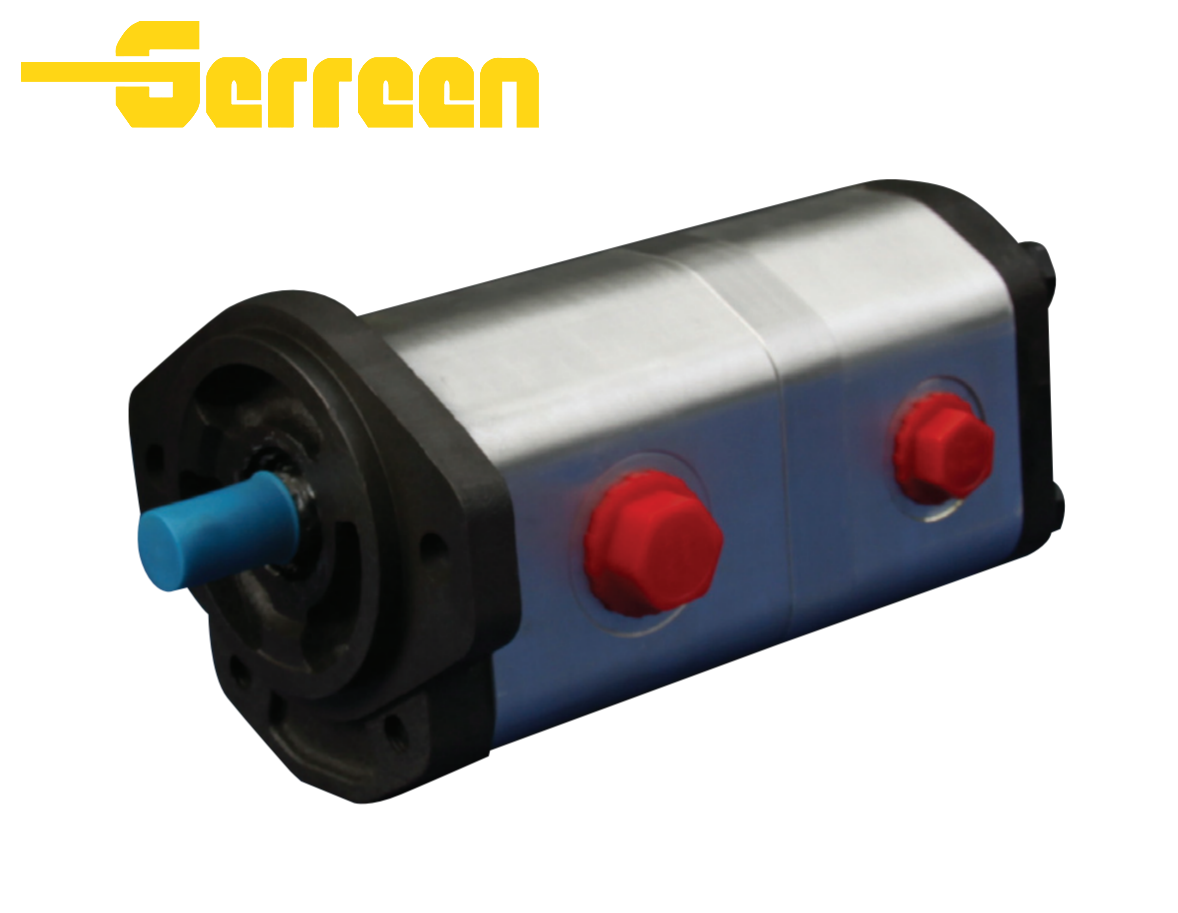

The CB2A‑F23 is a high‑efficiency, fixed‑displacement bi‑directional gear pump engineered for compact closed‑loop hydraulic systems requiring reliable forward and reverse operation. Featuring a robust aluminum alloy construction, the CB2A‑F23 is specifically designed to provide stable flow and consistent pressure in both rotation directions, making it an ideal choice for mobile machinery, hydraulic actuators and small power units where bi‑directional performance and compact size are critical.
Specifications
| Parameter | Specification |
| Model | CB2A‑F23 |
| Displacement | 23.61 cm³/rev (1.44 in⊃3;/rev) |
| Rated Continuous Pressure | 180 bar (2610 psi) |
| Max Intermittent Pressure | 200 bar (2900 psi) |
| Max Speed | 2000 rpm (standard) / 2200 rpm (optional) |
| Direction of Rotation | Bi‑directional (reversible, no directional valve required) |
| Mounting Flange | SAE “A” 2‑bolt (ISO 3019/1) |
| Shaft Type | 20 mm keyed shaft (standard) |
| Port Connections | Side / rear ports (G3/4" BSPP) |
| Body Material | High‑strength aluminum alloy |
| Seal Material | HNBR (standard) / FKM (optional) |
| Fluid Compatibility | Mineral‑based hydraulic oils (ISO VG 32–68) |
| Fluid Temperature Range | -20 °C to +90 °C |
| Volumetric Efficiency | ≥ 90% (at rated conditions) |
| Mechanical Efficiency | ≥ 92% (at rated conditions) |
| Weight | ≈ 5 kg (single pump) |
| Typical Flow at 1500 rpm | 35.4 L/min (9.35 GPM) |
Applications
Applications
Mobile Material Handling: A primary choice for forklift attachments, pallet trucks, and scissor lifts, where the bi‑directional pump eliminates complex valve circuits and delivers precise lifting/lowering control.
Agricultural Equipment: Optimized for hydraulic steering systems, reversible seeders, and fertilizer spreaders, handling frequent forward/reverse cycles and variable loads in outdoor field environments.
Construction Machinery: Ideal for small excavator attachments, mini‑loader auxiliary circuits, and concrete mixer drives, providing smooth bi‑directional flow for rotating and lifting functions.
Marine & Deck Equipment: Widely used for winches, crane boom controls, and hatch cover systems, where the pump’s corrosion‑resistant aluminum housing and reversible operation suit marine hydraulic applications.
Industrial Power Units: Perfect for compact hydraulic power packs, small press circuits, and test benches, offering efficient, low‑noise bi‑directional flow for lab and light industrial automation.
Specialized Vehicles: Frequently employed in aerial work platforms, tow truck winch systems, and utility vehicle actuators, providing reliable power for reversible linear and rotary motion.
Factory&FAQ
CB2A-F23 pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
The CB2A‑F23 is a high‑efficiency, fixed‑displacement bi‑directional gear pump, part of Bucher’s CB2A Series. Featuring a lightweight aluminum alloy construction, it is specifically engineered for closed‑loop hydraulic systems requiring reversible operation and compact installation.
Reversible Operation: Its internal porting and pressure compensation design allow seamless forward and reverse rotation without additional directional valves.
Compact Closed‑Loop Design: Optimized for use in closed hydraulic circuits, it eliminates the need for complex valve banks, reducing system complexity and response time.
Lightweight Yet Durable Housing: The high‑strength aluminum alloy body provides a superior power‑to‑weight ratio, making it ideal for mobile applications where weight is a critical factor.
The CB2A‑F23 is a reliable medium‑pressure bi‑directional pump. Its typical pressure ratings are:
Continuous Pressure: Up to 180 bar (2,610 psi).
Intermittent/Peak Pressure: Up to 200 bar (2,900 psi).
This robust rating makes it ideal for light‑to‑medium duty mobile and industrial hydraulic circuits.
Yes, the CB2A‑F23 is a high‑quality alternative to other premium bi‑directional gear pumps. It is often used as a replacement or upgrade for:
Bucher CB‑E series pumps
To ensure a successful swap, verify the Mounting Flange (SAE “A”), Shaft Type (20 mm keyed), Port Size (G3/4" BSPP), and Displacement (23.61 cm³/rev) to match your existing system.
To protect the precision gears and seals, the following is recommended:
Oil Type: Premium mineral‑based hydraulic fluids with strong Anti‑Wear (AW) additive packages.
Viscosity: Standard ISO VG32 to VG68. The optimal operating range is 100 to 150 SUS (20 to 30 cSt).
Filtration: A minimum filtration of ISO 4406 18/16/13 is recommended to prevent abrasive particles from damaging the gear faces and seals.
The CB2A‑F23 operates within a standard speed range suitable for most mobile applications:
Continuous Speed: 600–2000 rpm.
Maximum Intermittent Speed: 2200 rpm.
Operating within these ranges ensures optimal efficiency and extends the service life of the pump.
Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
CB2A-F23 pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
