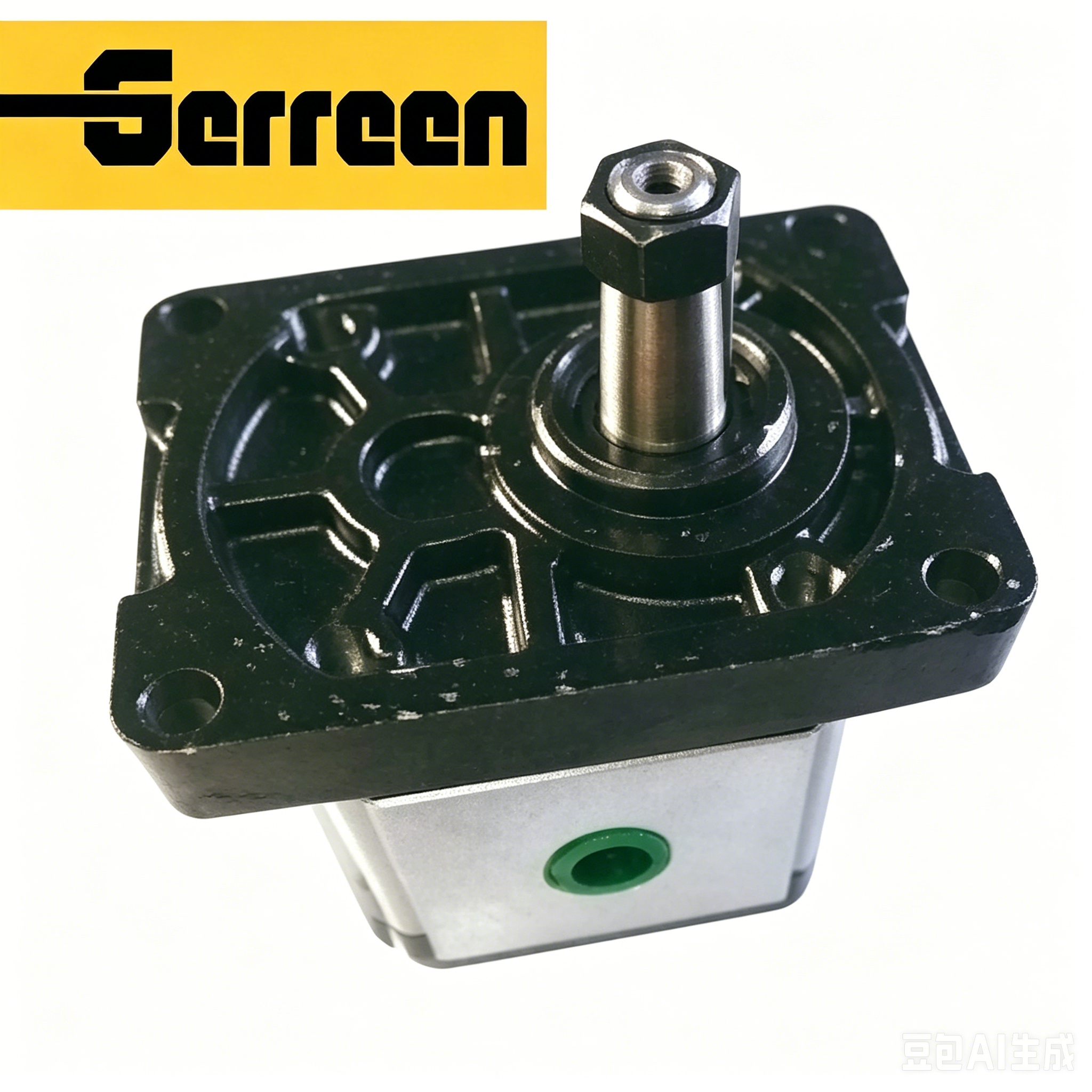

CBTs-F300 Series Gear Pump Gear Type Hydraulic Pump

CBTs-F300 Series Gear Pump

Features and Benefits

• High Volumetric Efficiency
  Precision-machined gear teeth and optimized housing clearances minimize internal leakage, ensuring up to 95% volumetric efficiency even at peak operating pressures. This translates to reduced energy waste and lower operational costs over the pump's lifespan.

• Compact and Lightweight Design
  The series features a space-saving modular structure that integrates seamlessly into tight hydraulic systems. Its lightweight aluminum alloy housing reduces overall equipment weight without compromising durability, ideal for mobile machinery and compact industrial setups.

• Low Noise and Vibration
  Advanced gear tooth profile design (helical gear option available) and precision balancing ensure smooth meshing, operating at noise levels as low as 65 dB(A). This makes the pump suitable for noise-sensitive environments such as indoor manufacturing facilities and medical equipment.

• Wide Operating Range
  Capable of handling pressures up to 25 MPa (3625 PSI) and speeds ranging from 500 to 3000 RPM, the CBTs-F300 Series adapts to diverse hydraulic system requirements. It maintains stable performance across temperature variations from -20°C to 80°C.

• Easy Maintenance and Serviceability
  The pump's split-body design allows quick access to internal components without removing the entire unit from the system. Replaceable wear plates and seal kits simplify routine maintenance, reducing downtime and service costs.

• Versatile Mounting Options
  Available with flange, foot, and bracket mounting configurations, the series accommodates various installation orientations. It also supports multiple shaft extension types, enabling seamless integration with different drive systems.

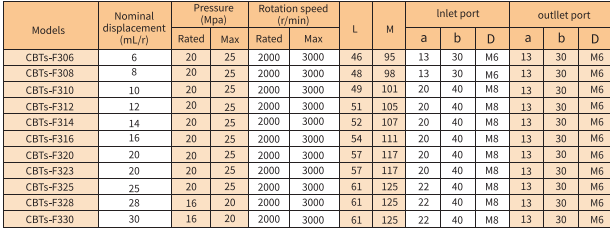

Model Codes

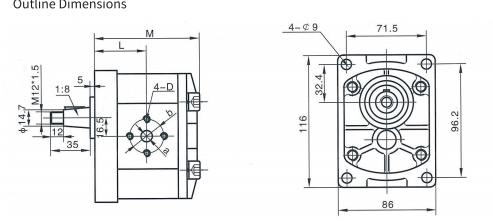

CBTs-F300 Series Gear Pump Installation Dimensions

gear pump.pdf

Applications

• Construction Machinery: Used in excavators, loaders, and forklifts for hydraulic lifting, steering, and attachment control systems.

• Agricultural Equipment: Powers hydraulic systems in tractors, harvesters, and irrigation machinery for implement operation and soil management.

• Industrial Machinery: Integrates into injection molding machines, metalworking presses, and material handling systems for precise force control.

• Automotive Industry: Supports hydraulic power steering systems and transmission control in commercial vehicles and heavy-duty trucks.

• Marine and Offshore: Provides hydraulic power for ship deck machinery, steering systems, and offshore drilling equipment.

• Renewable Energy: Used in wind turbine pitch control systems and solar panel tracking mechanisms for reliable positioning.

Packaging & Delivery

CBTs-F300 Series Gear Pump are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

CBTs-F300 Series Gear Pump FAQ

1. What is the pressure range of CBTs‑F300 gear pump?

Rated pressure is 20MPa, and the maximum working pressure can reach 25MPa, suitable for medium‑heavy‑load hydraulic systems.

2.What is the maximum rotating speed?

It ranges from 1800 to 3000 r/min, varying according to different displacement specifications.

7. What are the installation requirements for VVS pumps

Standard mounting: ISO 3019/2 or SAE flange

Rotation direction: right-hand (clockwise)

No radial or axial load should be applied to the shaft

Proper installation is critical for performance and durability.

8. What applications are VVS variable vane pumps commonly used in

They are widely used in:

CNC machine tools

Injection molding machines

Hydraulic power units

Industrial automation systems

Press machinery

Certifications & Quality Assurance

CBTs-F300 Series Gear Pump are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.

FAQ

1.How does the variable displacement work?

The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.

2.What's our advantages?

Factory established in 2005;

With a great deal of production experience;

80+ employees become the professional team;

Constant updated ERP system ensure efficiency of work;

Sophisticated equipment ehanced the accuracy of products;

Professional salesmen provide the greast service;

With a large number of famous customers all over the world;

Great after-sales service;

With the long term cooperation with famous logistics and express company in China,provide the better goods service.

3.What is your payment terms?

Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.

4.Can you make my own brand on the products?

Of course we can. Just send me your logo  we can make it for you.

5.What is our main export market?

America(40.5%):USA, Canada, Argentina, Brazil

Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.

Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.

Others(5.8%).

The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.

The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.

Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.

All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.

To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.

Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
