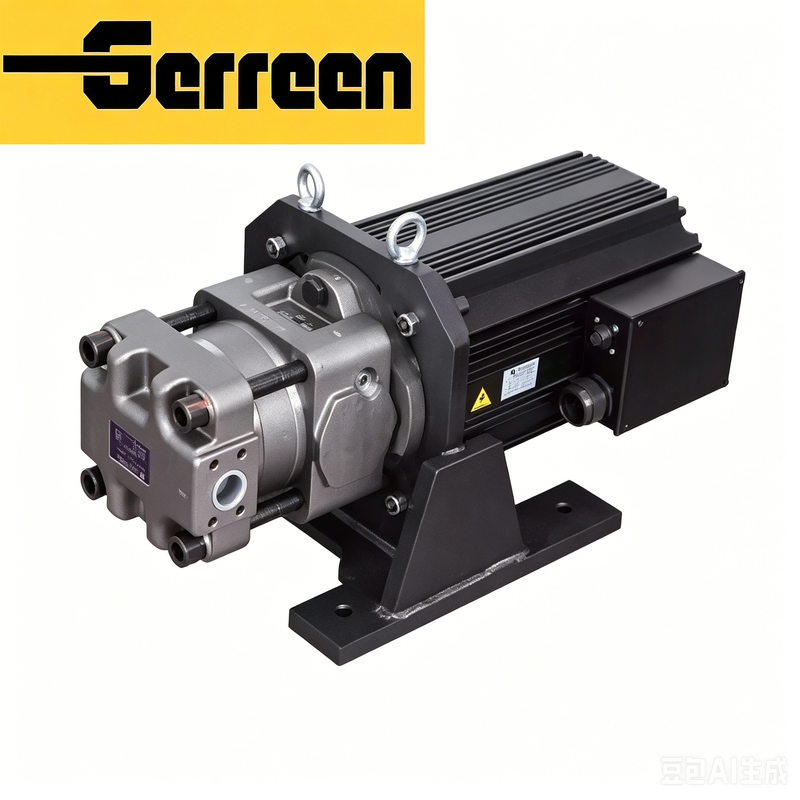

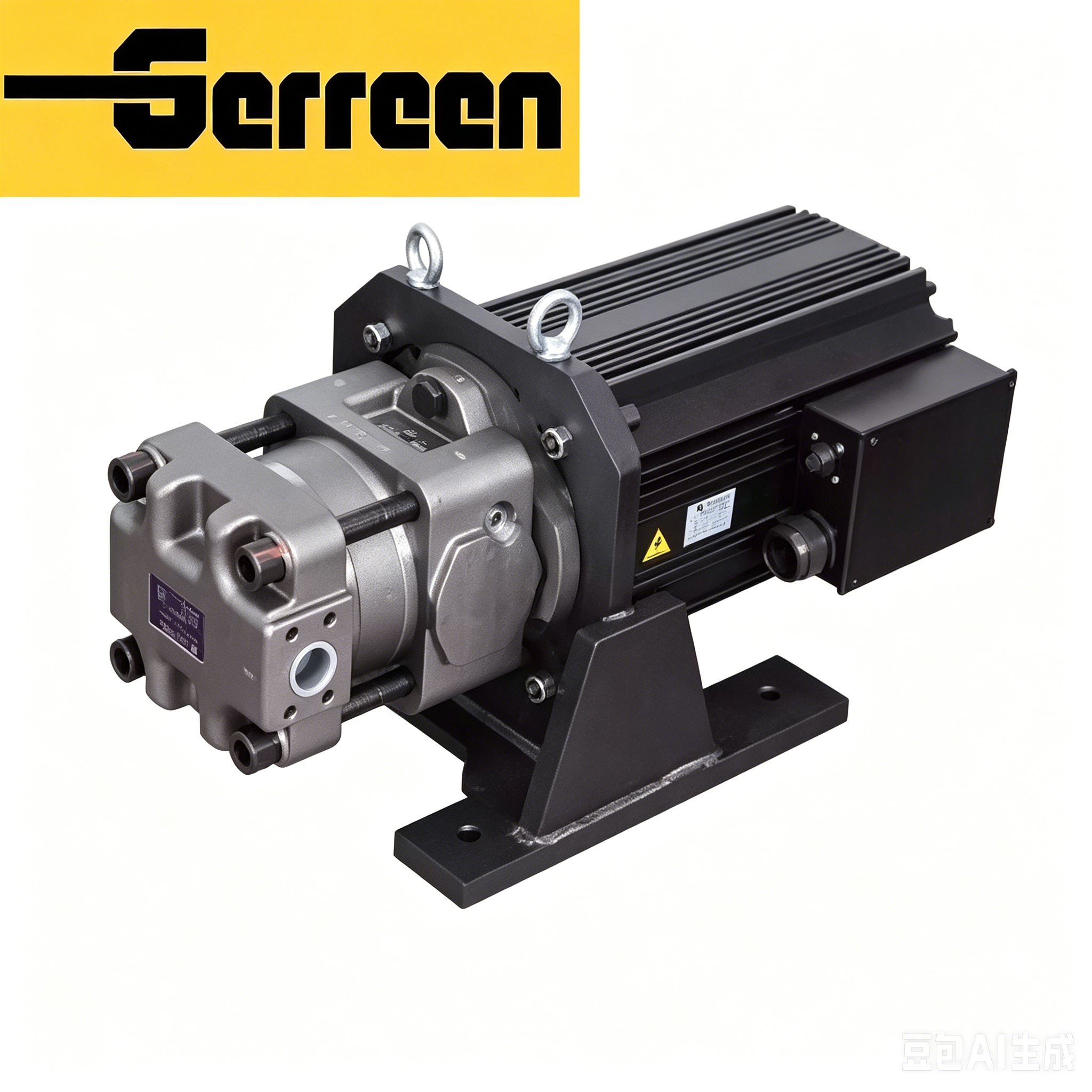

QT SERIES SERVO Gear Pump with Electric Motor

GBHZ-F Series Gear Pump

Features and Benefits

• Ultra-low noise operation with specially designed internal gears

• Very low pressure pulsation for precise hydraulic control

• High volumetric efficiency and energy-saving performance

• Suitable for servo motor drive systems

• High wear resistance and long service life

• Stable operation under high pressure and high speed

• Compact structure with easy installation

• Excellent anti-contamination capability

• Smooth oil delivery and reduced vibration

• Available in single and double pump configurations

• Wide displacement and pressure range for different applications

Model Codes

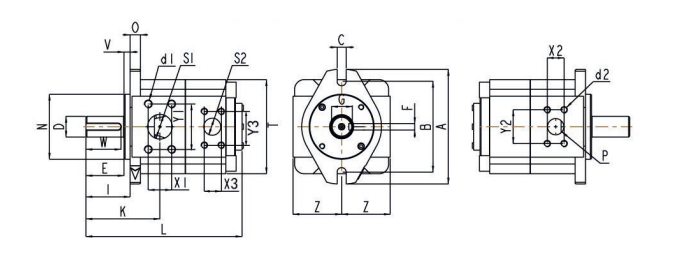

QT Series Servo Installation Dimensions

gear pump.pdf

Applications

• Injection molding machines

• Servo hydraulic systems

• Precision hydraulic presses

• Forging machinery

• CNC machine tools

• Elevator hydraulic systems

• Die-casting machinery

• Industrial automation equipment

• Hydraulic power units

• Energy-saving hydraulic stations

• Packaging machinery

• Rubber machinery

• Metal forming equipment

• Material handling machinery

Packaging & Delivery

QT Series Servo are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

QT Series Servo FAQ

1. What is the main feature of the QT Series Servo Pump?

The main features are ultra-low noise, low pressure pulsation, high efficiency, and stable performance in servo hydraulic systems.

2. Why is the QT Series suitable for servo systems?

The pump provides precise flow and pressure control with excellent energy-saving performance, making it ideal for servo motor-driven hydraulic systems.

3. What is the maximum working pressure of the QT Series?

Most QT Series high-pressure models can operate at pressures up to 32 MPa (320 bar).

4. Does the QT Series have low noise performance?

Yes. The specially designed internal gear geometry significantly reduces operating noise, even at high rotational speeds.

5. What industries commonly use QT servo pumps?

They are commonly used in plastics machinery, industrial automation, machine tools, elevators, forging equipment, and precision hydraulic systems.

6. Can the QT Series operate continuously under high pressure?

Yes. The pump is designed with high-strength materials and optimized lubrication structures for reliable continuous operation under high pressure conditions.

7. What are the installation requirements for VVS pumps

Standard mounting: ISO 3019/2 or SAE flange

Rotation direction: right-hand (clockwise)

No radial or axial load should be applied to the shaft

Proper installation is critical for performance and durability.

8. What applications are VVS variable vane pumps commonly used in

They are widely used in:

CNC machine tools

Injection molding machines

Hydraulic power units

Industrial automation systems

Press machinery

Certifications & Quality Assurance

QT Series Servo are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.

FAQ

1.How does the variable displacement work?

The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.

2.What's our advantages?

Factory established in 2005;

With a great deal of production experience;

80+ employees become the professional team;

Constant updated ERP system ensure efficiency of work;

Sophisticated equipment ehanced the accuracy of products;

Professional salesmen provide the greast service;

With a large number of famous customers all over the world;

Great after-sales service;

With the long term cooperation with famous logistics and express company in China,provide the better goods service.

3.What is your payment terms?

Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.

4.Can you make my own brand on the products?

Of course we can. Just send me your logo  we can make it for you.

5.What is our main export market?

America(40.5%):USA, Canada, Argentina, Brazil

Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.

Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.

Others(5.8%).

The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.

The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.

Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.

All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.

To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.

Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
