PGP505
Green Hydraulic
PGP505
Standard export carton/plywood case
Yes
ISO9001，CE
• Industrial • Energy • Government (Non Aerospace) • HVAC • Mobile • Natural Resources • Transportation (Non Aerospace)
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry

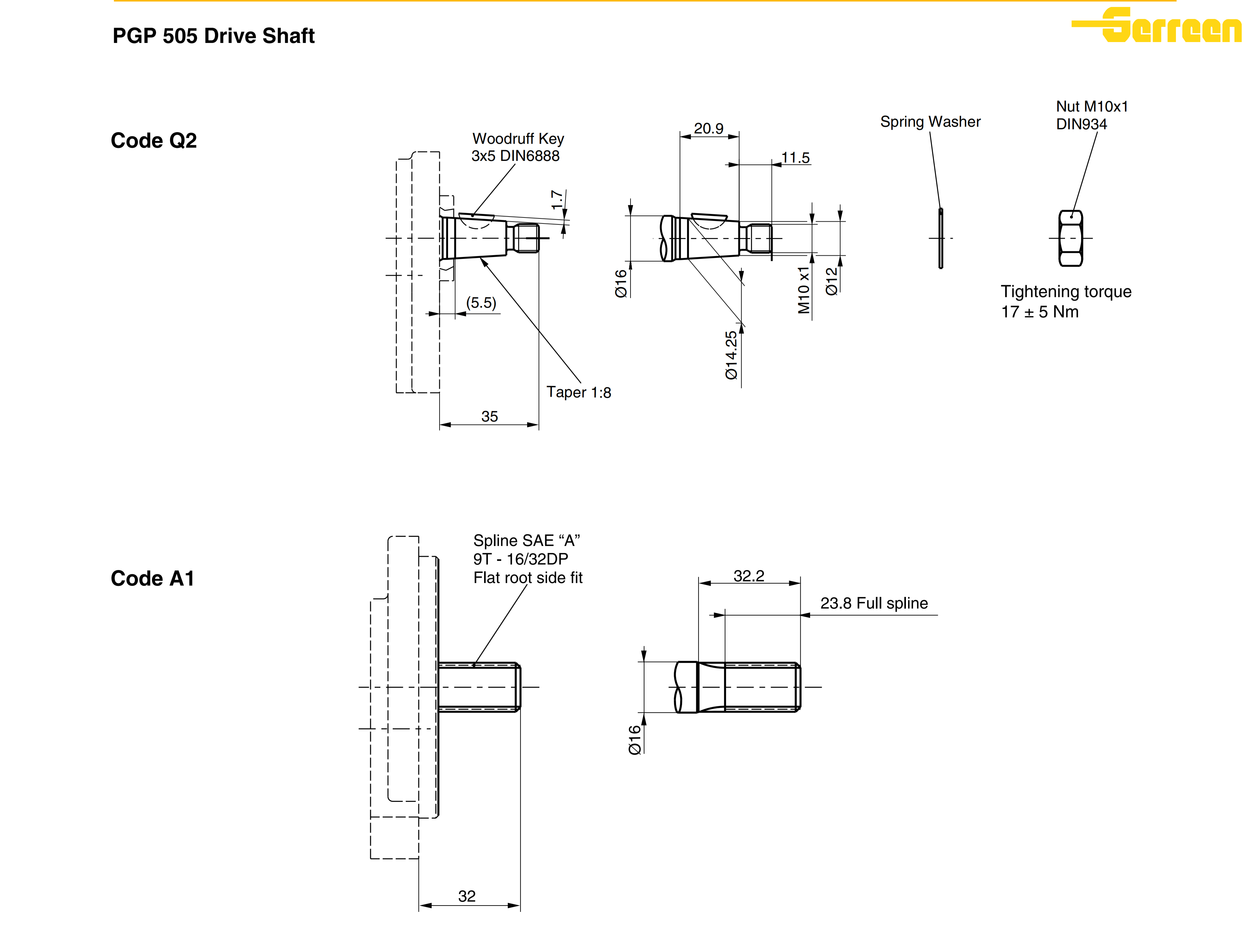

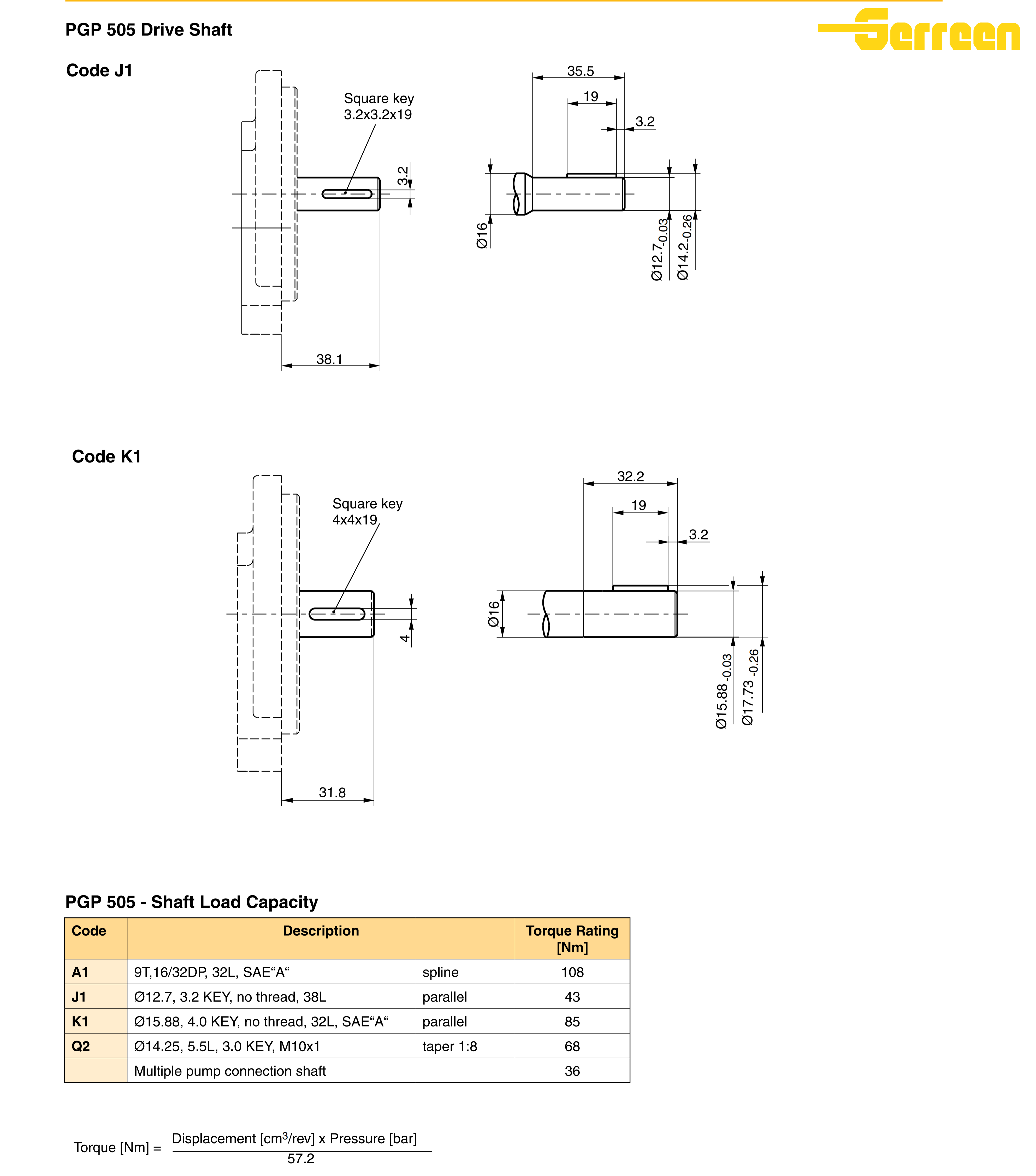

Key Shaft and Spline shaft
1 set
Product Description

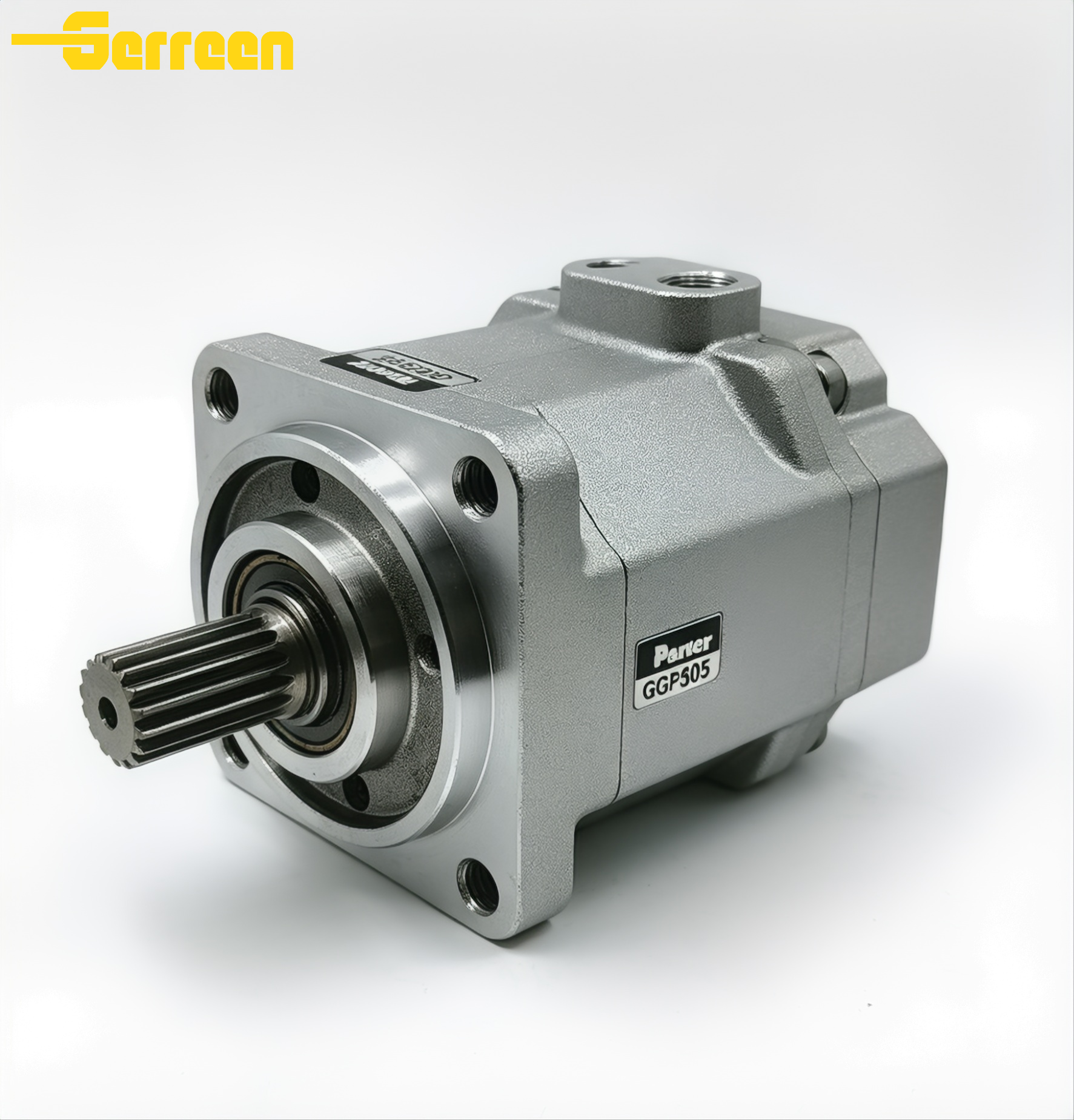

The Parker PGP505 is a high-performance, fixed-displacement aluminum gear pump engineered for compact hydraulic systems requiring reliable, lightweight power delivery without compromising efficiency. Featuring a rugged, high-strength aluminum alloy construction, the PGP505 is specifically designed to deliver an excellent power-to-weight ratio, making it an ideal choice for agricultural machinery, construction equipment, material handling and general industrial applications where space and weight savings are critical, and consistent performance is essential.

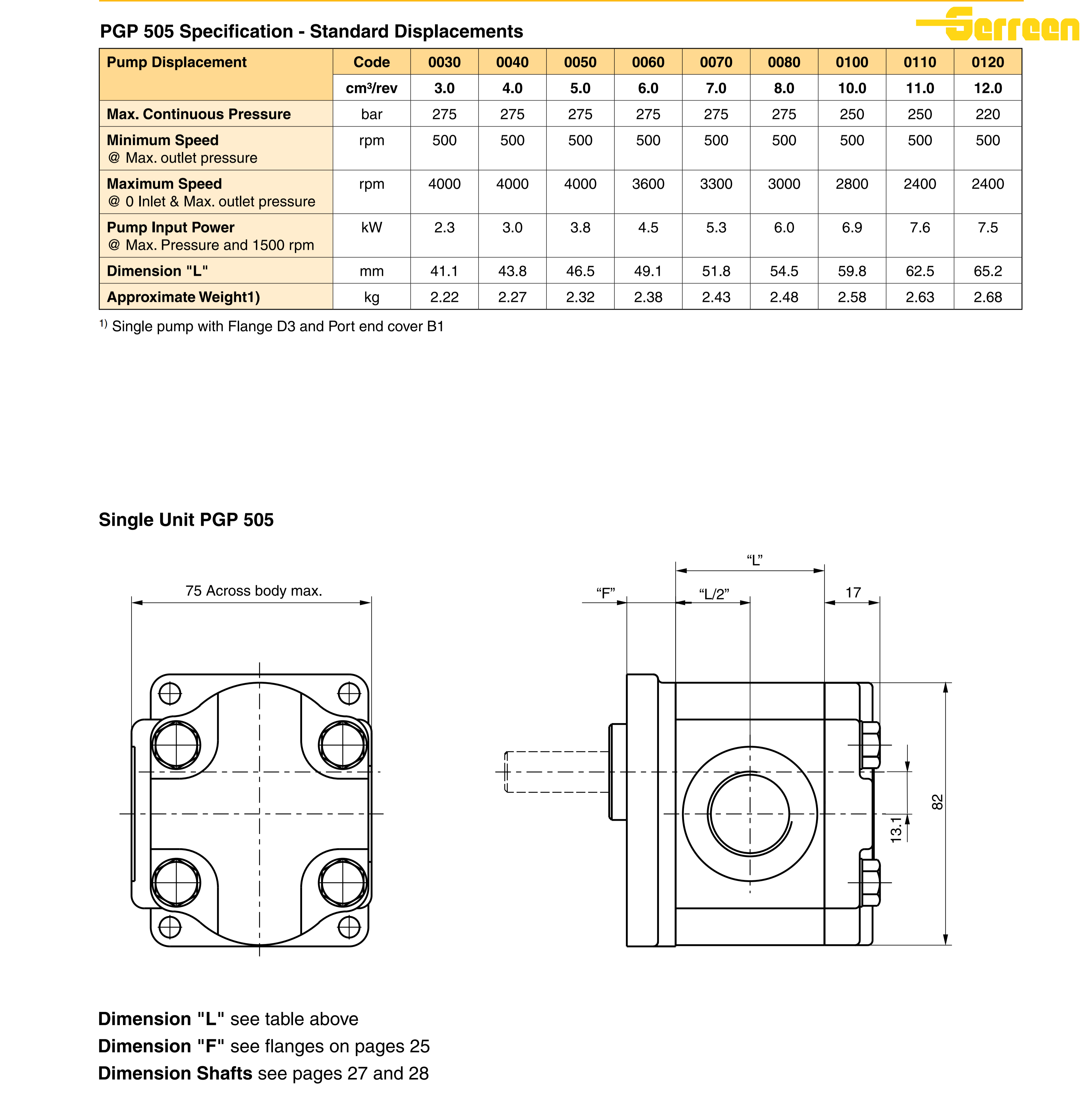

| Model Size | Displacement (cm/rev) | Max. Continuous Pressure | Max. Peak Pressure | Max. Speed (rpm) | Min. Speed (rpm) |
| 20 | 2 | 275 bar (4000 psi) | 300 bar (4350 psi) | 4000 | 500 |
| 30 | 3 | 275 bar (4000 psi) | 300 bar (4350 psi) | 4000 | 500 |
| 40 | 4 | 275 bar (4000 psi) | 300 bar (4350 psi) | 4000 | 500 |
| 50 | 5 | 275 bar (4000 psi) | 300 bar (4350 psi) | 4000 | 500 |
| 60 | 6 | 275 bar (4000 psi) | 300 bar (4350 psi) | 3600 | 500 |
| 80 | 8 | 275 bar (4000 psi) | 300 bar (4350 psi) | 3600 | 500 |
| 100 | 10 | 275 bar (4000 psi) | 300 bar (4350 psi) | 3600 | 500 |
| 120 | 12 | 275 bar (4000 psi) | 300 bar (4350 psi) | 3200 | 500 |
| 160 | 16 | 250 bar (3625 psi) | 275 bar (4000 psi) | 3000 | 500 |
| 200 | 20 | 250 bar (3625 psi) | 275 bar (4000 psi) | 3000 | 500 |
Applications
Agricultural Machinery: A primary choice for tractors, harvesters, sprayers, and implement hydraulic systems, where the compact aluminum construction and efficient operation deliver consistent power for lifting, steering, and control functions.
Construction Equipment: Ideal for compact excavators, skid-steer loaders, aerial work platforms, and small cranes, offering durable and space-efficient hydraulic power under demanding, variable-load conditions.
Material Handling: Widely used in forklifts, pallet jacks, tail lifts, and conveyor systems, providing reliable high-cycle performance for lifting, tilting, and load-handling operations.
Commercial Vehicles & Truck-Mounted Systems: Suited for utility trucks, aerial lifts, and refuse collection equipment, where its high power-to-weight ratio and flexible mounting options integrate seamlessly with truck-mounted power take-off (PTO) setups.
General Industrial Hydraulics: Applied in machine tools, conveyor systems, and light-duty presses, delivering stable, efficient power for low-to-medium pressure circuits in factory automation and process equipment.
PGP505 pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
Lightweight Aluminum Housing: Unlike cast iron pumps that add significant weight, the PGP505’s high-grade aluminum frame delivers strength while reducing overall system weight, making it ideal for mobile applications where payload is critical.
High-Efficiency Gear & Bearing Design: Utilizing precision-machined spur gears and advanced journal bearings, it offers smooth, low-noise operation with consistent volumetric efficiency, even at varying speeds.

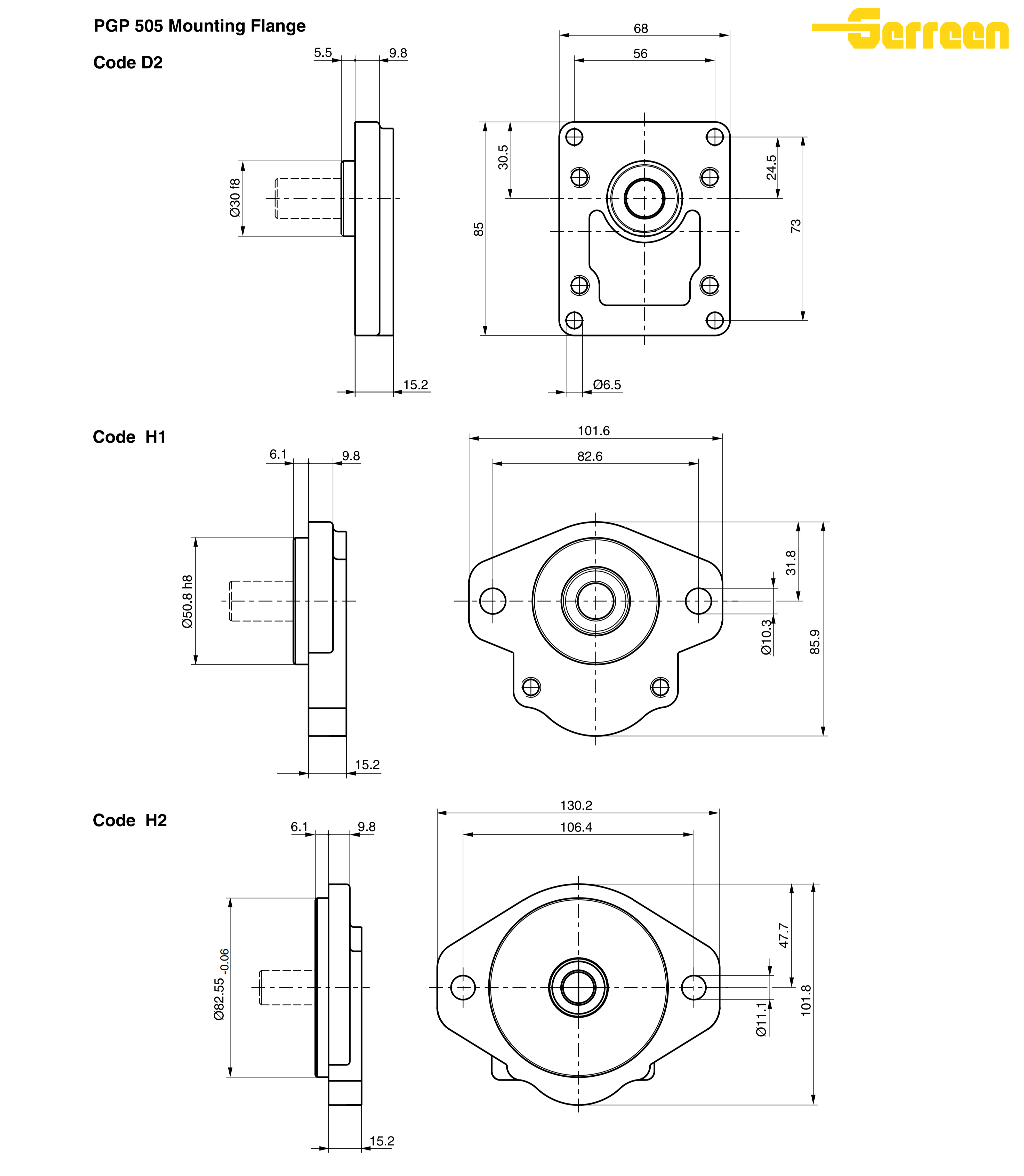

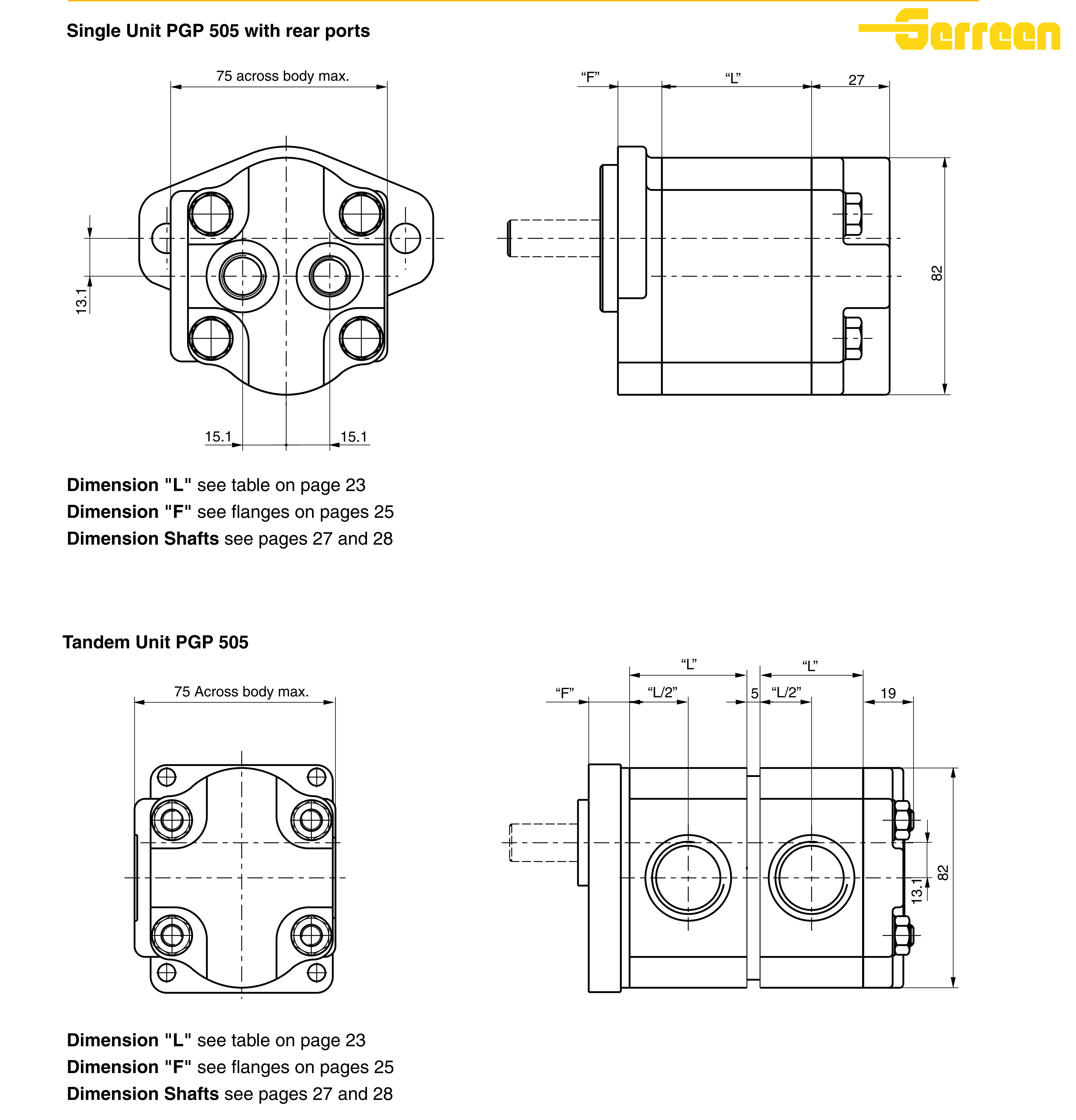

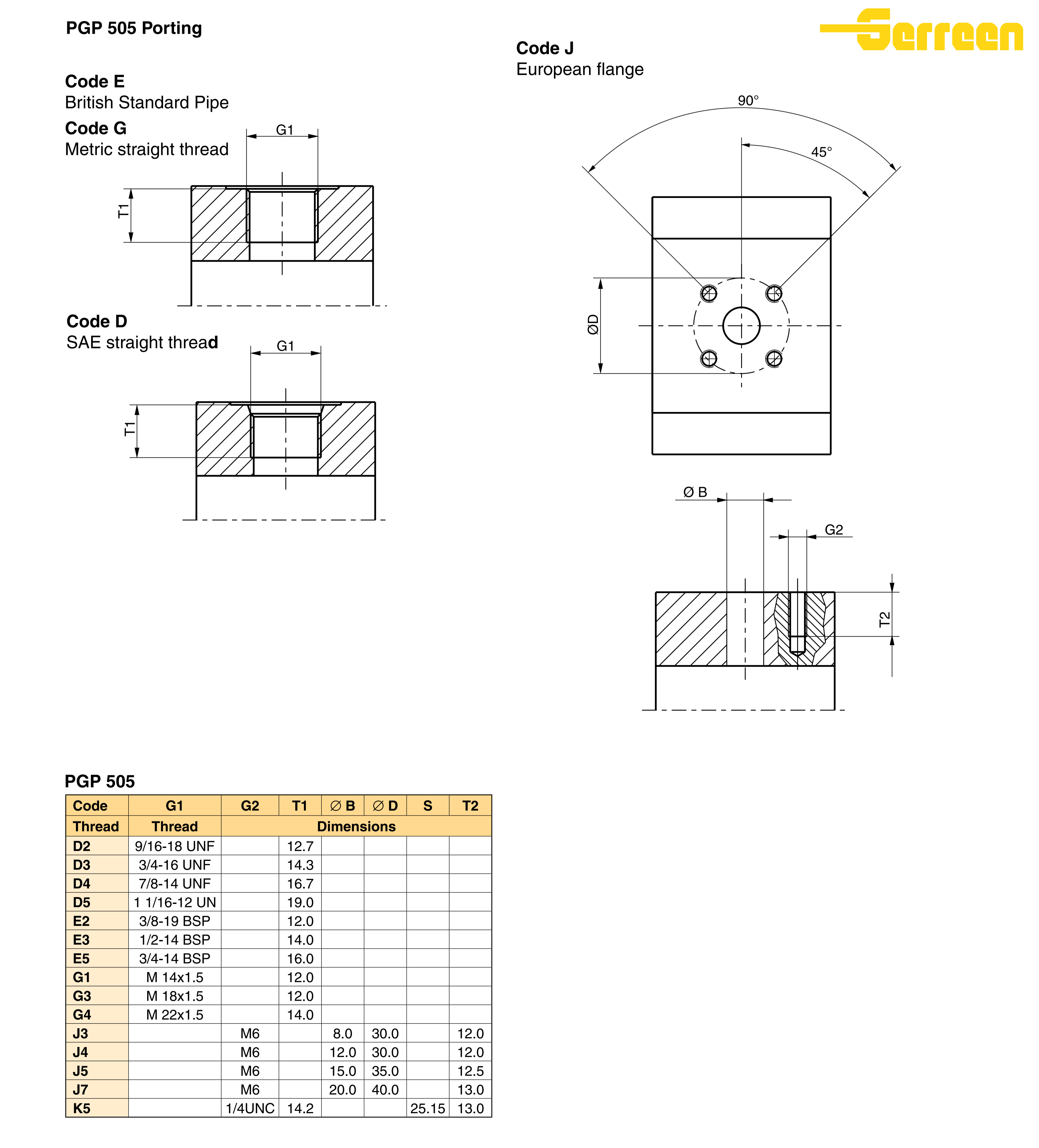

Flexible Port & Mounting Options: Available with side, rear, and end port configurations, plus standard SAE "A" mounting flanges, the PGP505 offers greater installation flexibility than fixed-port cast iron designs in cramped chassis environments.
The PGP505 is a compact high-pressure specialist. Depending on the specific displacement, the series typically handles:
Continuous Pressure: Up to 275 bar (4,000 PSI) for most models.
Intermittent/Peak Pressure: Up to 300 bar (4,350 PSI).
This robust pressure rating makes the PGP505 ideal for driving lifting, steering, and auxiliary hydraulic systems on agricultural, construction, and material handling equipment.
Yes, the PGP505 is a high-quality alternative to other premium compact aluminum gear pumps. It is often used as a replacement or upgrade for:
Casappa: PLP20 Series
Bosch Rexroth: AZPF Series
Marzocchi: GHP2 Series
To ensure a successful swap, verify the Mounting Flange (SAE A), Shaft Type (keyed or splined), and Displacement (cc/rev) to match your existing system.
To protect the precision gears and journal bearings, the following is recommended:
Oil Type: Premium mineral-based hydraulic fluids with strong Anti-Wear (AW) additive packages, compatible with aluminum components.
Viscosity: Standard ISO VG32 to VG68. The optimal operating range is 100 to 150 SUS (20 to 30 cSt), though it can handle cold starts up to 2,000 SUS (430 cSt).
Filtration: Cleanliness is vital for long service life. A minimum filtration of ISO 4406 18/16/13 is recommended to prevent abrasive particles from damaging gear and bearing surfaces.
Maximum Speed: 3,000–4,000 RPM (varies by displacement; smaller displacements support higher speeds up to 4,000 RPM).
Minimum Speed: 500 RPM, ensuring stable operation at low engine speeds without cavitation or pressure drop.
Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
PGP505 pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
