PF4 Muncie Gear Pumps

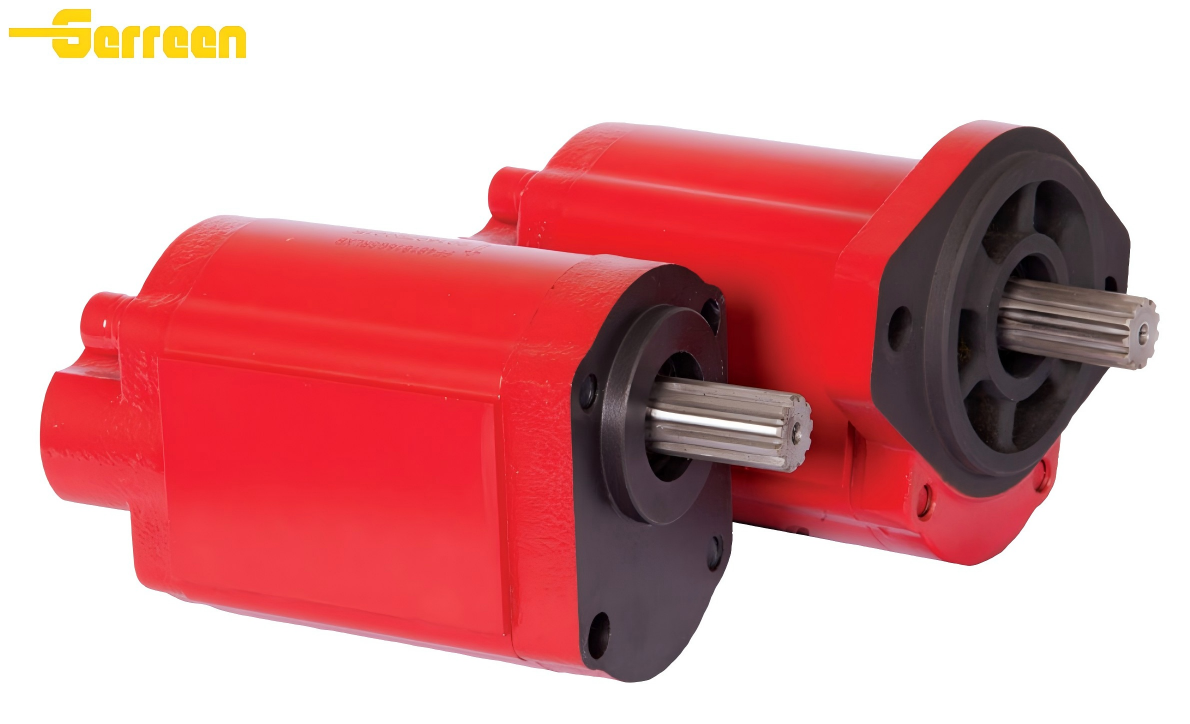

PF4 SERIES Gear Pump  Overview

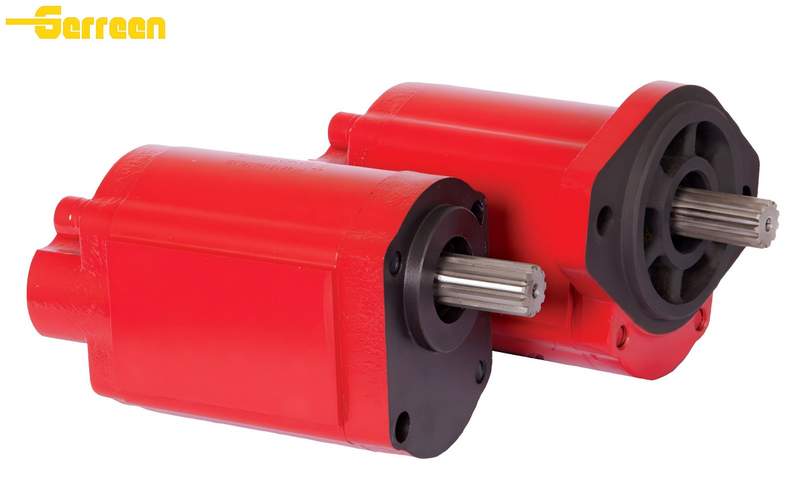

The Muncie PF4 is a compact, high-performance fixed-displacement bushing‑style gear pump engineered for space‑constrained mobile hydraulic systems that require consistent high pressure, lightweight durability, and dependable operation. Built with an extruded high‑tensile aluminum housing and precision components, the PF4 delivers an outstanding power‑to‑weight ratio and is purpose‑designed for direct mounting to truck Power Take‑Offs (PTOs) in compact work truck applications where installation flexibility and long service life are critical.

Features and Benefits

• Rugged Extruded High‑Tensile Aluminum Construction

  The PF4 features a high‑strength extruded aluminum body that combines lightweight installation with exceptional structural rigidity and pressure resistance. This durable construction reduces weight for easier PTO mounting while maintaining stable performance under heavy duty cycles, minimizing fatigue and ensuring reliable operation in harsh mobile environments.

• PTFE Impregnated Bushing Design

  Equipped with premium PTFE‑impregnated bushings, the PF4 provides enhanced wear resistance, improved lubricity, and strong tolerance to fluid contamination and thermal variation. The robust bushing design supports high‑pressure operation, lowers friction, and extends service life while preserving high volumetric efficiency under continuous heavy use.

• Pressure‑Balanced Wear Plates for Peak Efficiency

  The PF4 incorporates precision pressure‑balanced wear plates that deliver automatic axial clearance compensation. This advanced design optimizes internal clearances across operating temperatures, minimizes internal leakage and parasitic friction, sustains high mechanical efficiency, and ensures consistent flow and pressure output.

• Outstanding High‑Pressure Performance

  Despite its compact footprint, the PF4 is rated for continuous operation up to 3,625 PSI (250 bar) with operating speeds up to 3,000 RPM. High‑strength alloy steel gears and tight‑tolerance machining enable stable, high‑force hydraulic actuation for dump bodies, lift gates, snow control, and utility equipment.

• Flexible Modular Design and Easy Installation

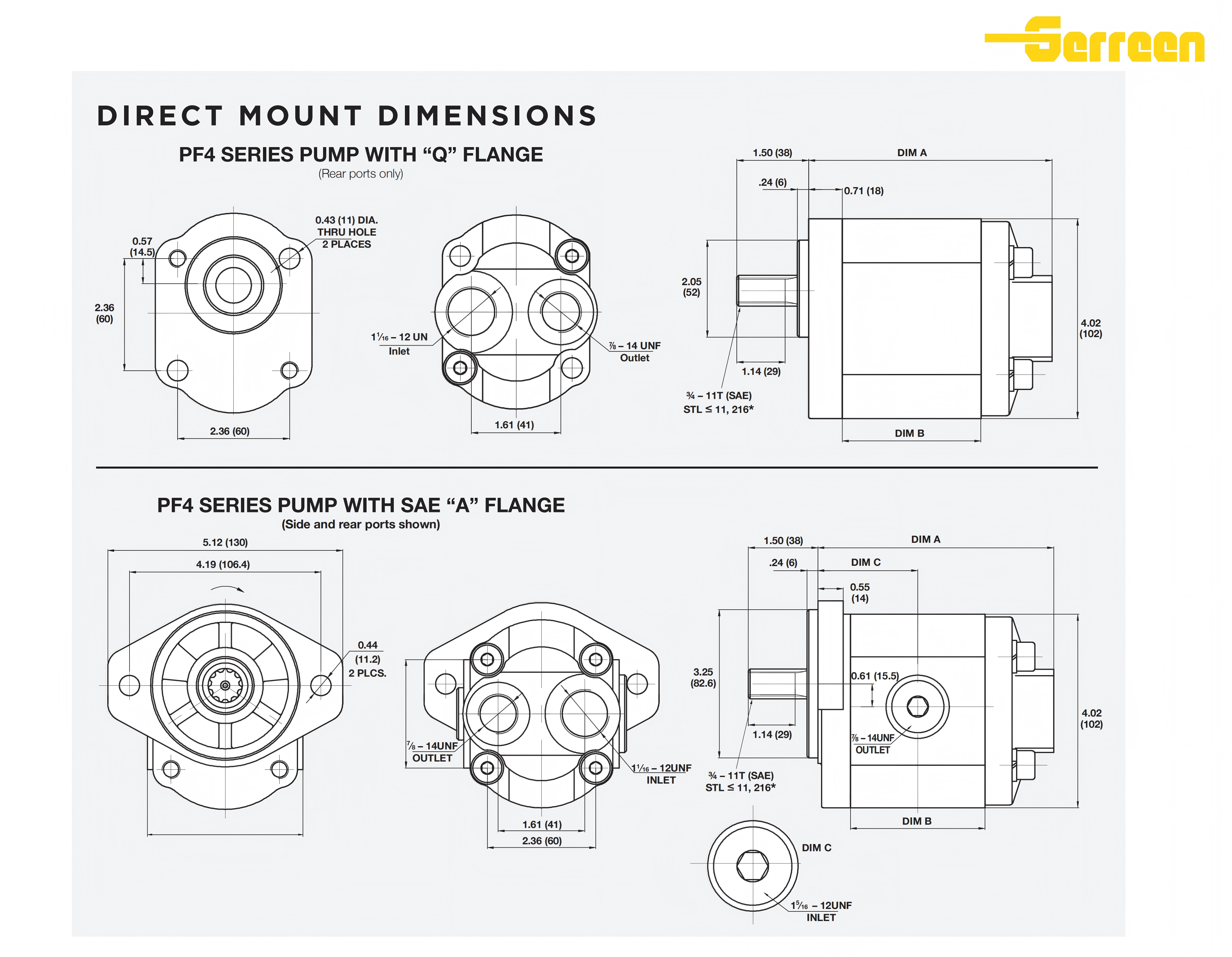

  The PF4 series offers multiple displacements covering 1.6–8.7 GPM at 1,000 RPM with 11 standard sizes available. It supports SAE mounting configurations and features a dual‑porting design with both side and rear SAE O‑ring ports, delivering unmatched installation flexibility for tight chassis layouts and simplified plumbing.

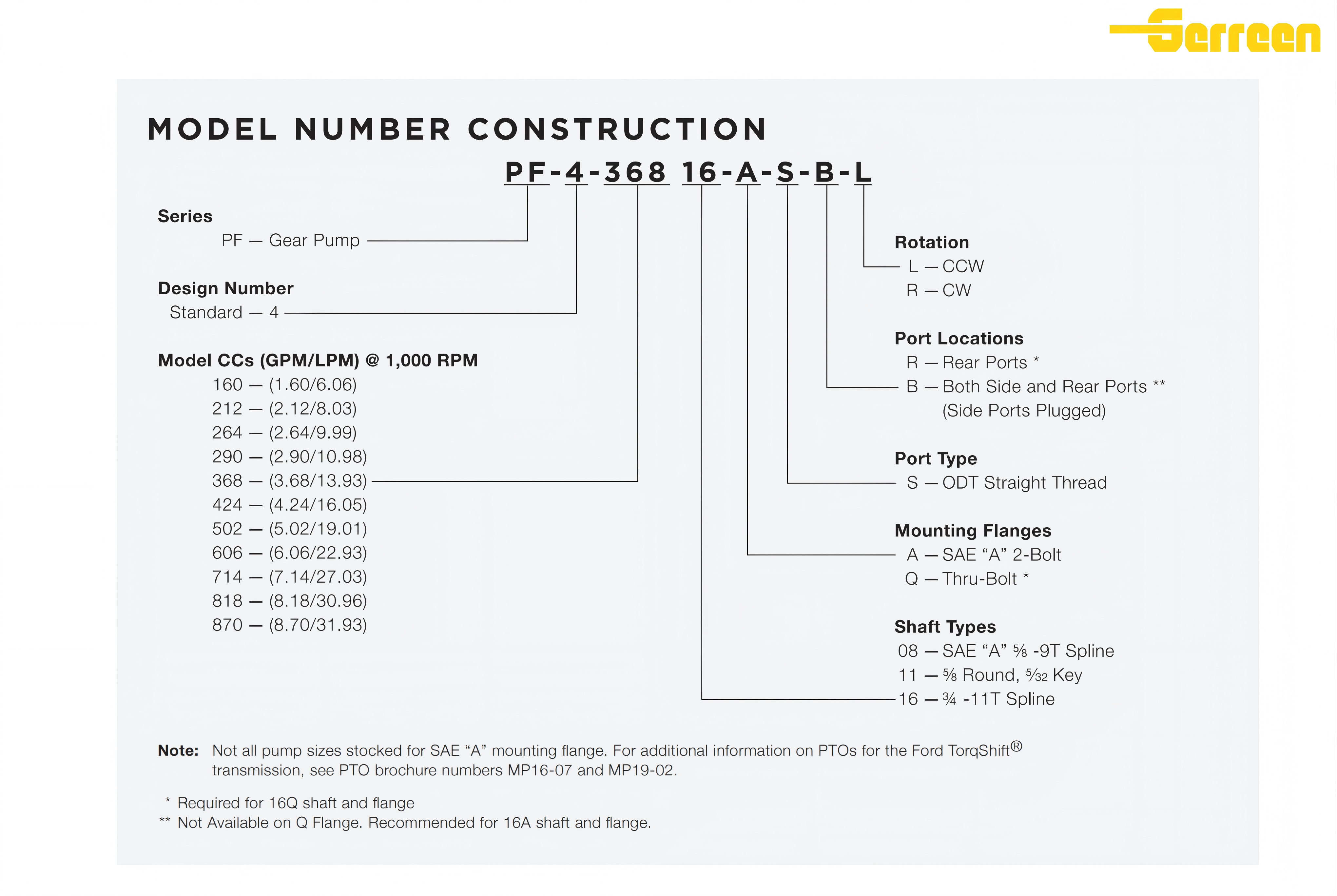

Model Codes

Applications

The Muncie PF4 series delivers lightweight, high-efficiency hydraulic power perfectly engineered for compact mobile and truck-mounted applications, where light weight, space savings and stable high-pressure performance are essential:

· Utility & Service Vehicles: An optimal solution for light-duty service trucks, mini aerial devices and small crane setups. The compact aluminum body and flexible mounting design allow easy installation with PTO units, supplying steady hydraulic power for lifting, telescoping and auxiliary equipment operation.

· Snow & Ice Control: Well-suited for light-duty snow plows, de-icing sprayers and compact salt spreaders. Its premium bushing structure and pressure-balanced design resist frequent cycling and temperature fluctuations, ensuring stable performance in harsh cold-weather working conditions.

· Light Commercial & Logistics: Extensively applied to light refuse trucks, trailer tail lifts and cargo handling auxiliary systems. The PF4 maintains excellent volumetric efficiency under frequent start-stop operations, meeting daily high-cycle working demands for loading and unloading.

· Light-Duty Material Handling: Ideal for hydraulic ramps, small dock levelers and mobile workshop hydraulic tools. Featuring a high power-to-weight ratio, it provides consistent and smooth hydraulic output while reducing overall vehicle load.

· Mobile Municipal & Auxiliary Equipment: Commonly used in street maintenance vehicles, landscape equipment and small municipal auxiliary hydraulic systems. With strong contamination tolerance and reliable continuous running capability, it adapts to complex outdoor working environments and diverse operating conditions.

Packaging & Delivery

PF4 pumps are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

PF4 Gear Pump  FAQ

1. What are PF4 series gear pumps

2. What makes the PF4 different from standard aluminum gear pumps

Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.

8. How can I get a quotation quickly

Please provide the following details:

• Model or displacement

• Working pressure

• Speed

• Quantity
  We will reply within 12 hours with a competitive quotation.




Certifications & Quality Assurance

PF4 pumps are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
