P30 P31
Green Hydraulic
P30 P31
Standard export carton/plywood case
10000pcs/month
1~35days
Yes
ISO9001:2015
1 set
Product Description
Green Hydraulic is equipped with complete gear processing equipment, including NC gear hobbing, NC gear shaving, NC gear shaping, gear grinding, NC worm wheel gear grinding and CNC machines, as well as an NC heat treatment line and full set of gear inspection instruments. All our parts are strictly manufactured in accordance with OEM standards. Most of our parts are exported to markets in America, Europe and Asia, supporting applications in hydraulic gear pumps, PTO (power take-off) units and construction machinery.

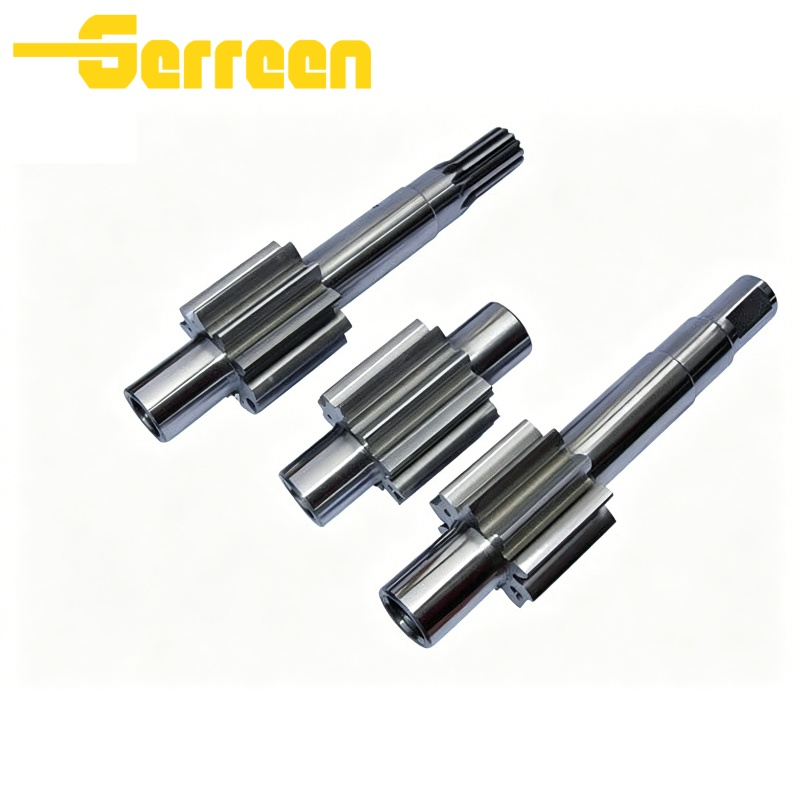

P30 P31 Pump Gear Set
| Item | Dynaco No. | Parker No. | Description | Gear Width | Type 1 |
| 1 | 312-2905-230 | 312-2905-230 | SAE B - 13 Tooth Spline, 0.873" Major Dia. | 1/2" | 25 |
| 2 | 312-2907-230 | 312-2907-230 | SAE B - 13 Tooth Spline, 0.873" Major Dia. | 3/4" | 25 |
| 3 | 312-2910-230 | 312-2910-230 | SAE B - 13 Tooth Spline, 0.873" Major Dia. | 1" | 25 |
| 4 | 312-2912-230 | 312-2912-230 | SAE B - 13 Tooth Spline, 0.873" Major Dia. | 1 1/4" | 25 |
| 5 | 312-2915-230 | 312-2915-230 | SAE B - 13 Tooth Spline, 0.873" Major Dia. | 1 1/2" | 25 |
| 6 | 312-2917-230 | 312-2917-230 | SAE B - 13 Tooth Spline, 0.873" Major Dia. | 1 3/4" | 25 |
| 7 | 312-2920-230 | 312-2920-230 | SAE B - 13 Tooth Spline, 0.873" Major Dia. | 2" | 25 |
| 8 | 312-2922-230 | 312-2922-230 | SAE B - 13 Tooth Spline, 0.873" Major Dia. | 2 1/4" | 25 |
| 9 | 312-2925-230 | 312-2925-230 | SAE B - 13 Tooth Spline, 0.873" Major Dia. | 2 1/2" | 25 |
| Item | Dynaco No. | Parker No. | Description | Gear Width | Type 1 |
| 1 | 312-2905-730 | 312-2905-730 | SAE B - Straight Keyed, 0.873" Dia., 1/4" x 3/8" x 1" Key | 1/2" | 30 |
| 2 | 312-2907-730 | 312-2907-730 | SAE B - Straight Keyed, 0.873" Dia., 1/4" x 3/8" x 1" Key | 3/4" | 30 |
| 3 | 312-2910-730 | 312-2910-730 | SAE B - Straight Keyed, 0.873" Dia., 1/4" x 3/8" x 1" Key | 1" | 30 |
| 4 | 312-2912-730 | 312-2912-730 | SAE B - Straight Keyed, 0.873" Dia., 1/4" x 3/8" x 1" Key | 1 1/4" | 30 |
| 5 | 312-2915-730 | 312-2915-730 | SAE B - Straight Keyed, 0.873" Dia., 1/4" x 3/8" x 1" Key | 1 1/2" | 30 |
| 6 | 312-2917-730 | 312-2917-730 | SAE B - Straight Keyed, 0.873" Dia., 1/4" x 3/8" x 1" Key | 1 3/4" | 30 |
| 7 | 312-2920-730 | 312-2920-730 | SAE B - Straight Keyed, 0.873" Dia., 1/4" x 3/8" x 1" Key | 2" | 30 |
| 8 | 312-2922-730 | 312-2922-730 | SAE B - Straight Keyed, 0.873" Dia., 1/4" x 3/8" x 1" Key | 2 1/4" | 30 |
| 9 | 312-2925-730 | 312-2925-730 | SAE B - Straight Keyed, 0.873" Dia., 1/4" x 3/8" x 1" Key | 2 1/2" | 30 |
| Item | Dynaco No. | Parker No. | Description | Gear Width |
| 1 | 312-2805-000 | 312-2805-000 | PGP030 Hydraulic Pump Drive Gear Set | 1/2" |
| 2 | 312-2807-000 | 312-2807-000 | PGP030 Hydraulic Pump Drive Gear Set | 3/4" |
| 3 | 312-2810-000 | 312-2810-000 | PGP030 Hydraulic Pump Drive Gear Set | 1" |
| 4 | 312-2812-000 | 312-2812-000 | PGP030 Hydraulic Pump Drive Gear Set | 1 1/4" |
| 5 | 312-2815-000 | 312-2815-000 | PGP030 Hydraulic Pump Drive Gear Set | 1 1/2" |
| 6 | 312-2817-000 | 312-2817-000 | PGP030 Hydraulic Pump Drive Gear Set | 1 3/4" |
| 7 | 312-2820-000 | 312-2820-000 | PGP030 Hydraulic Pump Drive Gear Set | 2" |
| 8 | 312-2822-000 | 312-2822-000 | PGP030 Hydraulic Pump Drive Gear Set | 2 1/4" |
| 9 | 312-2825-000 | 312-2825-000 | PGP030 Hydraulic Pump Drive Gear Set | 2 1/2" |
| Item | Dynaco No. | Parker No. | Description | Gear Width | Type 1 |
| 1 | 312-2905-740 | 312-2905-740 | Keyed, 0.9998" Dia., 1/4" x 3/8" x 1 1/4" Key | 1/2" | 43 |
| 2 | 312-2907-740 | 312-2907-740 | Keyed, 0.9998" Dia., 1/4" x 3/8" x 1 1/4" Key | 3/4" | 43 |
| 3 | 312-2910-740 | 312-2910-740 | Keyed, 0.9998" Dia., 1/4" x 3/8" x 1 1/4" Key | 1" | 43 |
| 4 | 312-2912-740 | 312-2912-740 | Keyed, 0.9998" Dia., 1/4" x 3/8" x 1 1/4" Key | 1 1/4" | 43 |
| 5 | 312-2915-740 | 312-2915-740 | Keyed, 0.9998" Dia., 1/4" x 3/8" x 1 1/4" Key | 1 1/2" | 43 |
| 6 | 312-2917-740 | 312-2917-740 | Keyed, 0.9998" Dia., 1/4" x 3/8" x 1 1/4" Key | 1 3/4" | 43 |
| 7 | 312-2920-740 | 312-2920-740 | Keyed, 0.9998" Dia., 1/4" x 3/8" x 1 1/4" Key | 2" | 43 |
| 8 | 312-2922-740 | 312-2922-740 | Keyed, 0.9998" Dia., 1/4" x 3/8" x 1 1/4" Key | 2 1/4" | 43 |
| 9 | 312-2925-740 | 312-2925-740 | Keyed, 0.9998" Dia., 1/4" x 3/8" x 1 1/4" Key | 2 1/2" | 43 |
| Item | Dynaco No. | Parker No. | Description | Gear Width | Type 2 |
| 1 | 312-2905-430 | 312-2905-430 | SAE B - 13 Tooth Spline, 0.873" Major Dia | 1/2" | 65 |
| 2 | 312-2907-430 | 312-2907-430 | SAE B - 13 Tooth Spline, 0.873" Major Dia | 3/4" | 65 |
| 3 | 312-2910-430 | 312-2910-430 | SAE B - 13 Tooth Spline, 0.873" Major Dia | 1" | 65 |
| 4 | 312-2912-430 | 312-2912-430 | SAE B - 13 Tooth Spline, 0.873" Major Dia | 1 1/4" | 65 |
| 5 | 312-2915-430 | 312-2915-430 | SAE B - 13 Tooth Spline, 0.873" Major Dia | 1 1/2" | 65 |
| 6 | 312-2917-430 | 312-2917-430 | SAE B - 13 Tooth Spline, 0.873" Major Dia | 1 3/4" | 65 |
| 7 | 312-2920-430 | 312-2920-430 | SAE B - 13 Tooth Spline, 0.873" Major Dia | 2" | 65 |
| 8 | 312-2922-430 | 312-2922-430 | SAE B - 13 Tooth Spline, 0.873" Major Dia | 2 1/4" | 65 |
| 9 | 312-2925-430 | 312-2925-430 | SAE B - 13 Tooth Spline, 0.873" Major Dia | 2 1/2" | 65 |
| Item | Dynaco No. | Parker No. | Description | Gear Width | Type 2 |
| 1 | 312-2905-930 | 312-2905-930 | Keyed, 0.873" Dia., 1/4" x 3/8" x 1" Key | 1/2" | 66 |
| 2 | 312-2907-930 | 312-2907-930 | Keyed, 0.873" Dia., 1/4" x 3/8" x 1" Key | 3/4" | 66 |
| 3 | 312-2910-930 | 312-2910-930 | Keyed, 0.873" Dia., 1/4" x 3/8" x 1" Key | 1" | 66 |
| 4 | 312-2912-930 | 312-2912-930 | Keyed, 0.873" Dia., 1/4" x 3/8" x 1" Key | 1 1/4" | 66 |
| 5 | 312-2915-930 | 312-2915-930 | Keyed, 0.873" Dia., 1/4" x 3/8" x 1" Key | 1 1/2" | 66 |
| 6 | 312-2917-930 | 312-2917-930 | Keyed, 0.873" Dia., 1/4" x 3/8" x 1" Key | 1 3/4" | 66 |
| 7 | 312-2920-930 | 312-2920-930 | Keyed, 0.873" Dia., 1/4" x 3/8" x 1" Key | 2" | 66 |
| 8 | 312-2922-930 | 312-2922-930 | Keyed, 0.873" Dia., 1/4" x 3/8" x 1" Key | 2 1/4" | 66 |
| 9 | 312-2925-930 | 312-2925-930 | Keyed, 0.873" Dia., 1/4" x 3/8" x 1" Key | 2 1/2" | 66 |
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as vanes,gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
