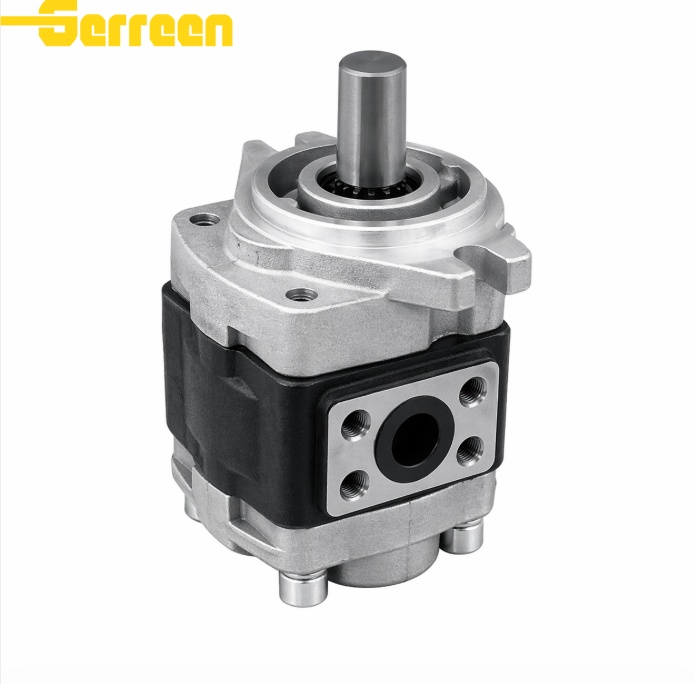

GBHZA-F Series Gear Pump

GBHZA-F Series Gear Pump

Overview

GBHZA-F Series Gear Pumps are engineered for high-pressure performance, exceptional reliability, and long service life. Designed with a high-strength aluminum alloy body and precision-engineered gears, these pumps provide consistent hydraulic power for material handling, construction, and agricultural machinery, making them the preferred choice for OEM replacements in brands like Toyota, Komatsu, and Mitsubishi.

Features and Benefits

• Extended Pump Life: Exceptional durability achieved through high-grade wear-resistant materials, specialized surface-treated gears, and the use of high-load DU bushings for superior lubrication.

• Quiet and Smooth Operation: Advanced gear tooth profiles and a precision-machined housing reduce fluid pulsation and mechanical vibration, maintaining low noise levels during high-pressure operation.

• High Efficiency & Energy Saving: Features a pressure-loading design that maintains high volumetric and mechanical efficiency, minimizing internal leakage and heat generation.

• Compact & Modular Design: Standardized ISO and SAE mounting flanges and shaft options allow for easy installation in tight spaces and seamless integration into existing systems.

• Versatile Combinations: Supports tandem (double) or triple pump configurations, providing a cost-effective and flexible solution for multi-circuit hydraulic packages.

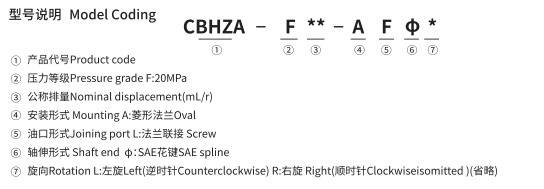

Model Codes

Applications

Winches, oil field and drilling

equipment, earthmoving and

construction equipment, die

casting, molding machines, press

machines, trash compactors, balers

and primary metals

Packaging & Delivery

Gear Pumps are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the high-precision pump body and shaft from moisture and environmental damage.

Custom Cartons or Crates: Individual reinforced packaging with shock-absorbent inserts for single pumps, and sturdy wooden crates for bulk or tandem pump orders to ensure safe handling.

Documentation: Includes technical data sheets, installation guides, and quality inspection certificates.

Delivery time depends on the specific model, port configurations, and destination but typically ranges from 1 to 4 weeks from the order date.

GBHZA-F Series Gear Pump FAQ

1. What is the GBHZA-F Series Gear Pump used for?
GBHZA-F Series gear pumps are widely used in tractors, forklifts, construction machinery, and hydraulic power units for stable hydraulic power transmission.

2. What are the main features of the GBHZA-F Series Gear Pump?
It offers compact structure, high efficiency, low noise, reliable sealing, and long service life.

3. What mounting and shaft options are available for GBHZA-F pumps?
GBHZA-F pumps are available with various flange mounts, shaft types, and port configurations to fit different OEM systems.

4. Can the GBHZA-F Series operate at high pressure?
Yes, these pumps are designed for continuous working pressure, with allowable peak pressure depending on the specific model.

5. What hydraulic oil is recommended for GBHZA-F pumps?
Anti-wear hydraulic oil or mineral-based hydraulic fluids with proper viscosity are commonly recommended.

6. What causes noise or reduced flow in a GBHZA-F gear pump?
Possible causes include air entering the inlet, contaminated oil, worn gears, cavitation, or improper oil viscosity.

7. How should a GBHZA-F Series Gear Pump be maintained?
Regularly inspect seals, keep hydraulic oil clean, monitor inlet conditions, and replace worn parts when necessary.

8. Can GBHZA-F Series pumps be customized or replaced interchangeably?
Yes, many models support customization in displacement, rotation, shaft form, and mounting, and some can cross-reference OEM replacements.

Certifications & Quality Assurance

Charge pumps are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.

FAQ

1.How does the variable displacement work?

The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.

2.What's our advantages?

Factory established in 2005;

With a great deal of production experience;

80+ employees become the professional team;

Constant updated ERP system ensure efficiency of work;

Sophisticated equipment ehanced the accuracy of products;

Professional salesmen provide the greast service;

With a large number of famous customers all over the world;

Great after-sales service;

With the long term cooperation with famous logistics and express company in China,provide the better goods service.

3.What is your payment terms?

Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.

4.Can you make my own brand on the products?

Of course we can. Just send me your logo  we can make it for you.

5.What is our main export market?

America(40.5%):USA, Canada, Argentina, Brazil

Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.

Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.

Others(5.8%).

The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.

The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.

Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.

All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.

To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.

Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
