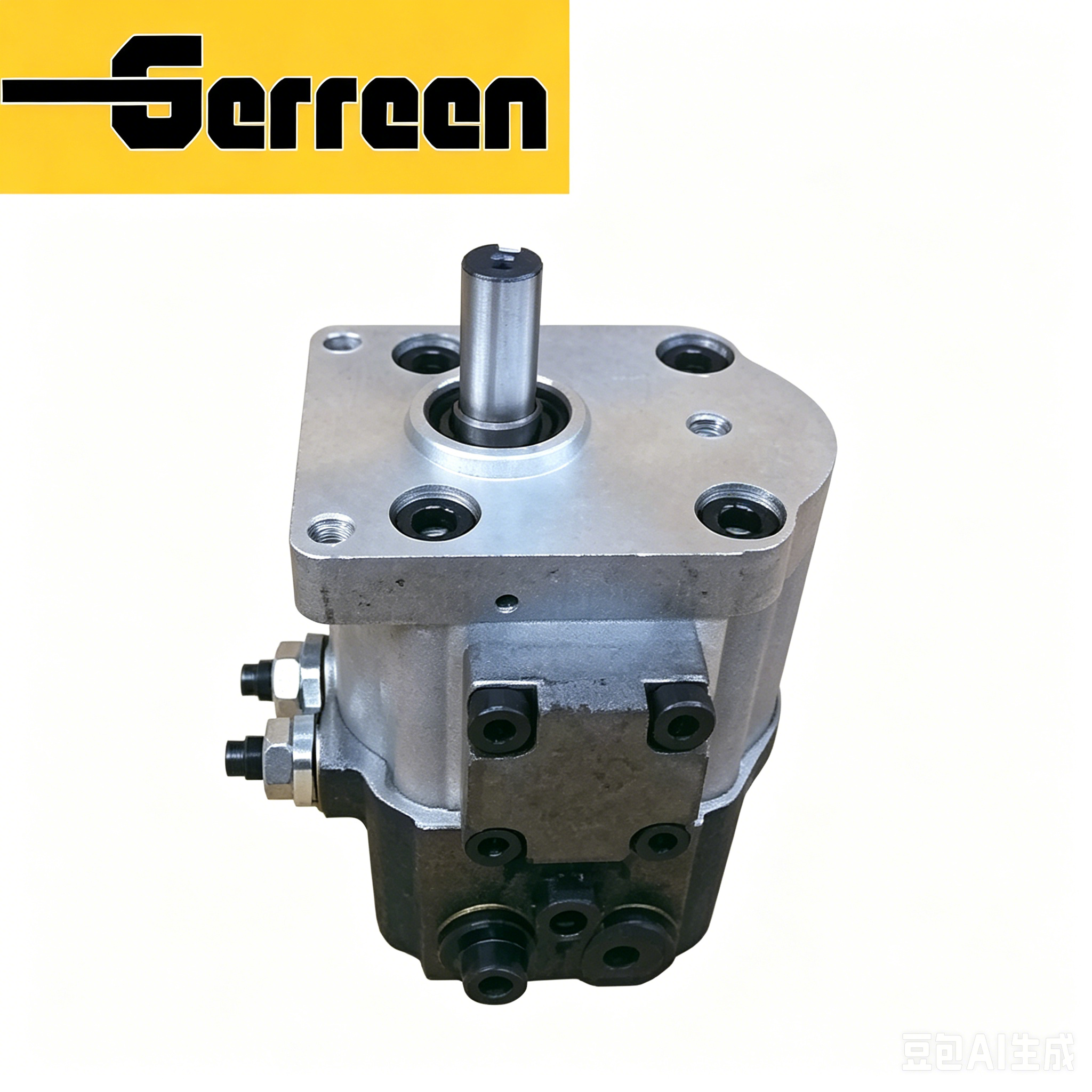

CBS/F-D300 Series Bidirectional Compound Gear Pump Gear Pump Relief Valve

CBS/F-D300 Series Bidirectional Compound Gear Pump

Features and Benefits

• 1. Bidirectional Rotation Capability

• The pump supports both clockwise and counterclockwise rotation, allowing reversible hydraulic flow for flexible hydraulic system design.

• 2. High Efficiency Performance

• Equipped with high-precision gears and automatic axial clearance compensation technology, the pump maintains high volumetric and mechanical efficiency during long-term operation.

• 3. Compact and Lightweight Design

• The high-strength aluminum alloy housing reduces weight while maintaining excellent durability and pressure resistance.

• 4. Low Noise and Stable Operation

• Precision gear processing and stable internal structure ensure smooth operation with reduced vibration and noise.

• 5. Long Service Life

• The use of DU composite bearings and wear-resistant components greatly improves durability under high-speed and high-load working conditions.

• 6. Flexible Customization

• Multiple shaft types, flange mounting options, port connection styles, and displacement sizes are available for OEM and customized hydraulic systems.

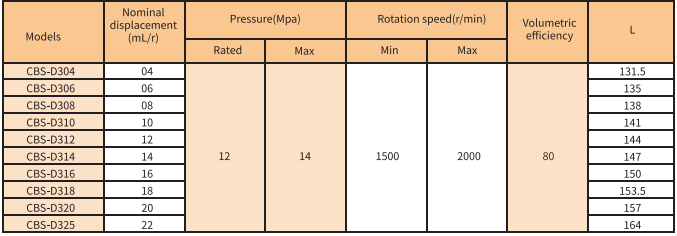

Model Codes

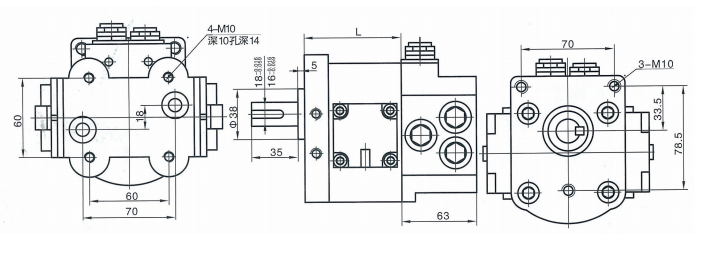

CBS/F-D300 Series Bidirectional Compound Gear Pump Installation Dimensions

gear pump.pdf

Applications

• Construction machinery

• Excavators

• Loaders

• Road rollers

• Cranes

• Agricultural machinery

• Tractors

• Harvesters

• Sprayers

• Material handling equipment

• Forklifts

• Stackers

• Hydraulic lifting platforms

• Mining and transportation machinery

• Industrial hydraulic systems

• Truck-mounted hydraulic systems

• Hydraulic power units and automation equipment

Packaging & Delivery

CBS/F-D300 Series Bidirectional Compound Gear Pump are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

CBS/F-D300 Series Bidirectional Compound Gear Pump FAQ

1.  What makes the CBS/F-D300 pump different from standard gear pumps?

The CBS/F-D300 series supports bidirectional rotation and flow output, allowing the hydraulic system to operate in forward and reverse directions, which standard single-direction gear pumps cannot achieve.

2. What hydraulic oil is recommended?

Anti-wear hydraulic oil with proper viscosity is recommended, such as ISO VG32, VG46, or VG68 depending on the operating temperature and environment.

3. What industries commonly use this pump?

It is commonly used in construction, agriculture, mining, lifting equipment, transportation machinery, and industrial automation systems.

4. Can the pump be customized?

Yes. Different shaft types, flange configurations, mounting styles, and port connections are available according to customer requirements.

5. What is the maximum operating pressure?

The typical rated pressure is around 10 MPa, while the maximum pressure can reach approximately 12.5 MPa depending on the specific model.

6. Does the pump support high-speed operation?

Yes. Depending on the model, the maximum operating speed can reach around 2500 r/min while maintaining stable performance.

7. What are the installation requirements for VVS pumps

Standard mounting: ISO 3019/2 or SAE flange

Rotation direction: right-hand (clockwise)

No radial or axial load should be applied to the shaft

Proper installation is critical for performance and durability.

8. What applications are VVS variable vane pumps commonly used in

They are widely used in:

CNC machine tools

Injection molding machines

Hydraulic power units

Industrial automation systems

Press machinery

Certifications & Quality Assurance

CBS/F-D300 Series Bidirectional Compound Gear Pump are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.

FAQ

1.How does the variable displacement work?

The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.

2.What's our advantages?

Factory established in 2005;

With a great deal of production experience;

80+ employees become the professional team;

Constant updated ERP system ensure efficiency of work;

Sophisticated equipment ehanced the accuracy of products;

Professional salesmen provide the greast service;

With a large number of famous customers all over the world;

Great after-sales service;

With the long term cooperation with famous logistics and express company in China,provide the better goods service.

3.What is your payment terms?

Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.

4.Can you make my own brand on the products?

Of course we can. Just send me your logo  we can make it for you.

5.What is our main export market?

America(40.5%):USA, Canada, Argentina, Brazil

Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.

Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.

Others(5.8%).

The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.

The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.

Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.

All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.

To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.

Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
