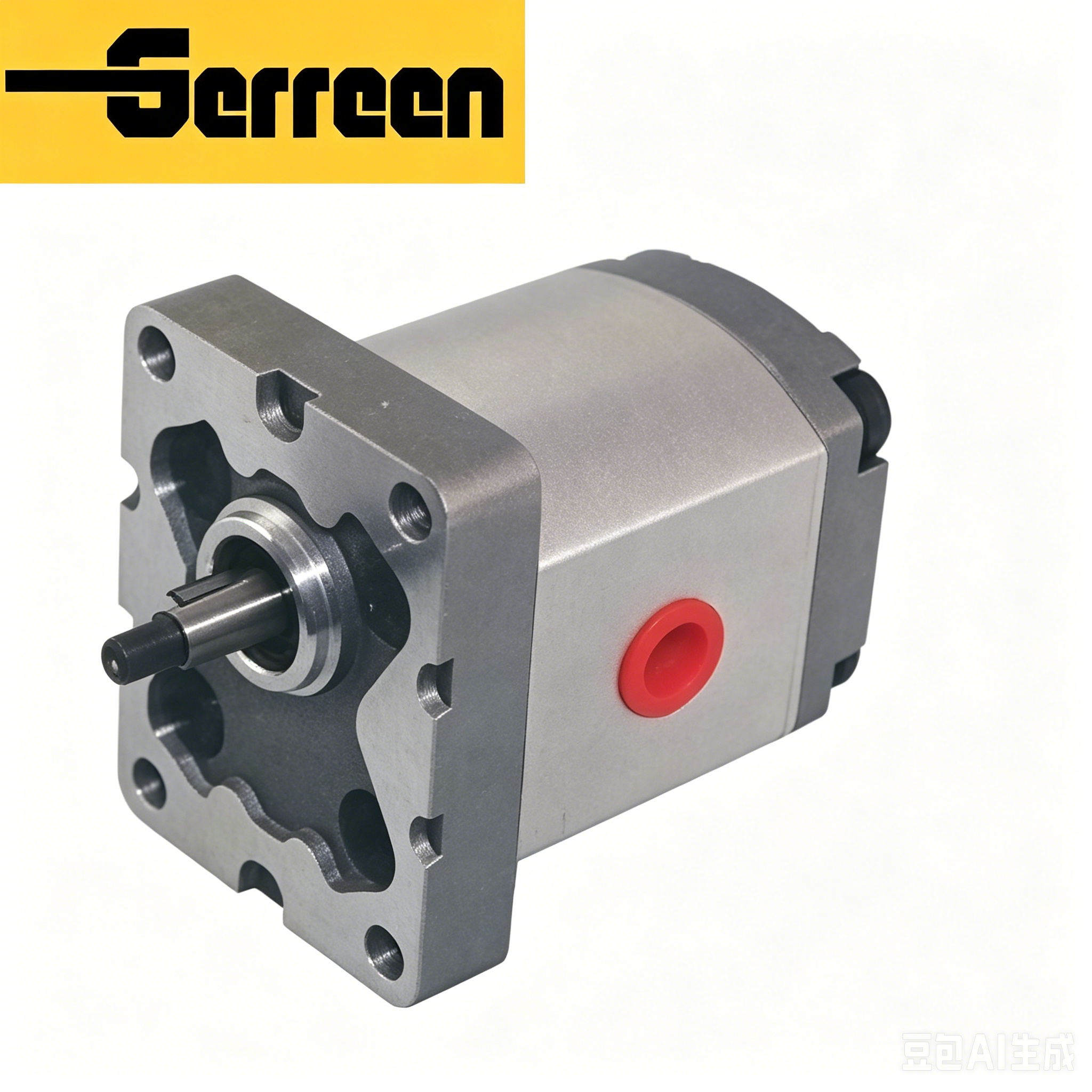

CBD1-F200 Series Gear Pump Gear Pump Image

CBD1-F200 Series Gear Pump

Features and Benefits

• 1. High Working Efficiency

• Precision gear processing reduces internal leakage.

• Delivers stable hydraulic flow and high volumetric efficiency.

• 2. Compact and Lightweight Design

• Small installation size saves equipment space.

• Ideal for compact hydraulic systems and mobile machinery.

• 3. Stable Performance

• Smooth oil delivery with reliable pressure output.

• Suitable for continuous and heavy-duty operations.

• 4. Low Noise and Low Vibration

• Optimized gear structure minimizes operating noise.

• Enhances equipment comfort and stability.

• 5. Long Service Life

• Durable housing and wear-resistant components.

• Excellent resistance to pressure and harsh working environments.

• 6. Easy Installation and Maintenance

• Simple external gear pump structure.

• Convenient for maintenance and replacement of components.

• 7. Wide Compatibility

• Compatible with various hydraulic oils.

• Suitable for different hydraulic systems and machinery applications.

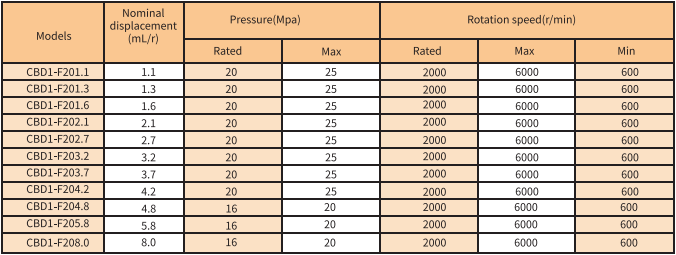

Model Codes

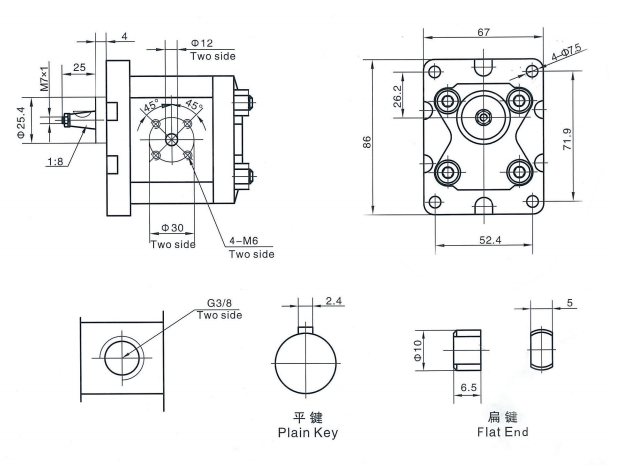

CBD1-F200 Series Gear Pump Installation Dimensions

gear pump.pdf

Applications

• Construction Machinery

• Excavators

• Loaders

• Forklifts

• Road rollers

• Agricultural Equipment

• Tractors

• Harvesters

• Seeders

• Sprayers

• Industrial Hydraulic Systems

• Hydraulic power packs

• Press machines

• Injection molding machines

• Hydraulic machine tools

• Mobile Hydraulic Equipment

• Dump trucks

• Crane trucks

• Municipal engineering vehicles

• Material Handling Systems

• Lift platforms

• Hoisting equipment

• Hydraulic conveyor systems

Packaging & Delivery

CBD1-F200 Series Gear Pump are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

CBD1-F200 Series Gear Pump FAQ

1. What type of pump is the CBD1-F200 Series?

The CBD1-F200 Series is an external hydraulic gear pump designed for hydraulic oil transmission and hydraulic power systems.

2. What are the main advantages of the CBD1-F200 pump?

Its main advantages include compact design, high efficiency, low noise, stable performance, durability, and easy maintenance.

3. What hydraulic fluids are suitable for this pump?

The pump is generally compatible with mineral hydraulic oil, anti-wear hydraulic oil, and other hydraulic fluids with appropriate viscosity.

4. What industries commonly use the CBD1-F200 Series?

It is widely used in construction machinery, agricultural equipment, industrial hydraulic systems, and mobile hydraulic vehicles.

5. Can the pump operate continuously?

Yes, the CBD1-F200 Series is designed for stable continuous operation under correct pressure and maintenance conditions.

6. What should be checked before starting the pump?

Check the hydraulic oil level, oil cleanliness, pipeline connections, pump rotation direction, and ensure there is no air trapped in the hydraulic system.

7. What are the installation requirements for VVS pumps

Standard mounting: ISO 3019/2 or SAE flange

Rotation direction: right-hand (clockwise)

No radial or axial load should be applied to the shaft

Proper installation is critical for performance and durability.

8. What applications are VVS variable vane pumps commonly used in

They are widely used in:

CNC machine tools

Injection molding machines

Hydraulic power units

Industrial automation systems

Press machinery

Certifications & Quality Assurance

CBD1-F200 Series Gear Pump are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.

FAQ

1.How does the variable displacement work?

The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.

2.What's our advantages?

Factory established in 2005;

With a great deal of production experience;

80+ employees become the professional team;

Constant updated ERP system ensure efficiency of work;

Sophisticated equipment ehanced the accuracy of products;

Professional salesmen provide the greast service;

With a large number of famous customers all over the world;

Great after-sales service;

With the long term cooperation with famous logistics and express company in China,provide the better goods service.

3.What is your payment terms?

Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.

4.Can you make my own brand on the products?

Of course we can. Just send me your logo  we can make it for you.

5.What is our main export market?

America(40.5%):USA, Canada, Argentina, Brazil

Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.

Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.

Others(5.8%).

The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.

The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.

Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.

All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.

To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.

Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
