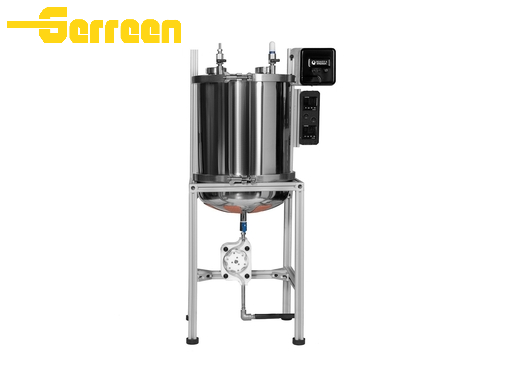

BW‑40LDS Beaker And Wrench Gear Pump

BW40-LDS Gear Pump  Overview

The Beaker & Wrench BW‑40LDS is a precision-engineered, heated positive-displacement gear pump designed for continuous, controlled feeding of high-viscosity crude and distillation feed materials under deep vacuum conditions. Built for integration with the 40L Complete Dosing System, it delivers reliable, pulsation-free flow while maintaining critical vacuum integrity, making it ideal for short-path and wiped-film distillation processes where consistent feed rates and temperature control are essential.

Features and Benefits

• Heated Stainless Steel Construction with Integrated Temperature Control:

  The BW‑40LDS features a corrosion-resistant 316 stainless steel pump body with an integrated heating jacket, paired with a UL-listed PID temperature controller. This design maintains optimal viscosity and prevents material solidification, ensuring smooth flow even with thick crude oils while minimizing thermal stress and contamination risks.
• Seal‑Free Magnetic Drive for Vacuum Compatibility:

  Utilizing a magnetic coupling drive system, the pump eliminates dynamic shaft seals, preventing leaks and maintaining high vacuum integrity down to 1 Torr. This seal-free design not only eliminates common failure points but also ensures contamination-free material transfer, critical for high-purity distillation applications.
• Adjustable Flow Rate Control for Precision Dosing:

  With a maximum speed of 70 RPM and variable speed control, the BW‑40LDS offers precise flow rate adjustment to match distillation process requirements. Operators can dial in consistent feed rates, reducing process variability and improving distillate yield and quality, eliminating the guesswork from manual feeding methods.
• High‑Vacuum Operation and Process Continuity:

  The pump is engineered to operate under deep vacuum conditions, allowing material loading without breaking the vacuum of the distillation system. This continuous operation capability minimizes downtime between batches, significantly improving process efficiency and throughput for high-volume distillation setups.
• Flexible Installation and System Compatibility:

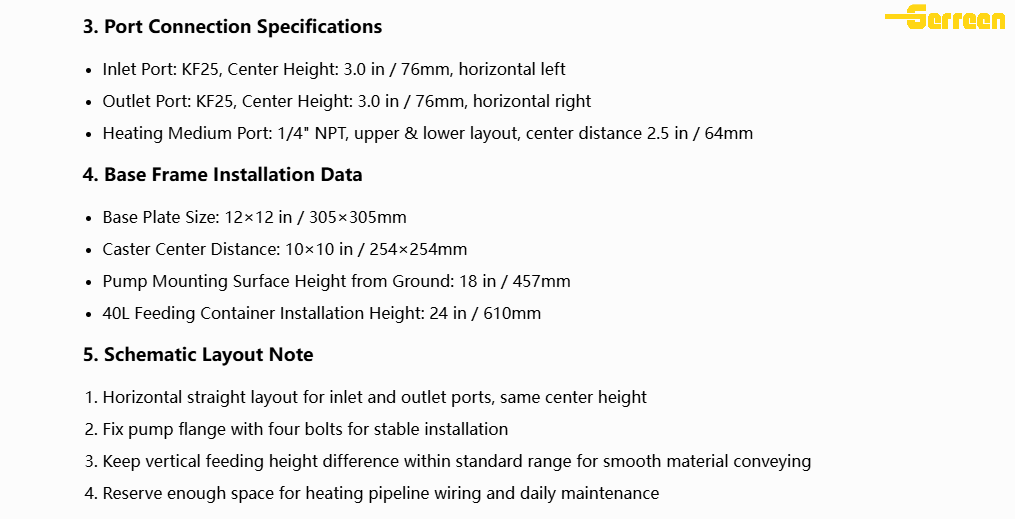

  Featuring KF25 sanitary inlet and outlet ports, the BW‑40LDS is designed for seamless integration with the 40L feed flask and heated transfer lines. Its compact footprint and horizontal mounting orientation ensure compatibility with cramped lab and production environments, while the included heated feed line maintains material temperature throughout the transfer path.
• Durable, Low‑Maintenance Design for Industrial Use:

  Built with heavy-duty components optimized for continuous use, the BW‑40LDS offers reliable performance in demanding production environments. Its robust construction and simplified maintenance requirements, combined with a 1‑year warranty against manufacturing defects, ensure long service life and minimal operational disruptions.

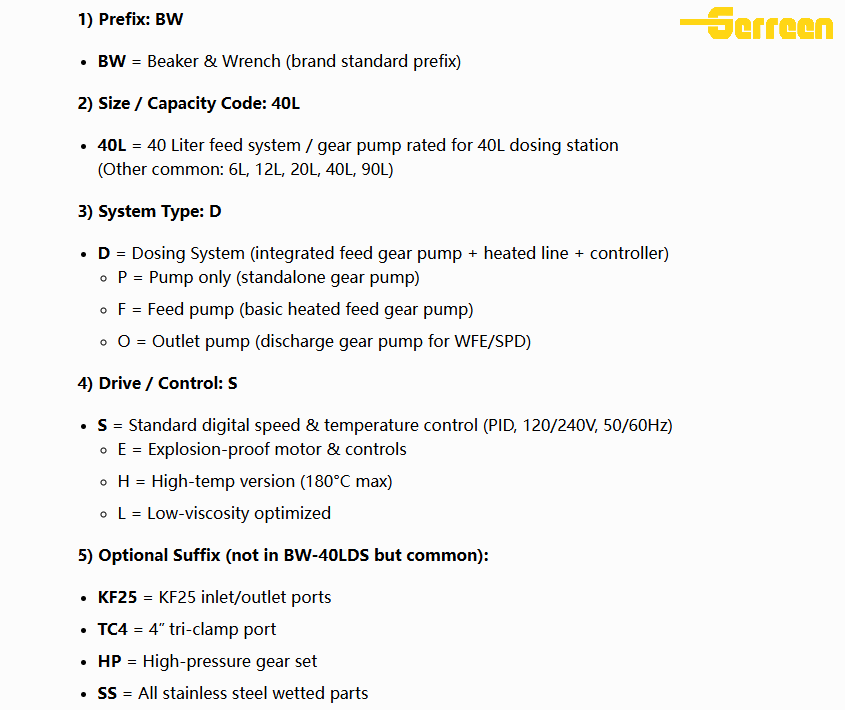

Model Codes

Applications

Packaging & Delivery

BW‑40LDS pumps are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

BW‑40LDS Gear Pump  FAQ

1. What are BW‑40LDS series gear pumps

The BW‑40LDS is a heated, seal‑free magnetic drive positive‑displacement gear pump, purpose‑built for the Beaker & Wrench 40L Dosing System. It is designed to deliver precise, pulsation‑free feed of high‑viscosity crude and distillates under deep vacuum, ensuring process continuity and material integrity in distillation workflows.

2. What makes the BW‑40LDS different from other standard gear pumps

4. Can BW‑40LDS pumps replace other brands

5. What fluids is suitable for BW‑40LDS gear pumps

7. Do you provide OEM or customized services

Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.

8. How can I get a quotation quickly

Please provide the following details:

• Model or displacement

• Working pressure

• Speed

• Quantity
  We will reply within 12 hours with a competitive quotation.




Certifications & Quality Assurance

BW‑40LDS pumps are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.

FAQ

1.How does the variable displacement work?

The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.

2.What's our advantages?

Factory established in 2005;

With a great deal of production experience;

80+ employees become the professional team;

Constant updated ERP system ensure efficiency of work;

Sophisticated equipment ehanced the accuracy of products;

Professional salesmen provide the greast service;

With a large number of famous customers all over the world;

Great after-sales service;

With the long term cooperation with famous logistics and express company in China,provide the better goods service.

3.What is your payment terms?

Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.

4.Can you make my own brand on the products?

Of course we can. Just send me your logo  we can make it for you.

5.What is our main export market?

America(40.5%):USA, Canada, Argentina, Brazil

Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.

Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.

Others(5.8%).

The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.

The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.

Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.

All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.

To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.

Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
